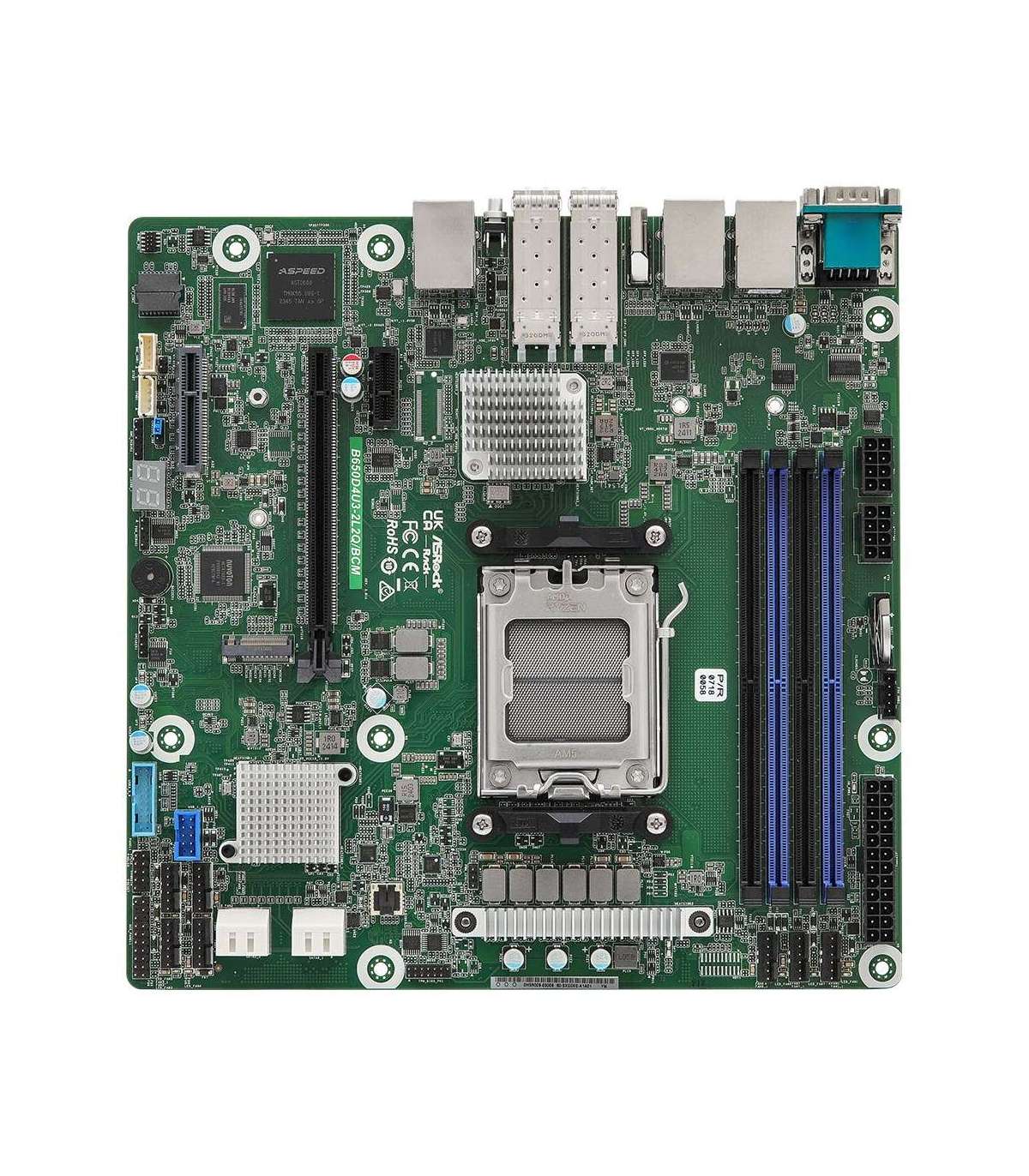

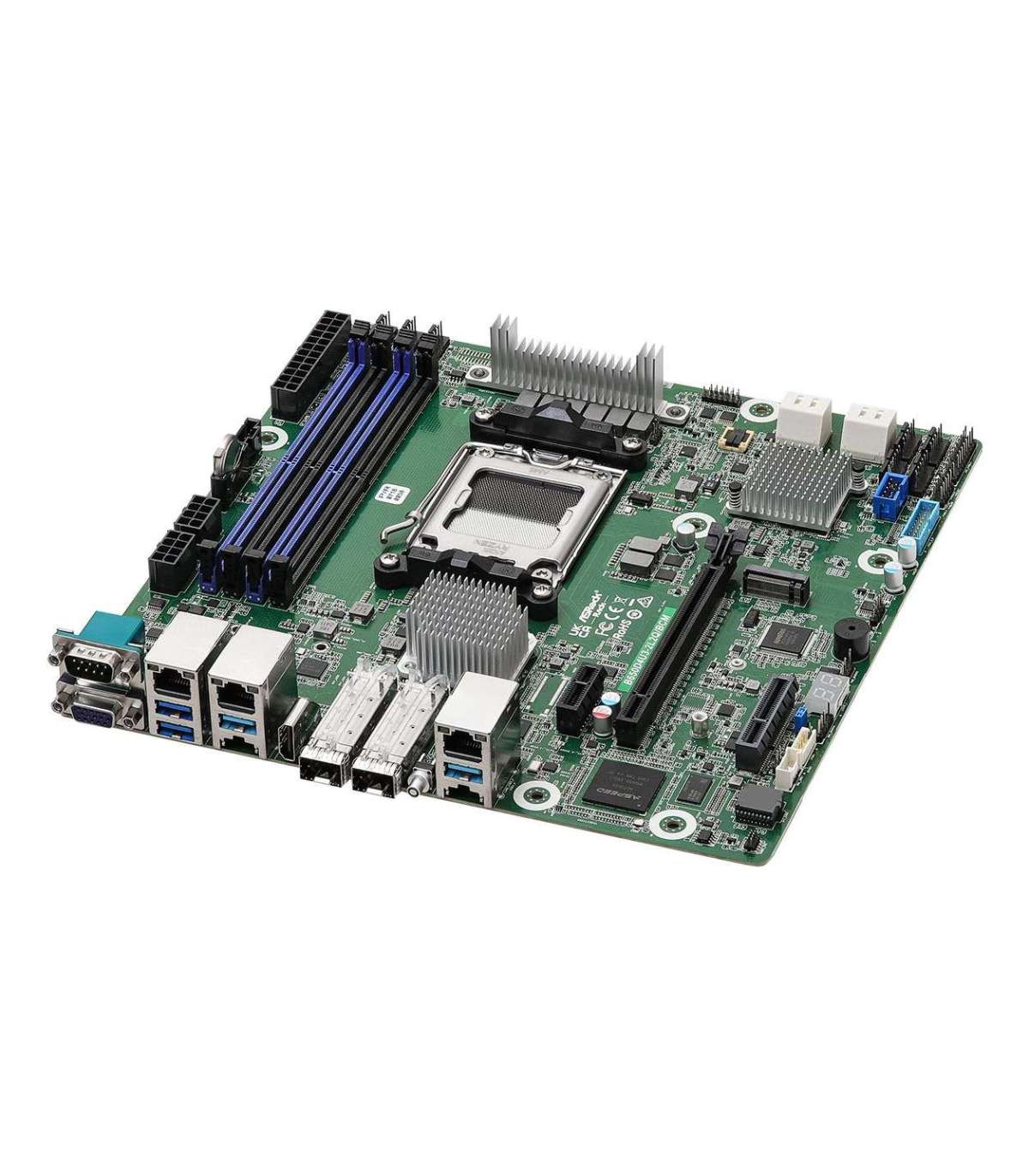

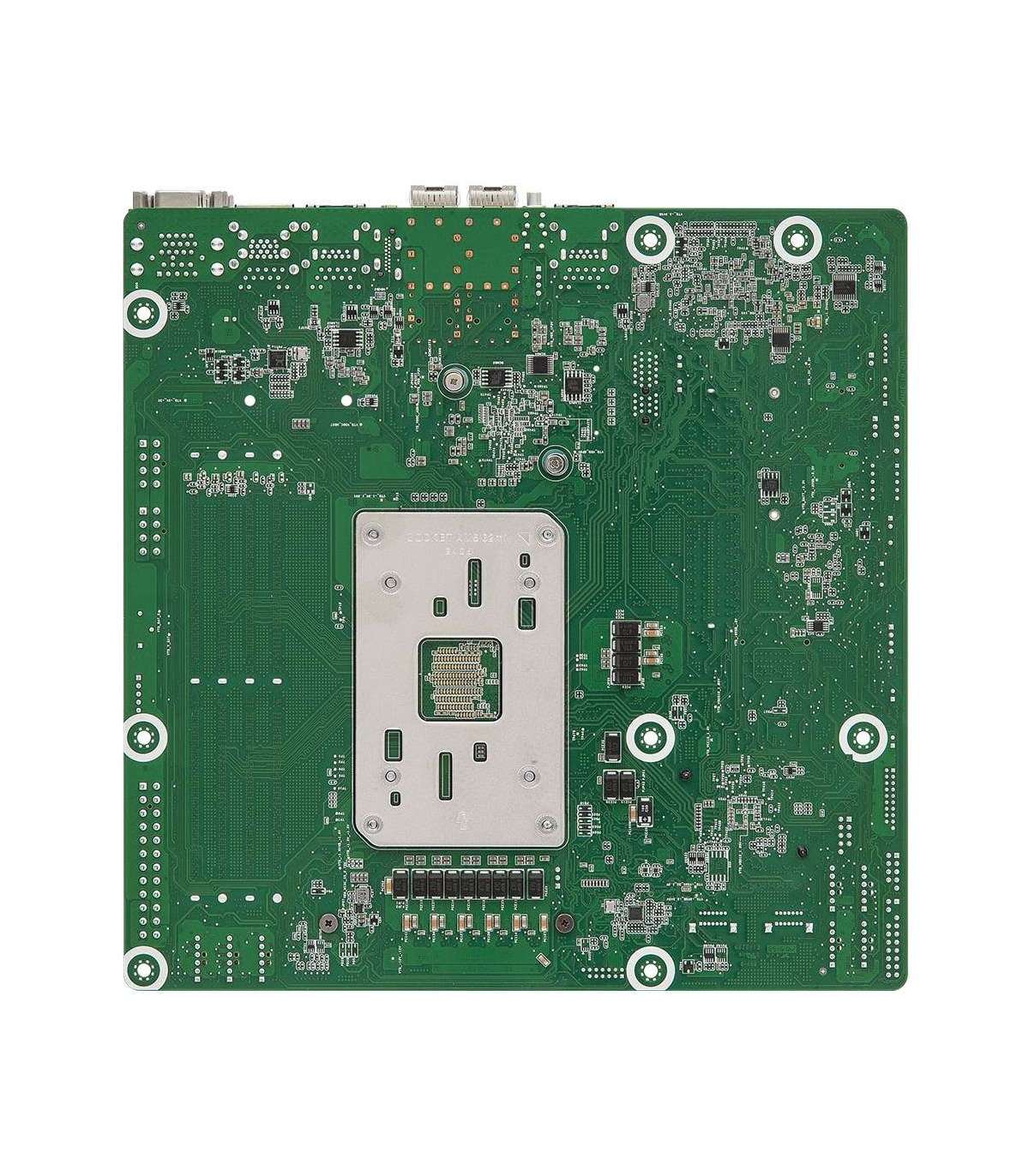

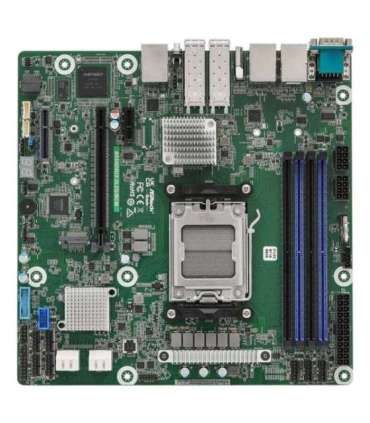

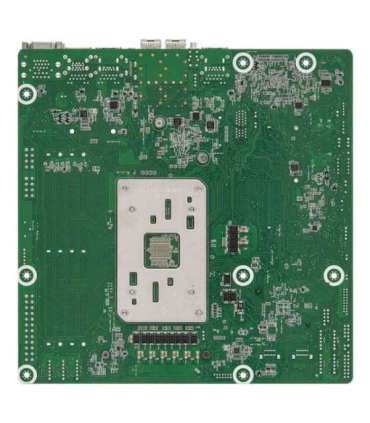

Asrock B650D4U3-2L2Q/BCM motherboard AMD B650 Express Socket AM5 micro ATX

Lisainfo

Depth

244 mm

Laius

244 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 90%

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

No

Component for

Server

Processor manufacturer

AMD

On-board graphics card model

Aspeed AST2600

Maximum internal memory

48 GB

Motherboard chipset

AMD B650 Express

HDMI ports quantity

1

USB 2.0 connectors

1

Processor socket

Socket AM5

Compatible processor series

AMD EPYC 4004
AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Supported memory clock speeds

3600
5600

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

BIOS type

UEFI

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

Non-ECC

PC health monitoring

CPU
Fan
Voltage

Number of SATA III connectors

4

TPM connector

Yes

Clear CMOS jumper

Yes

Supported memory clock speed (max)

5600 MHz

EPS power connector (8-pin)

Yes

Serial port headers

1

PCI Express x4 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

Memory voltage

1.1 V

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

IPMI LAN (RJ-45) port

Yes
