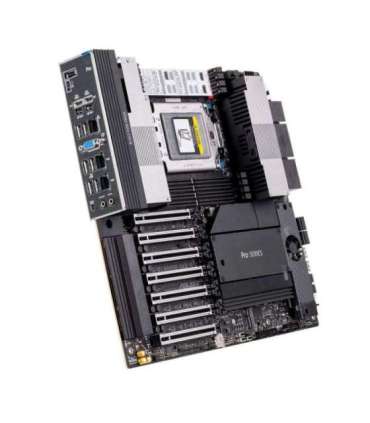

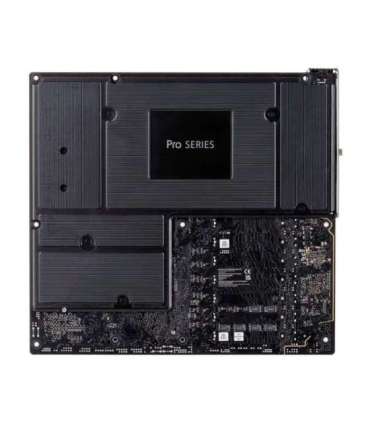

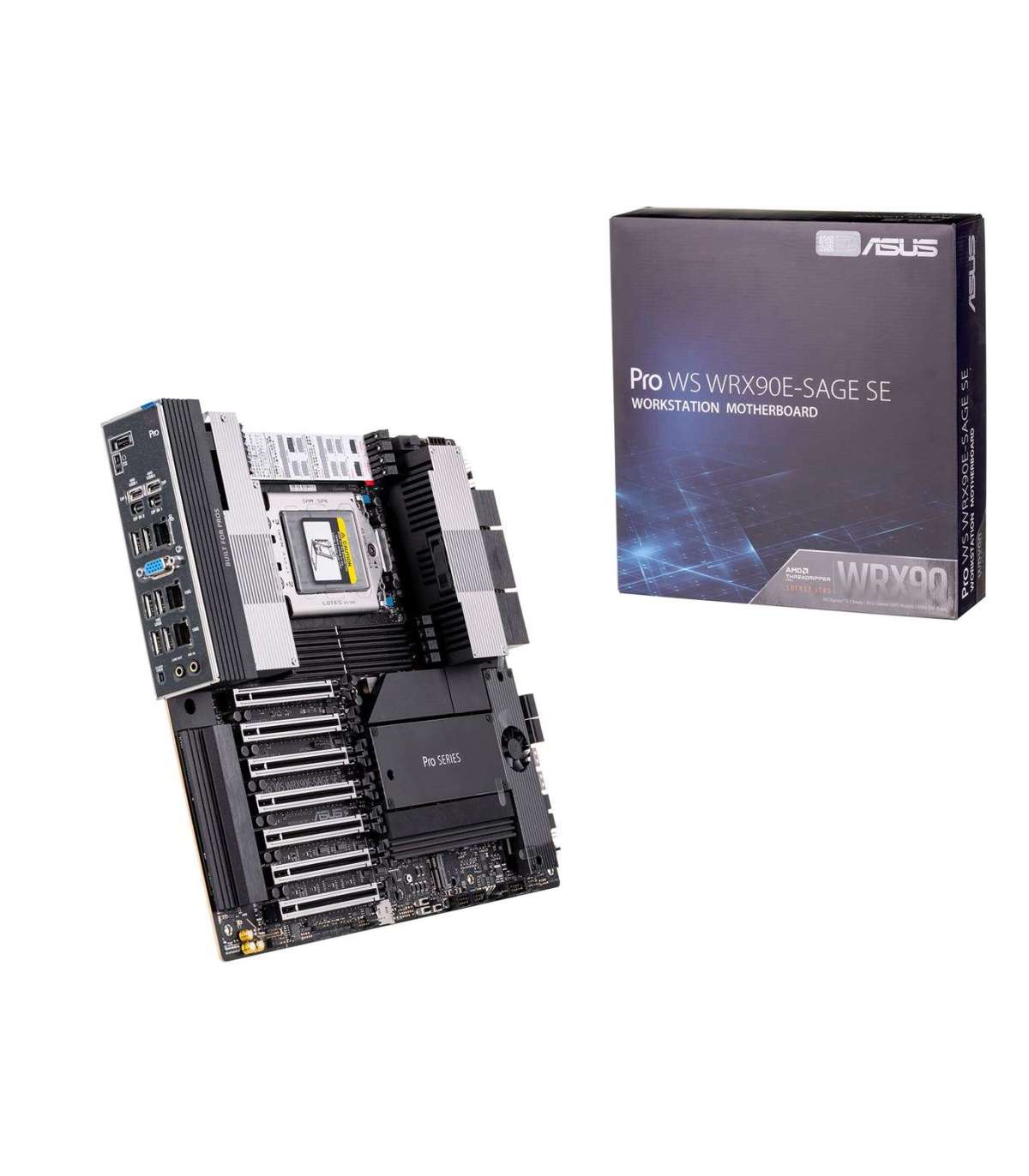

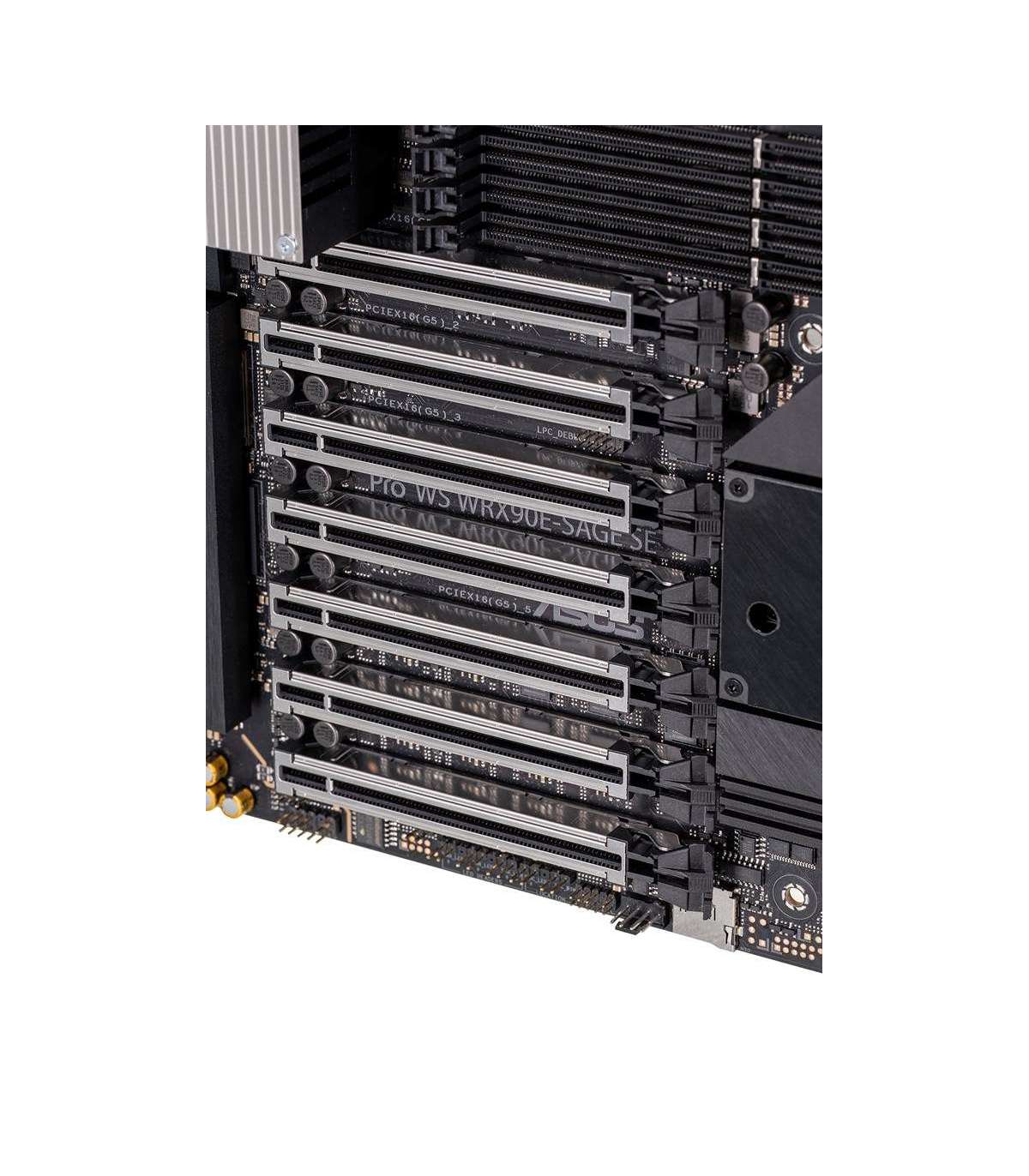

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB motherboard for workstations

Lisainfo

Depth

330 mm

Laius

305 mm

Ethernet LAN

Yes

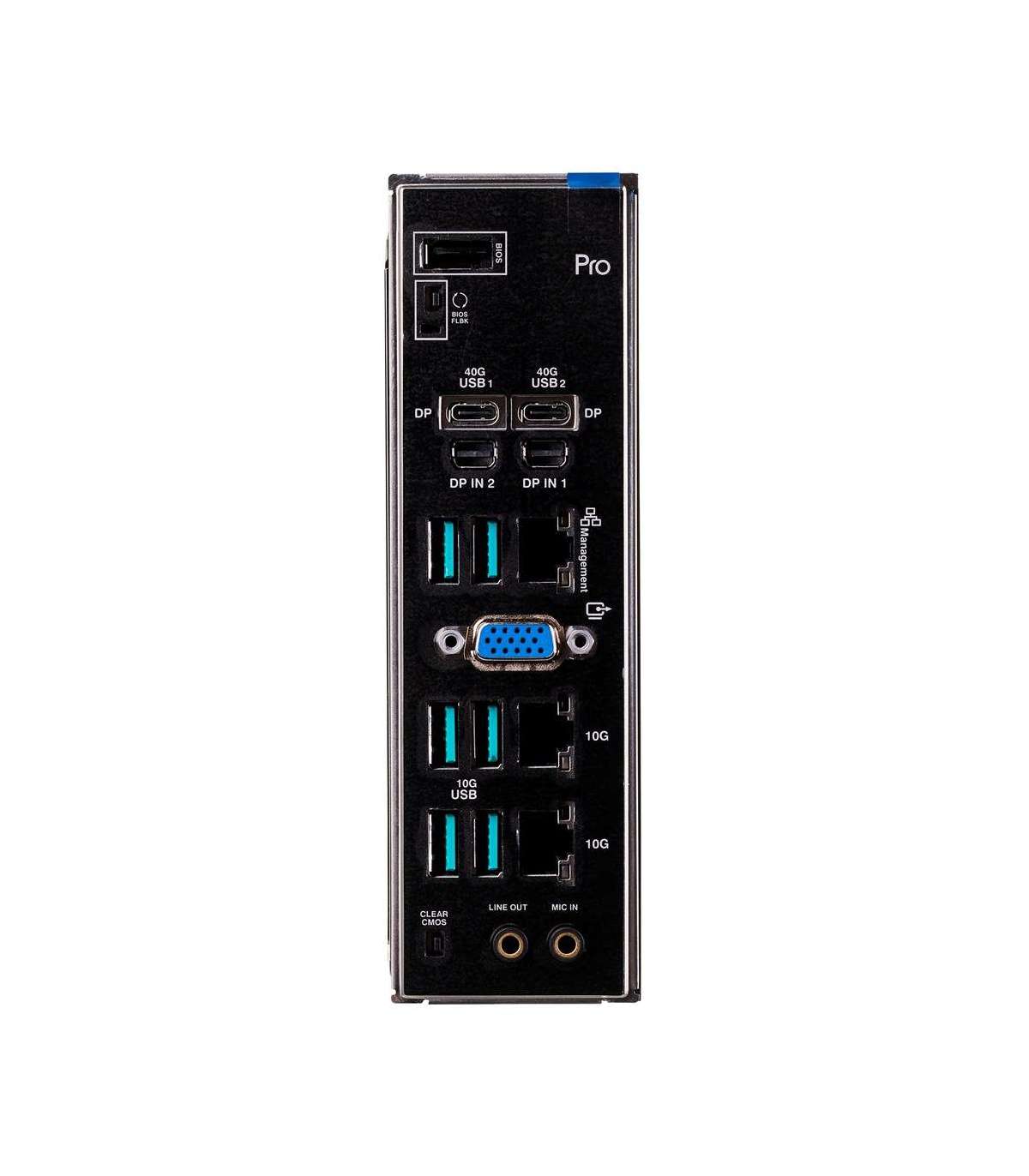

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 10 x64
Windows 11

Warnings

Do not open or disassemble the motherboard.
The motherboard may contain electronic components hazardous to health - avoid direct contact.
Use only in a dry and well-ventilated area.

USB 2.0 ports quantity

1

Wi-Fi

No

Component for

Workstation

Ethernet interface type

10 Gigabit Ethernet
Fast Ethernet
Gigabit Ethernet

Processor manufacturer

AMD

USB connector type

USB Type-A
USB Type-C

Motherboard chipset

AMD WRX90

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

Memory channels

Octa-channel

ECC

Yes

Audio chip

Realtek ALC1220P

USB4 Gen 3x2 ports quantity

2

USB 2.0 connectors

2

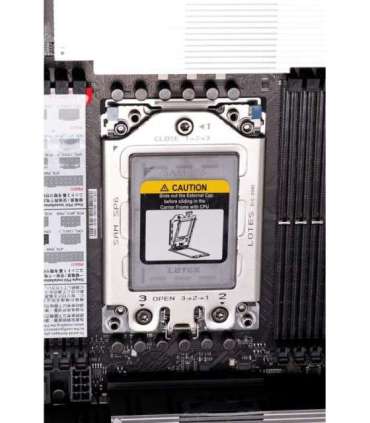

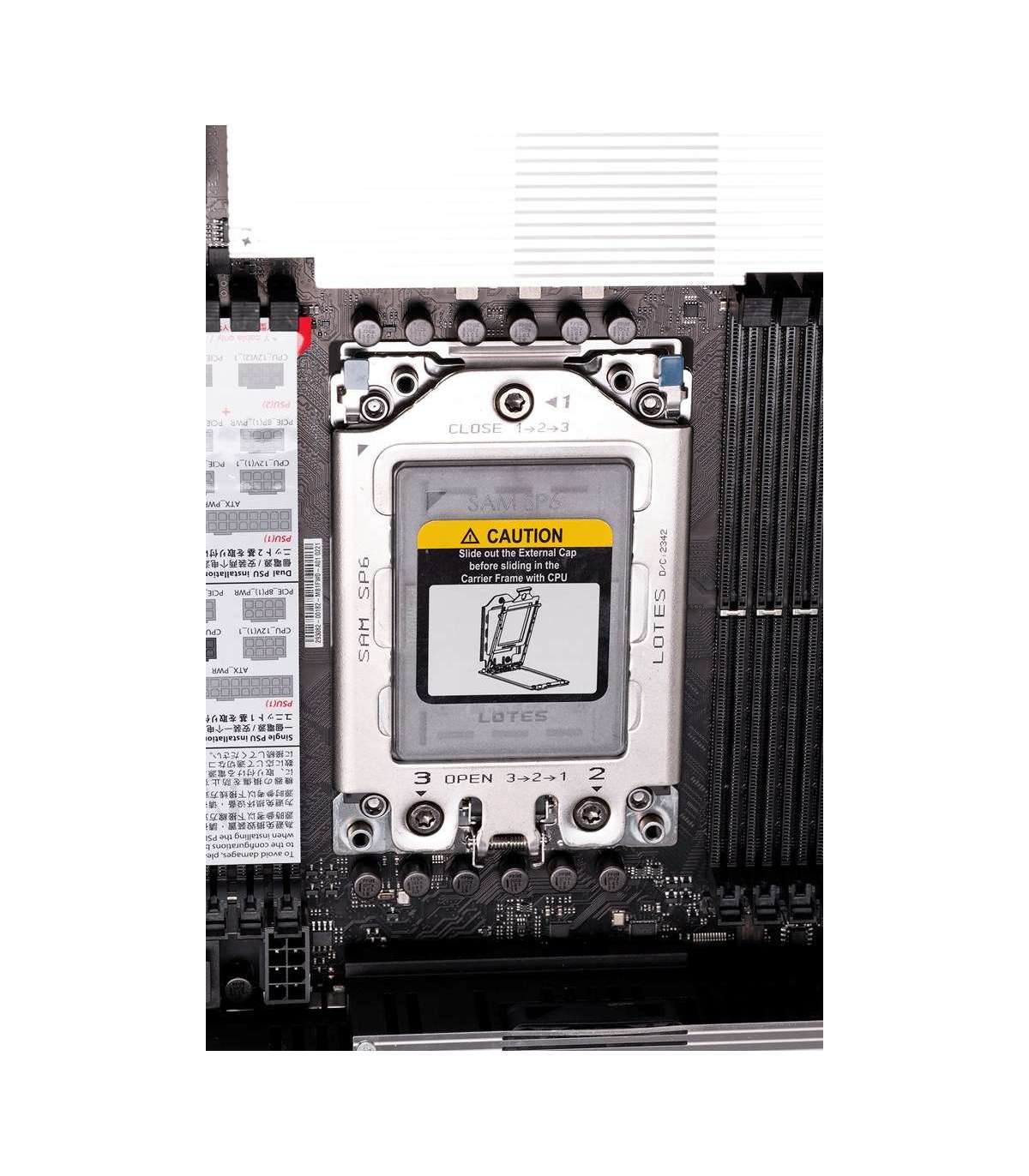

Processor socket

Socket sTR5

Motherboard form factor

EEB

Motherboard chipset family

AMD

Memory slots type

DIMM

Number of memory slots

8

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

5

Front panel audio connector

Yes

Number of COM connectors

1

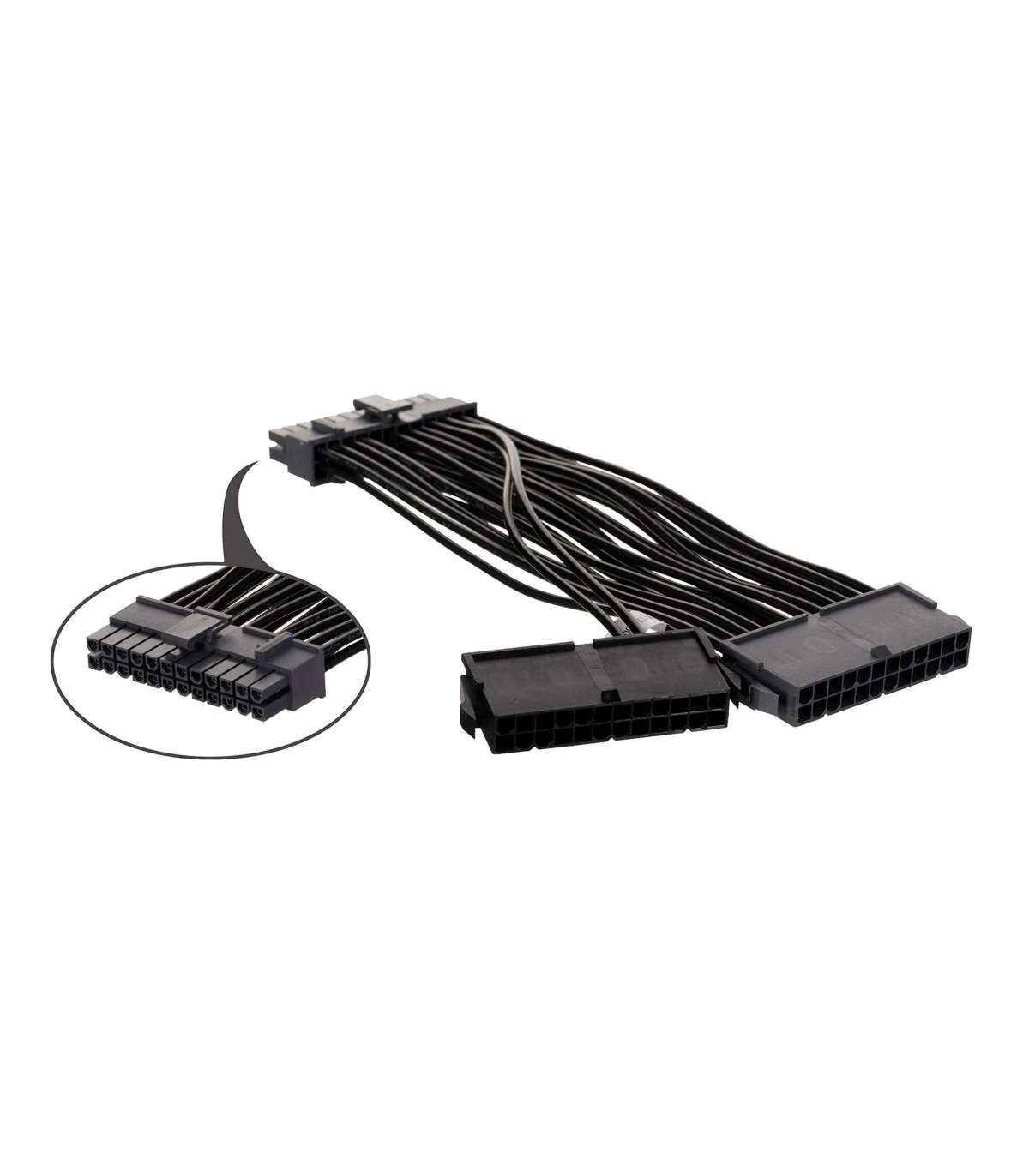

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

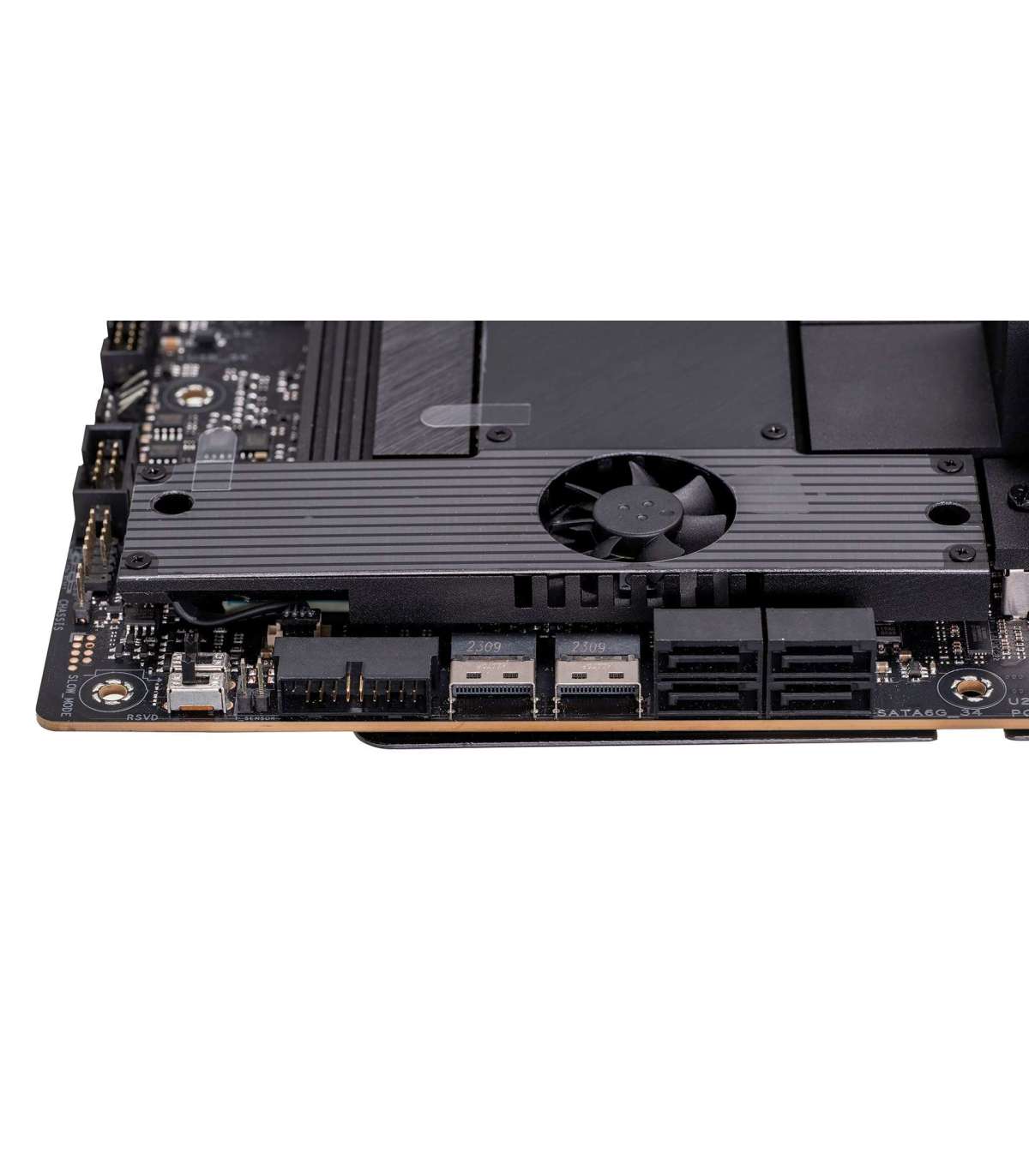

Supported storage drive interfaces

M.2, SATA III, SlimSAS

VGA (D-Sub) ports quantity

1

Number of SATA III connectors

4

Chassis intrusion connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

Number of M.2 (M) slots

4

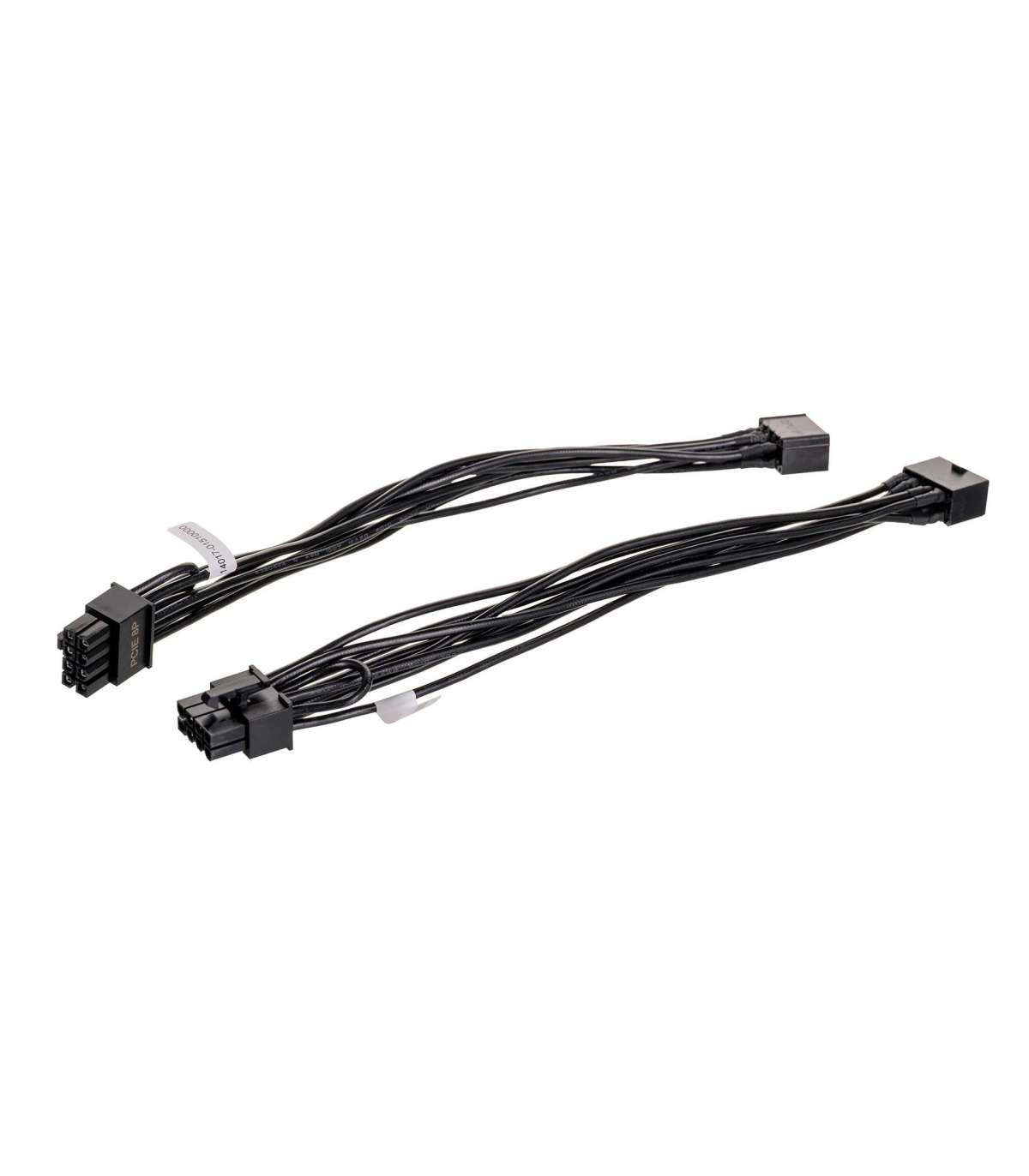

EPS power connector (8-pin)

Yes

Number of storage drives supported

10

RAID support

Yes

Clear CMOS button

Yes

USB 3.2 Gen 2x2 connectors

1

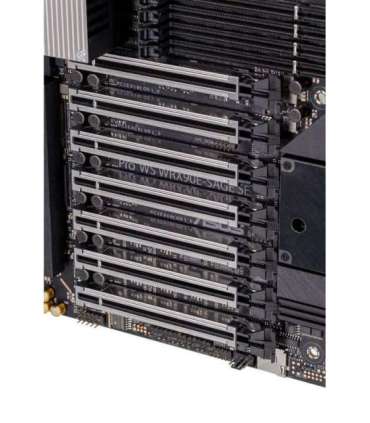

PCI Express x16 (Gen 5.x) slots

7

BIOS memory size

256 Mbit

Mini DisplayPorts quantity

2
