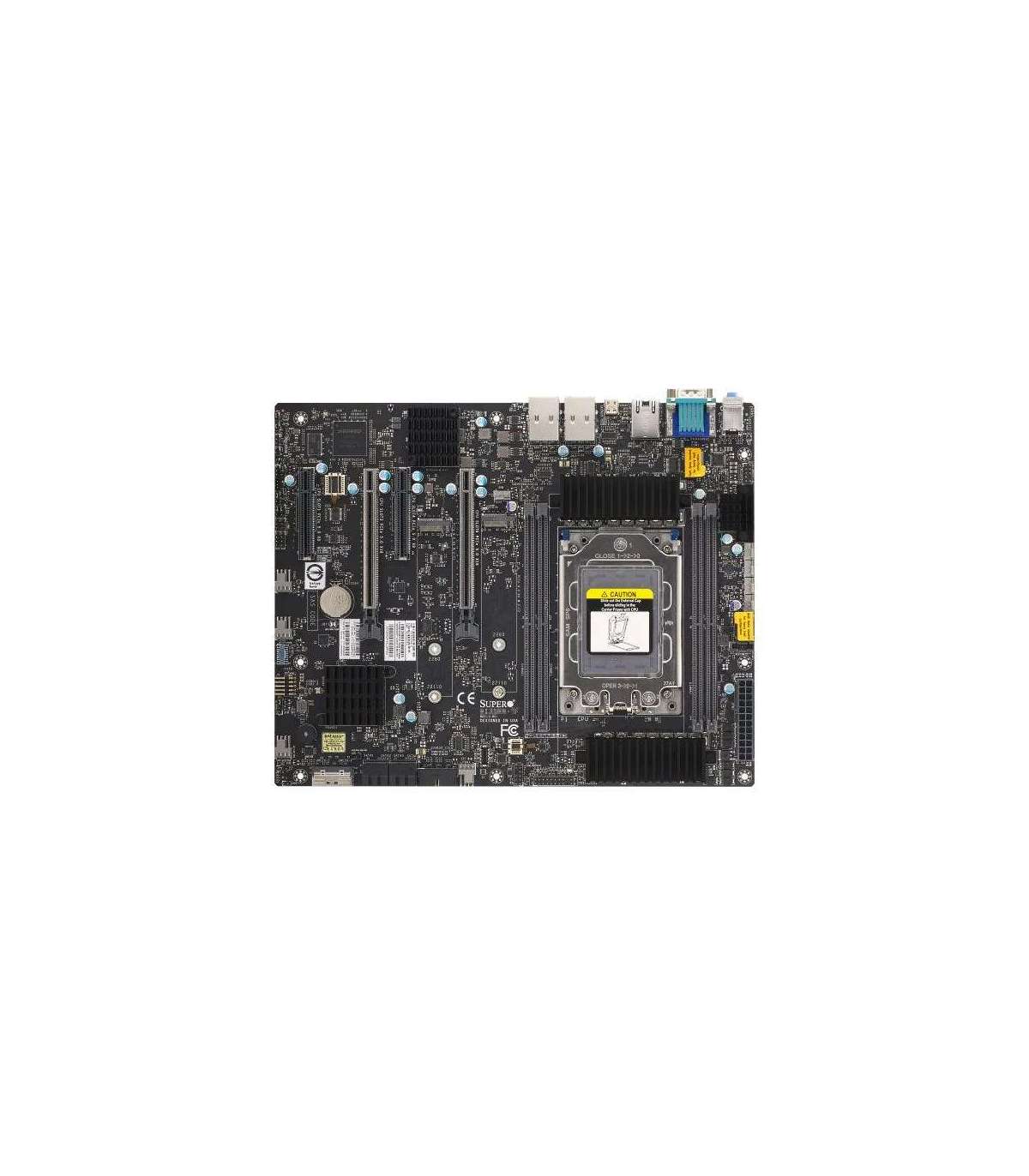

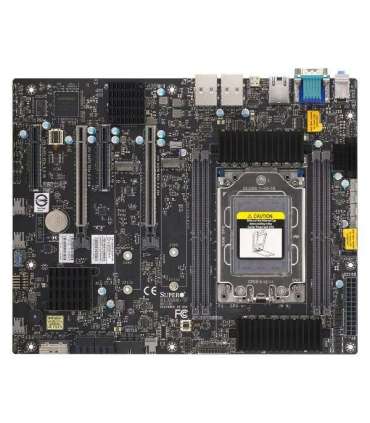

Supermicro MBD-H13SRA-F AMD TRX50 Socket sTR5 ATX

Lisainfo

Depth

243.8 mm

Laius

304.8 mm

Storage temperature (T-T)

0 - 50 °C

Operating temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

10 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Wi-Fi

No

Component for

Workstation

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

4 TB

Motherboard chipset

AMD TRX50

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Audio chip

Realtek ALC888S

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

2

Processor socket

Socket sTR5

Compatible processor series

AMD Ryzen Threadripper 1000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

5.1 channels

Supported memory clock speeds

5200 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Broadcom BCM5720

Number of chassis fan connectors

7

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

Supported memory clock speed (max)

5200 MHz

RAID support

Yes

Supported memory module capacities

16GB
24GB
32GB
48GB
64GB
96GB
128GB
256GB
512GB
1024GB

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

2

COM ports quantity

1

BIOS memory size

32 Mbit

Memory voltage

1.1 V

ACPI version

6.5

System Management BIOS (SMBIOS) version

3.6

IPMI LAN (RJ-45) port

Yes
