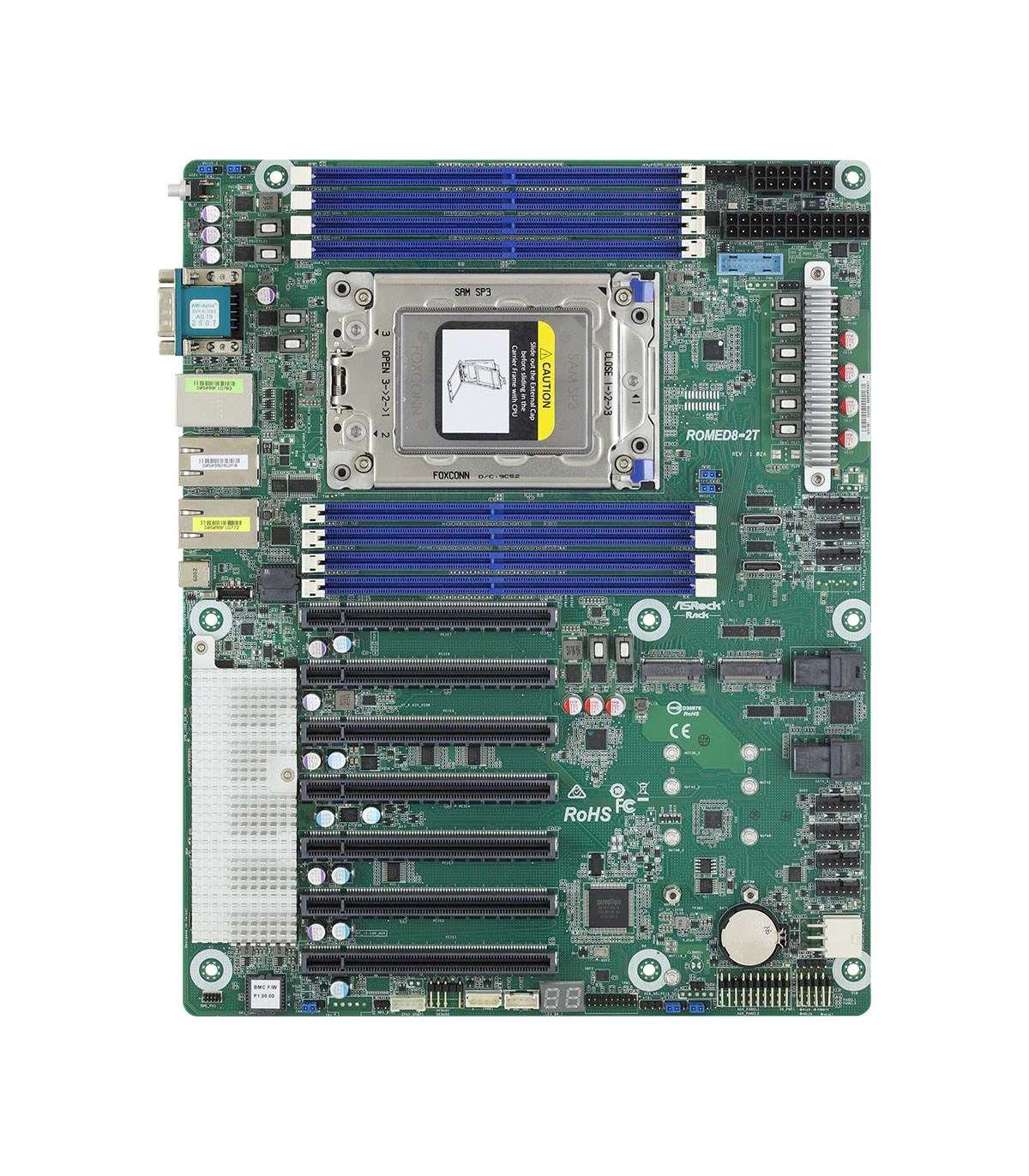

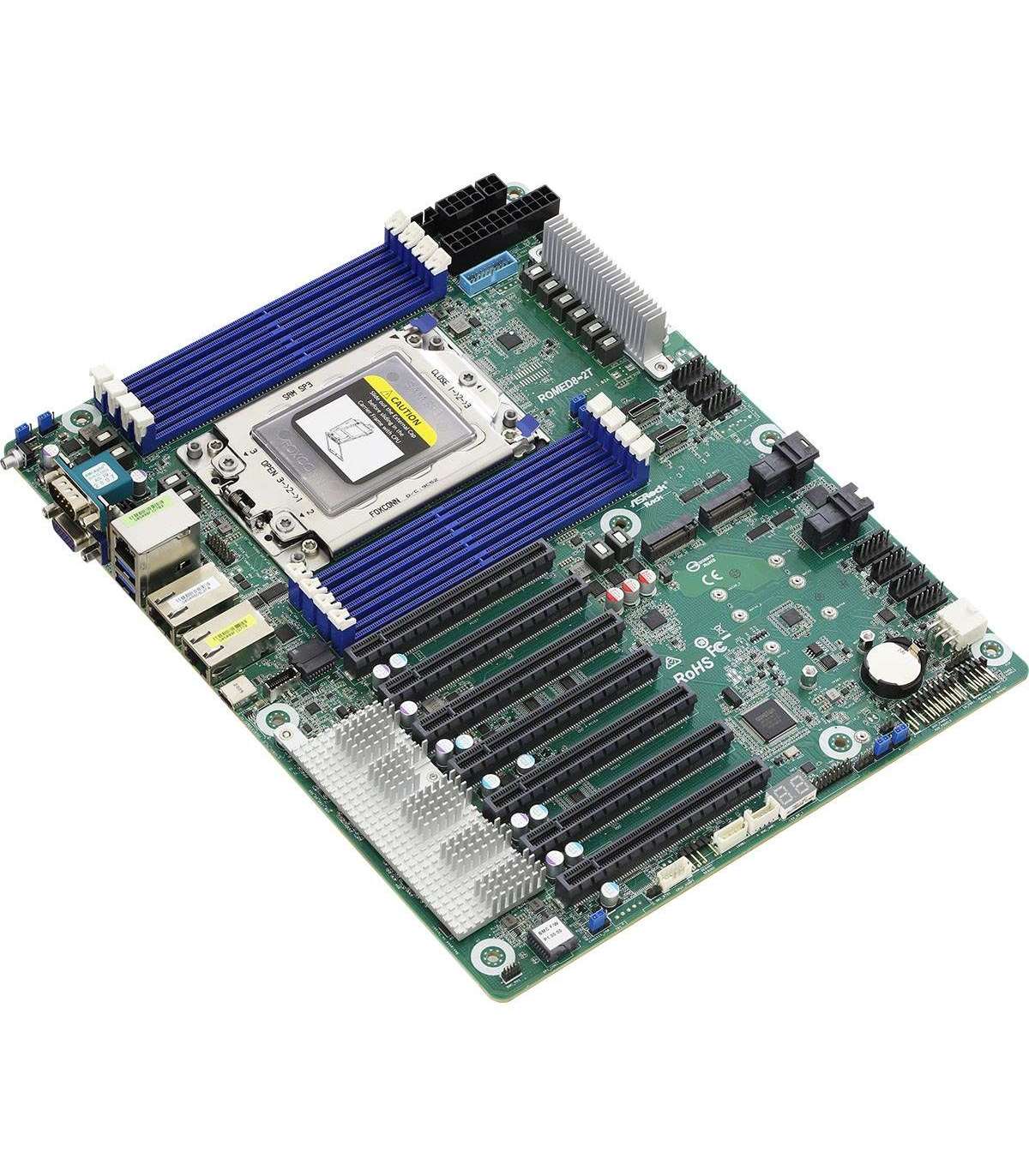

Asrock ROMED8-2T motherboard LGA 4094 ATX

Lisainfo

Videokaardi mudel

AST2500

Depth

244 mm

Kaal

1.69 kg

Kõrgus

70 mm

Laius

305 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

Compliance certificates

RoHS

Harmonized System (HS) code

84733020

Sustainability certificates

RoHS

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Wake-on-LAN ready

Yes

Wi-Fi

No

Ethernet interface type

10 Gigabit Ethernet

Processor manufacturer

AMD

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Memory channels

Octa-channel

Processor socket

LGA 4094

Compatible processor series

AMD EPYC

Motherboard form factor

ATX

Supported memory clock speeds

2400
2666
2933
3200 MHz

Memory slots type

DIMM

Number of memory slots

8

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8211E

Number of chassis fan connectors

7

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

AMI

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

Maximum number of SMP processors

1

Number of SATA III connectors

8

TPM connector

Yes

Supported storage drive types

HDD & SSD

PCI Express x16 (Gen 4.x) slots

7

Number of M.2 (M) slots

2

Supported memory module capacities

8GB
16GB
32GB
64GB
128MB
256MB

Power fan connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

COM ports quantity

1

BIOS memory size

256 Mbit

Memory voltage

1.2 V

ACPI version

2.0

System Management BIOS (SMBIOS) version

2.8
