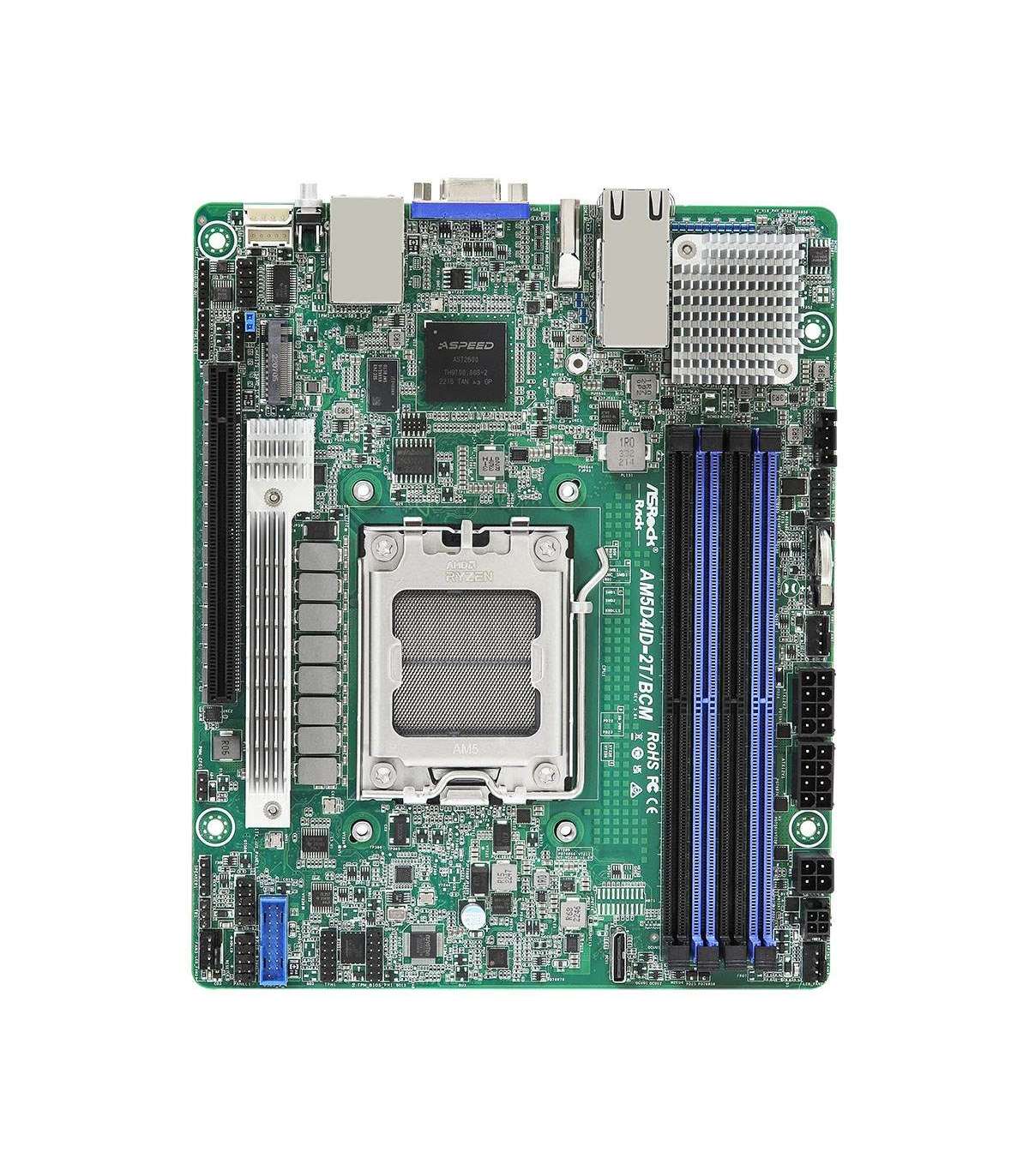

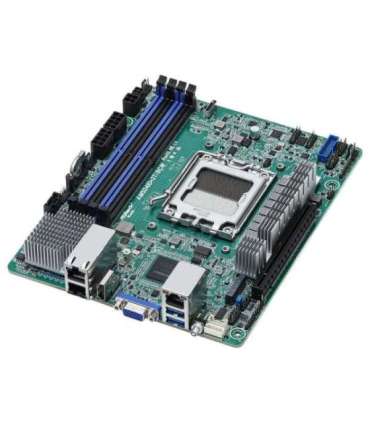

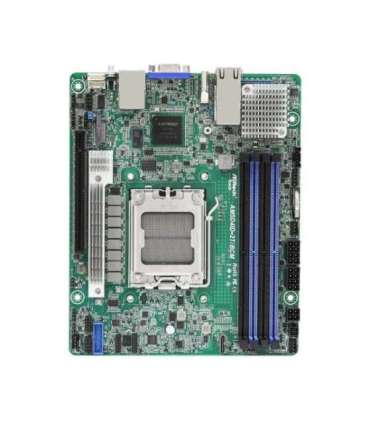

Asrock AM5D4ID-2T/BCM motherboard KNOLL3 X300 Socket AM5 mini ITX

Lisainfo

Videokaardi mudel

AST2600

Depth

208.3 mm

Laius

170.2 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Linux operating systems supported

Ubuntu 22.04

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Component for

Server

Ethernet interface type

10 Gigabit Ethernet

Processor manufacturer

AMD

Motherboard chipset

KNOLL3 X300

HDMI ports quantity

1

Graphics card family

ASPEED

Processor socket

Socket AM5

Compatible processor series

AMD EPYC 4004
AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

mini ITX

Motherboard chipset family

AMD

Supported memory clock speeds

3600
5200

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Broadcom BCM57416

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC & Non-ECC

12V power connector

Yes

Chassis intrusion connector

Yes

TPM connector

Yes

Supported storage drive types

SSD

Number of M.2 (M) slots

1

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

5200 MHz

Audio connector

Yes

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

Memory voltage

1.1 V

ACPI version

5.1

System Management BIOS (SMBIOS) version

2.3

IPMI LAN (RJ-45) port

Yes
