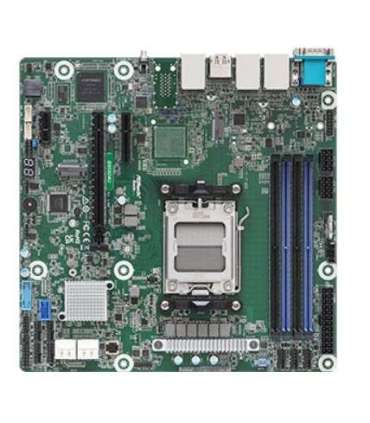

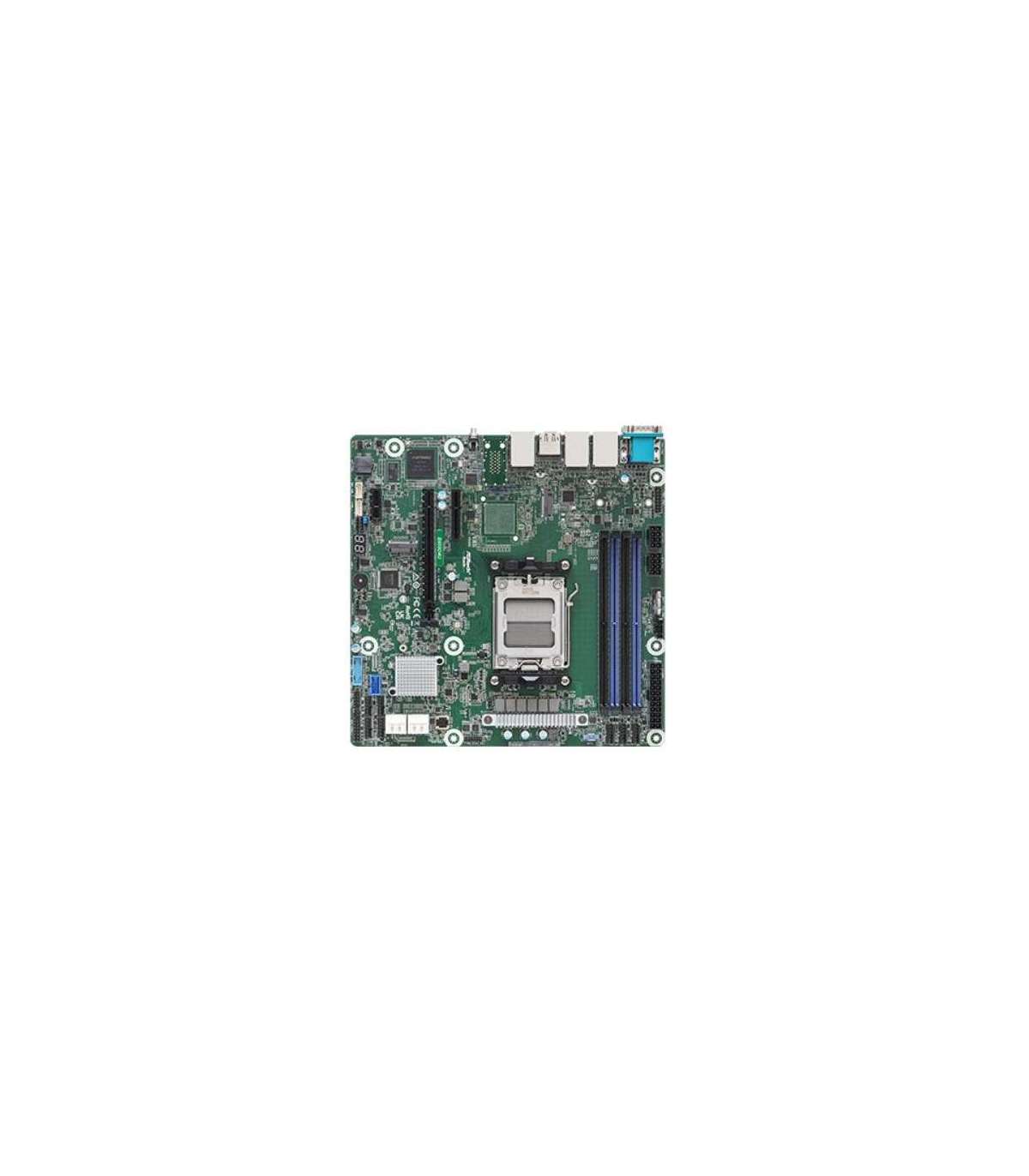

Asrock B650D4U motherboard AMD B650 Express Socket AM5 micro ATX

Lisainfo

Depth

243.8 mm

Laius

243.8 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

No

Component for

Server

Processor manufacturer

AMD

On-board graphics card model

Aspeed AST2600

Maximum internal memory

32 GB

Motherboard chipset

AMD B650 Express

HDMI ports quantity

1

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen™ 3
AMD Ryzen™ 5

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Supported memory clock speeds

3600
5200

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC & Non-ECC

Maximum number of SMP processors

1

PC health monitoring

CPU
Fan
Voltage

Number of SATA III connectors

4

TPM connector

Yes

RAID levels

0
1
10

Supported memory clock speed (max)

5200 MHz

EPS power connector (8-pin)

Yes

RAID support

Yes

PCI Express x4 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

Memory voltage

1.1 V

Serial ports quantity

1

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

IPMI LAN (RJ-45) port

Yes
