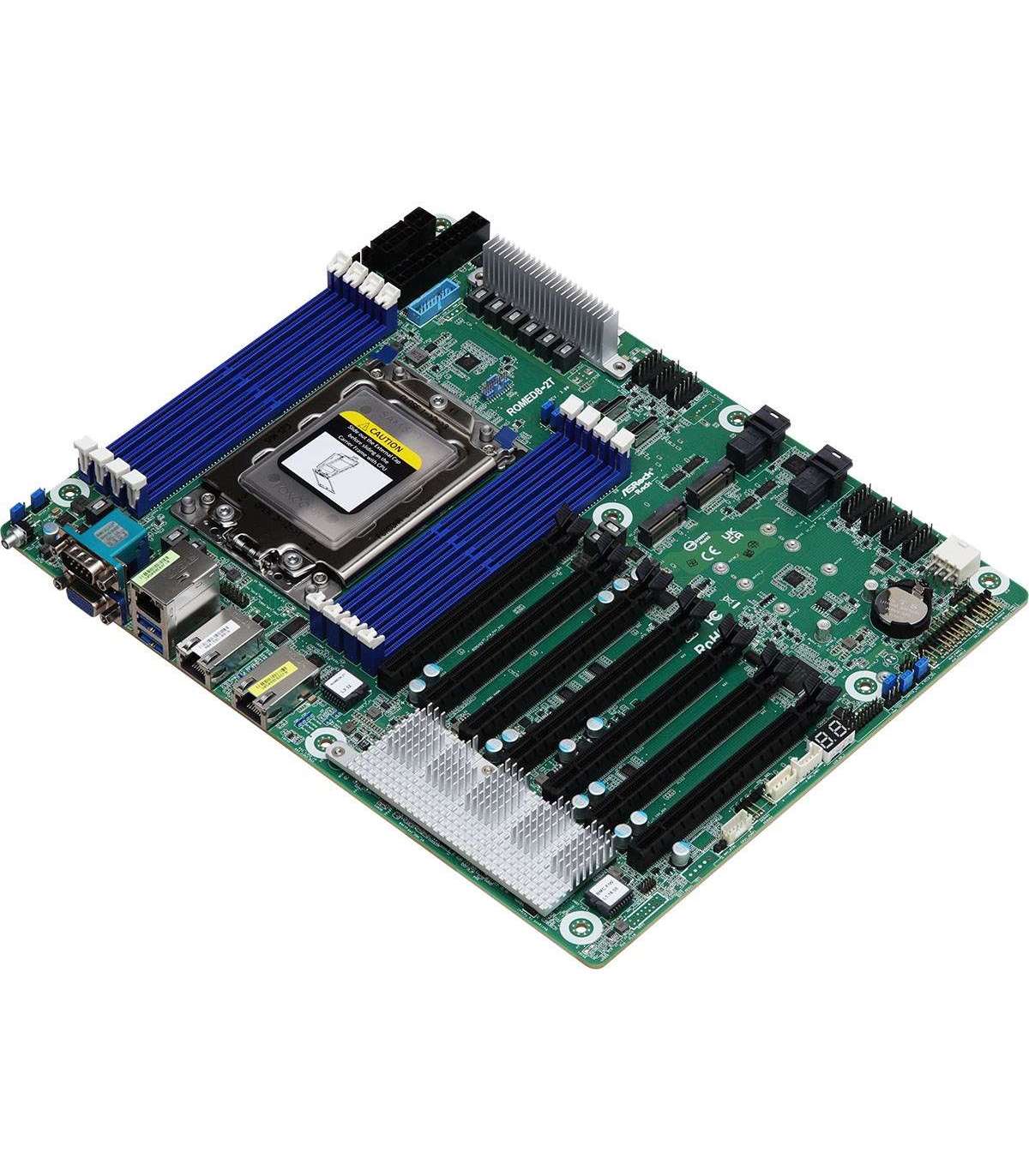

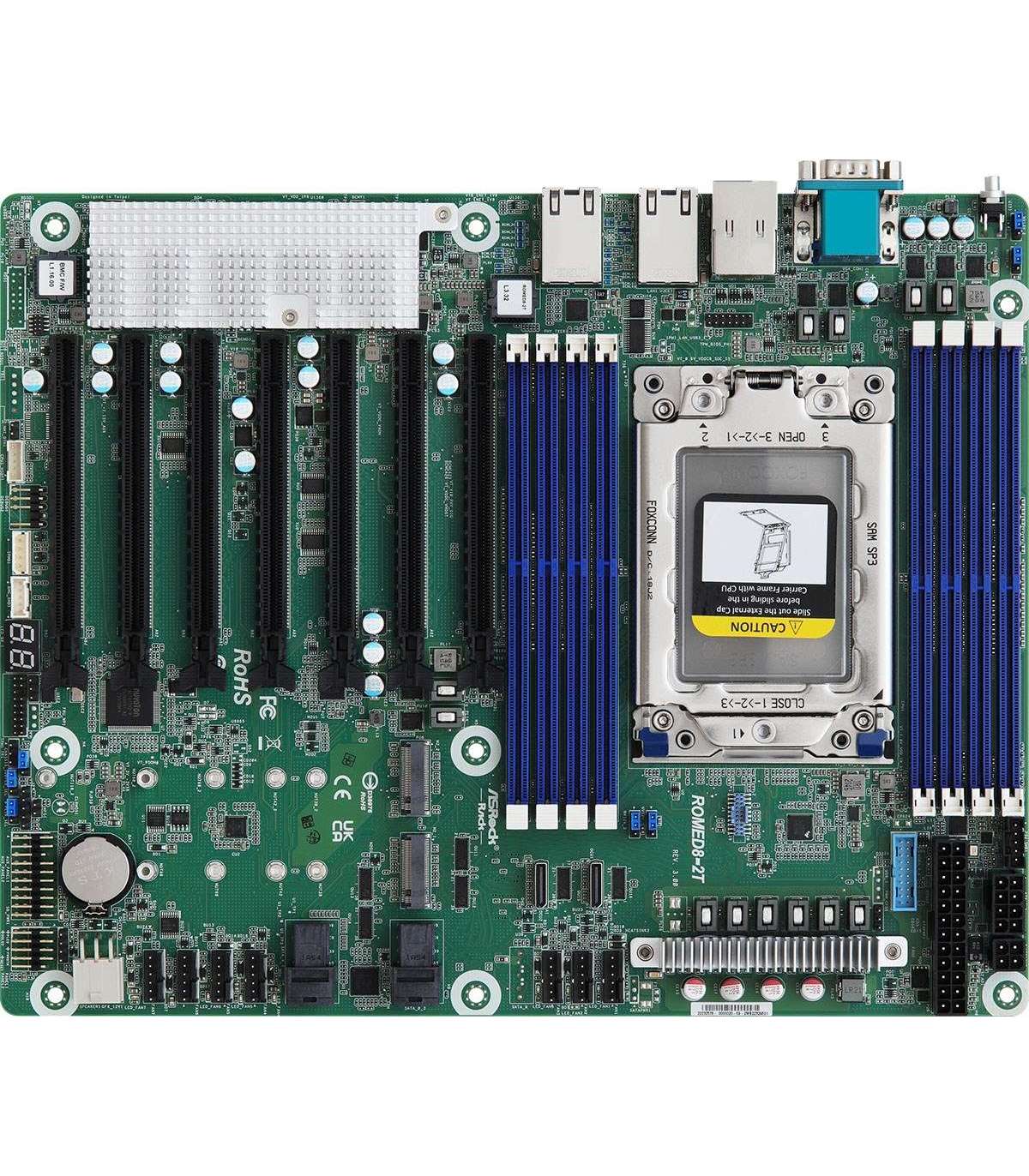

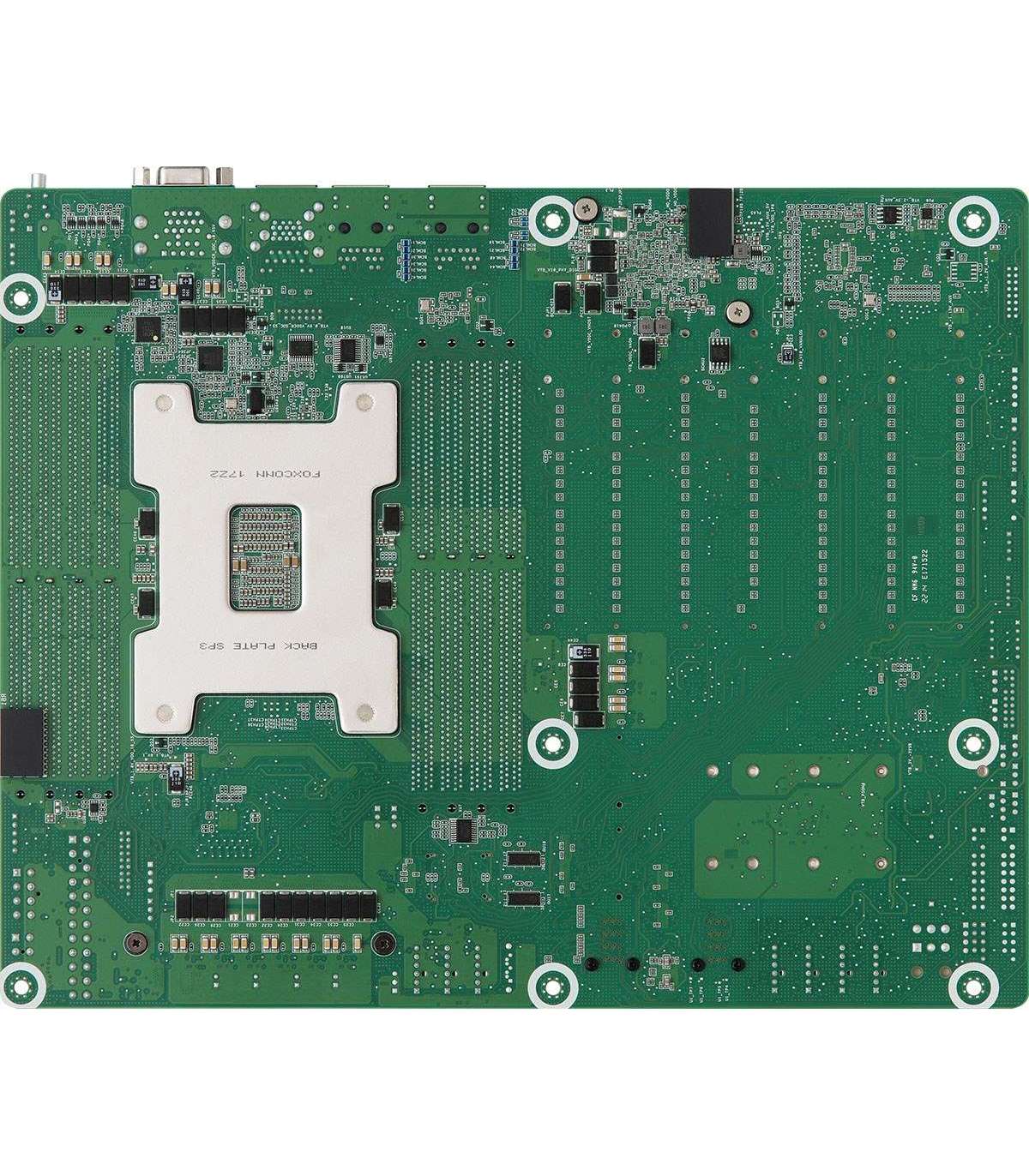

Asrock ROMED8-2T/BCM motherboard Socket SP3 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 90%

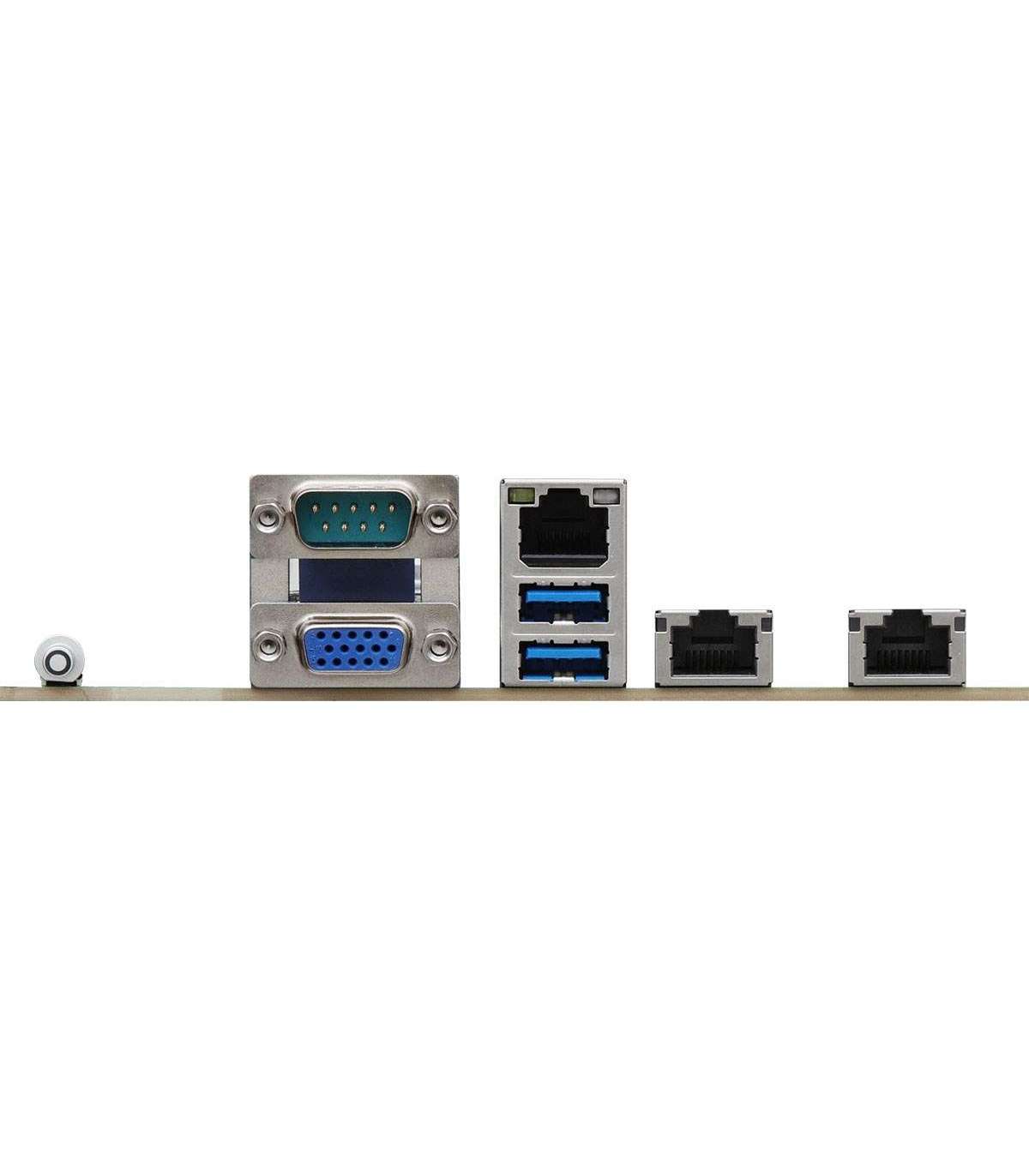

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Wi-Fi

No

Component for

Server

Processor manufacturer

AMD

On-board graphics card model

Aspeed AST2500

Processor socket

Socket SP3

On-board graphics card memory

512 MB

Compatible processor series

AMD EPYC 7003

Motherboard form factor

ATX

Motherboard chipset family

AMD

Memory slots type

DIMM

Number of memory slots

8

Supported memory types

DDR4-SDRAM

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

Maximum number of SMP processors

1

Number of SATA III connectors

10

TPM connector

Yes

PCI Express x16 (Gen 4.x) slots

7

EPS power connector (8-pin)

Yes

BIOS memory size

32 Mbit

Memory voltage

1.2 V

Serial ports quantity

1

Maximum RDIMM memory

256 GB

ACPI version

6.3

System Management BIOS (SMBIOS) version

3.3.0

IPMI LAN (RJ-45) port

Yes
