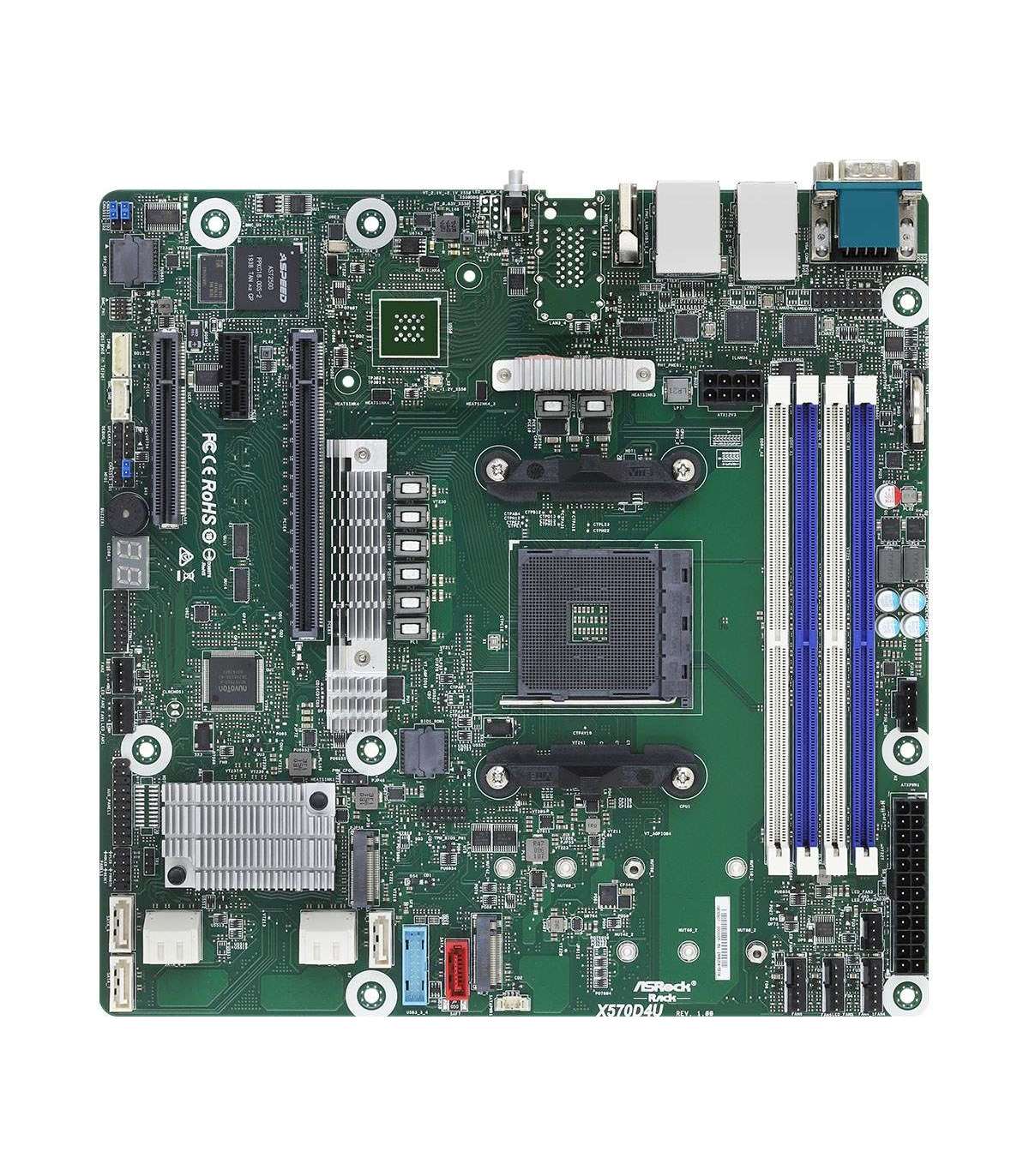

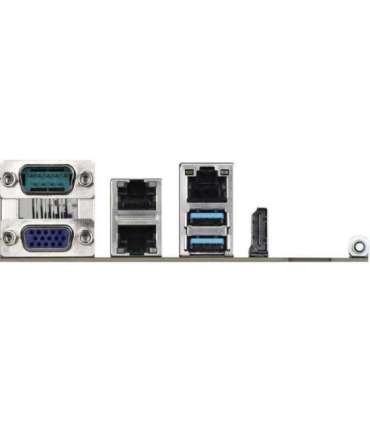

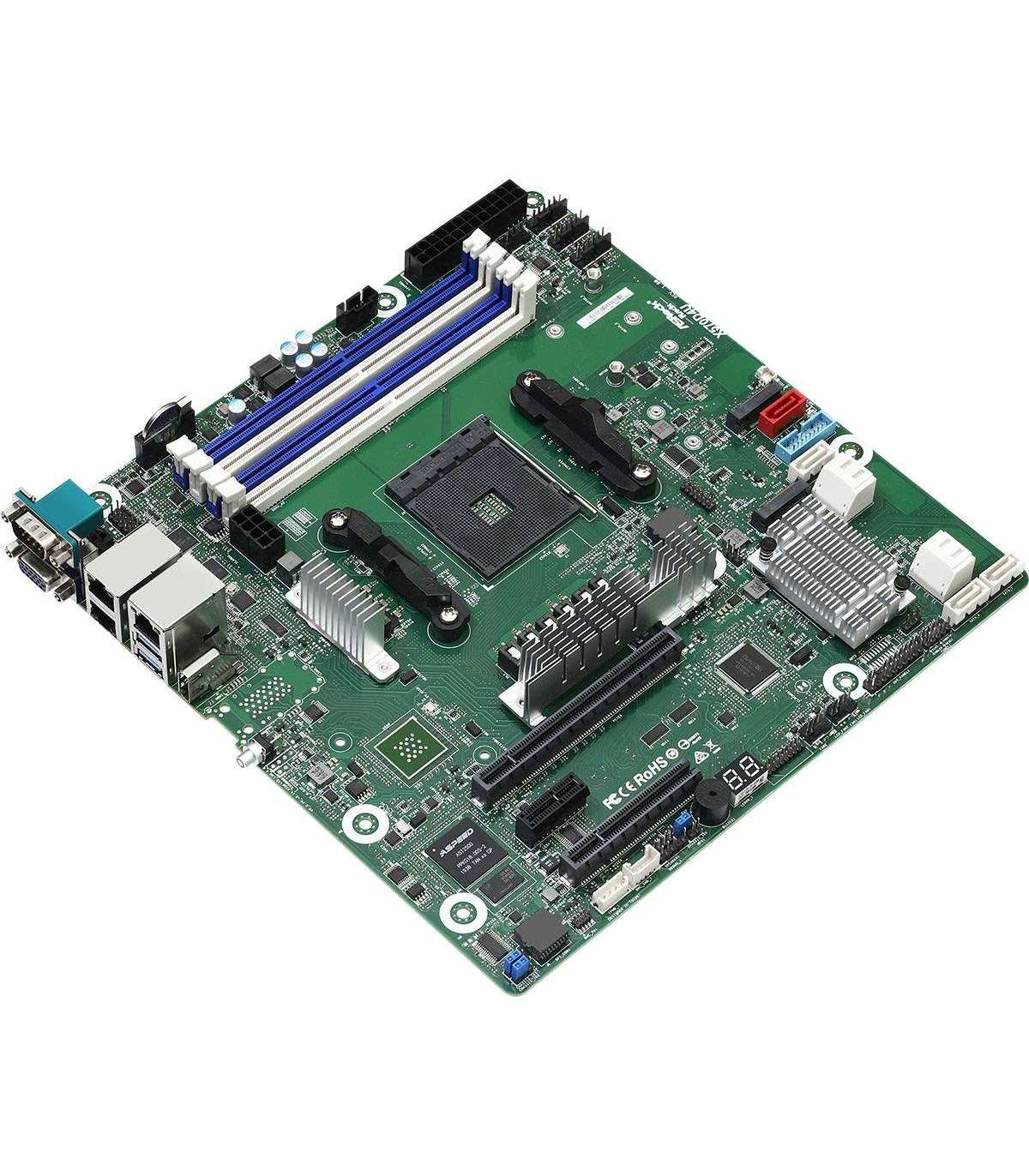

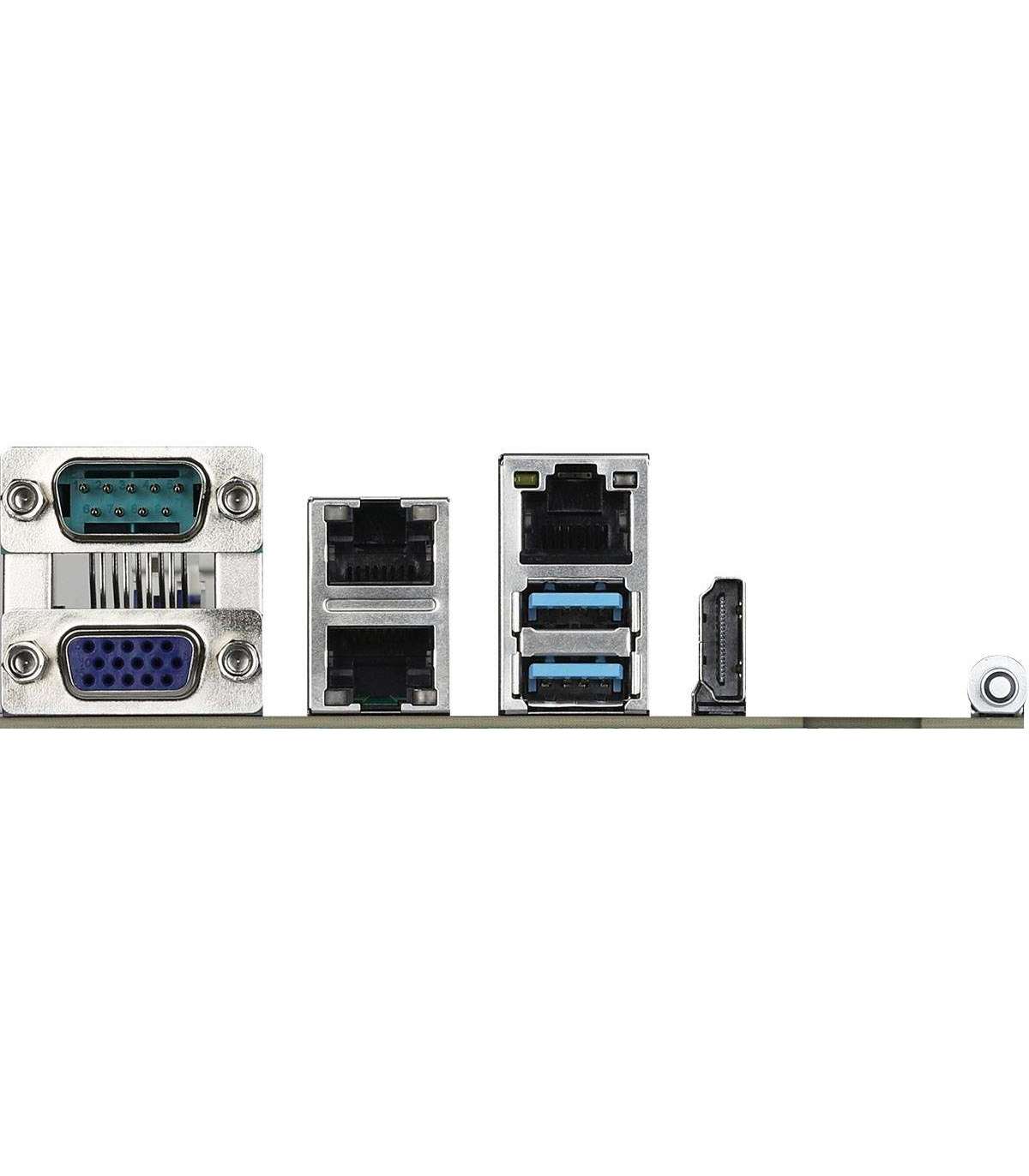

Asrock X570D4U motherboard AMD X570 Socket AM4 micro ATX

Lisainfo

Videokaardi mudel

AST2500

Depth

244 mm

Laius

244 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet interface type

Gigabit Ethernet

Maximum internal memory

32 GB

Motherboard chipset

AMD X570

HDMI ports quantity

1

Graphics card family

ASPEED

Processor socket

Socket AM4

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Supported memory clock speeds

2666
3200 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Intel I210
Realtek RTL8211E

ATX Power connector (24-pin)

Yes

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

Non-ECC

Number of SATA III connectors

12

12V power connector

Yes

Chassis intrusion connector

Yes

TPM connector

Yes

RAID levels

0
1
10

PCI Express x16 (Gen 4.x) slots

1

Supported processor sockets

Socket AM4

RAID support

Yes

PCI Express x1 slots

1

Number of SATA connectors

12

Memory voltage

1.2 V

ACPI version

2.0

PCI Express x8 slots

1
