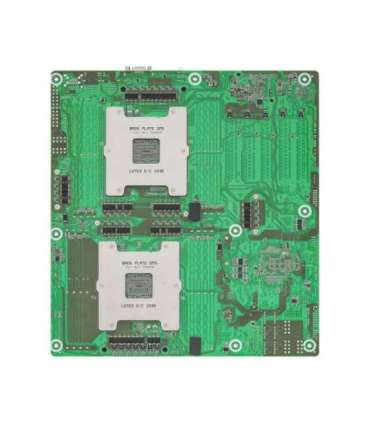

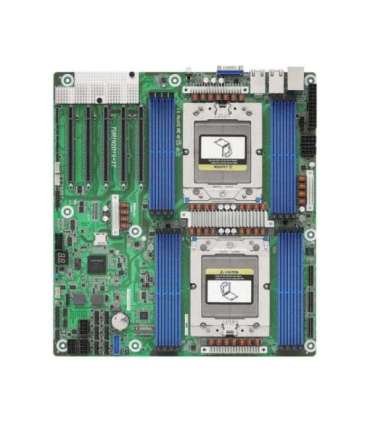

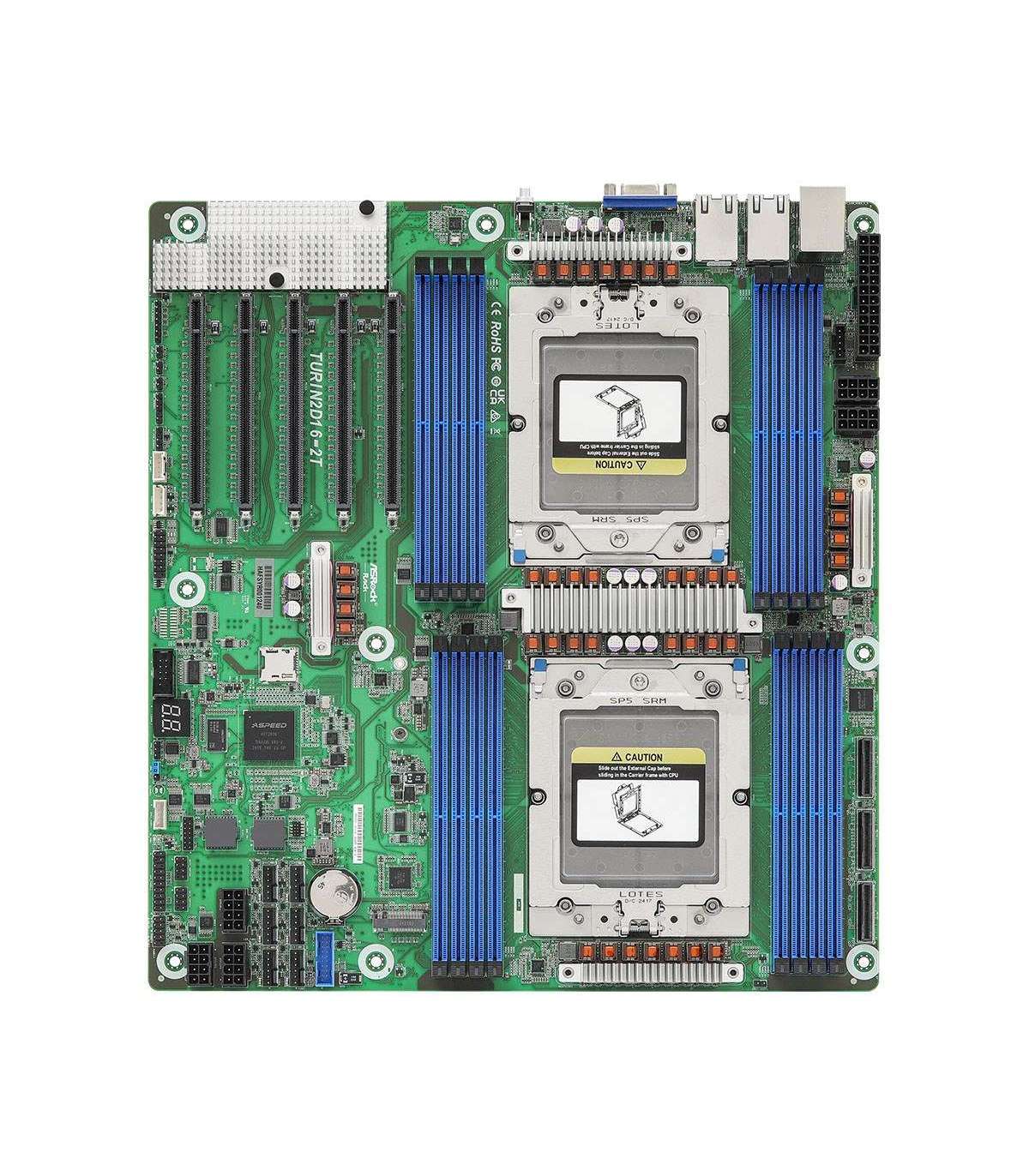

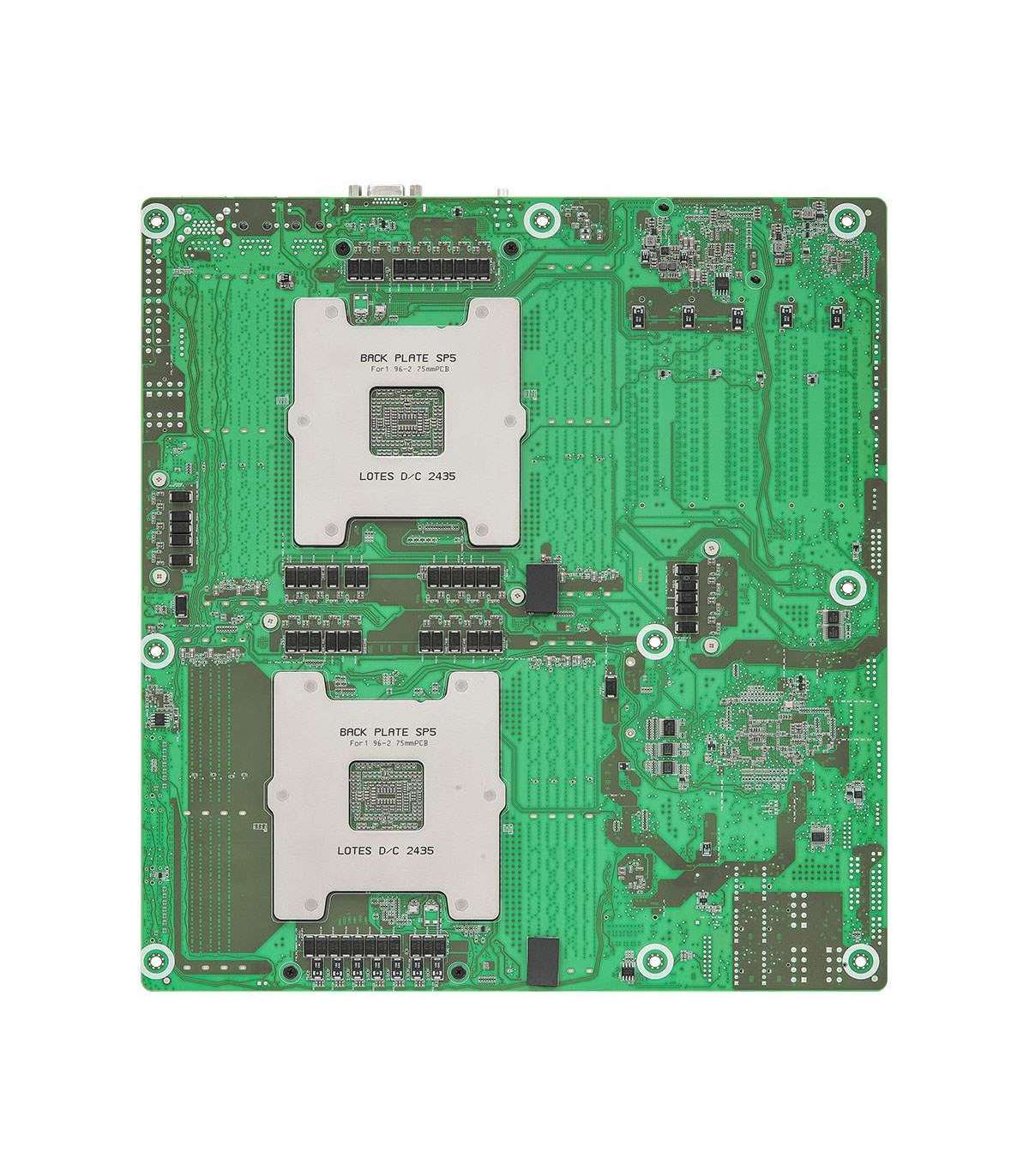

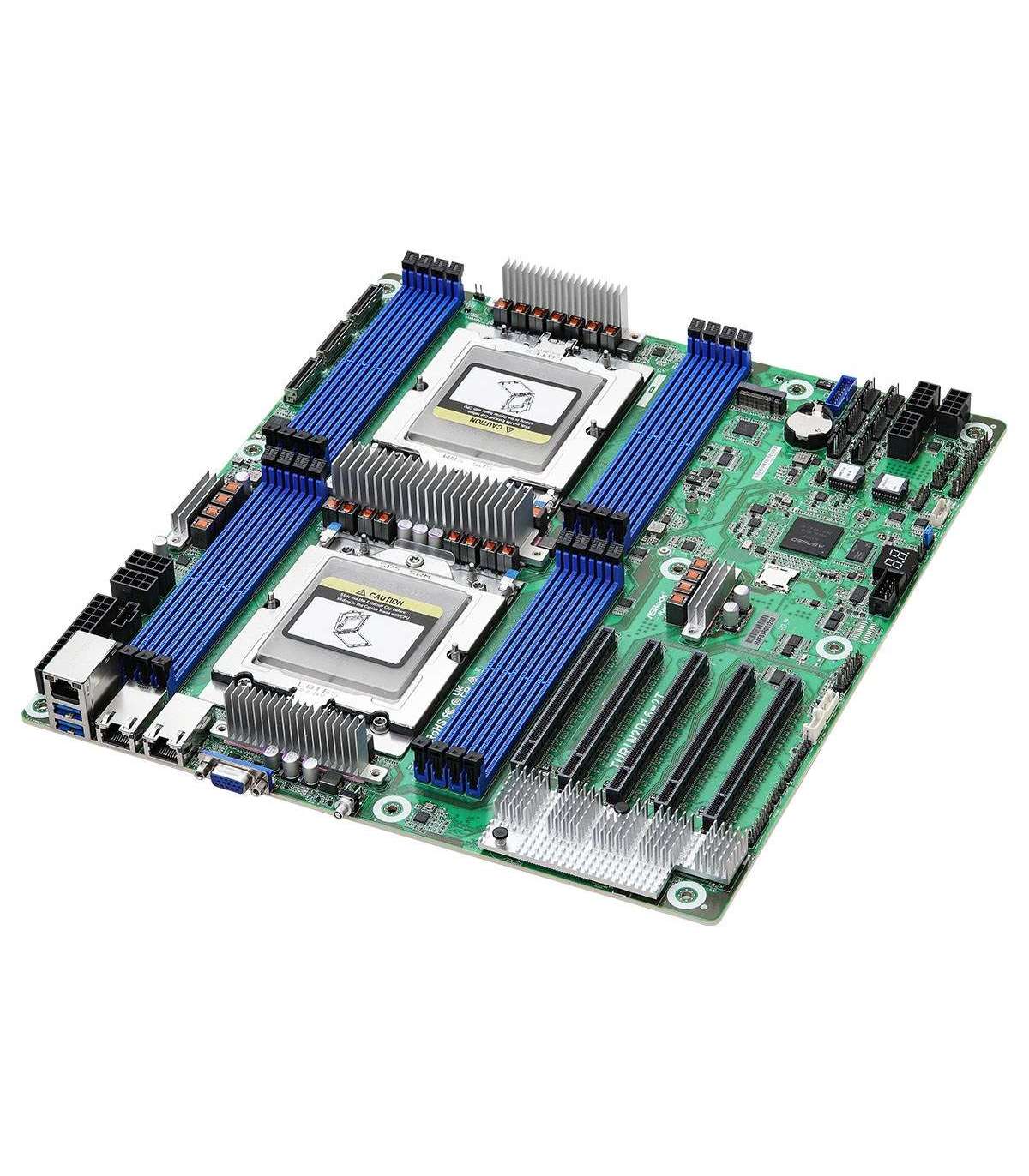

Asrock TURIN2D16-2T motherboard Socket SP5 EEB

Lisainfo

Videokaardi mudel

AST2600

Depth

330 mm

Laius

305 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Warnings

Do not open or disassemble the motherboard.
The motherboard may contain electronic components hazardous to health - avoid direct contact.
Use only in a dry and well-ventilated area.

Plug and Play

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Component for

Server

Ethernet interface type

10 Gigabit Ethernet

Processor manufacturer

AMD

Graphics card family

ASPEED

Processor socket

Socket SP5

Compatible processor series

AMD EPYC 9004

Motherboard form factor

EEB

Motherboard chipset family

AMD

Memory slots type

DIMM

Number of memory slots

16

Supported memory types

DDR5 RDIMM/3DS RDIMM

LAN controller

Intel X710-AT2

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

VGA (D-Sub) ports quantity

1

Number of SATA III connectors

16

12V power connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

PCI Express x16 (Gen 4.x) slots

3

Number of M.2 (M) slots

1

Supported processor sockets

Socket SP5

Supported memory clock speed (max)

6400 MHz

PCI Express x16 (Gen 5.x) slots

2

BIOS memory size

256 Mbit

Memory voltage

1.1 V

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

IPMI LAN (RJ-45) port

Yes
