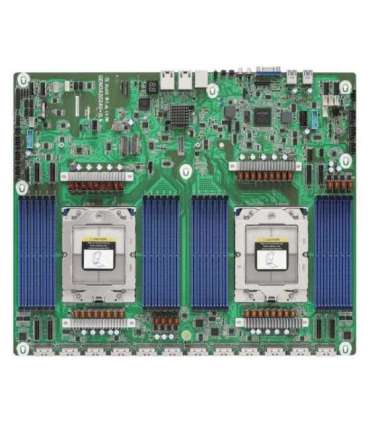

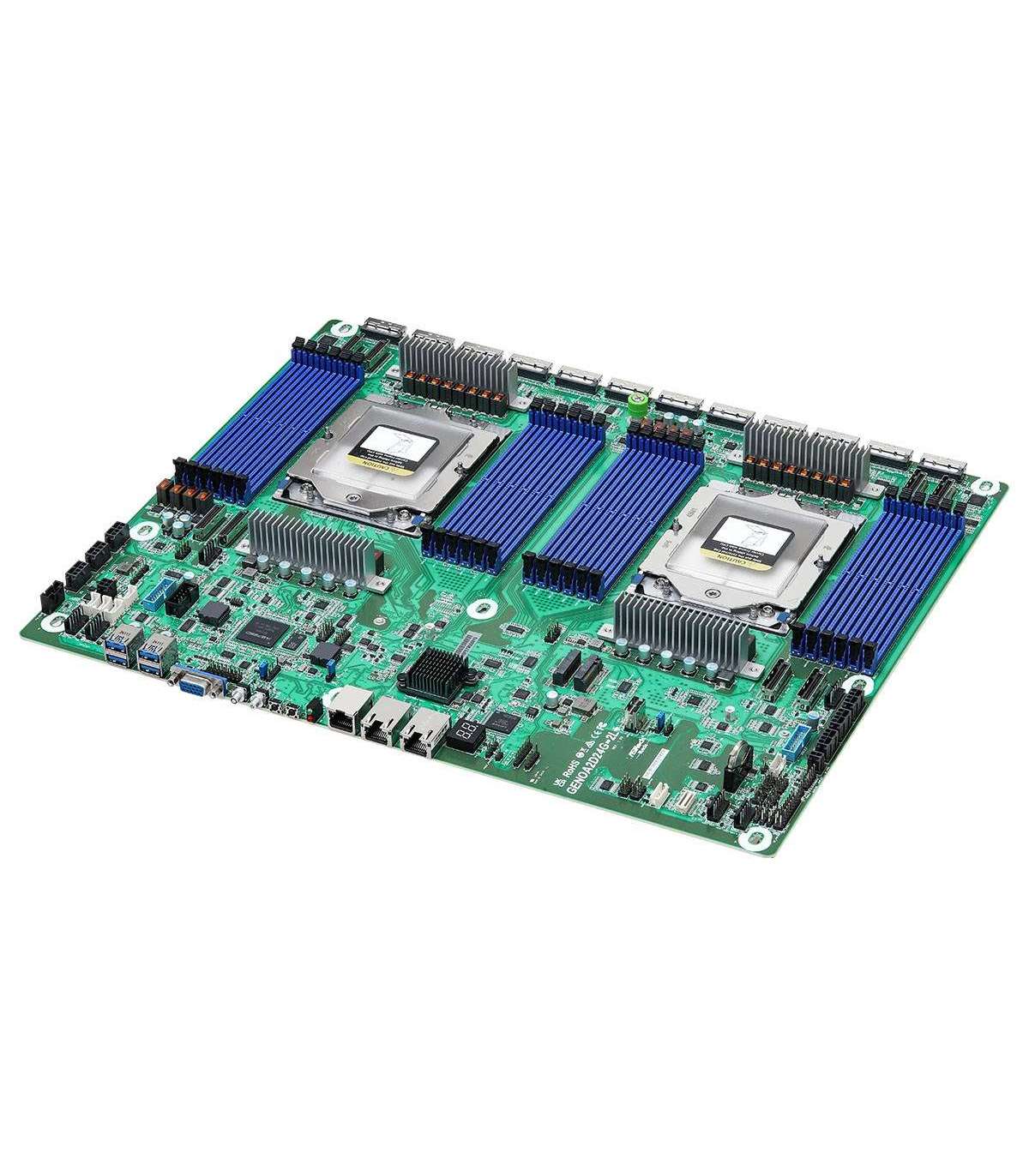

Asrock GENOA2D24G-2L+ motherboard AMD SoC Socket SP5

Lisainfo

Depth

350 mm

Laius

430 mm

Product colour

Hall
Roheline

Storage temperature (T-T)

10 - 35 °C

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

20 - 90%

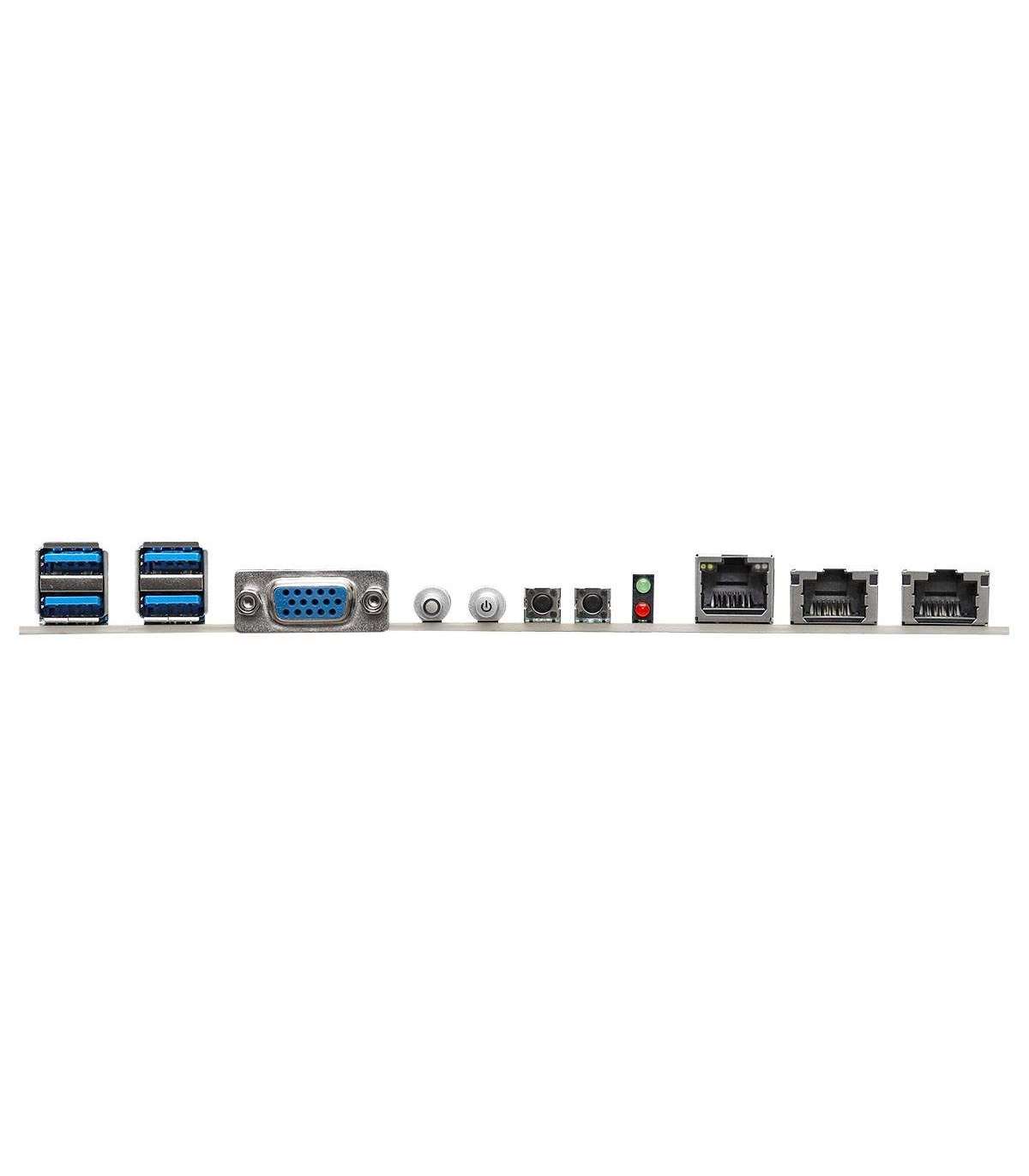

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Warnings

Do not open or disassemble the motherboard.
The motherboard may contain electronic components hazardous to health - avoid direct contact.
Use only in a dry and well-ventilated area.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

No

Component for

Server

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card model

Aspeed AST2600

Maximum internal memory

12.3 TB

Motherboard chipset

AMD SoC

Processor socket

Socket SP5

On-board graphics card memory

512 MB

Compatible processor series

AMD EPYC

Motherboard chipset family

AMD

Supported memory clock speeds

4800

Memory slots type

DIMM

Number of memory slots

24

Supported memory types

DDR5-SDRAM

LAN controller

Intel® I350

Number of chassis fan connectors

6

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

32

Supported storage drive interfaces

SATA III

VGA (D-Sub) ports quantity

1

Maximum number of SMP processors

2

Parallel processing technology support

Not supported

PC health monitoring

Fan
Temperature
Voltage

Chassis intrusion connector

Yes

Supported storage drive types

HDD & SSD

Front panel connector

Yes

Number of storage drives supported

34

Clear CMOS button

Yes

Memory voltage

1.1 V

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

IPMI LAN (RJ-45) port

Yes

Memory slot pin count

288
