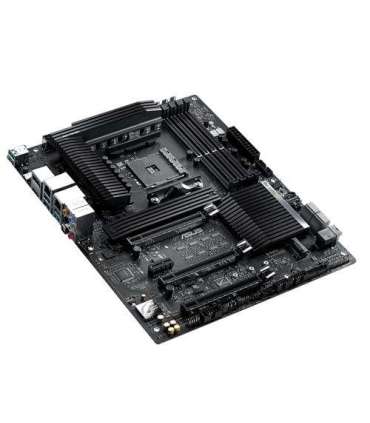

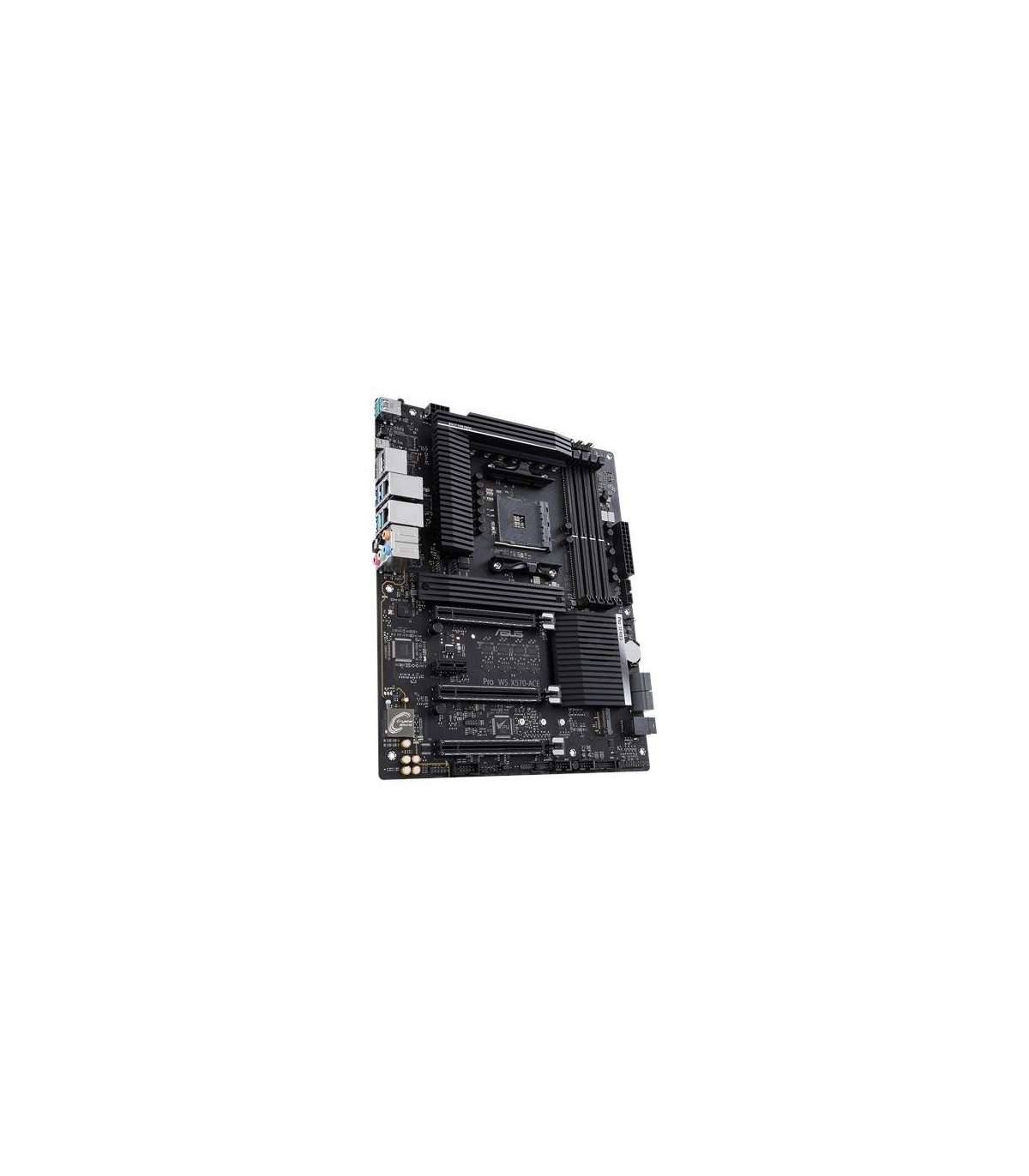

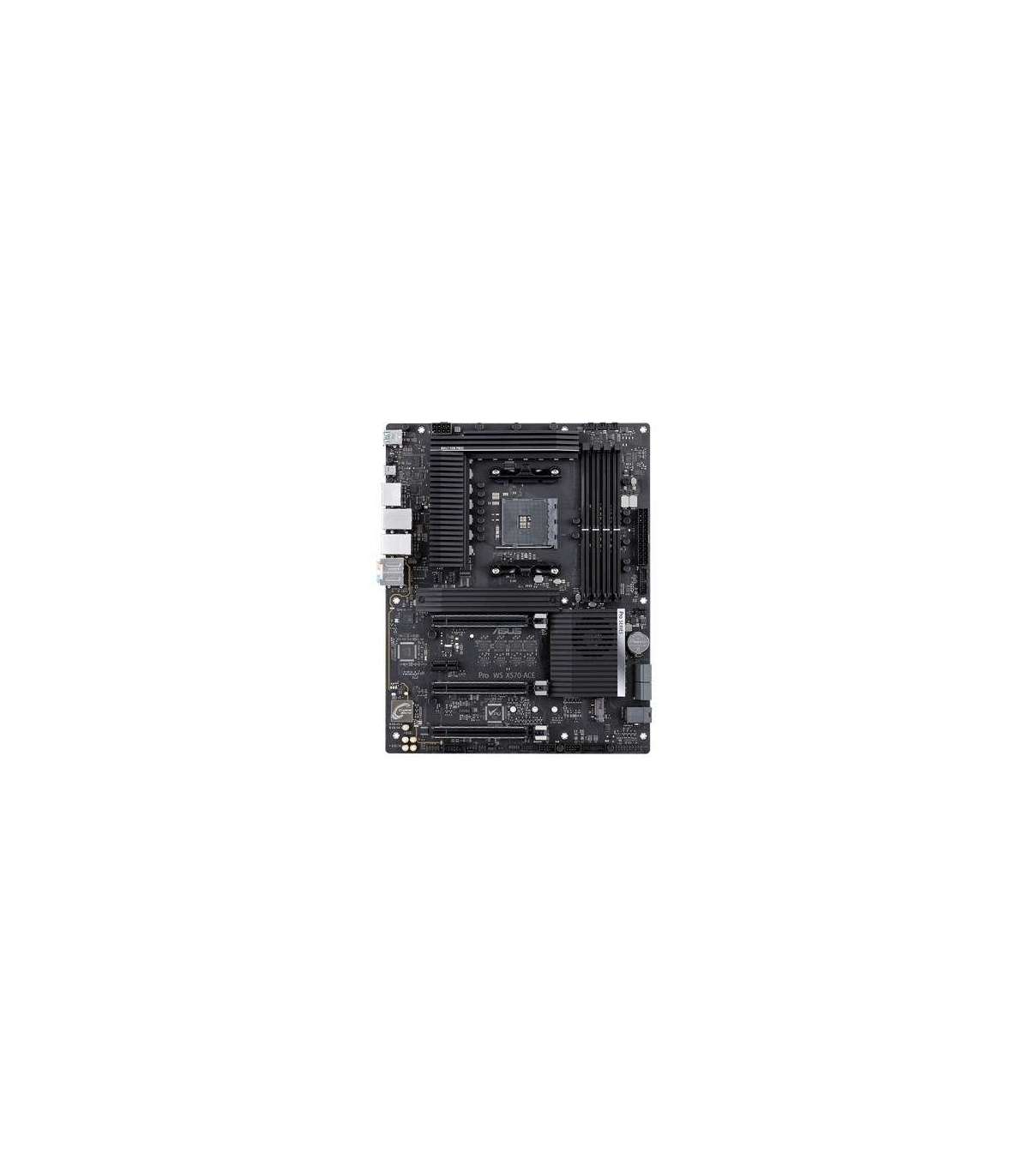

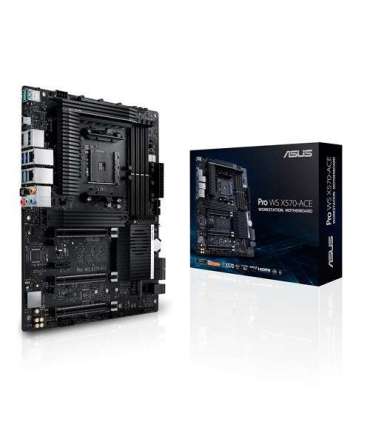

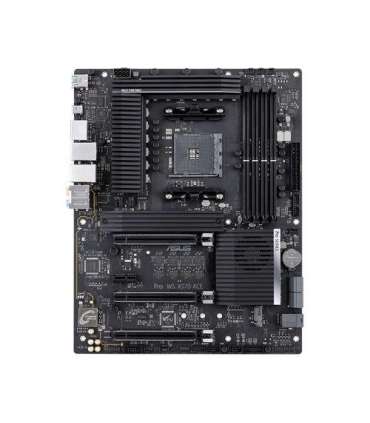

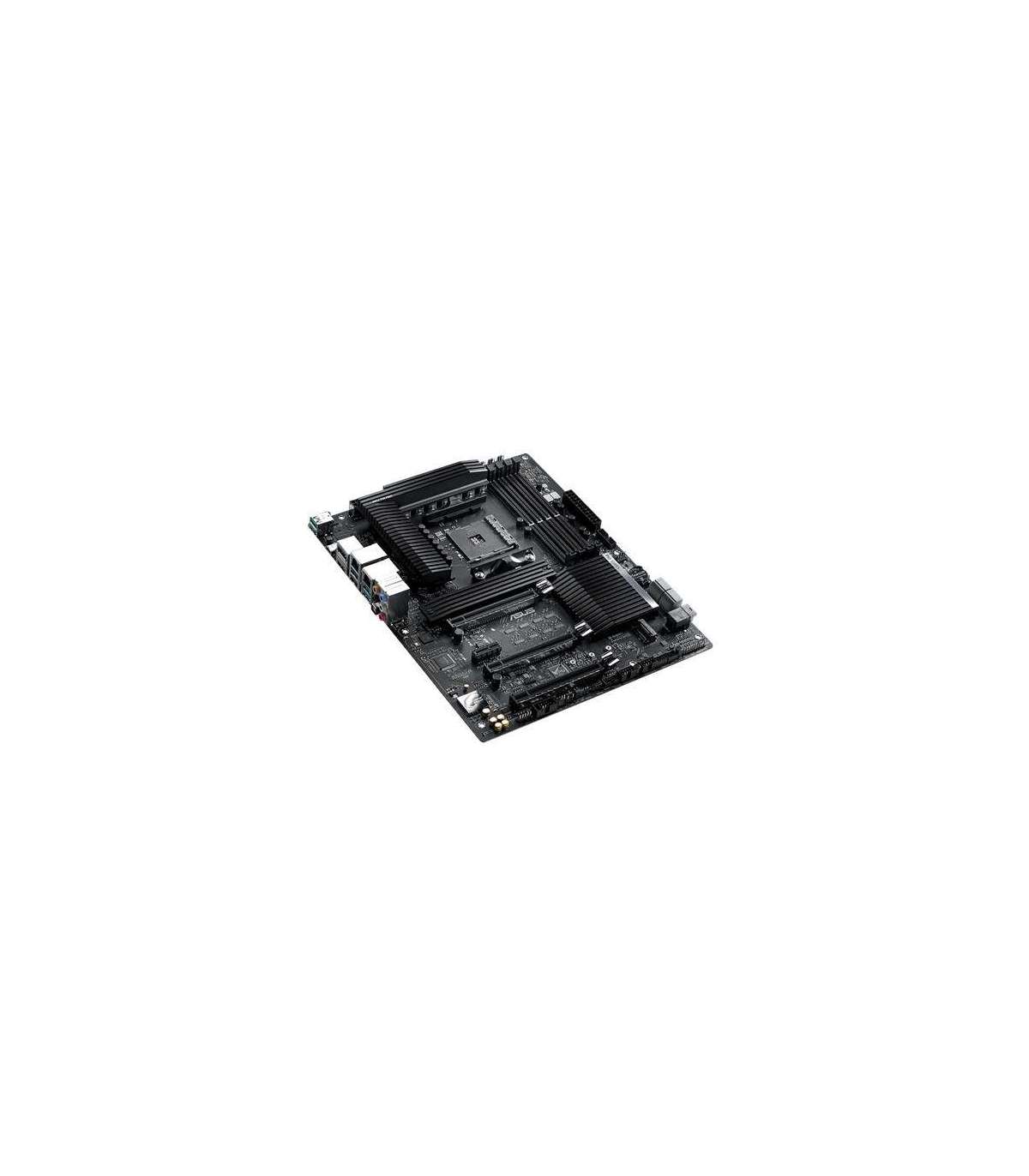

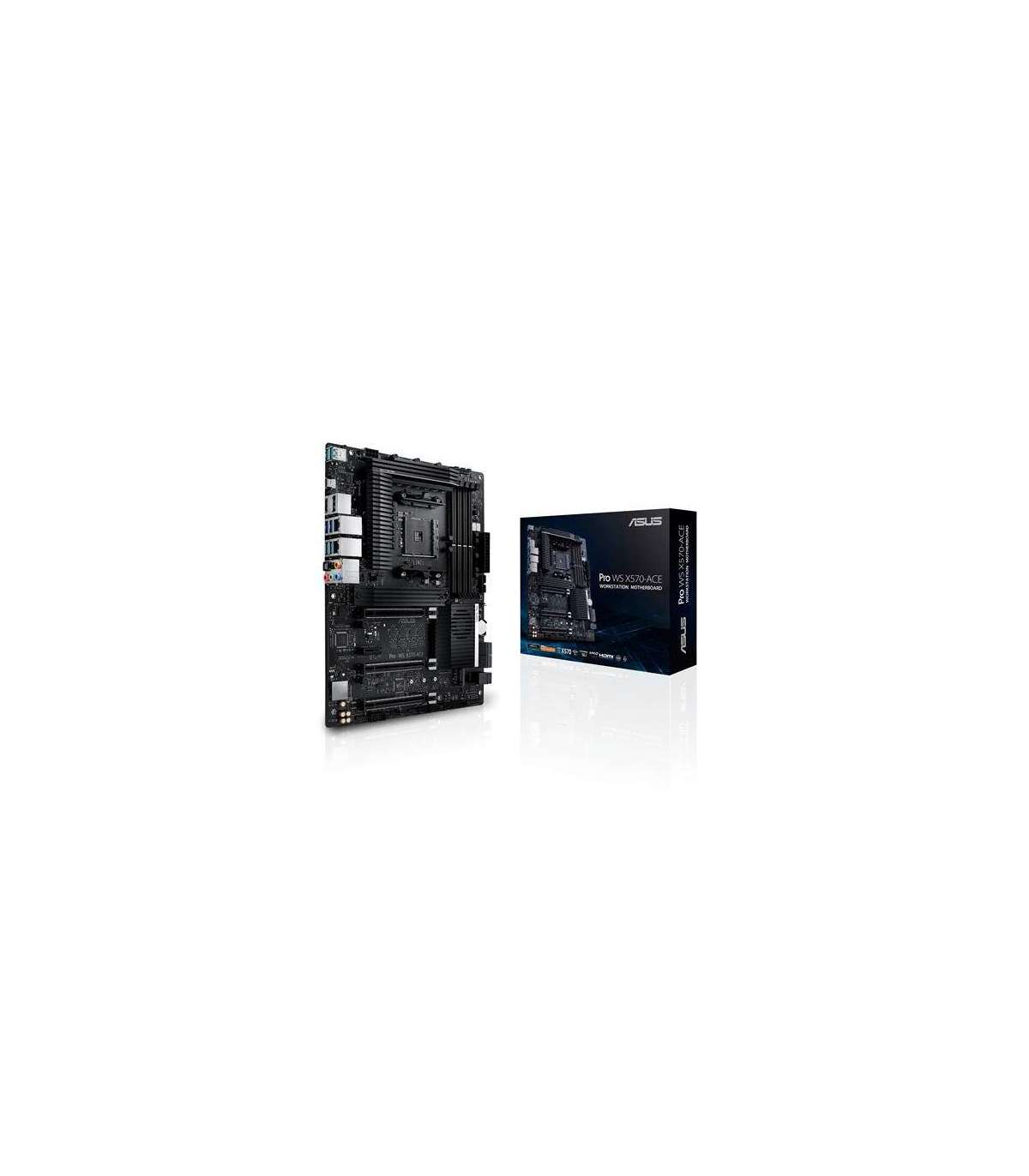

ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX

Lisainfo

Depth

244 mm

Kaal

1 kg

Kõrgus

77 mm

Laius

305 mm

Power source type

ATX

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 10

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Wi-Fi

No

Component for

PC

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

Maximum internal memory

128 GB

Motherboard chipset

AMD X570

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

1.4b

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

Memory channels

Dual-channel

ECC

Yes

Audio chip

Realtek ALC S1200A

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

2nd Generation AMD Ryzen™ 3
2nd Generation AMD Ryzen™ 5
2nd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen 5
3rd Generation AMD Ryzen™ 3
3rd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen™ 9

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

8.0 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I211-AT
Realtek RTL8117

Number of chassis fan connectors

3

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

6

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Microphone in

Yes

Parallel processing technology support

2-Way SLI
3-Way CrossFireX

Number of mounting holes

9

Number of SATA III connectors

4

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

S/PDIF out port

Yes

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

Front panel connector

Yes

PCI Express x16 slots

2

PCI Express x1 slots

1

S/PDIF out connector

Yes

Cooling type

Active

DisplayPort version

1.2

Peripheral (Molex) power connectors (4-pin)

1

Number of displays supported

2

BIOS memory size

256 Mbit

ACPI version

6.0

System Management BIOS (SMBIOS) version

3.2

PCI Express x8 slots

1

Number of Ultra M.2 (M) slots

1

Analog audio output

1

S/PDIF in port

Yes
