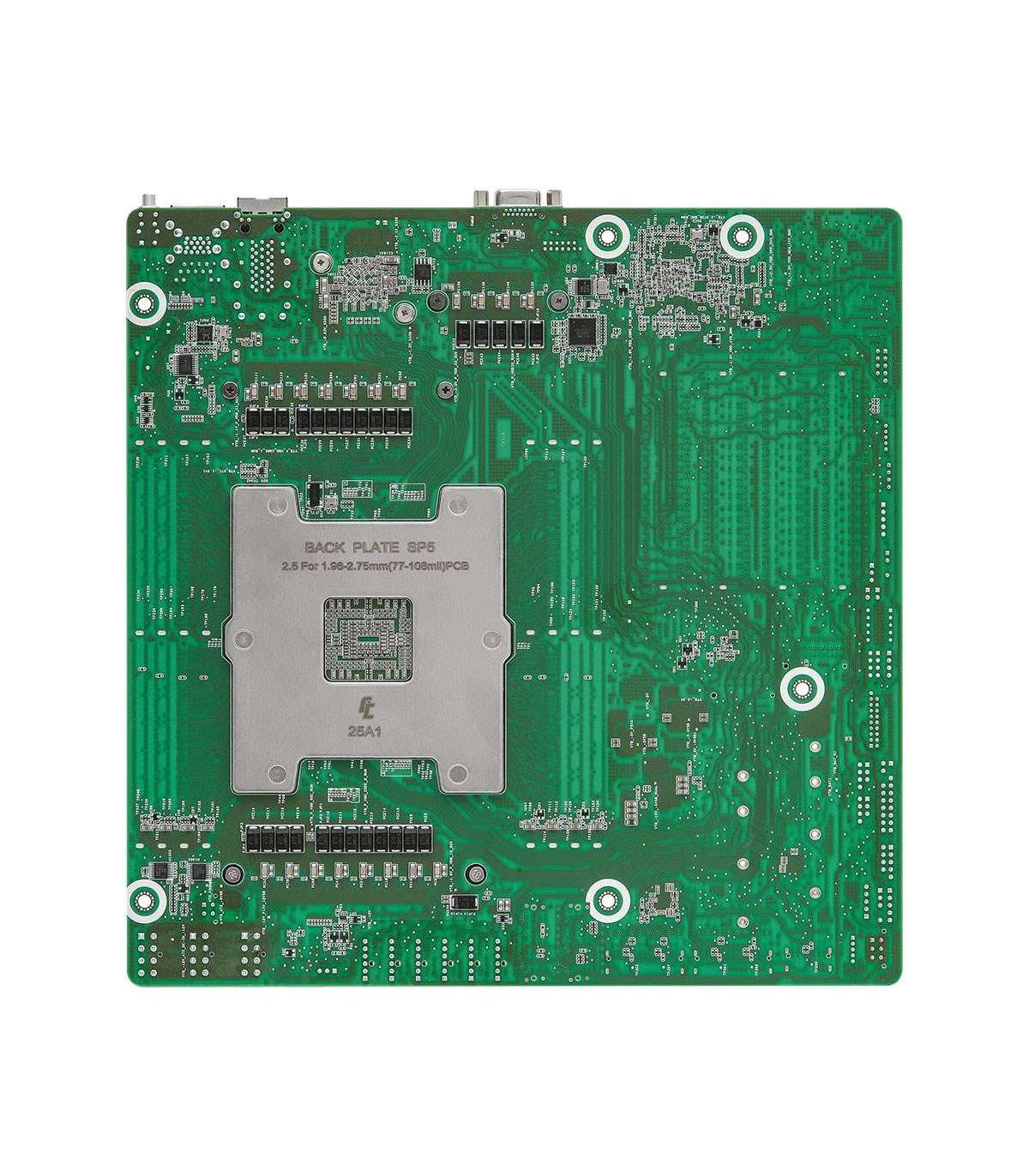

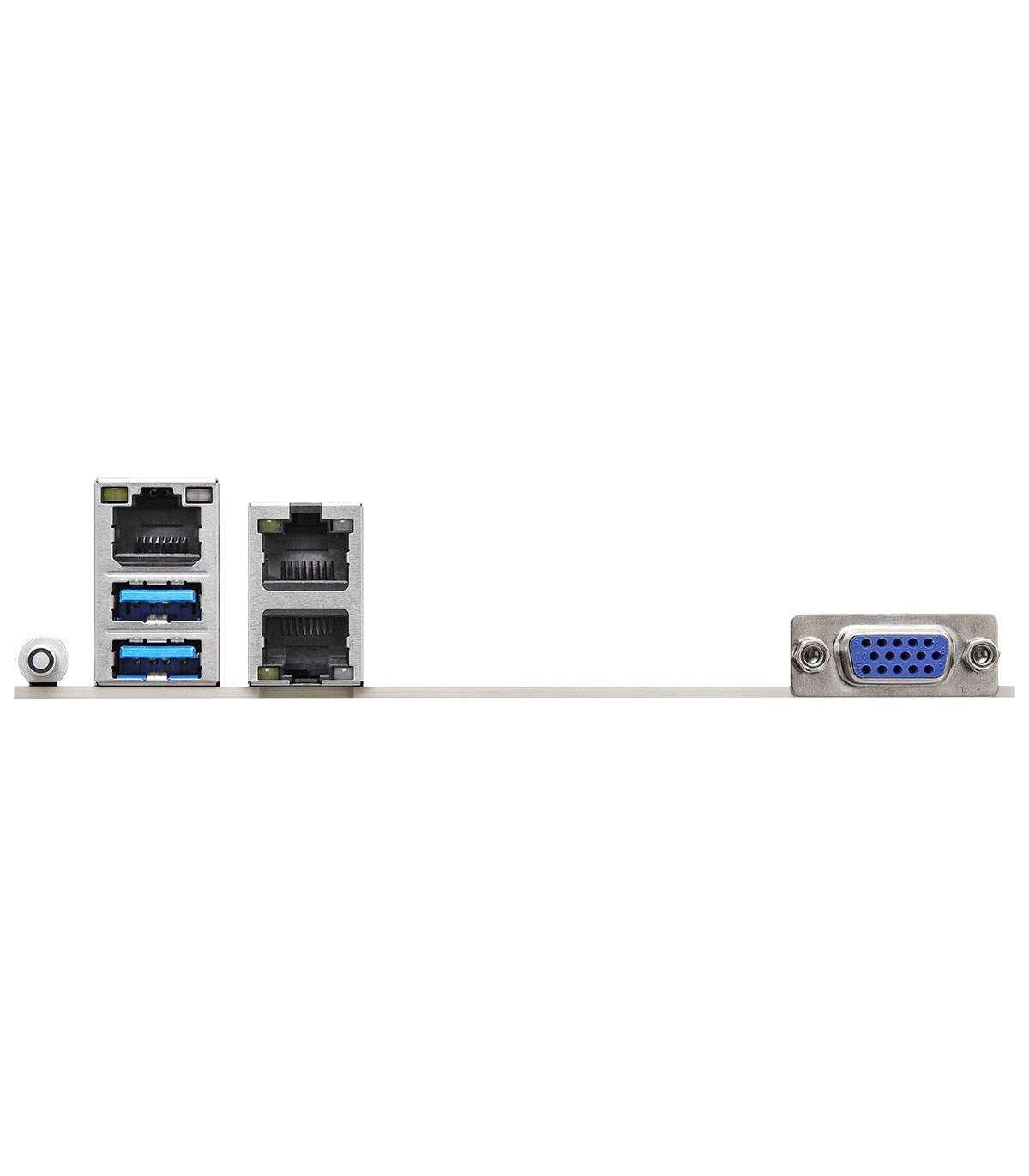

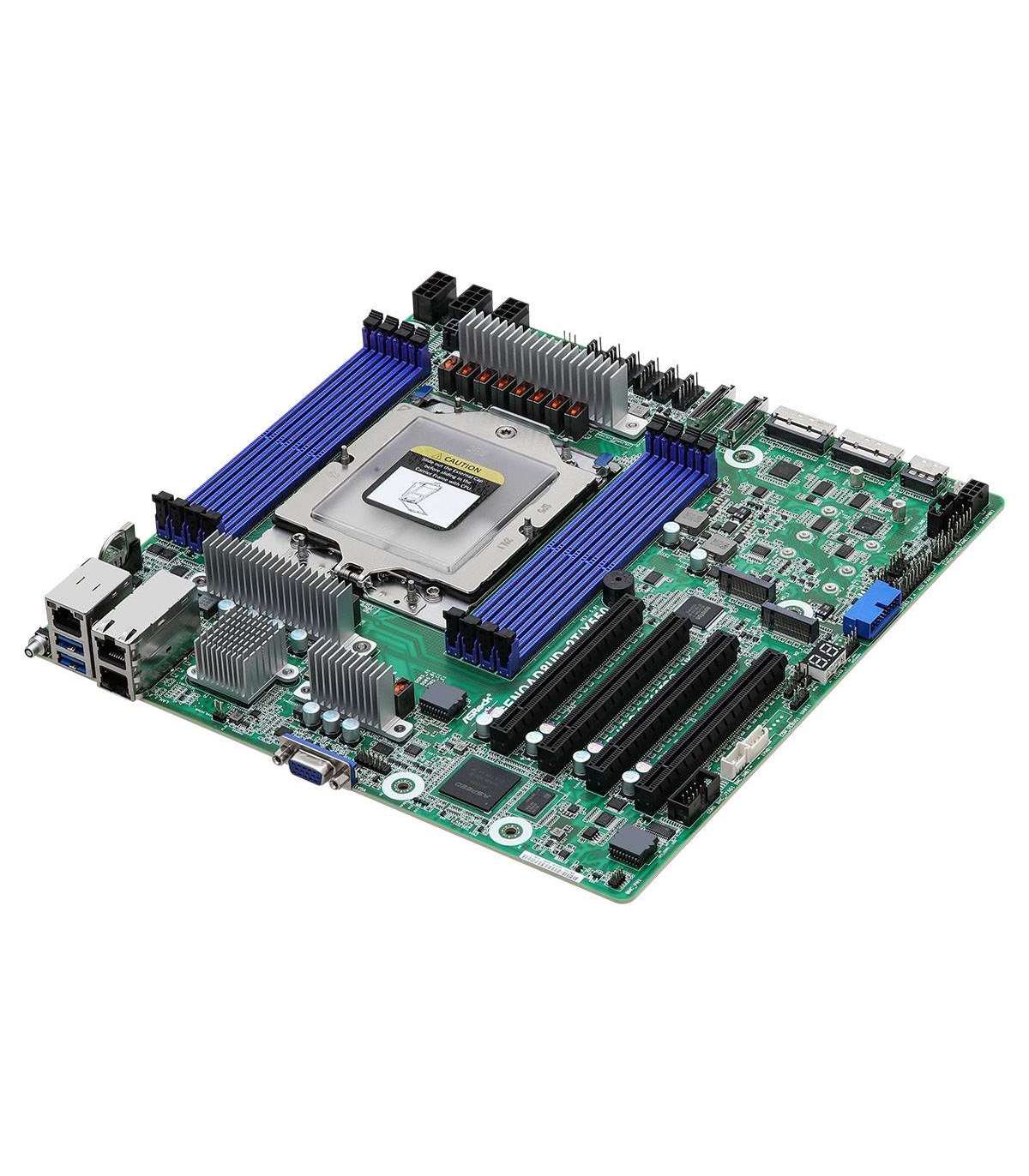

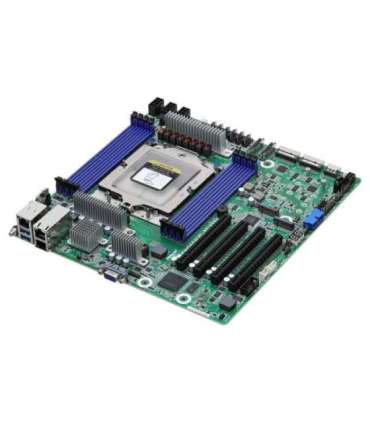

Asrock GENOAD8UD-2T/X550 motherboard Socket SP5 micro ATX

Lisainfo

Videokaardi mudel

AST2600

Depth

266.7 mm

Laius

264.2 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Component for

Server

Ethernet interface type

10 Gigabit Ethernet

Processor manufacturer

AMD

Graphics card family

ASPEED

Processor socket

Socket SP5

Compatible processor series

AMD EPYC 9004

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Supported memory clock speeds

4800

Memory slots type

DIMM

Number of memory slots

8

Supported memory types

DDR5-SDRAM

LAN controller

Intel® X550-AT2

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, PCI Express 5.0, SATA III

VGA (D-Sub) ports quantity

1

Number of SATA III connectors

16

12V power connector

Yes

Chassis intrusion connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

Socket SP5

Supported memory clock speed (max)

4800 MHz

Audio connector

Yes

PCI Express x16 (Gen 5.x) slots

4

BIOS memory size

256 Mbit

Memory voltage

1.1 V

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

IPMI LAN (RJ-45) port

Yes
