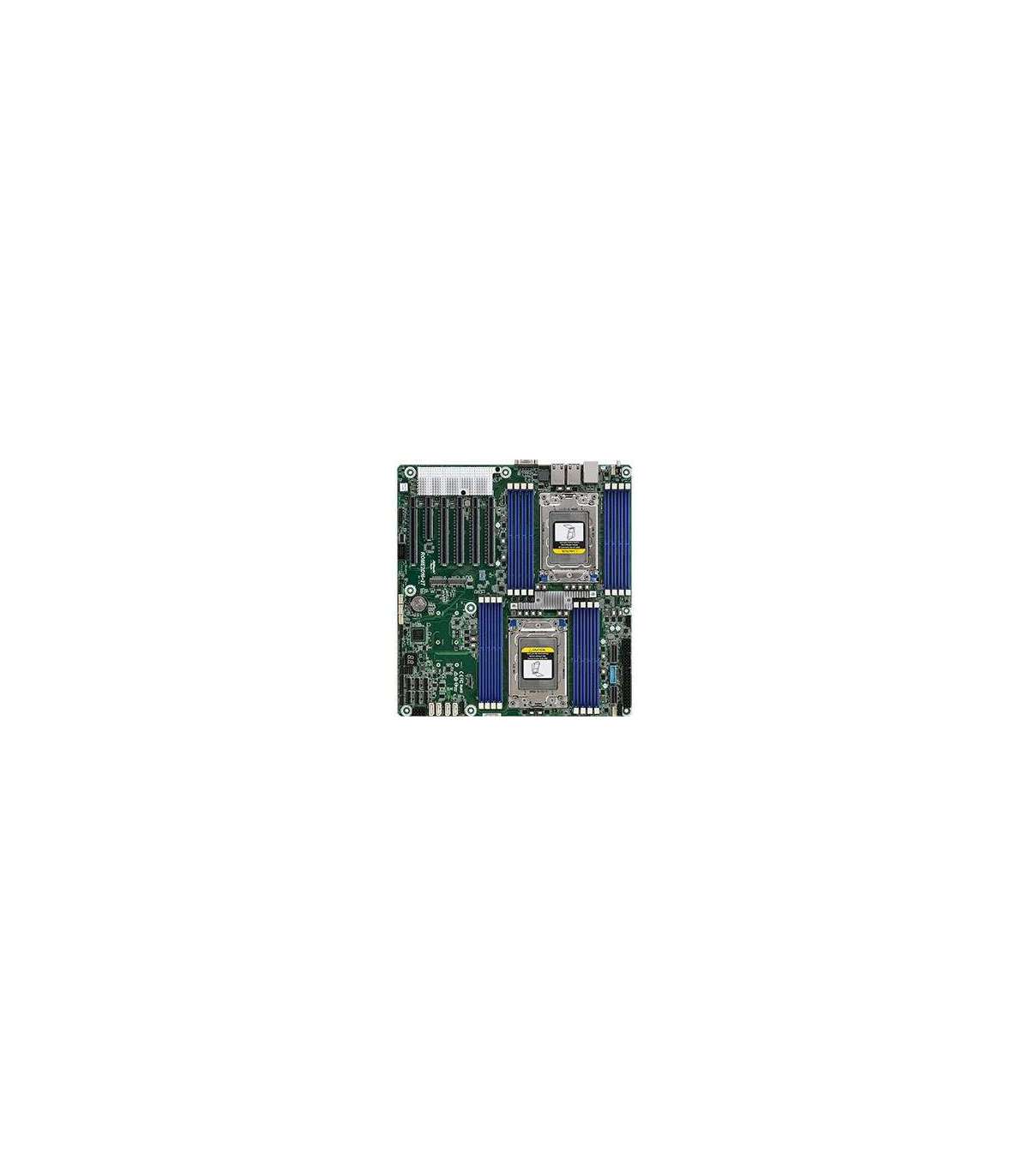

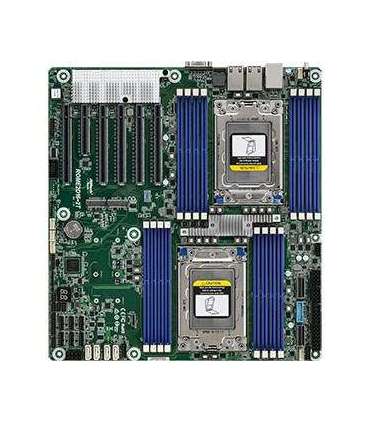

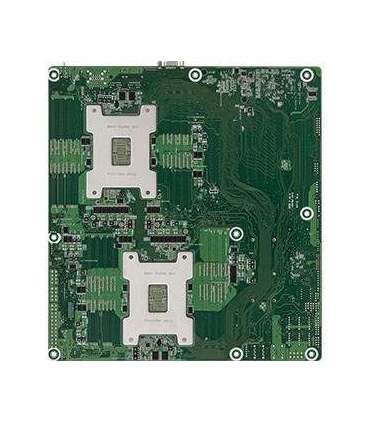

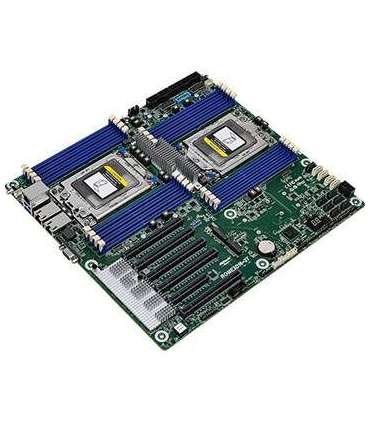

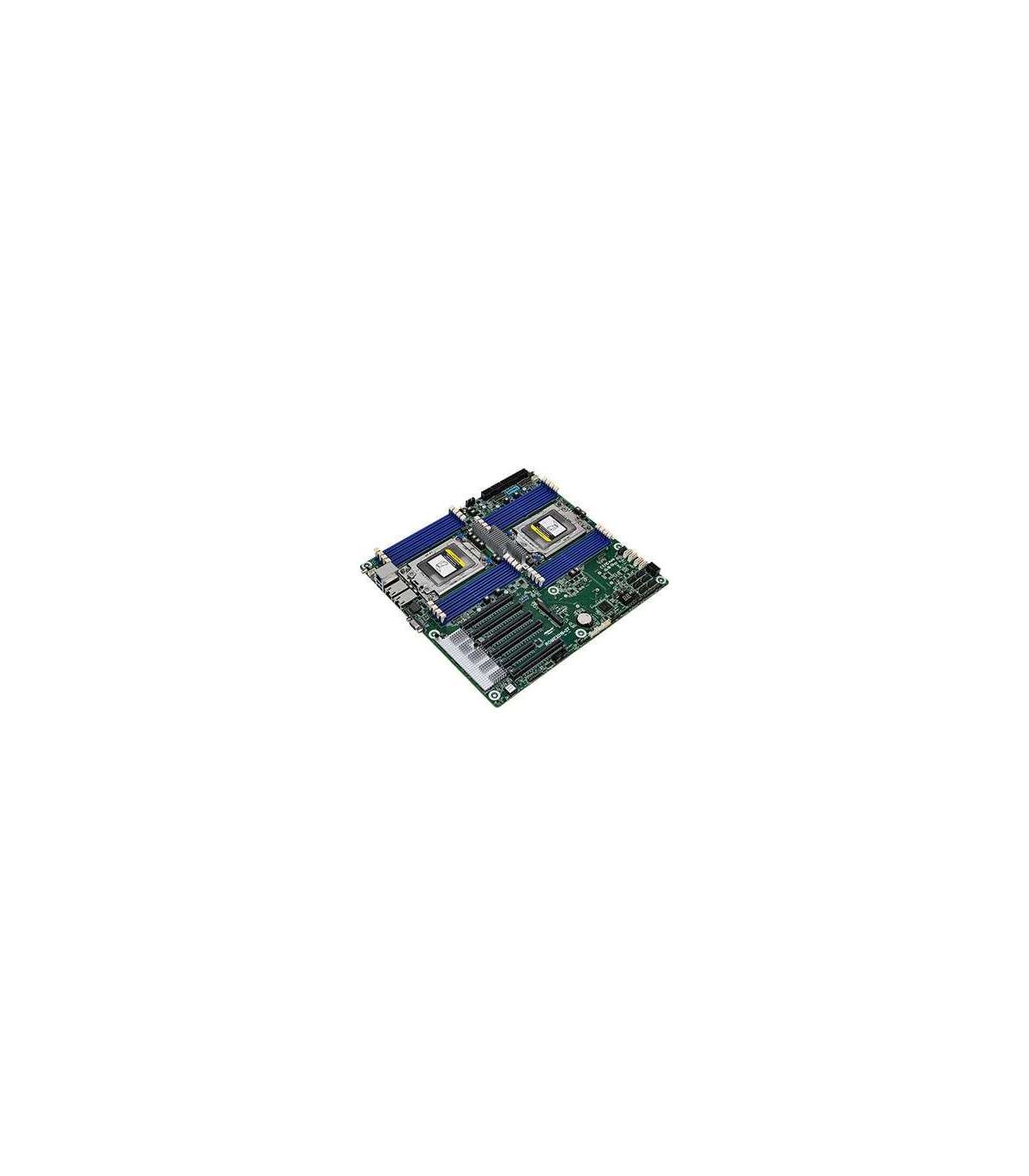

Asrock ROME2D16-2T motherboard LGA 4094 EEB

Lisainfo

Videokaardi mudel

AST2500

Depth

330 mm

Laius

305 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Processor manufacturer

AMD

Processor socket

LGA 4094

Compatible processor series

AMD EPYC 7003

Motherboard form factor

EEB

Motherboard chipset family

AMD

Supported memory clock speeds

3200 MHz

Memory slots type

DIMM

Number of memory slots

16

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8211E

Number of chassis fan connectors

8

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

AMI

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

Maximum number of SMP processors

2

Number of SATA III connectors

16

TPM connector

Yes

Supported storage drive types

HDD & SSD

PCI Express x16 (Gen 4.x) slots

5

Number of M.2 (M) slots

2

Power fan connector

Yes

COM ports quantity

1

Memory voltage

1.2 V

Maximum RDIMM memory

3.2 TB

ACPI version

6.3

System Management BIOS (SMBIOS) version

3.3.0

PCI Express x8 slots

2
