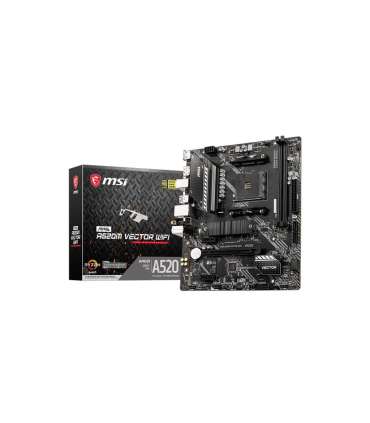

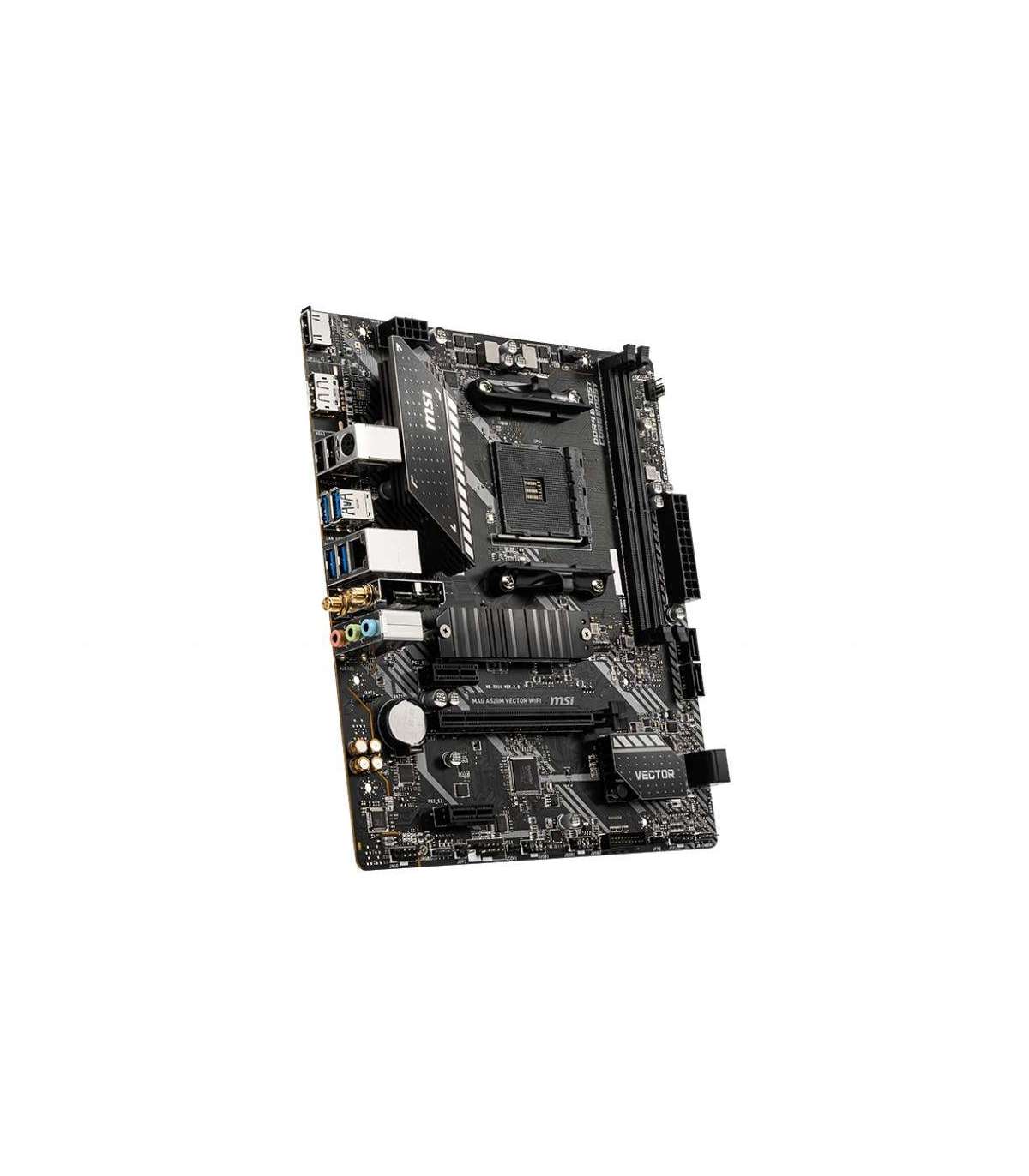

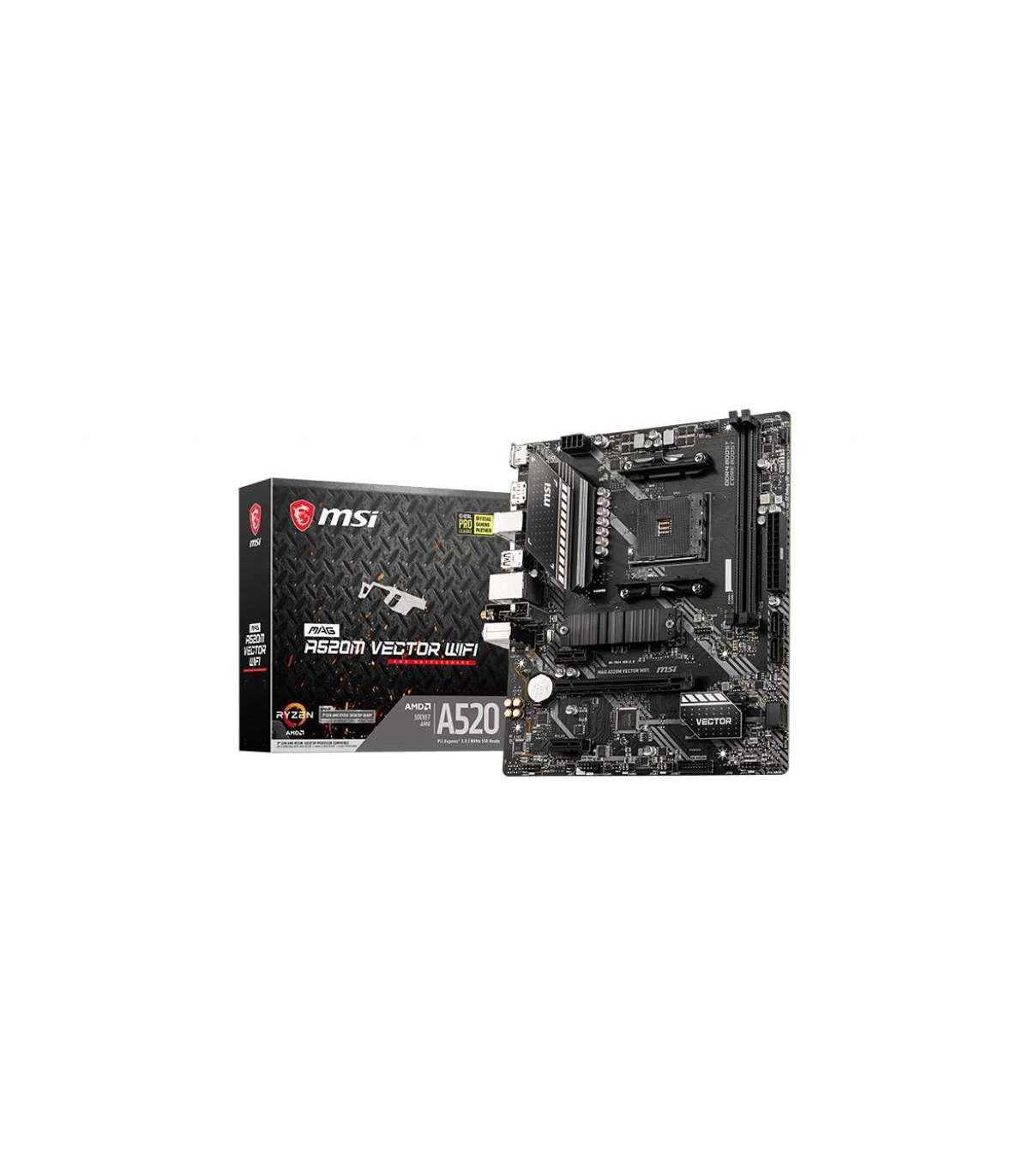

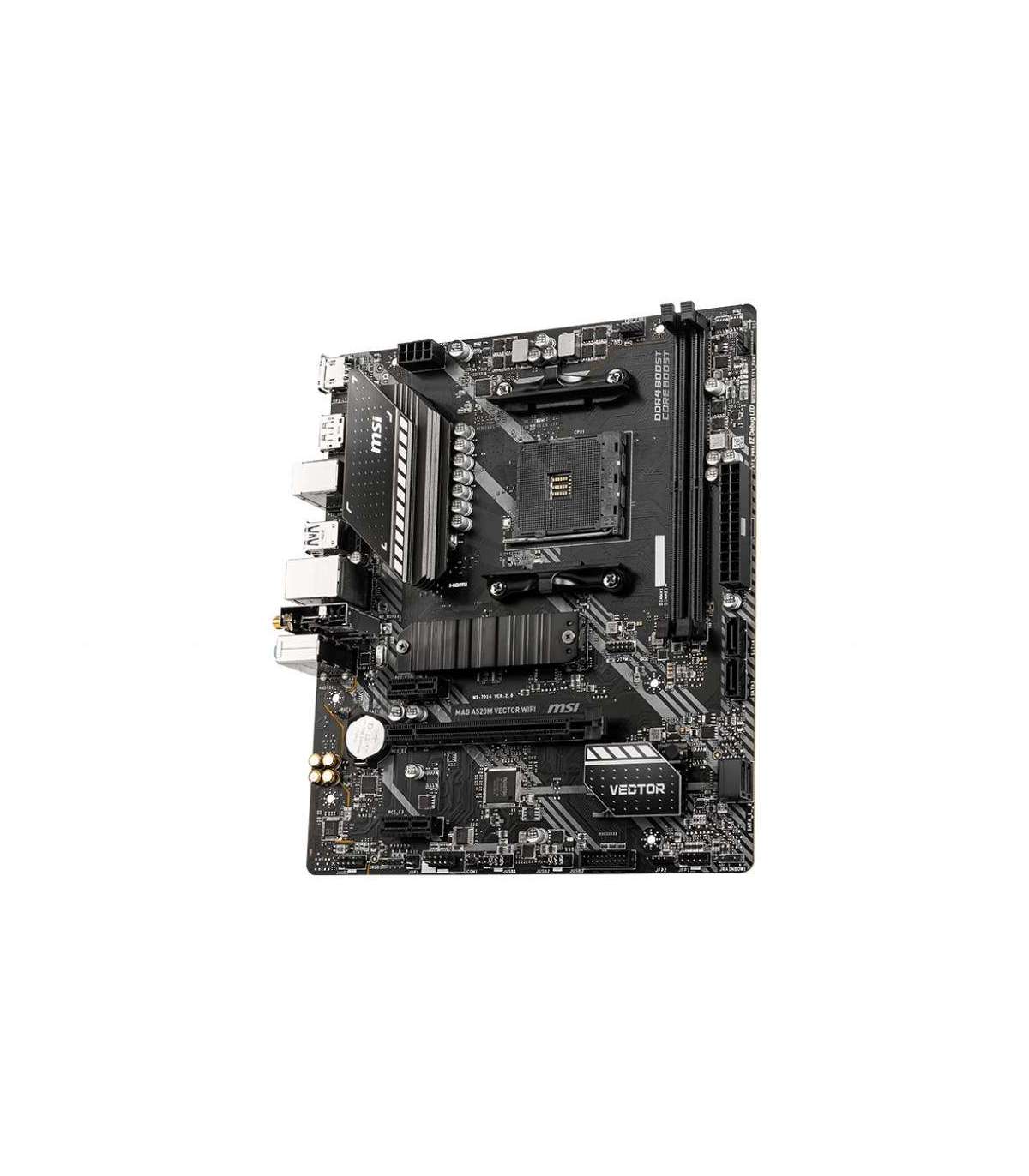

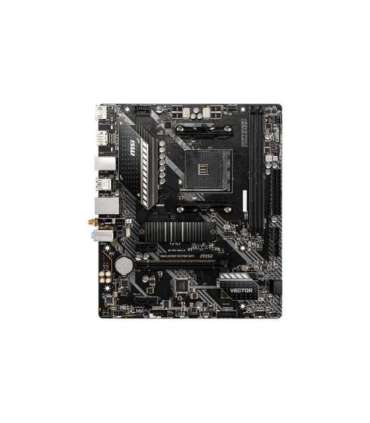

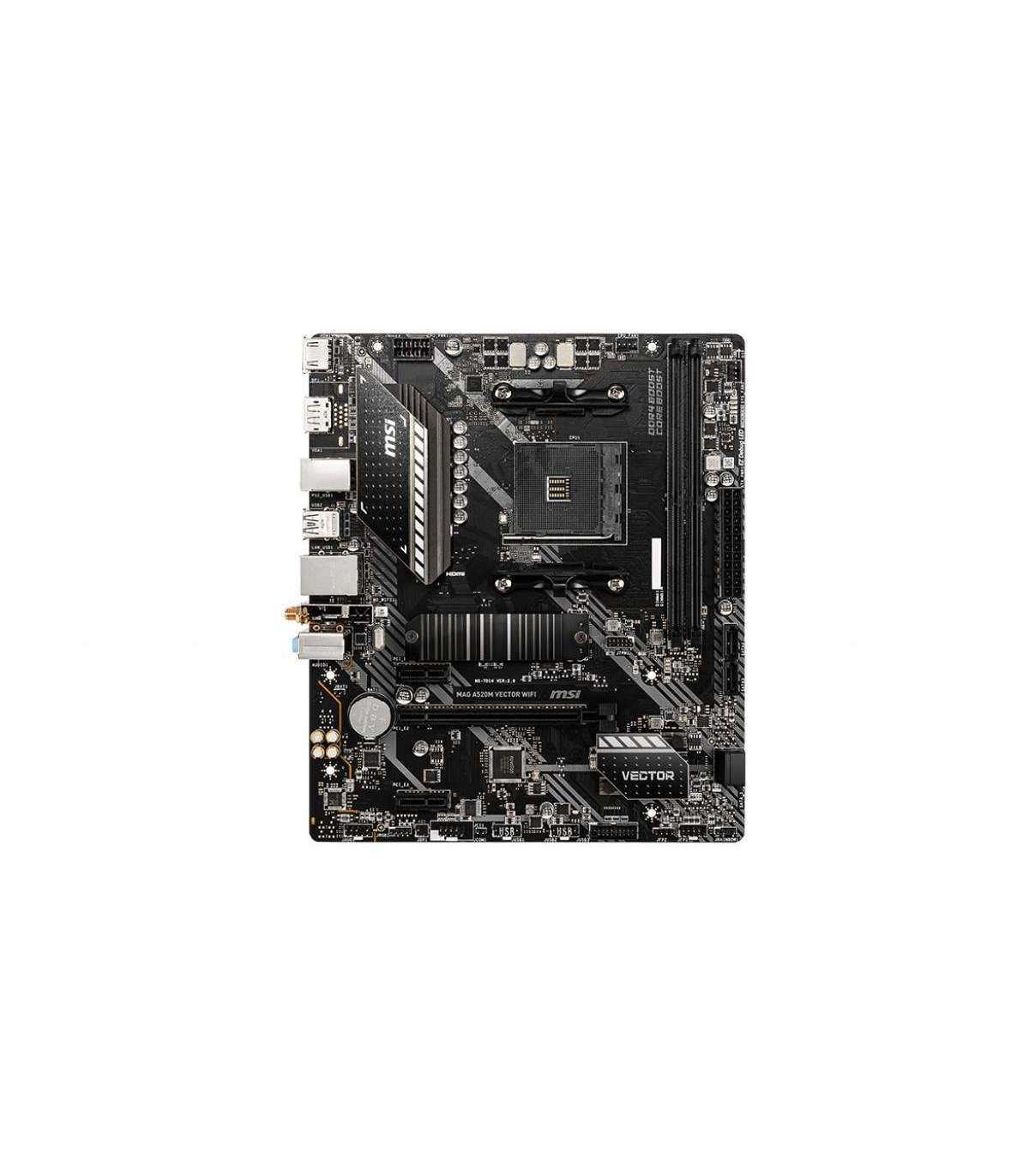

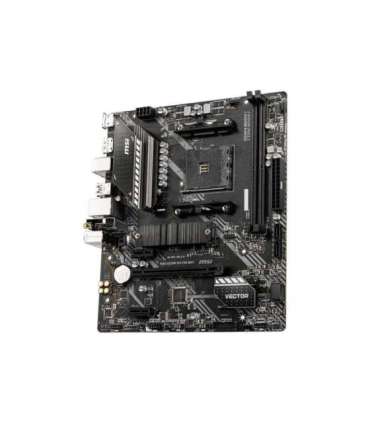

MSI MAG A520M VECTOR WIFI motherboard AMD A520 Socket AM4 micro ATX

Lisainfo

Depth

210 mm

Laius

244 mm

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

Ethernet LAN (RJ-45) ports

1

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

64 GB

Bluetooth version

4.2

Bluetooth

Yes

Motherboard chipset

AMD A520

HDMI version

2.1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC892

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

1866
2133
2400
2667
2800
2933
3000
3066
3200 MHz
3466
3600 MHz
3733
3866
4000
4133
4266
4400 MHz
4600

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Number of chassis fan connectors

1

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Supported storage drive interfaces

SATA III

PS/2 ports quantity

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

ECC & Non-ECC

Drivers included

Yes

Maximum number of SMP processors

1

Maximum resolution

4096 x 2160 pixels

Maximum graphics card memory

2048 MB

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

Number of M.2 (M) slots

1

WiFi-AP antenna jack

2

Serial port headers

1
