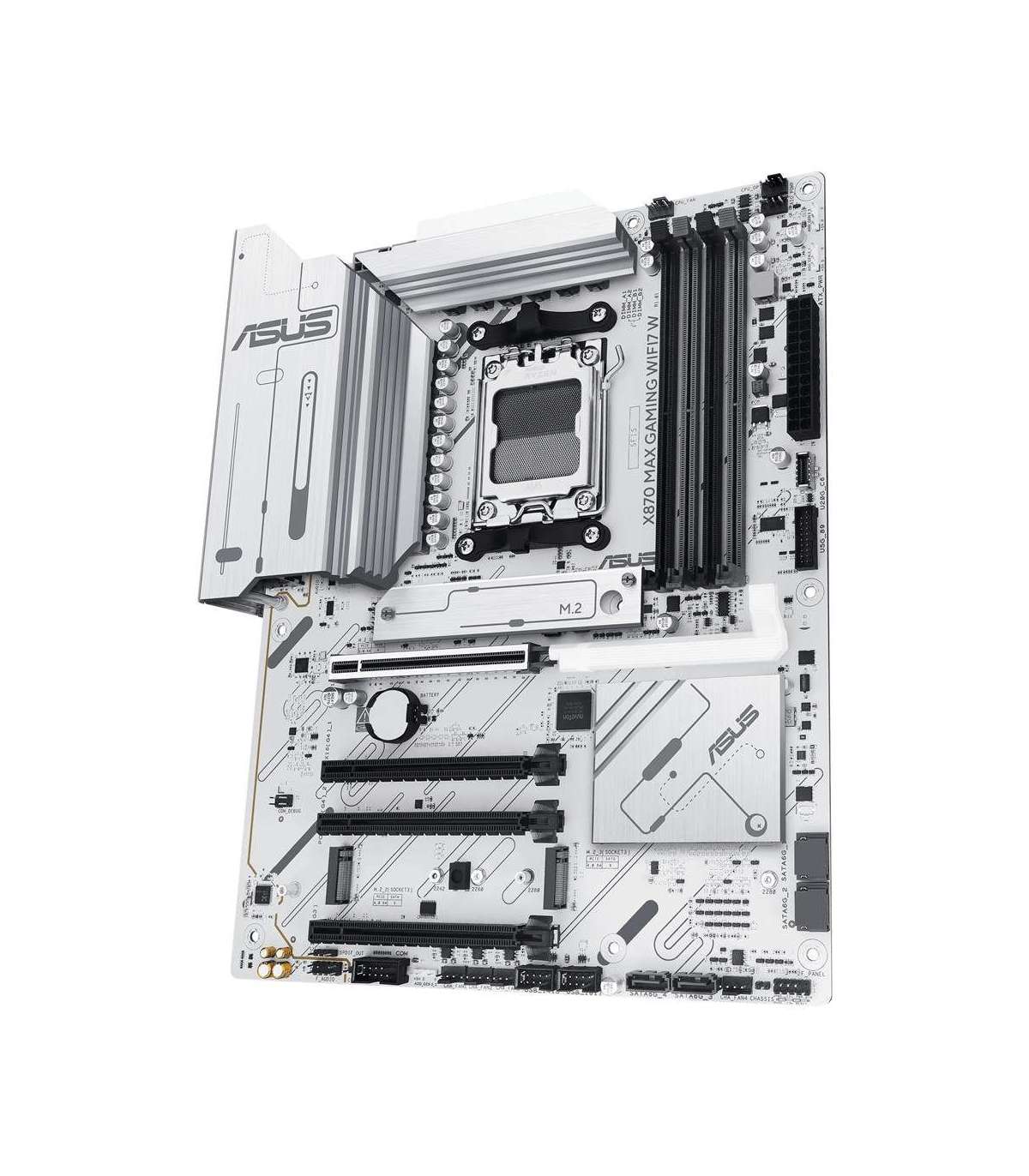

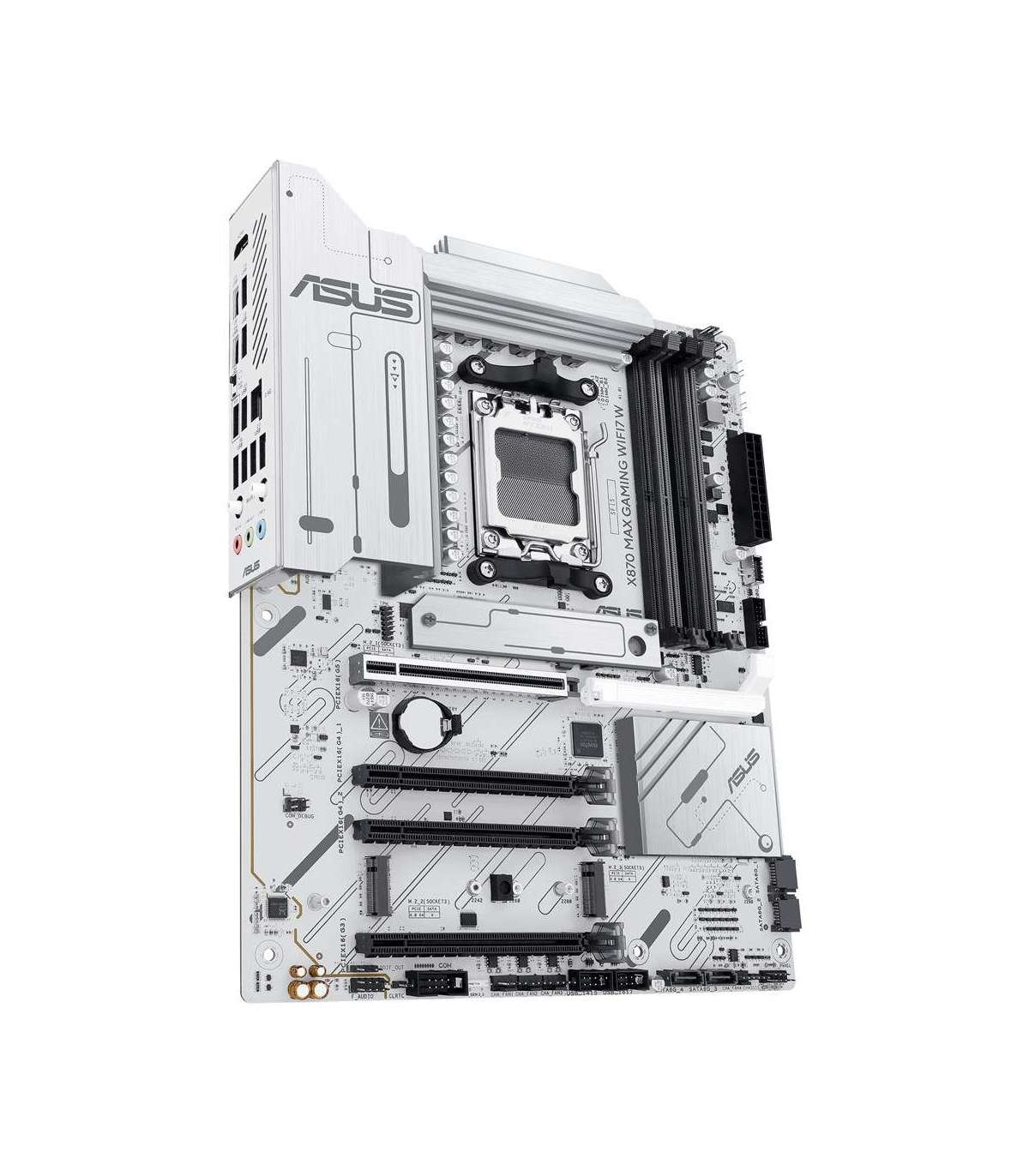

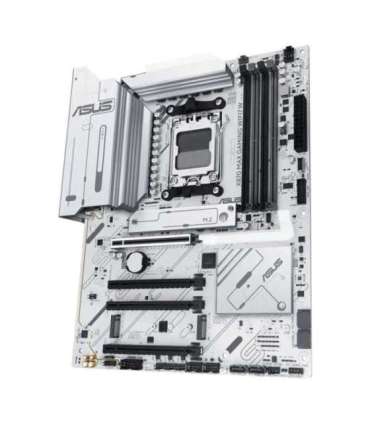

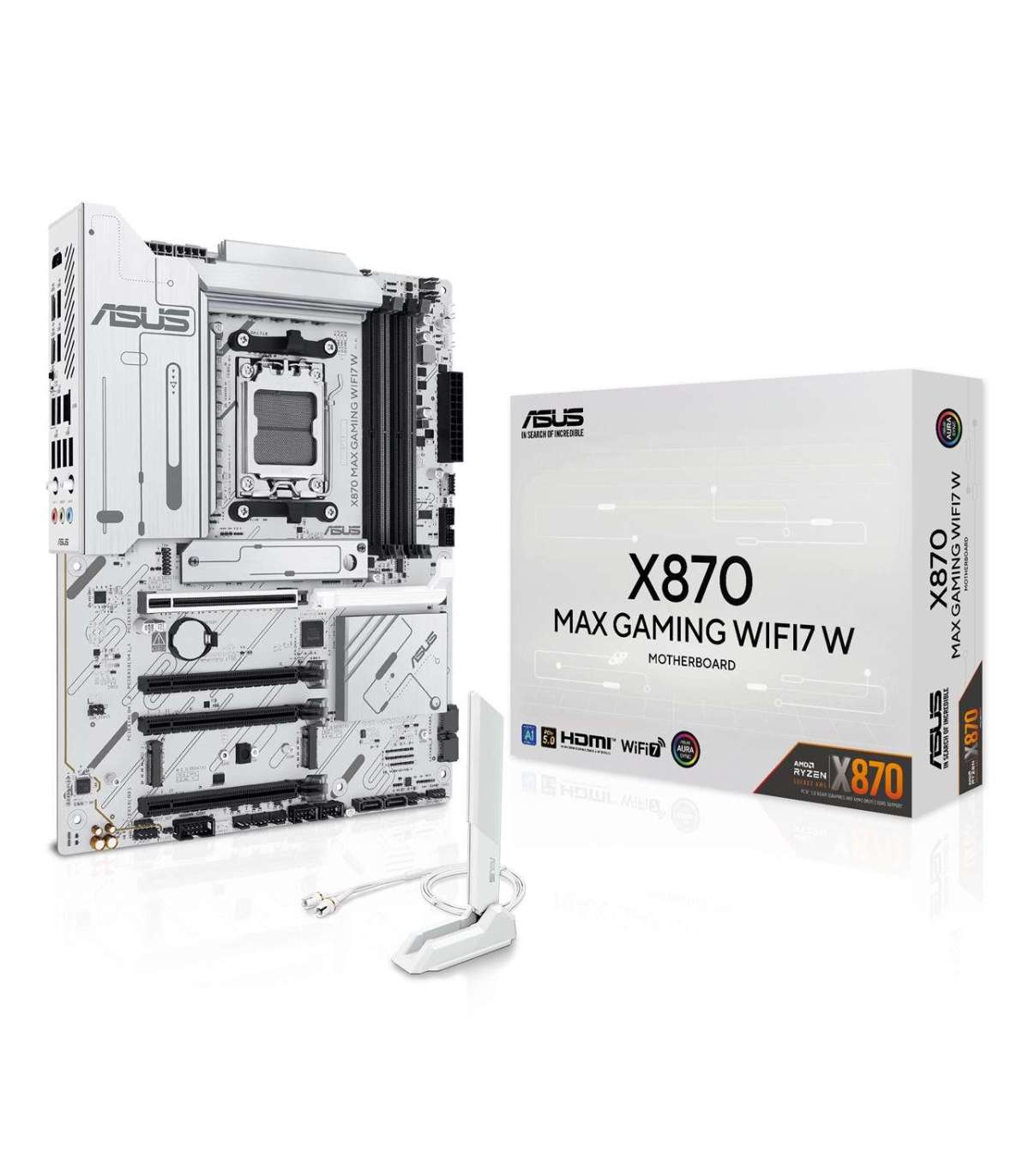

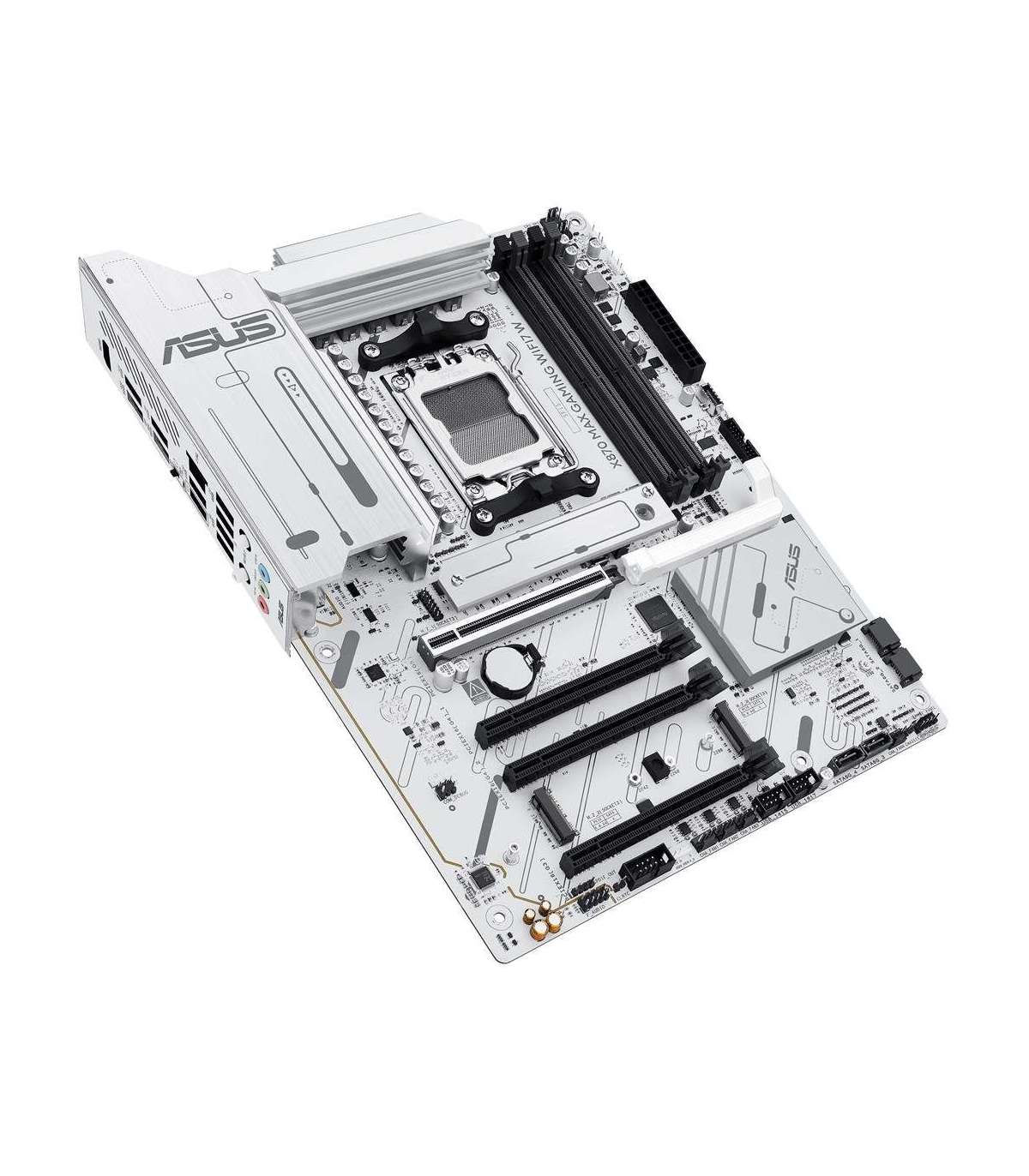

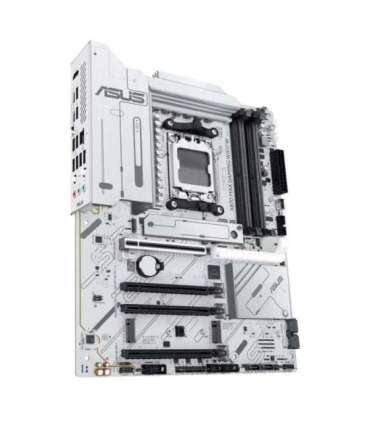

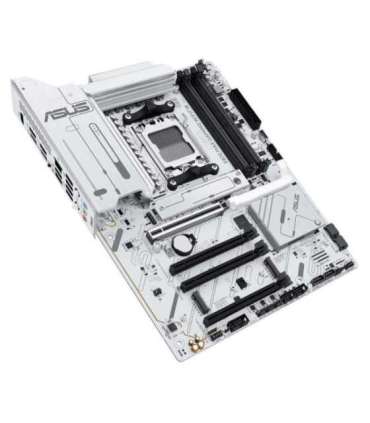

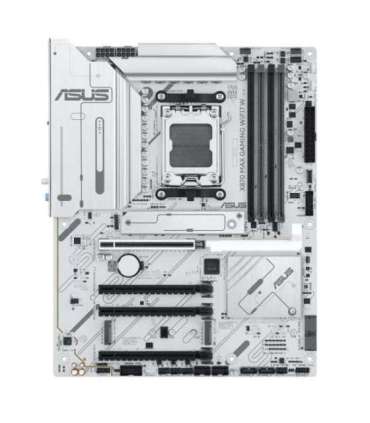

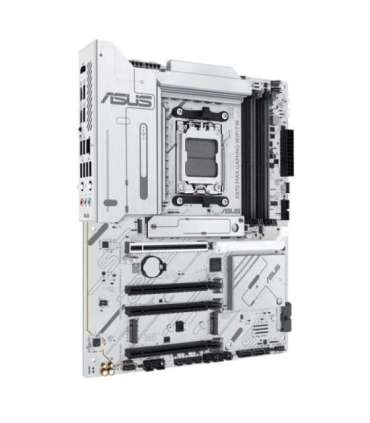

ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Product colour

Valge

Ethernet LAN

Yes

Cables included

SATA

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

Wake-on-LAN ready

Yes

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

USB connector type

USB Type-A
USB Type-C

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

USB4 Gen 3x2 ports quantity

2

Headphone outputs

3

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Maximum resolution

3840 x 2160 pixels

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8000 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

7

RAID support

Yes

S/PDIF out connector

Yes

Number of EPS power connectors (8-pin)

2

Number of CPU fan connectors

2

Number of RGB LED pin headers

3

Number of water pump connectors

1

Screws included

Yes

WiFi-AP antenna jack

2

USB 3.2 Gen 2x2 connectors

1

PCI Express x16 (Gen 5.x) slots

1
