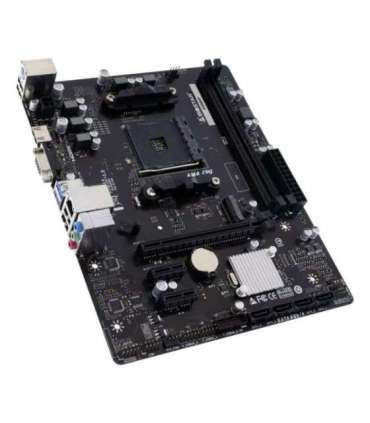

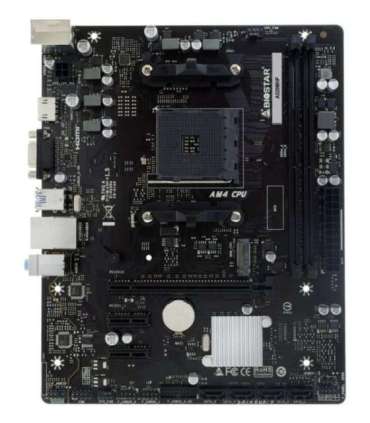

Biostar A520MHP motherboard AMD A520 Socket AM4 micro ATX

Lisainfo

Depth

190 mm

Laius

235 mm

Power source type

ATX

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

64 GB

Bluetooth

No

Motherboard chipset

AMD A520

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series
AMD Ryzen 4000 Series
AMD Ryzen 5000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2667
2933
3200
3600
3800
4000
4133
4266
4400

Memory slots type

SO-DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

Supported processor sockets

Socket AM4

HDCP

Yes

Supported memory clock speed (max)

4400 MHz

Front panel connector

Yes

Number of storage drives supported

1

RAID support

Yes

PCI Express x16 slots

1

DirectX version

12.0

Supported processor sockets (cooler)

Socket AM4

Supported memory module capacities

8GB
16GB
32GB

Power fan connector

Yes

Audio connector

Yes

Line-in

Yes
