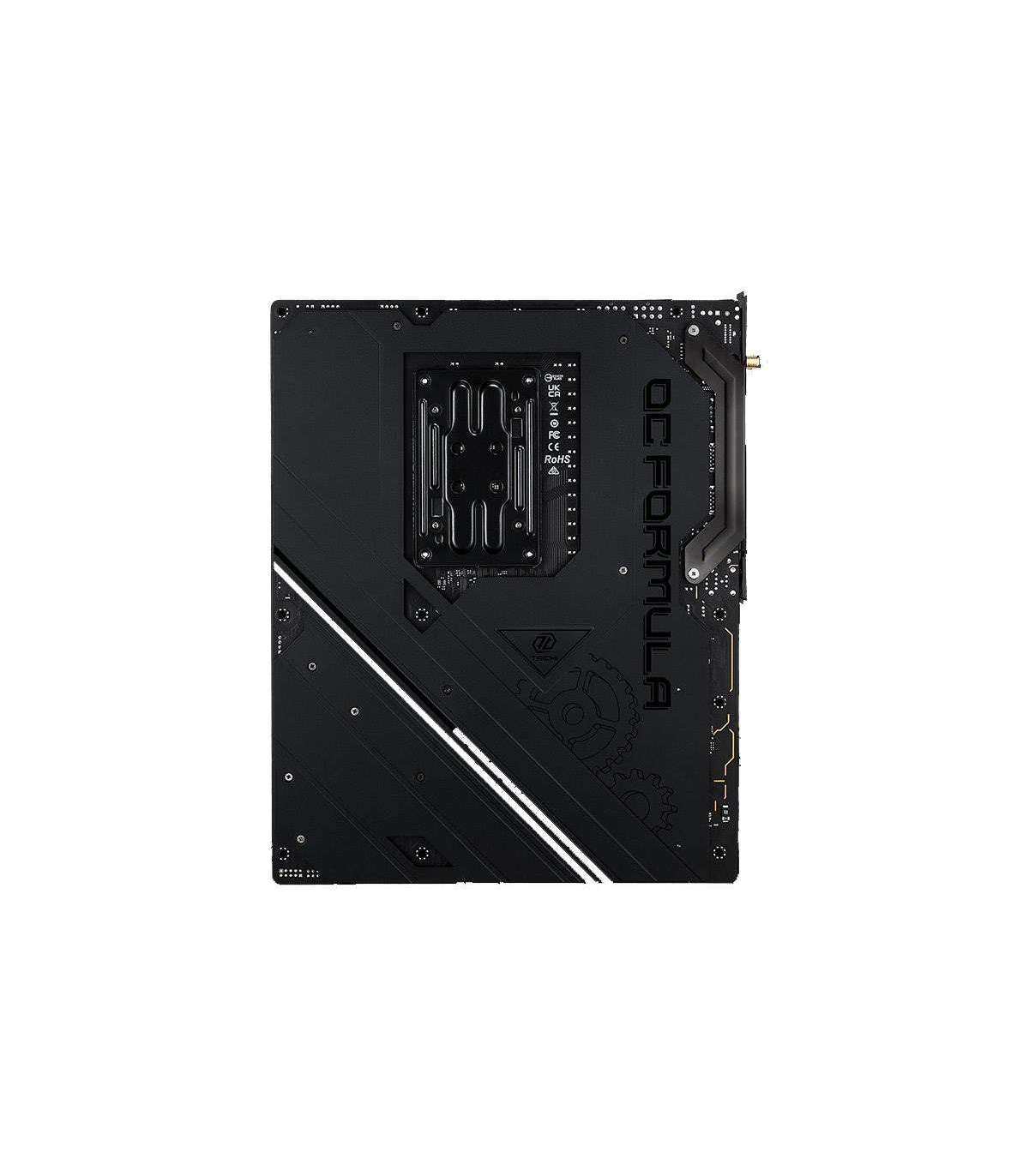

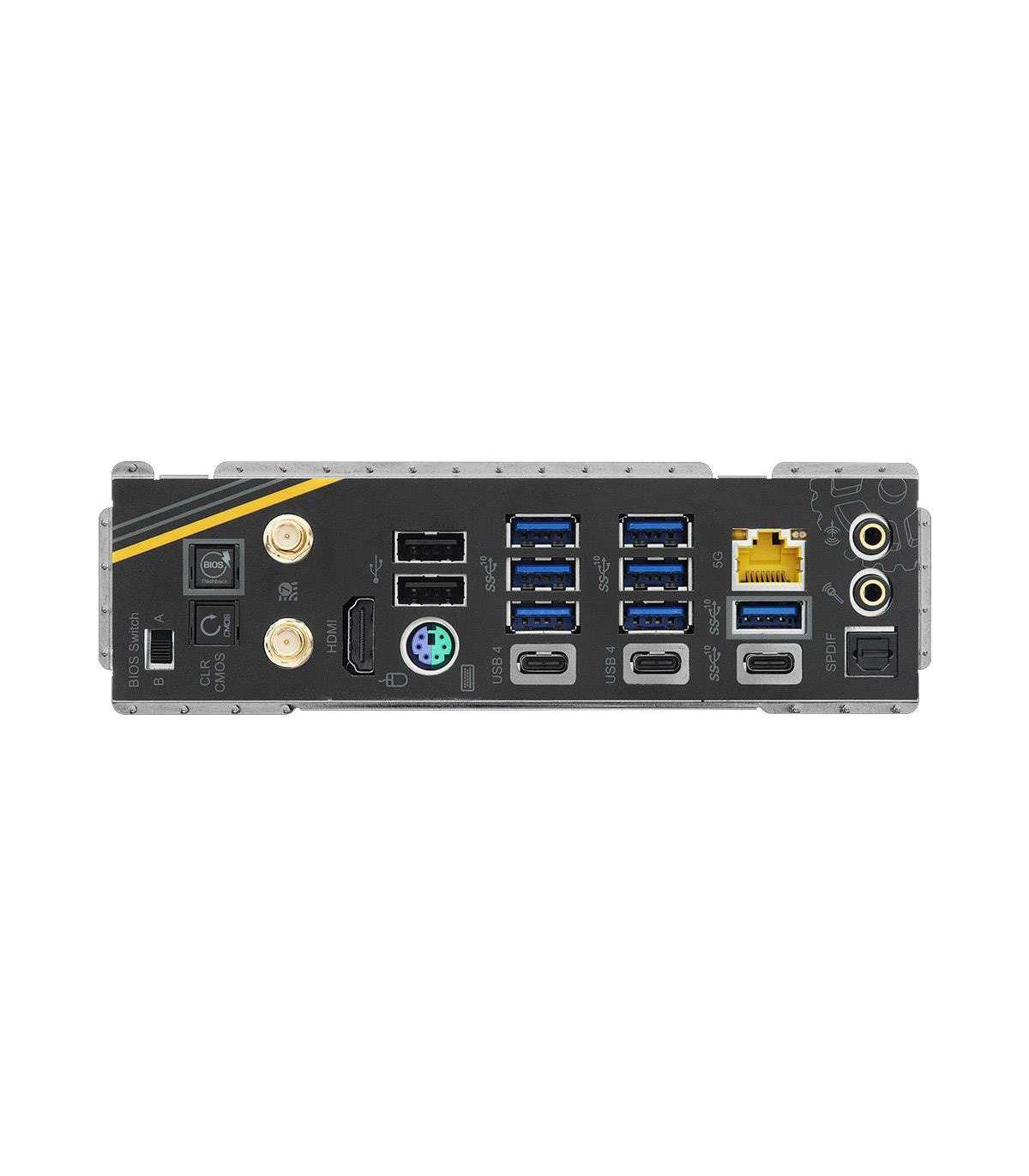

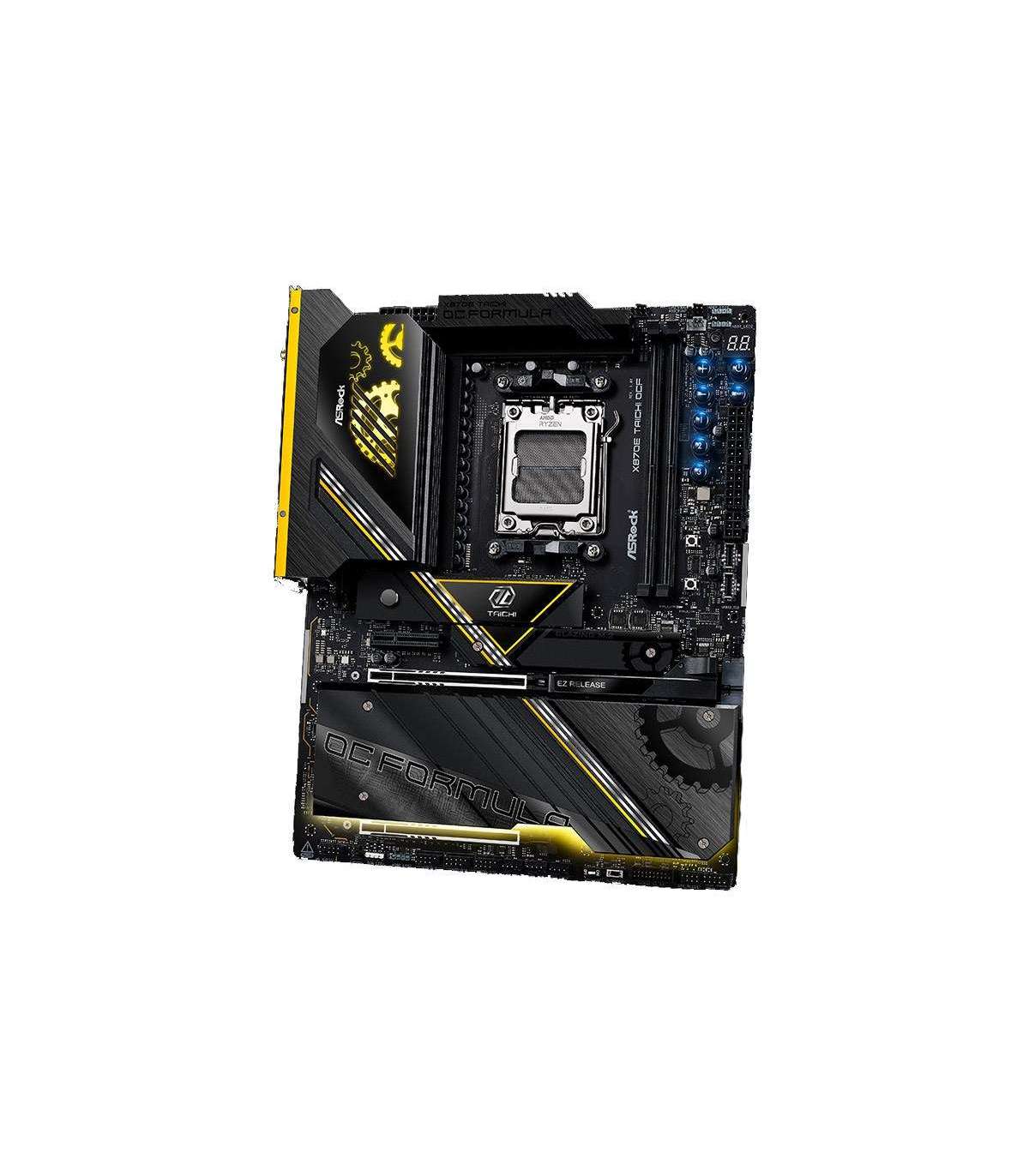

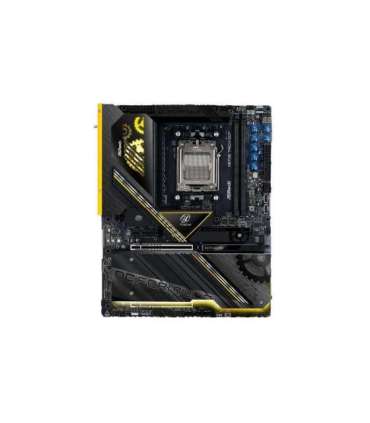

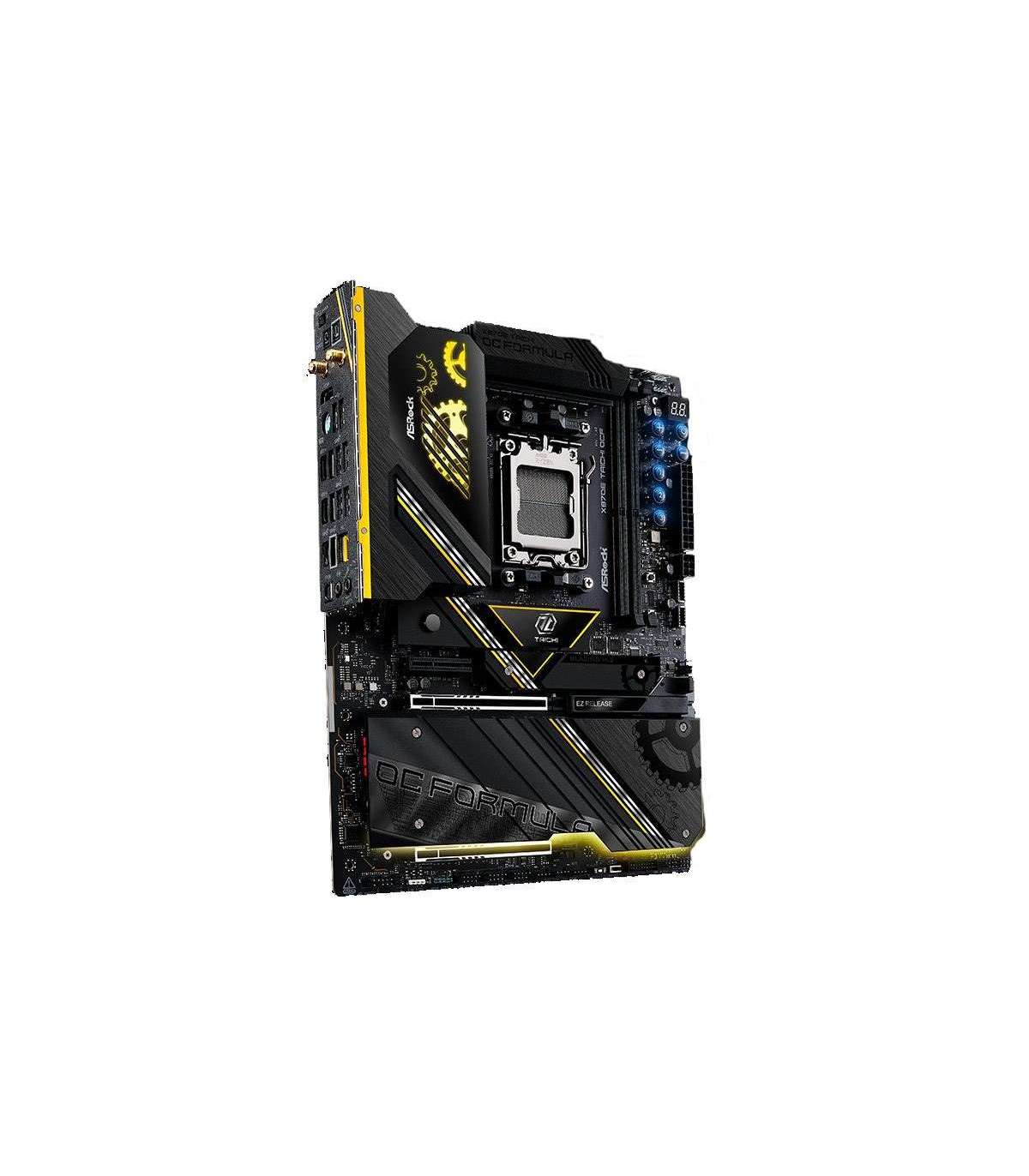

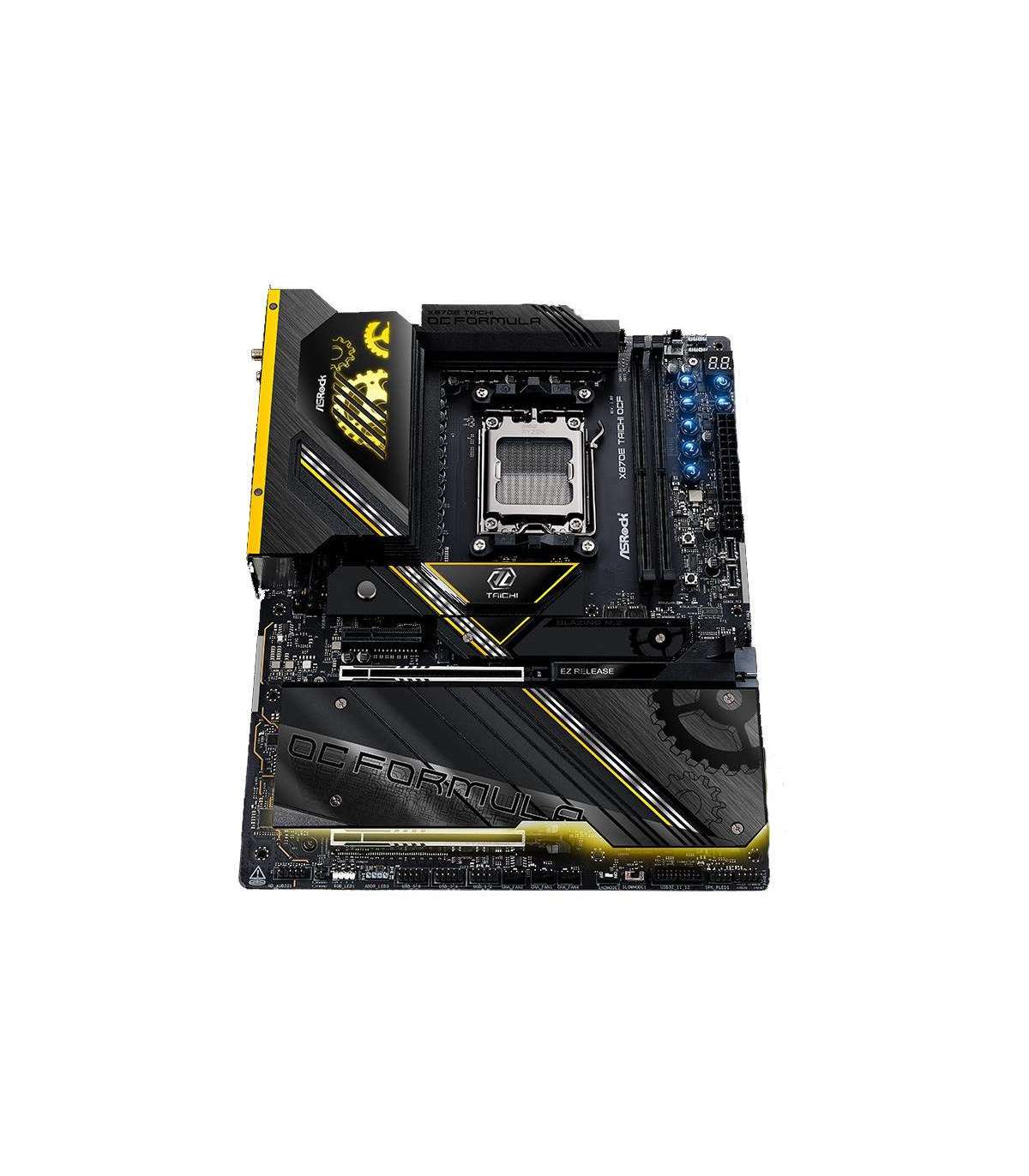

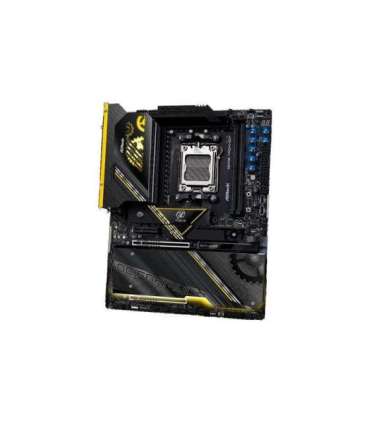

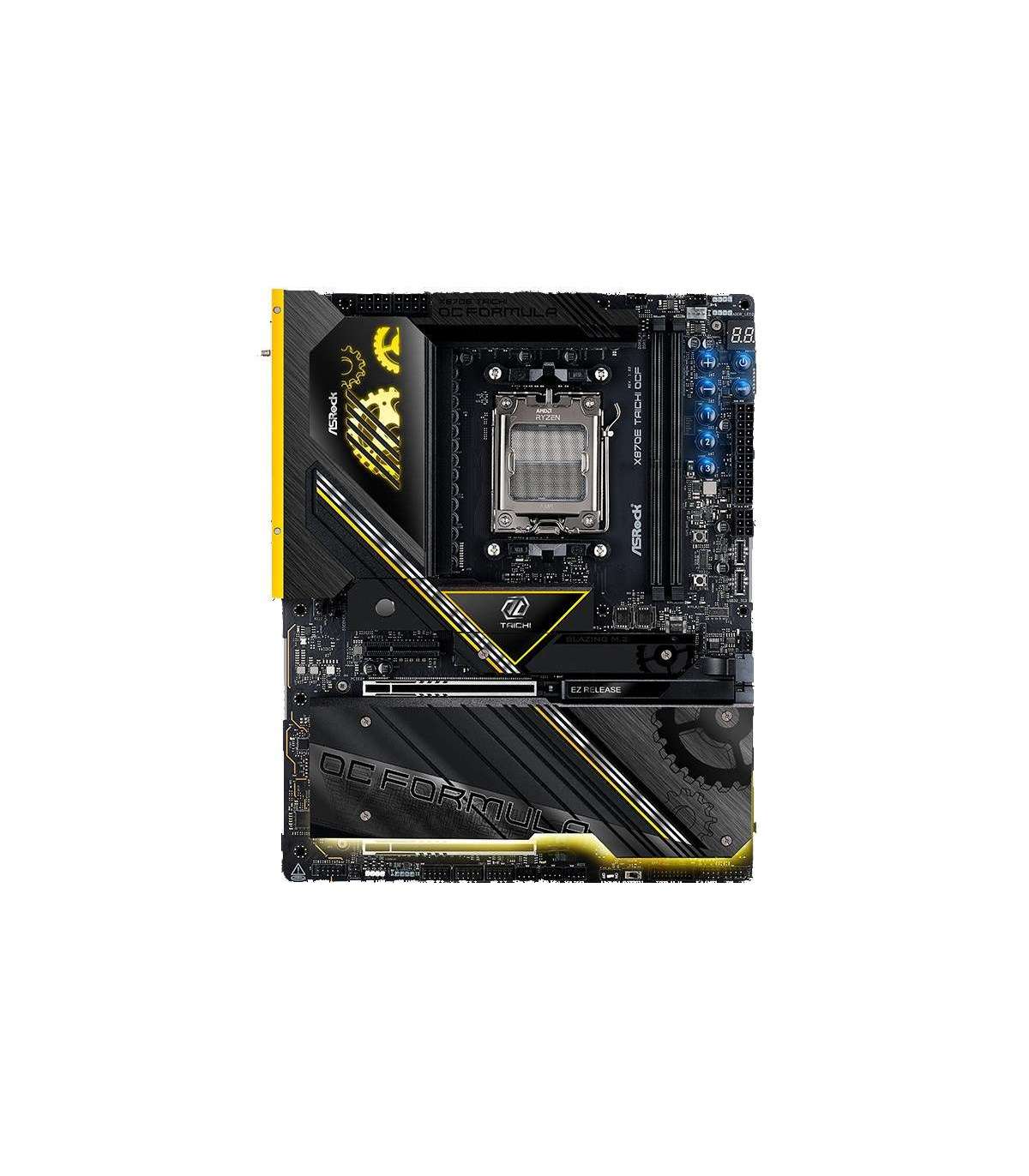

Asrock X870E TAICHI OCF motherboard

Lisainfo

Depth

267 mm

Laius

305 mm

Ethernet LAN

Yes

Wi-Fi standards

802.11 axe
802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Antenna included

Yes

Certification

- FCC, CE- ErP/EuP ready

Antenna type

2x2

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet
5 Gigabit Ethernet
Fast Ethernet
Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870E

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

7

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4082

USB4 Gen 3x2 ports quantity

2

USB 2.0 connectors

2

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard chipset family

AMD

Audio output channels

5.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8126

Number of chassis fan connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

ECC сompatibility

ECC & Non-ECC

Number of SATA III connectors

2

12V power connector

Yes

RGB LED pin header

Yes

RAID levels

0
1
10

S/PDIF out port

Yes

HDCP

Yes

EPS power connector (8-pin)

Yes

RAID support

Yes

Number of CPU fan connectors

2

Clear CMOS button

Yes

USB 3.2 Gen 2x2 connectors

2

PCI Express x16 (Gen 5.x) slots

2

PCI Express x4 (Gen 4.x) slots

1

HDCP version

2.3
