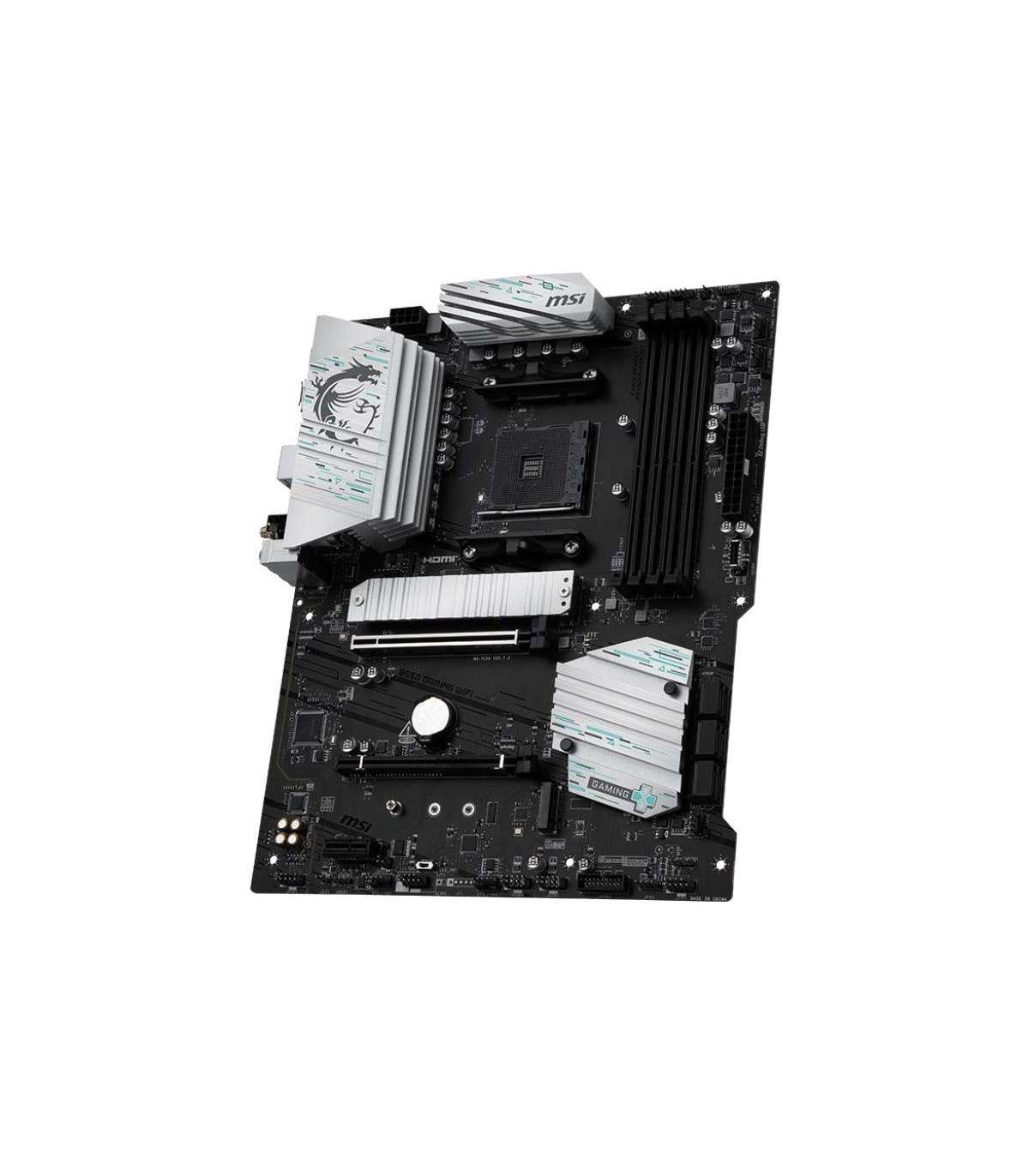

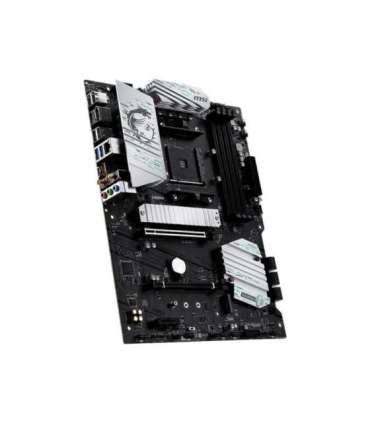

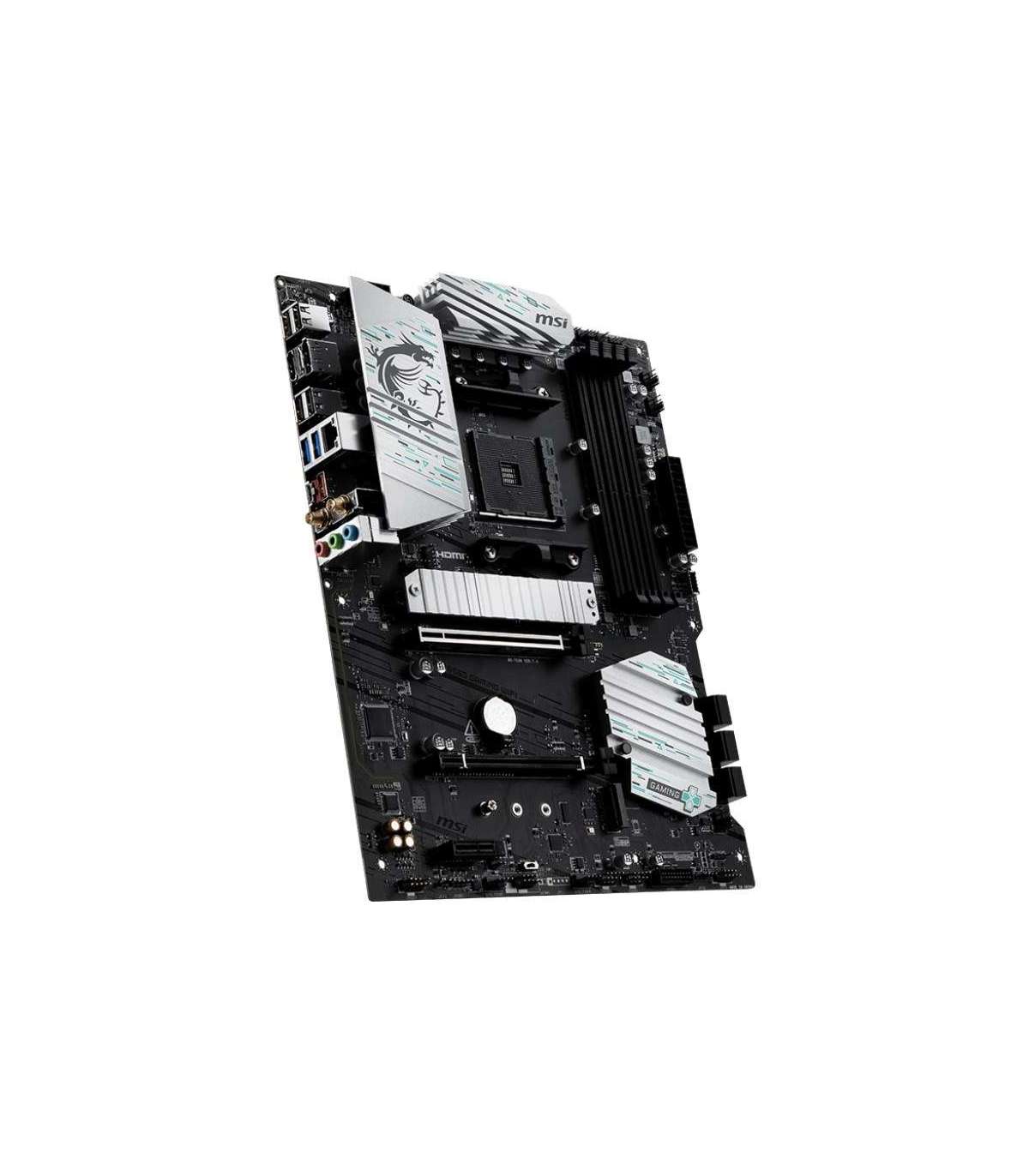

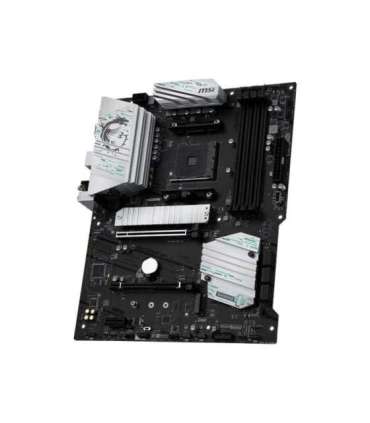

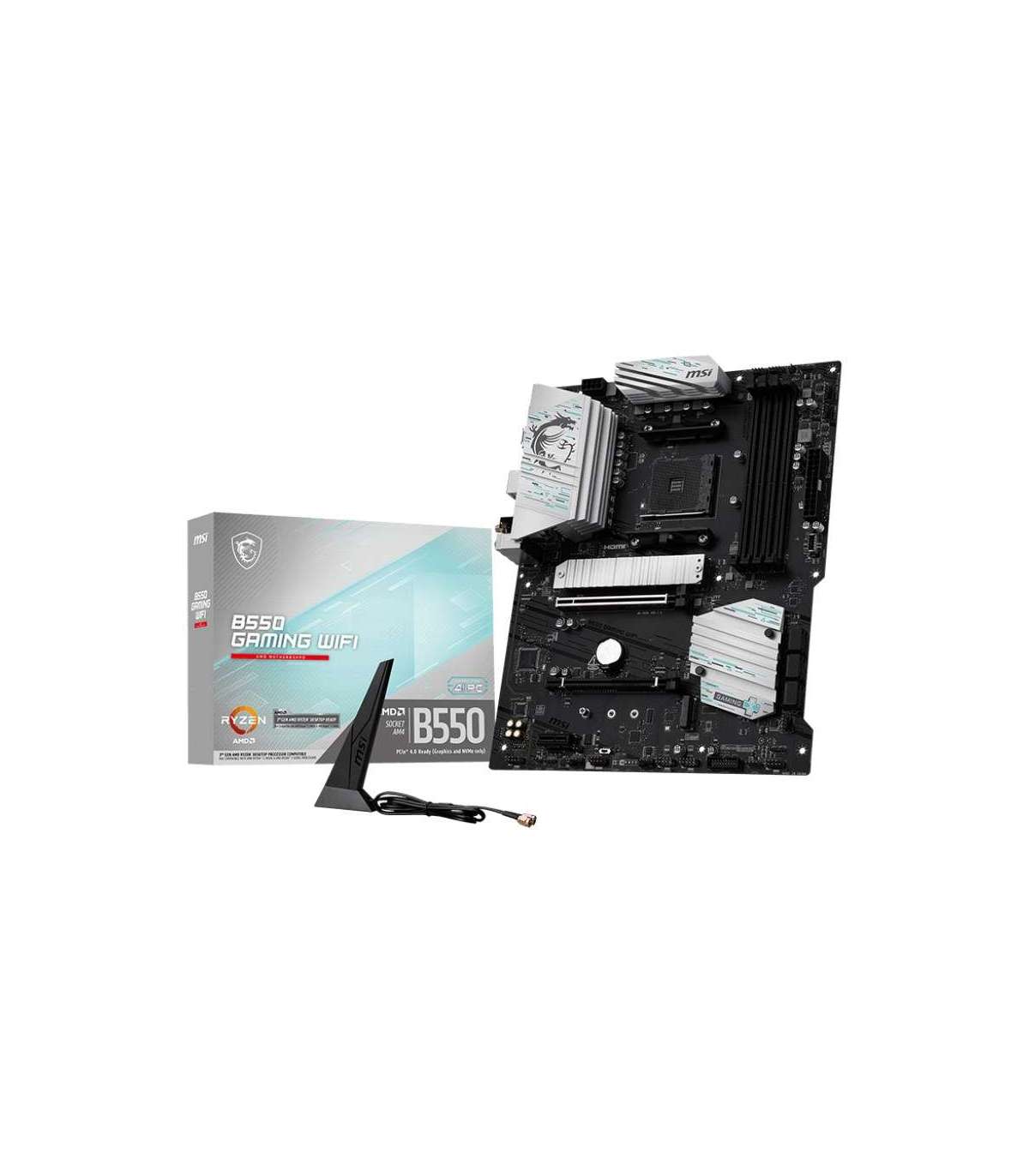

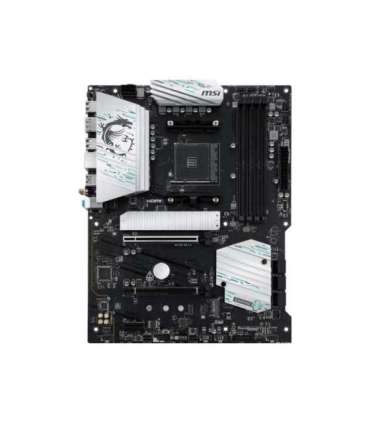

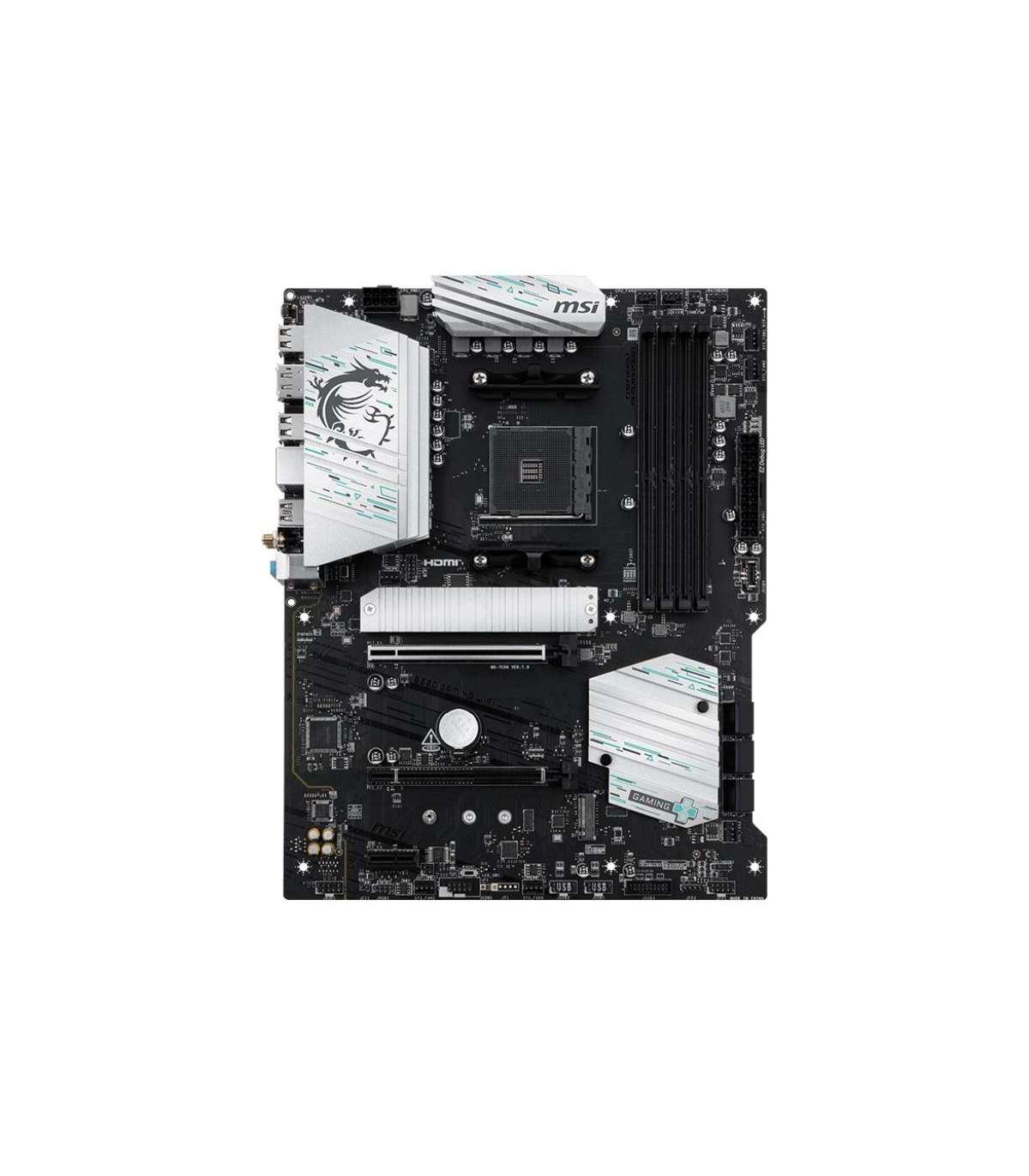

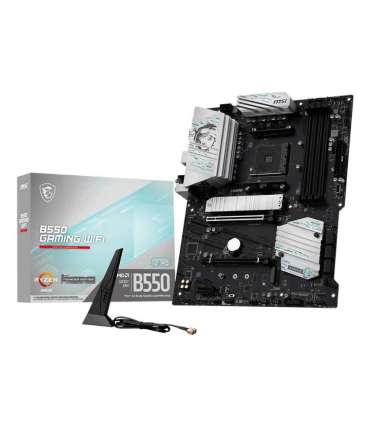

MSI B550 GAMING WIFI motherboard AMD B550 Socket AM4 ATX

Lisainfo

Depth

243.8 mm

Laius

304.8 mm

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

Wi-Fi 5 (802.11ac)

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Bluetooth version

5.0

Bluetooth

Yes

Motherboard chipset

AMD B550

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2667
2800
2933
3000
3066
3200
3466
3600
3733
3866
4000
4133
4266
4400
4533
4600
4733
4800
4866 MHz

Unbuffered memory

Yes

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Realtek 8111H

Number of chassis fan connectors

6

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

M.2, SATA III

ECC сompatibility

ECC & Non-ECC

Maximum number of SMP processors

1

Maximum resolution

4096 x 2160 pixels

Number of SATA III connectors

6

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

Number of M.2 (M) slots

2

Front panel connector

Yes

PCI Express x16 slots

2

PCI Express x1 slots

1

DisplayPort version

1.2

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

3.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Total number of SATA connectors

6

WiFi-AP antenna jack

2
