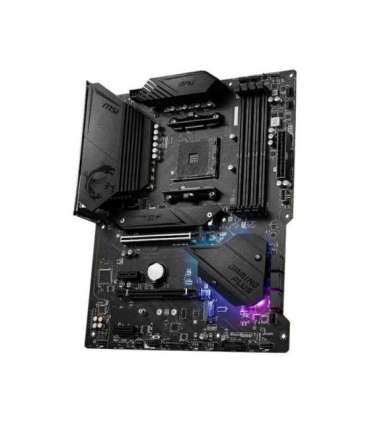

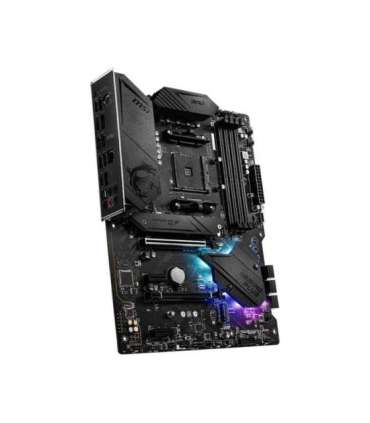

MSI MPG B550 Gaming Plus AMD B550 Socket AM4 ATX

Lisainfo

Depth

244 mm

Kaal

1 kg

Kõrgus

65 mm

Laius

305 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Motherboard chipset

AMD B550

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC892

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

3rd Generation AMD Ryzen 5
3rd Generation AMD Ryzen™ 3
3rd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen™ 9

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

1866
2133
2400
2667
2800
2933
3000
3066
3200
3466
3600
3733
3866
4000
4133
4266
4400

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Realtek 8111H

Number of chassis fan connectors

6

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

SATA III

PS/2 ports quantity

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

2

Drivers included

Yes

Maximum number of SMP processors

1

Parallel processing technology support

2-Way CrossFireX

Maximum resolution

4096 x 2160 pixels

Maximum graphics card memory

16000 MB

Number of mounting holes

9

PC health monitoring

CPU
Fan
Temperature

Number of SATA III connectors

6

12V power connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

S/PDIF out port

Yes

Digital audio optical out

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2
