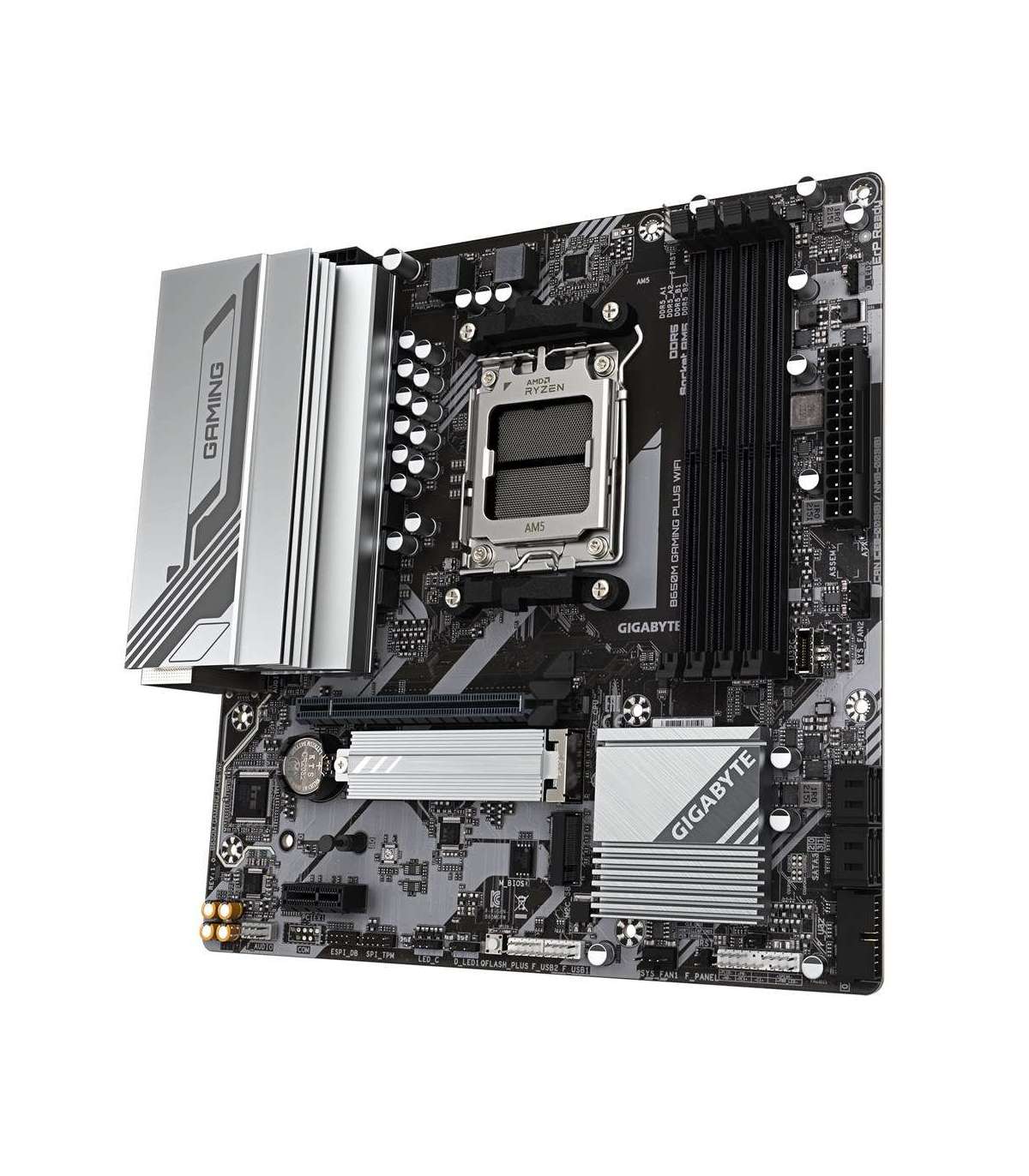

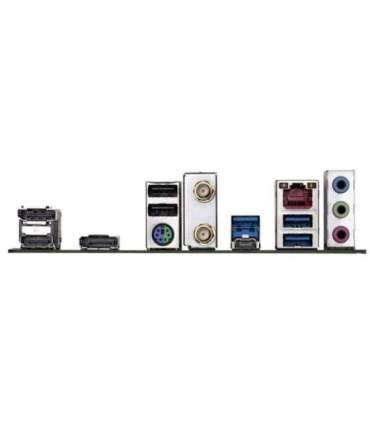

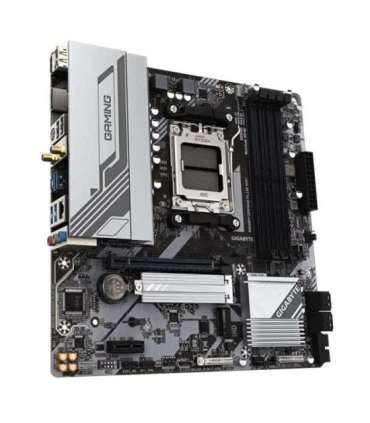

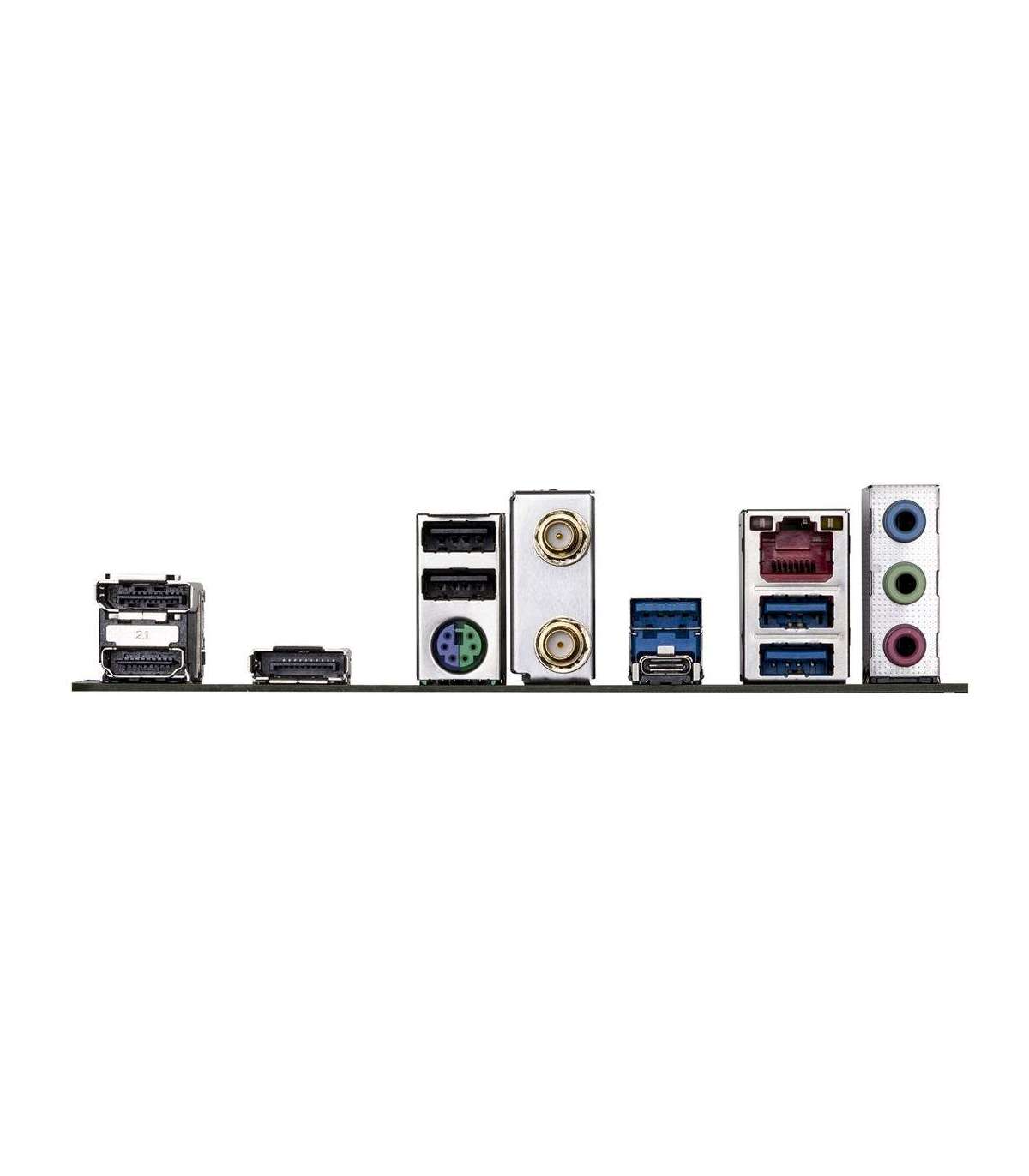

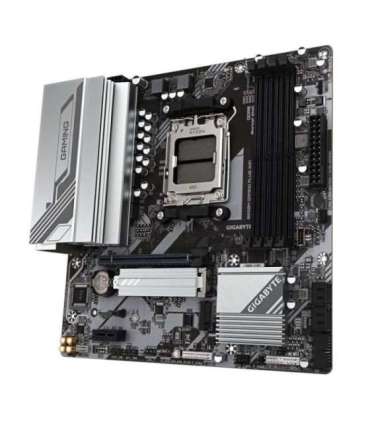

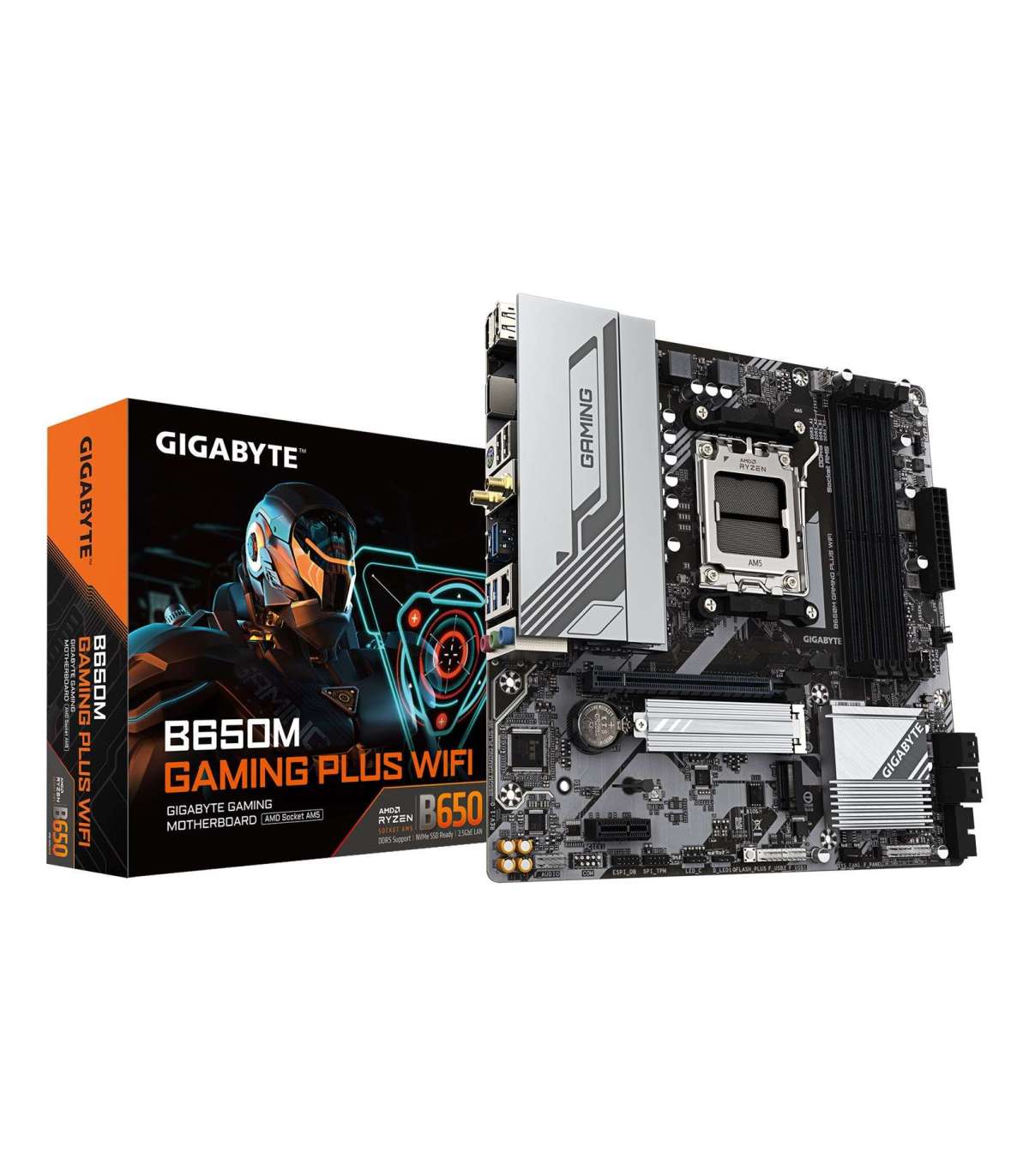

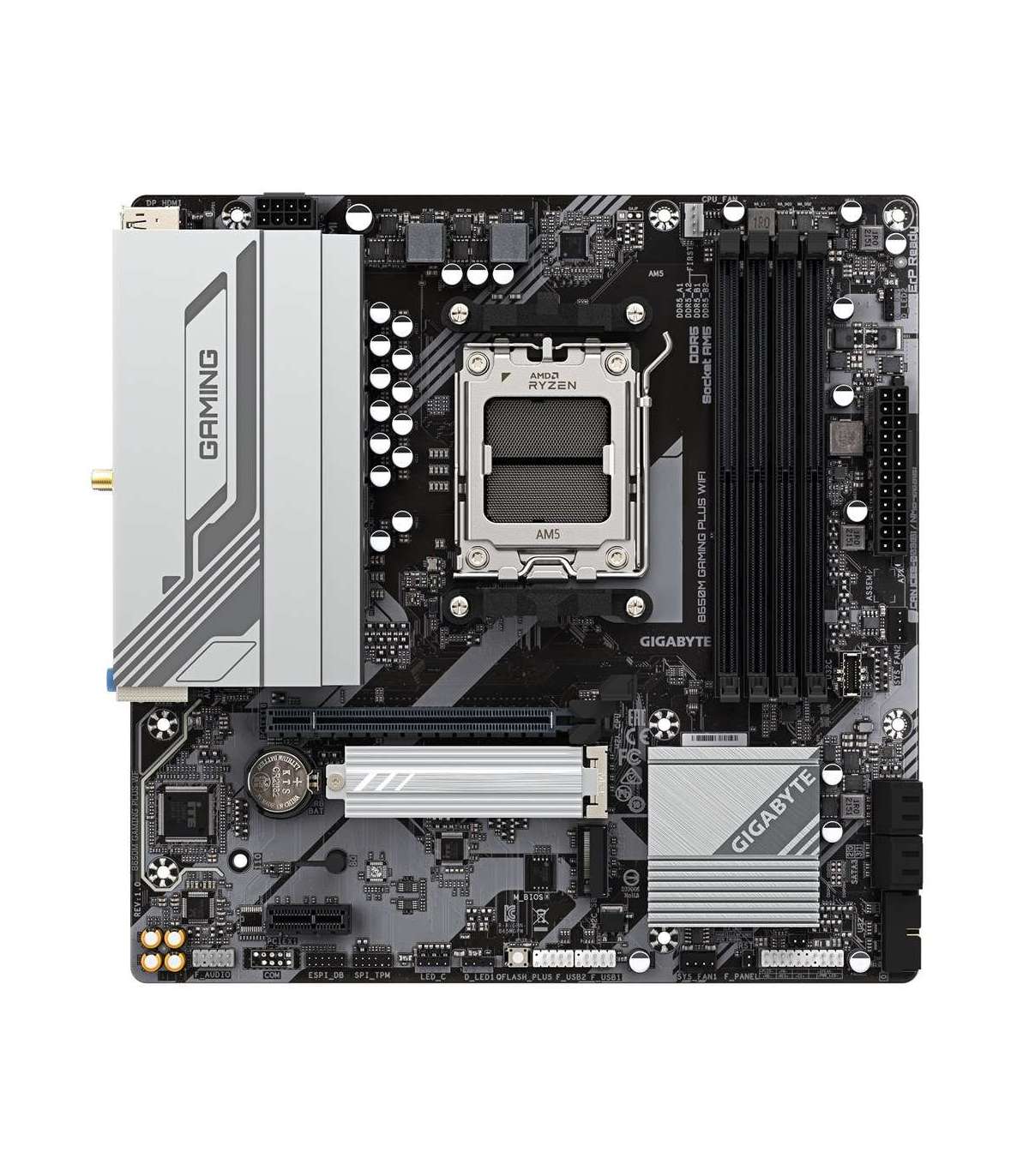

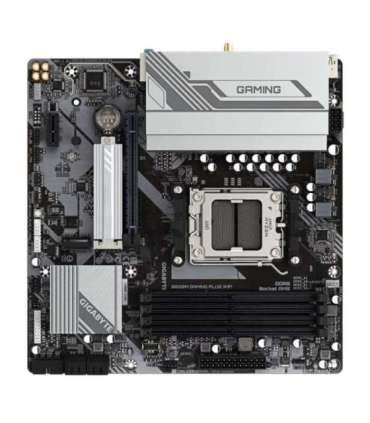

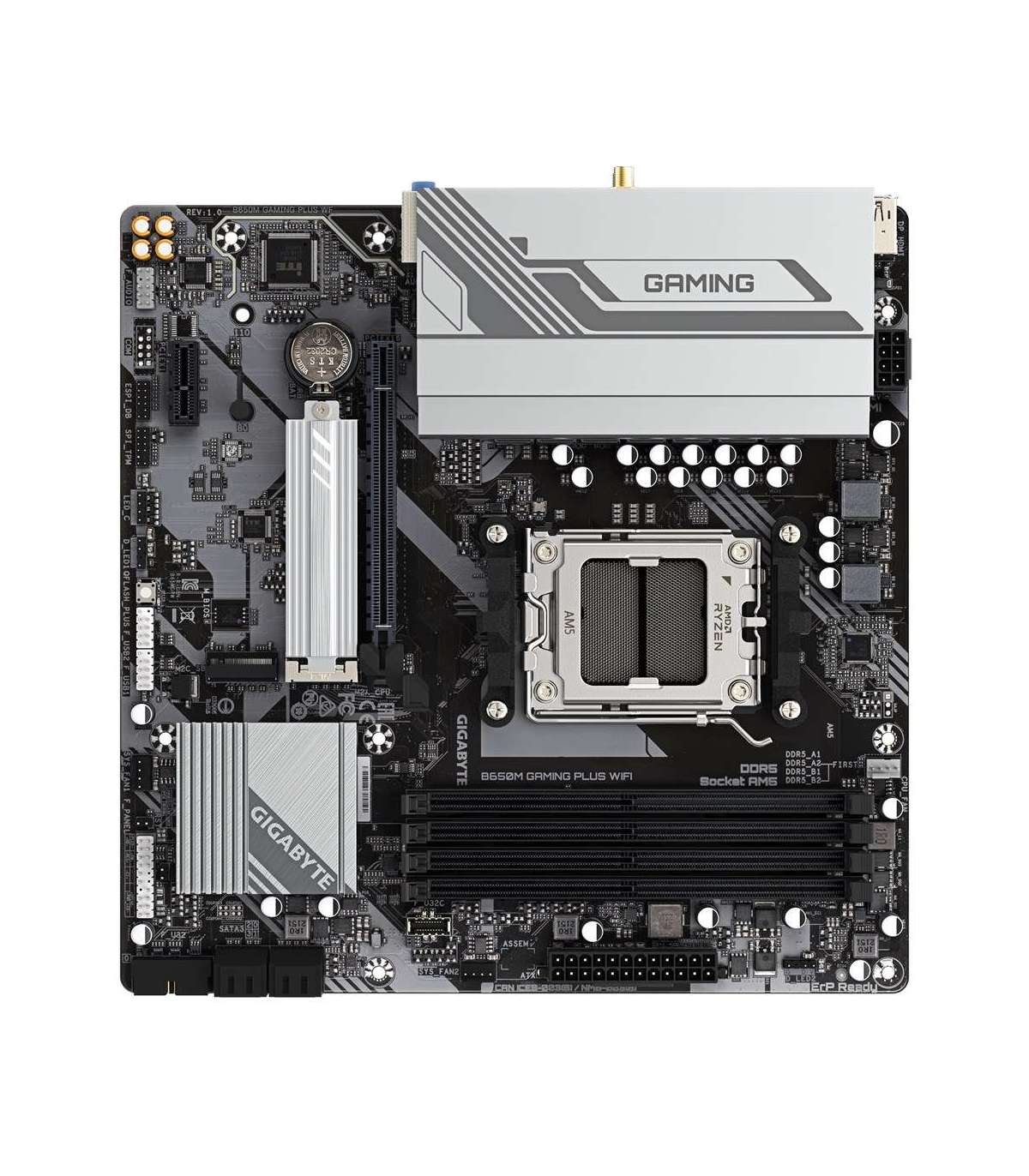

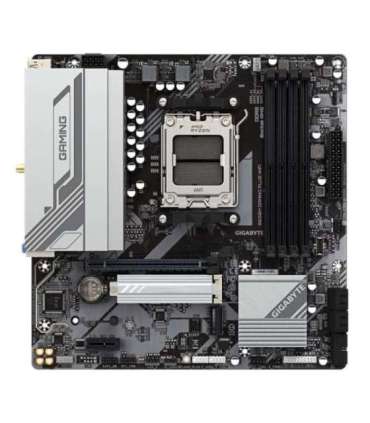

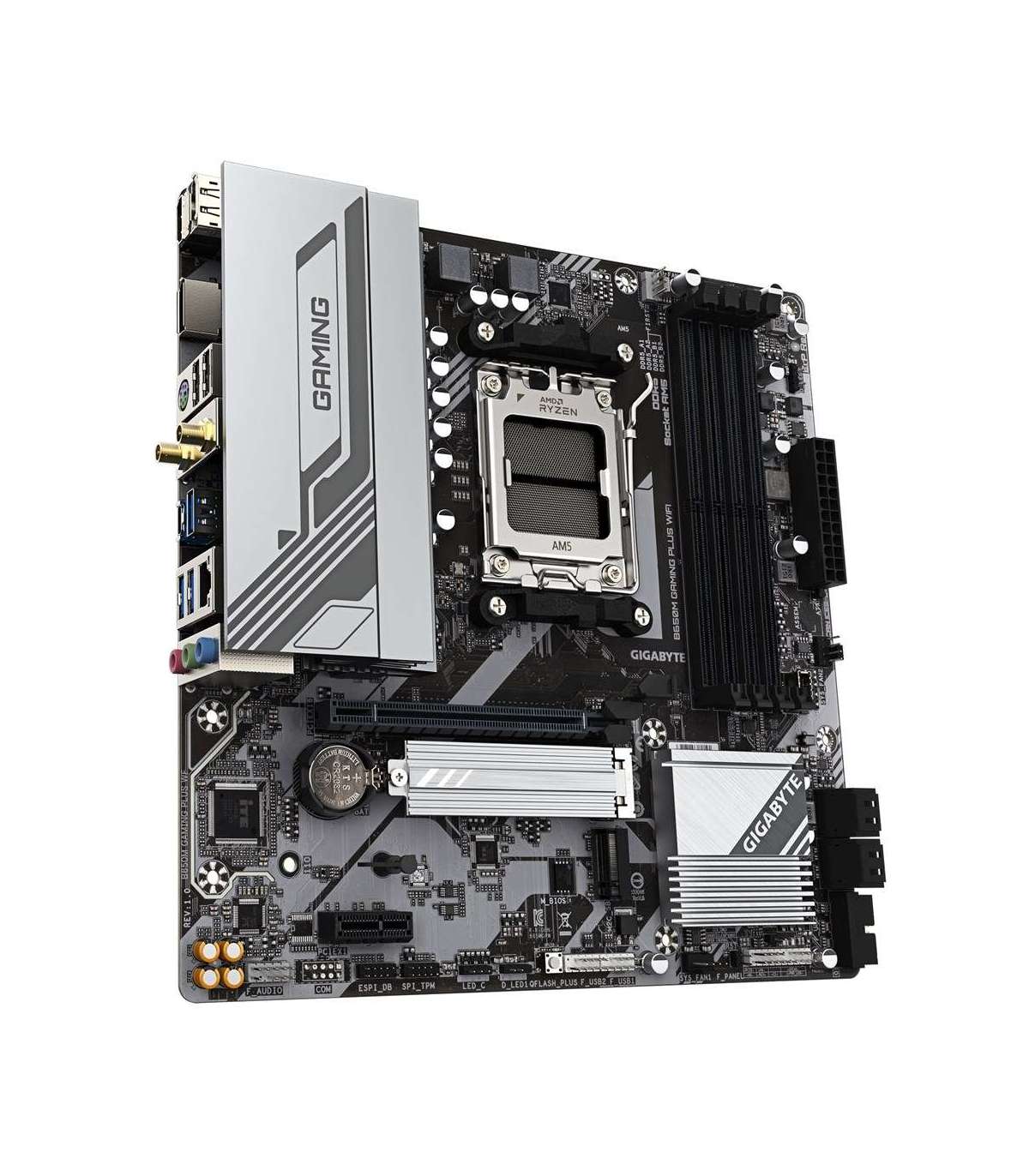

GIGABYTE B650M GAMING PLUS WIFI Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5, 2xPCIe 4.0 M.2,

Lisainfo

Depth

174 mm

Laius

244 mm

Power source type

ATX

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

256 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD B650

HDMI version

2.1

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

WLAN controller model

Realtek RTL8852CE

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800 MHz
5200
5600
6000
6200
6400
6600
6800
7000
7200
7600
7800
8000

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Maximum resolution

4096 x 2160 pixels

PC health monitoring

Fan
Temperature
Voltage

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

HDCP

Yes

Supported memory clock speed (max)

8000 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Desktop Management Interface (DMI) version

2.7

Number of storage drives supported

6

RAID support

Yes

Maximum internal memory per slot

64 GB

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

DisplayPort version

1.4

1st M.2 largest key size

2580

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

1st M.2 highest PCI Express generation

4.0

WiFi-AP antenna jack

2

Number of audio jack connectors

3
