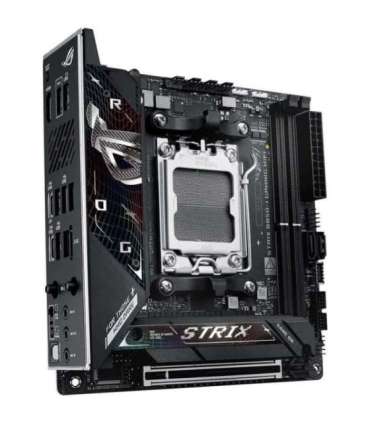

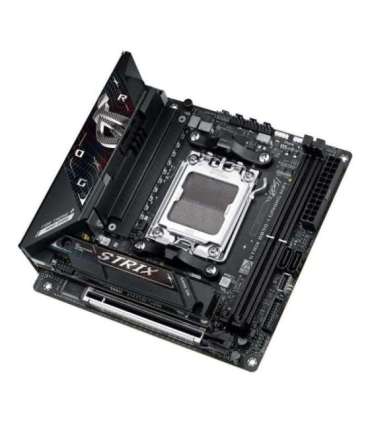

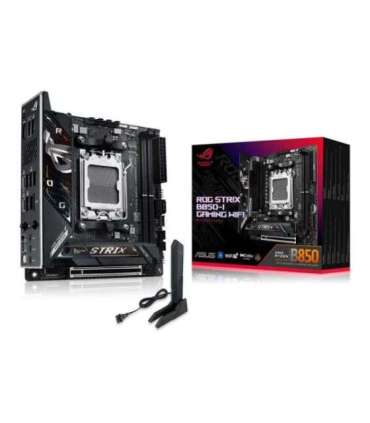

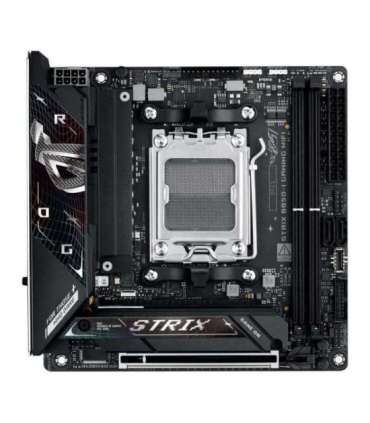

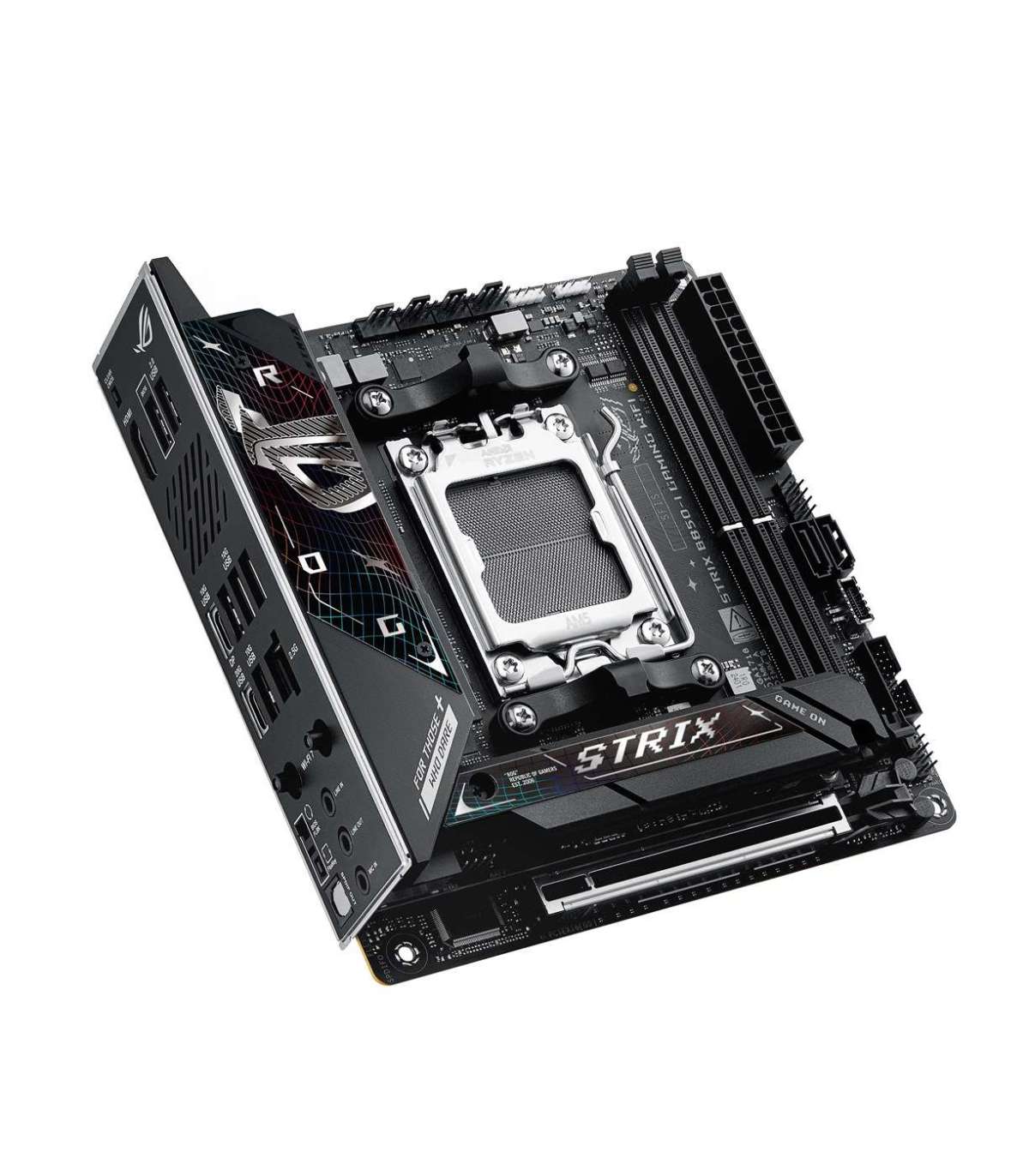

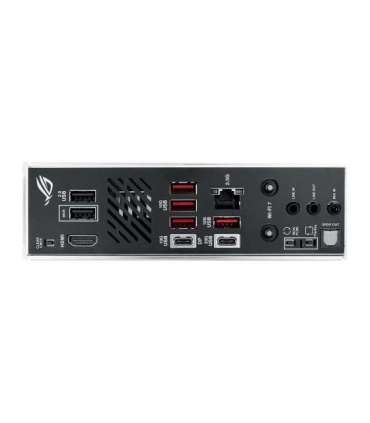

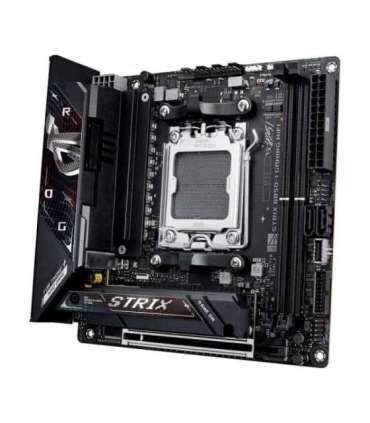

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX

Lisainfo

Depth

170 mm

Kaal

1.06 kg

Laius

170 mm

Package weight

1.06 kg

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

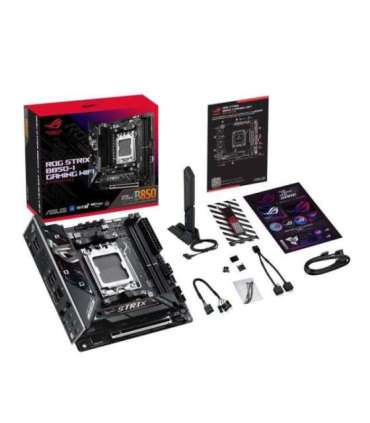

Cables included

SATA

Quick installation guide

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

Package width

226 mm

Package depth

185 mm

Package height

94 mm

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

Antenna included

Yes

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

96 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD B850

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4080

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

1

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

mini ITX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

2

Supported storage drive interfaces

M.2, SATA III

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

Number of SATA III connectors

2

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

S/PDIF out port

Yes

Digital audio optical out

1

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8400 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

4

Line-in

Yes

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

2

Number of water pump connectors

1

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

Clear CMOS button

Yes

WiFi-AP antenna jack

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1

Number of temperature sensor headers

1
