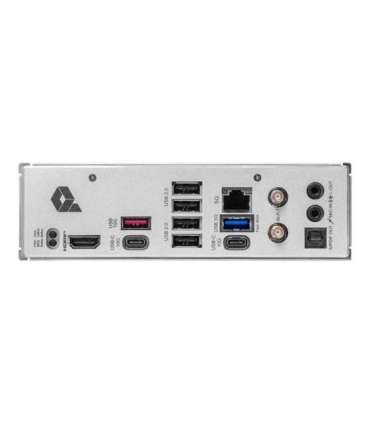

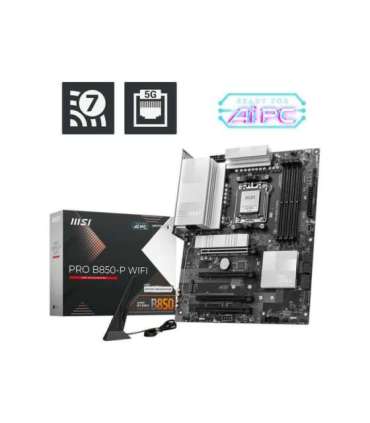

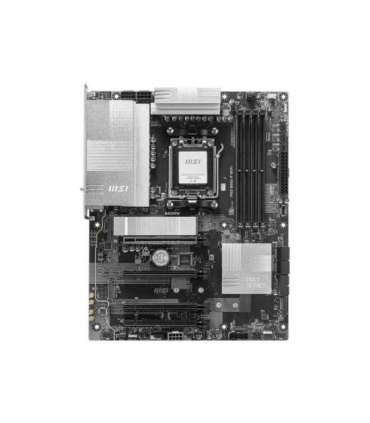

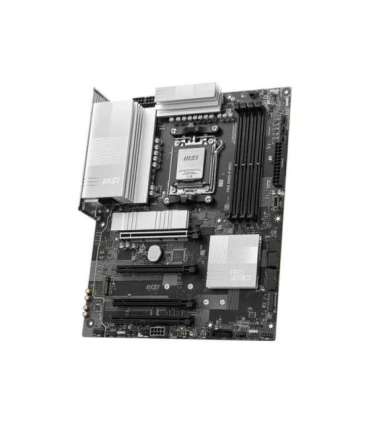

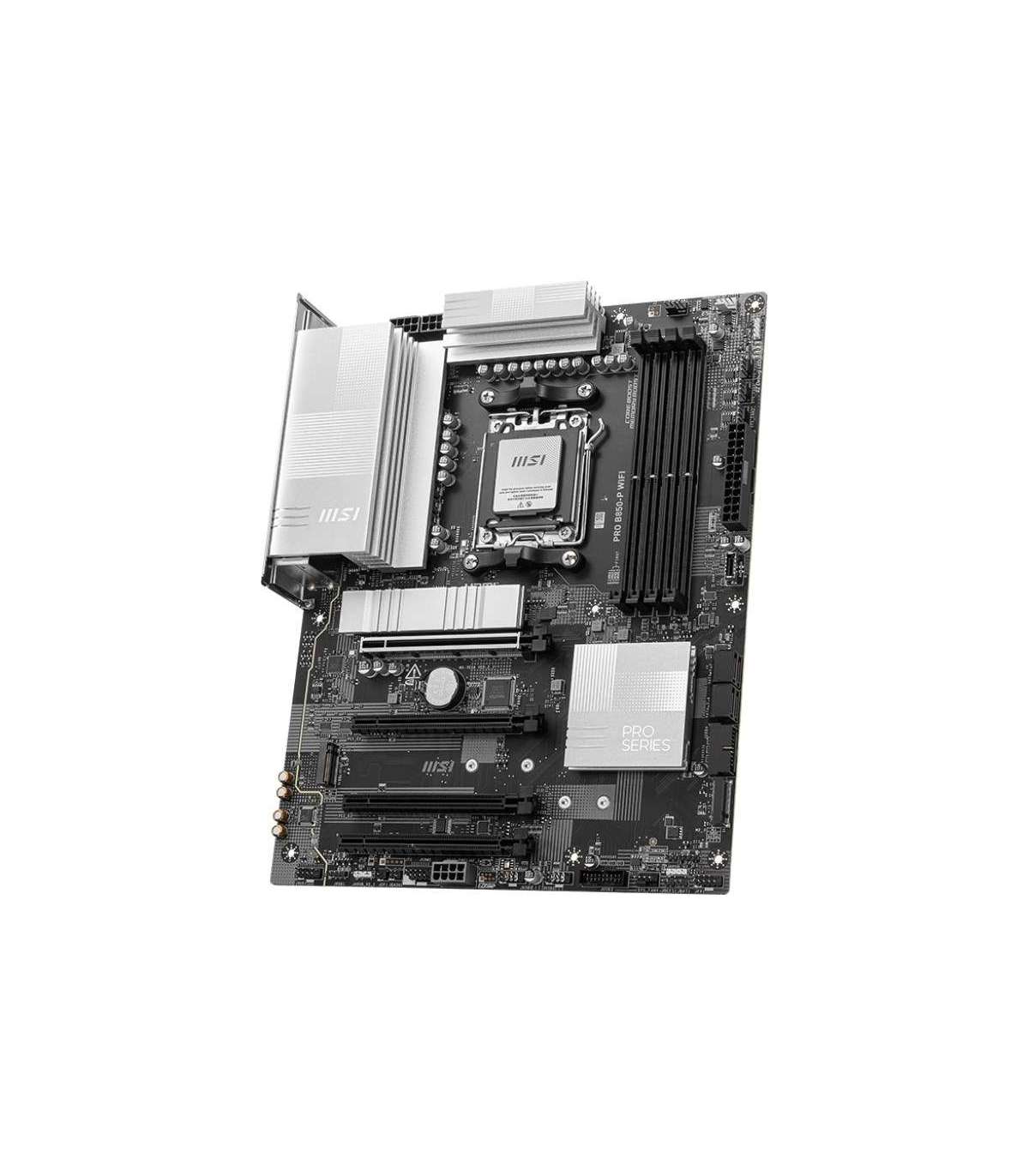

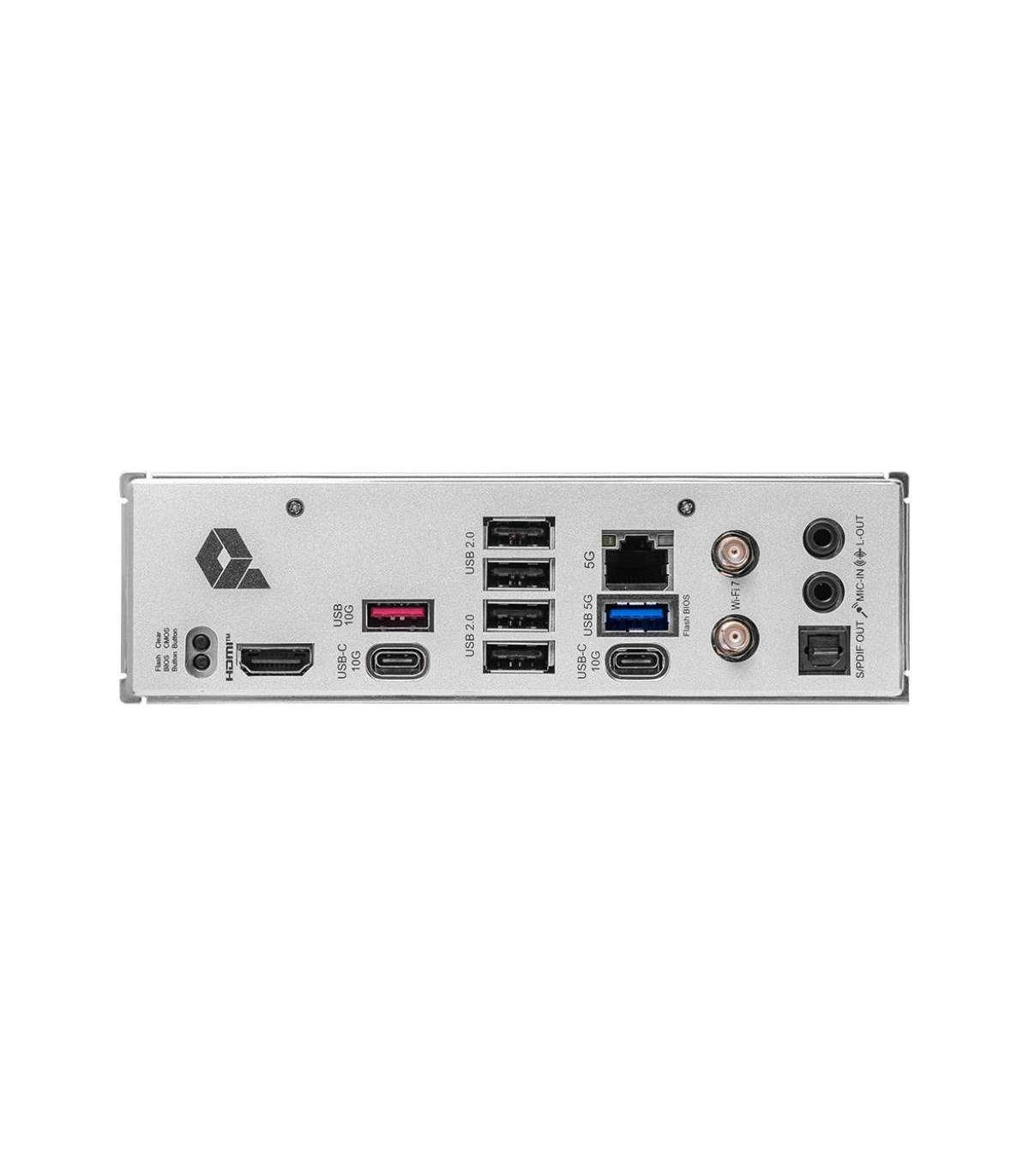

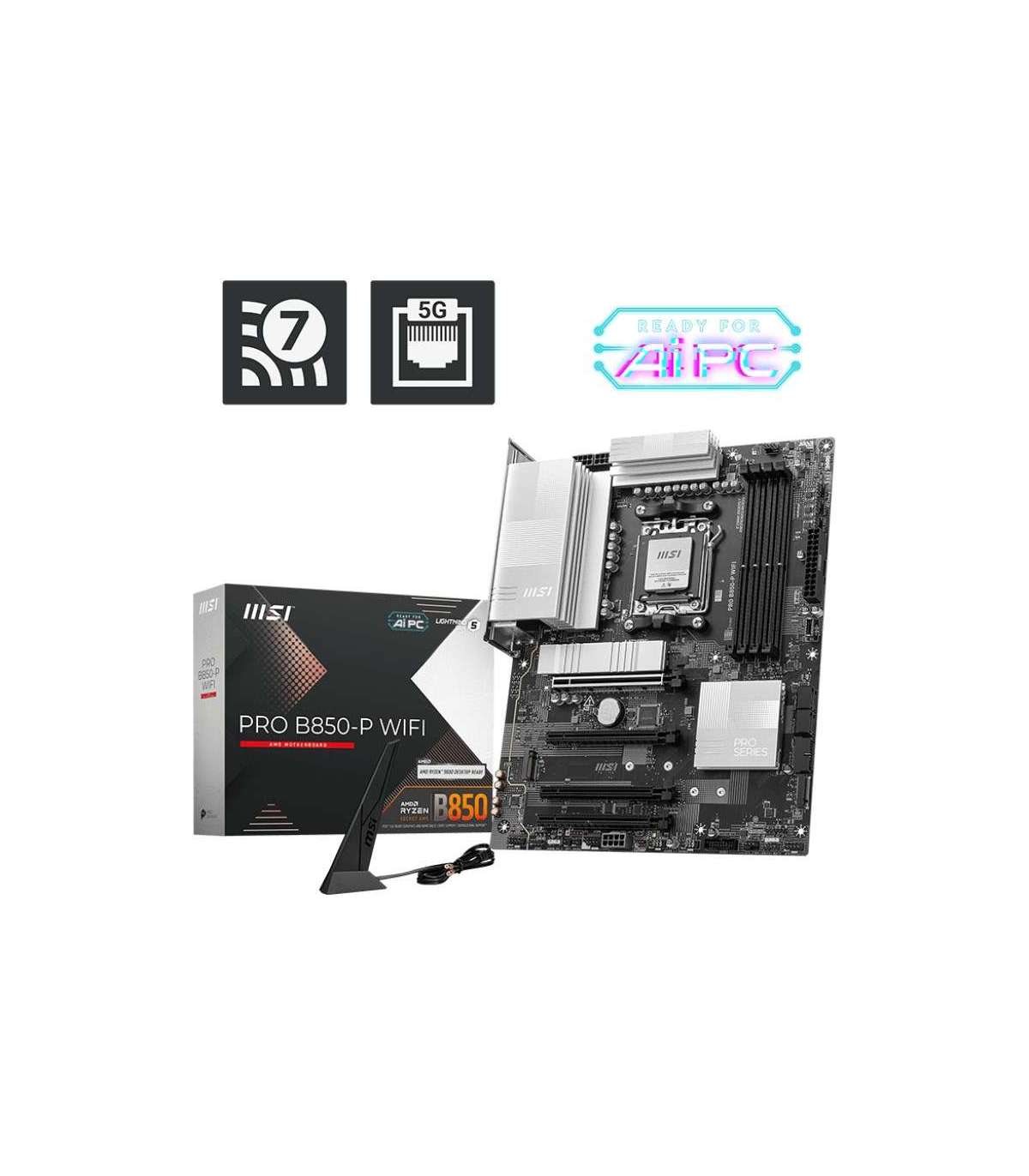

MSI PRO B850-P WIFI motherboard AMD B850 Socket AM5 ATX

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Product colour

Must

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Warnings

Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD B850

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

3

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5600
8200

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of HDDs supported

4

Supported storage drive interfaces

M.2, Micro SATA III

PCI Express x16 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8200 MHz

Number of storage drives supported

7

RAID support

Yes

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Number of water pump connectors

1

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

Total number of SATA connectors

4

Maximum internal memory supported by processor

256 GB

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280
