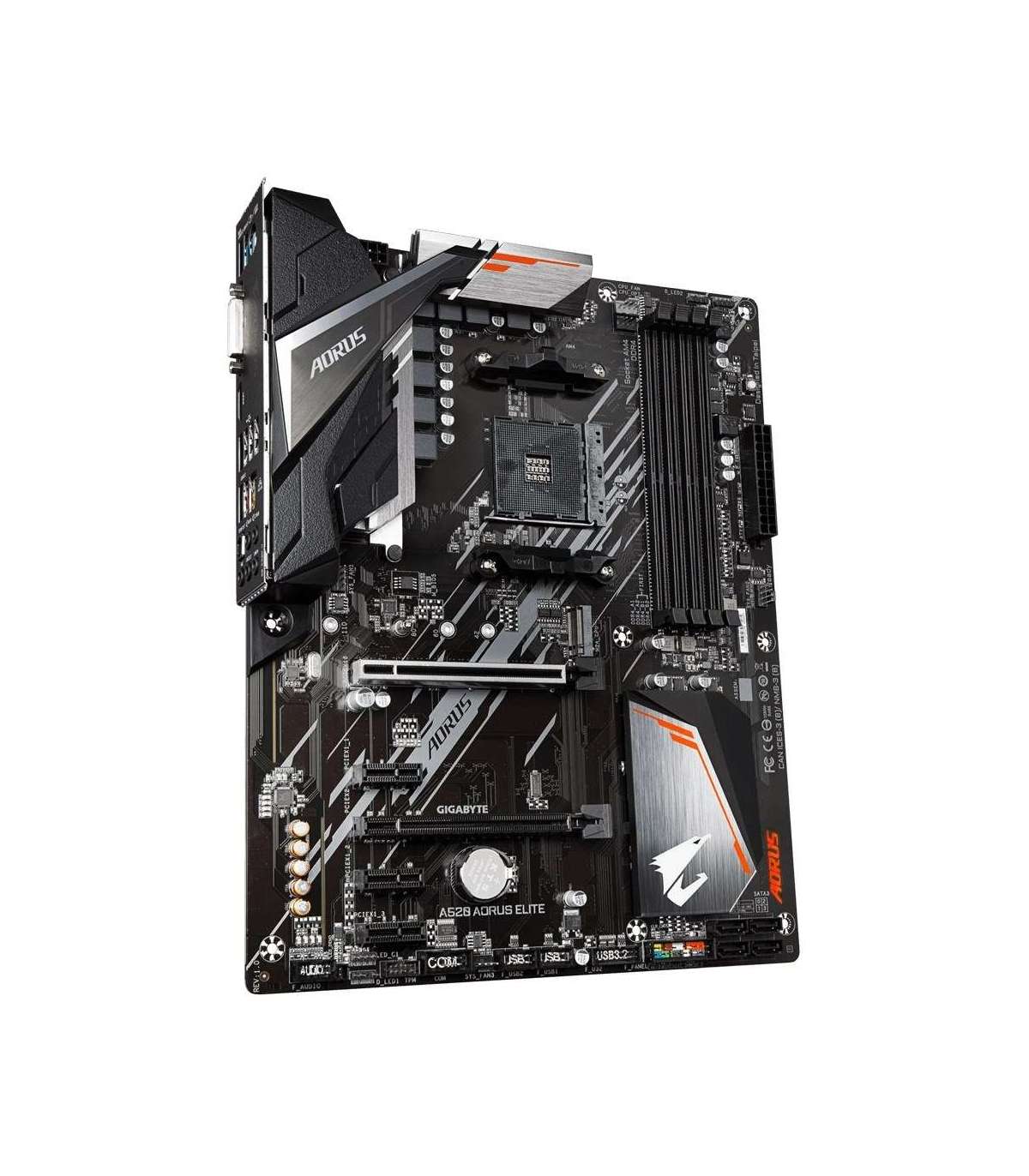

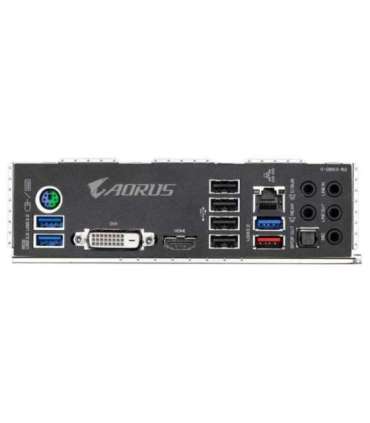

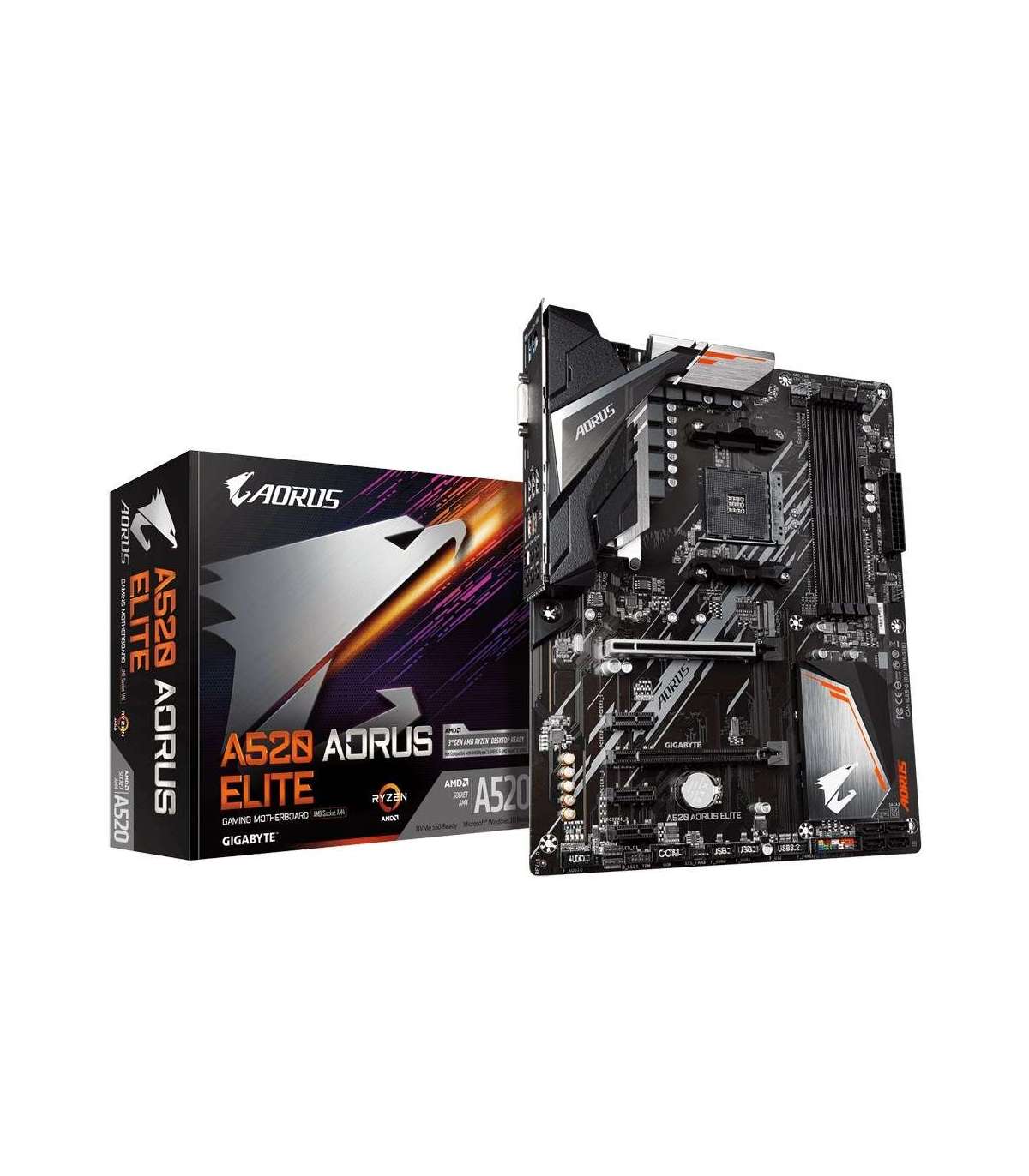

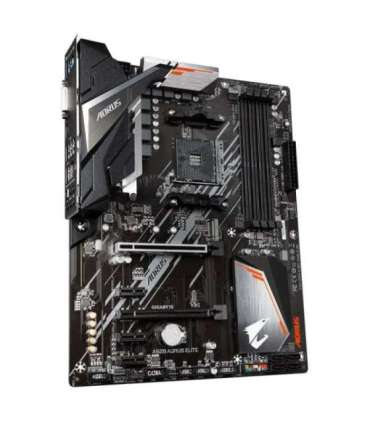

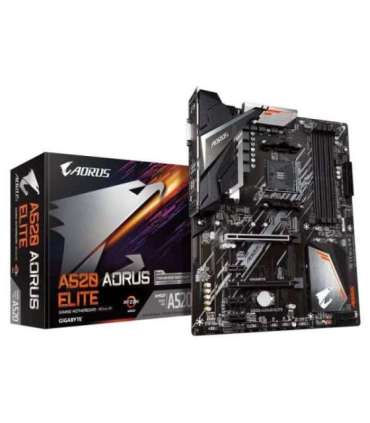

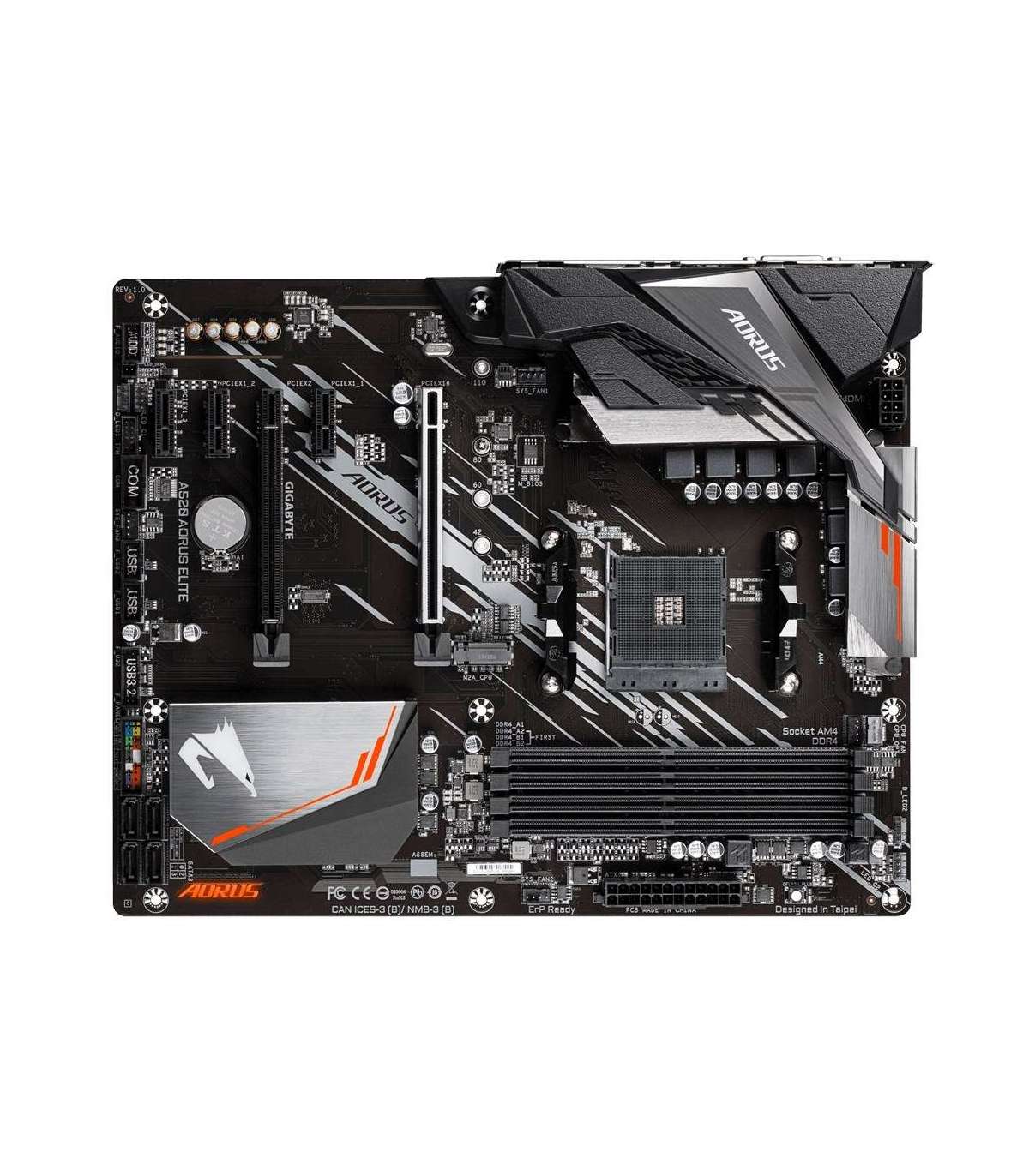

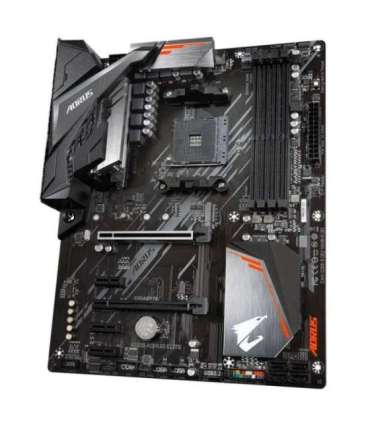

Gigabyte A520 AORUS ELITE motherboard Socket AM4 ATX AMD A520

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Motherboard chipset

AMD A520

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC1200

Headphone outputs

5

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

3rd Generation AMD Ryzen 5
3rd Generation AMD Ryzen™ 3
3rd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen™ 9

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2667
2933
3200
3333
3600
4000
4400
4600
4733

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, Serial ATA III

PS/2 ports quantity

1

Maximum resolution

4096 x 2160 pixels

PC health monitoring

Fan
Temperature
Voltage

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

RAID levels

0
1
10

S/PDIF out port

Yes

Number of M.2 (M) slots

1

Supported processor sockets

Socket AM4

HDCP

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Desktop Management Interface (DMI) version

2.7

Number of storage drives supported

5

PCI Express x16 slots

1

PCI Express x1 slots

3

DVI-D ports quantity

1

Power fan connector

Yes

Serial port headers

1
