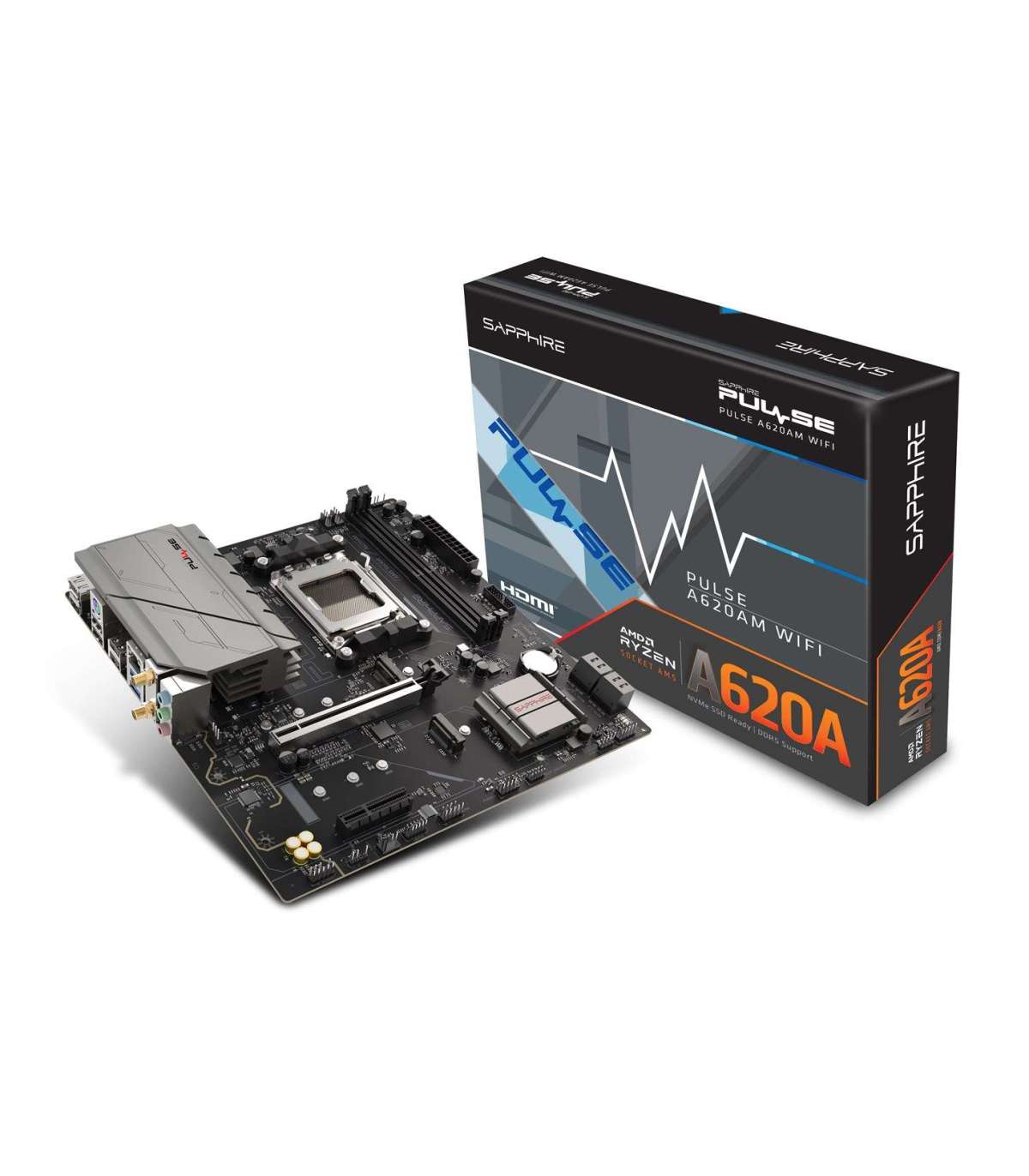

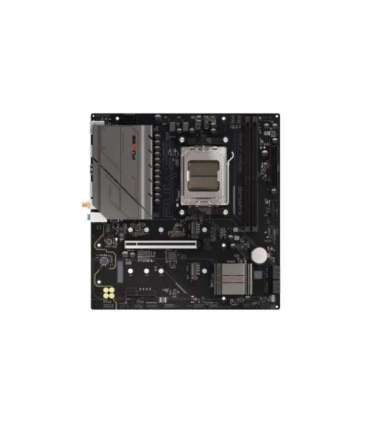

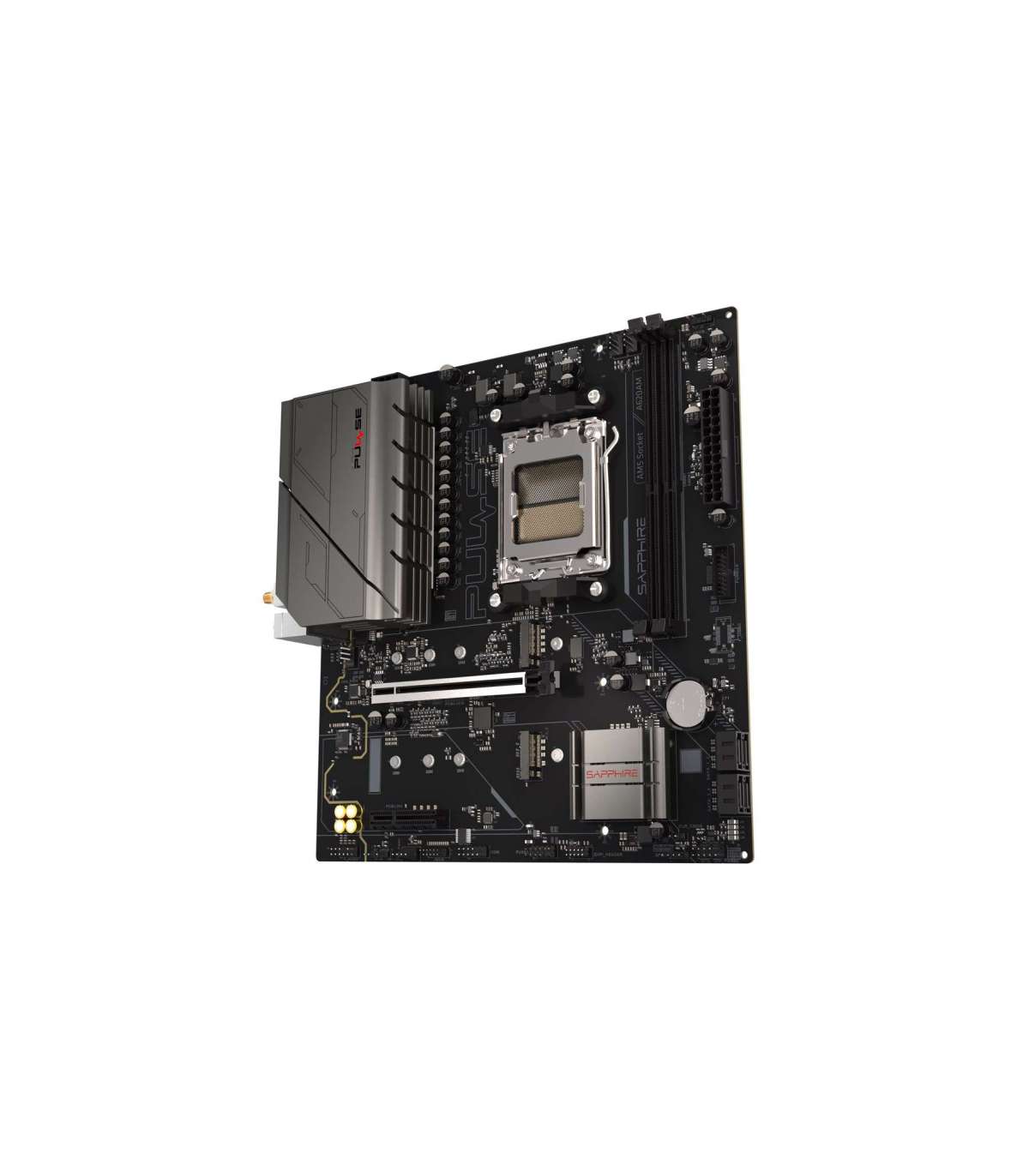

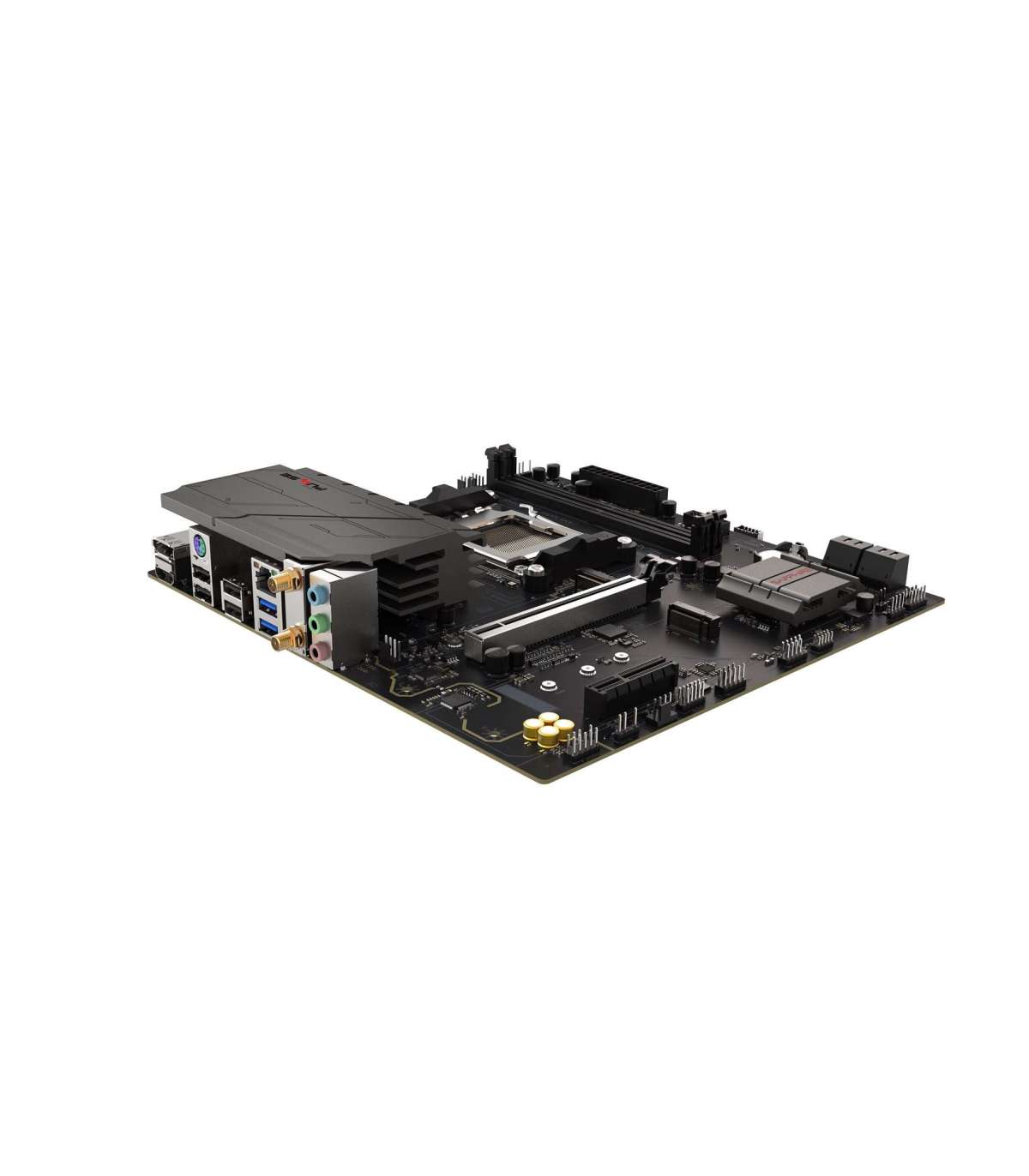

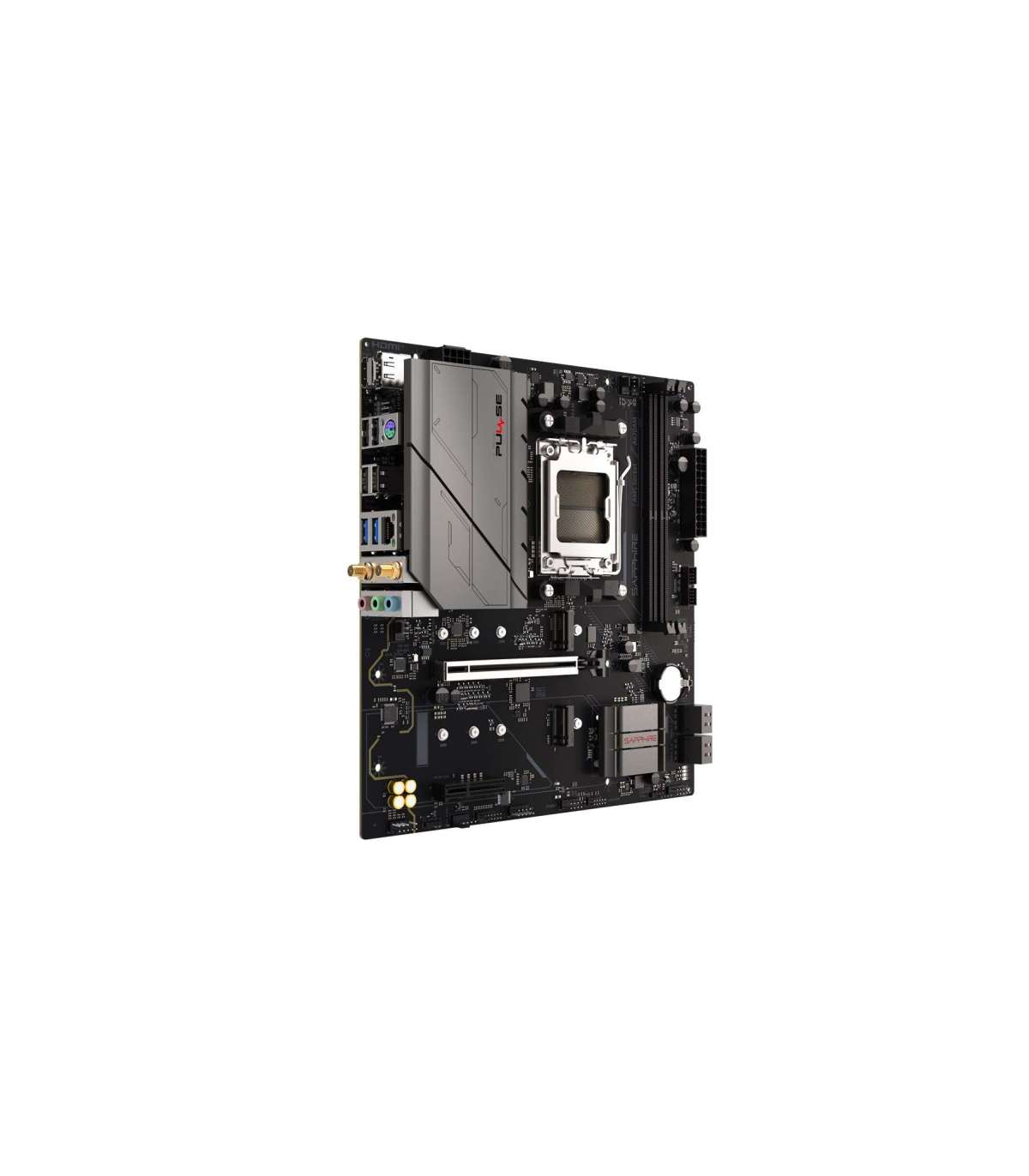

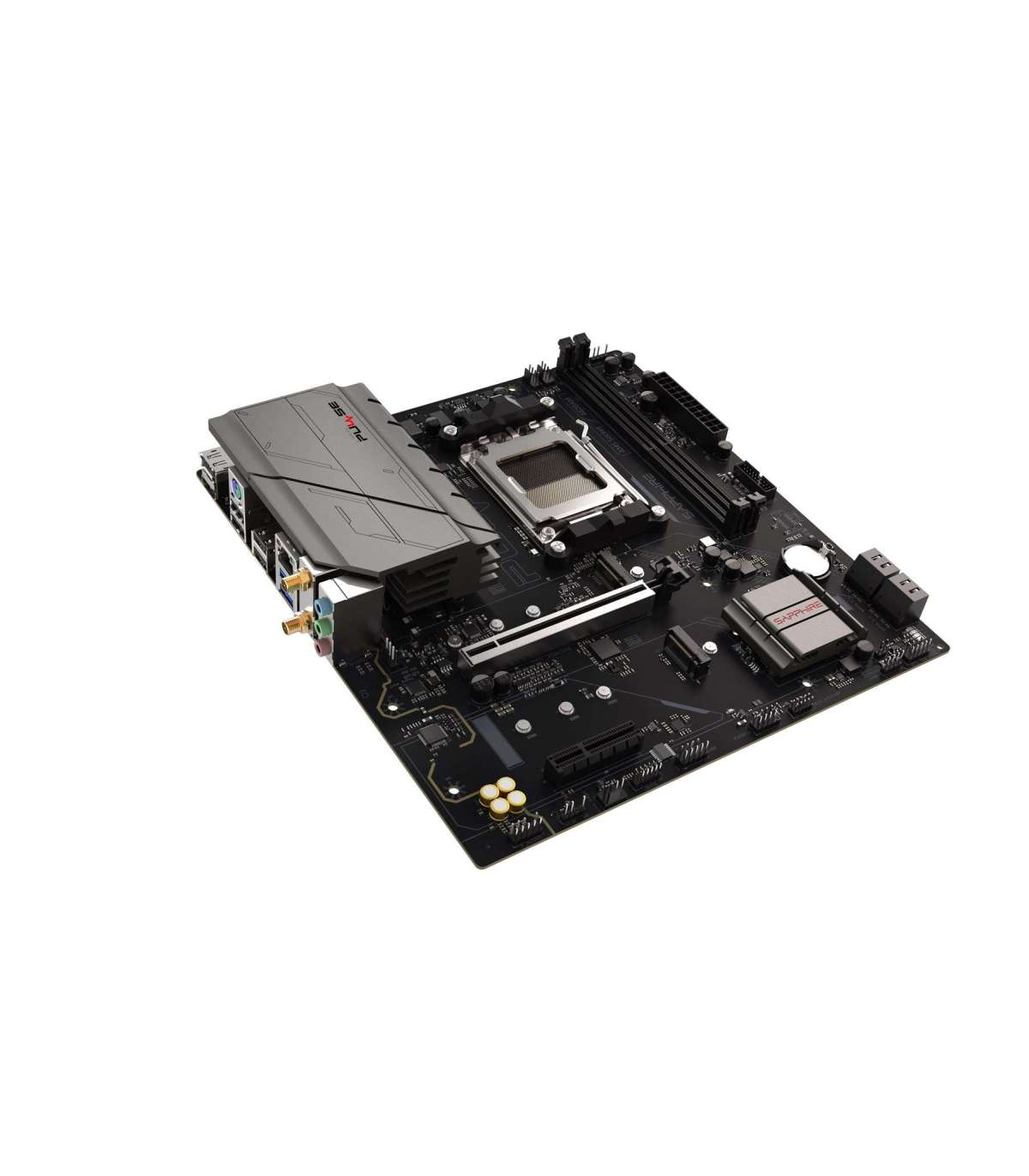

Sapphire PULSE A620AM AMD A620A Socket AM5 micro ATX

Lisainfo

Depth

235 mm

Laius

244 mm

Product colour

Must

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Certification

FCC, CE, ErP/EuP

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

1 Gigabit Ethernet

Processor manufacturer

AMD

USB connector type

USB Type-A

Maximum internal memory

64 GB

Motherboard chipset

Micro-ATX

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Headphone outputs

1

USB 2.0 connectors

4

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

5.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8111K

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

PCI Express 3.0, PCI Express 4.0, SATA

Microphone in

Yes

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

Number of storage drives supported

6

Line-in

Yes

2nd M.2 highest PCI Express generation

3.0

1st M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

1
