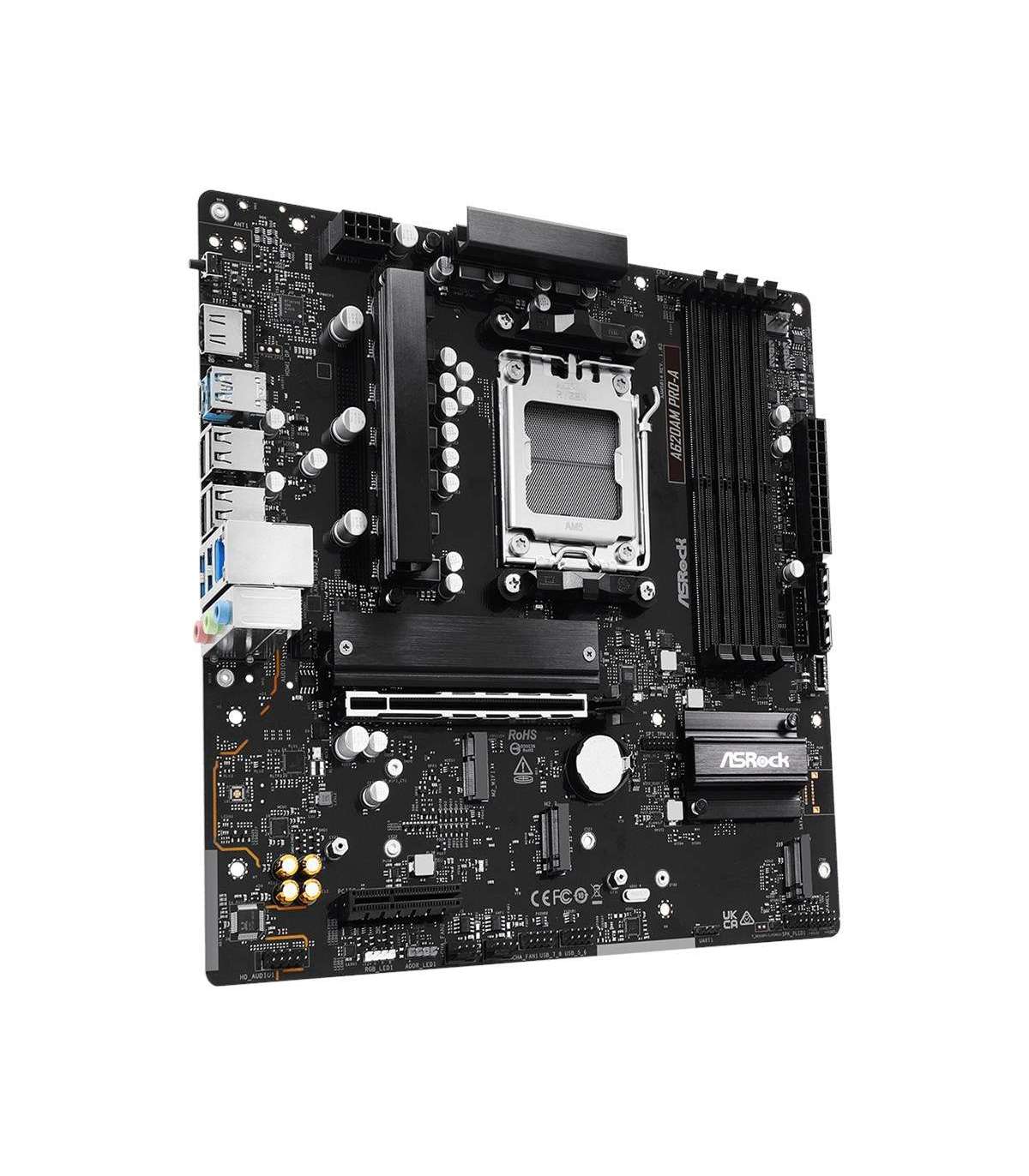

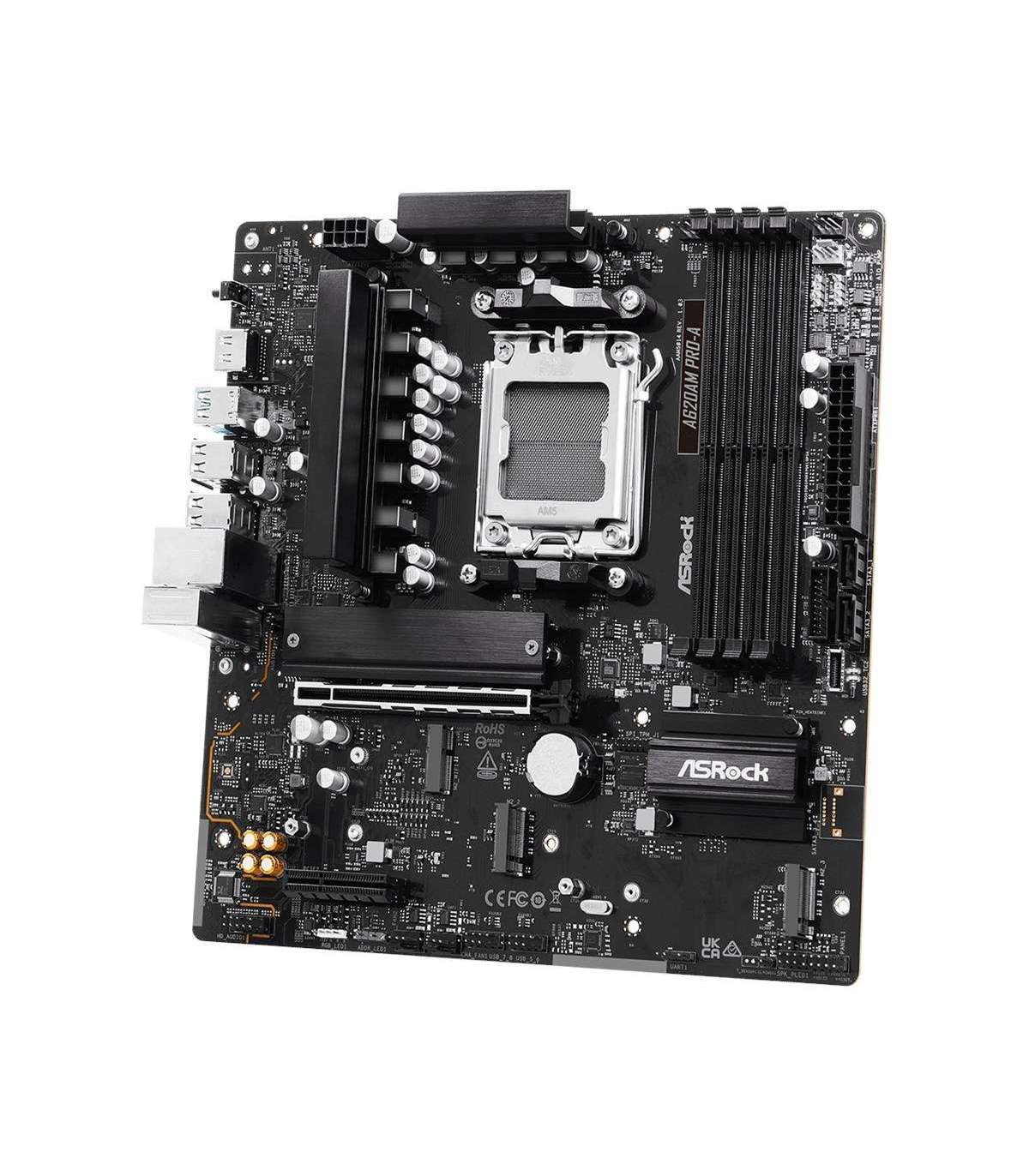

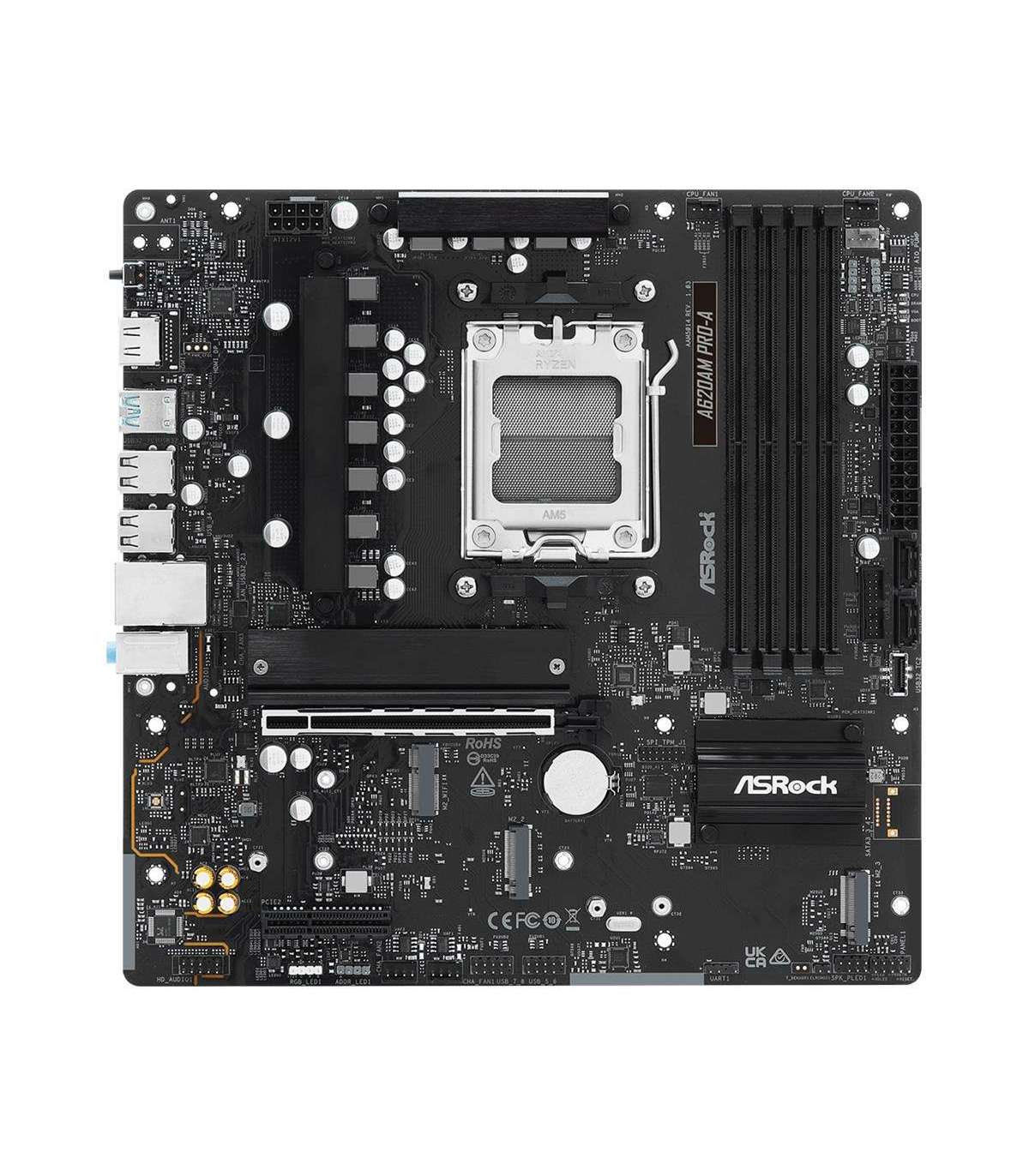

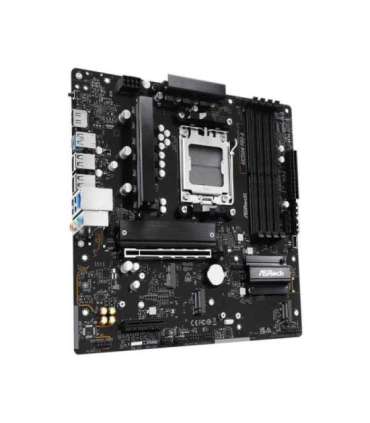

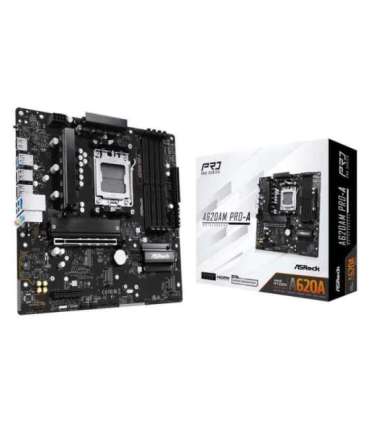

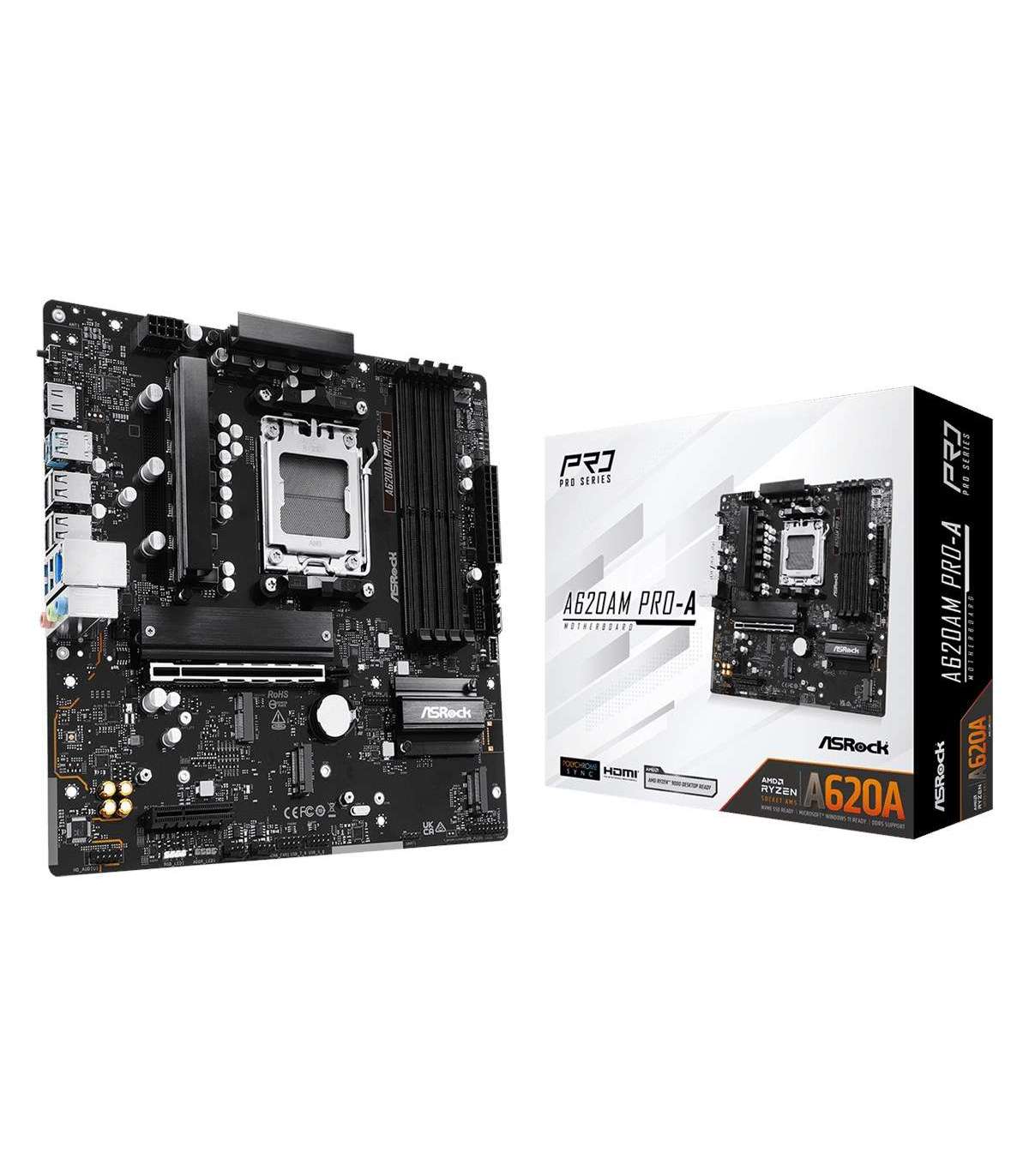

Asrock A620AM PRO-A motherboard

Lisainfo

Videokaardi mudel

AMD RDNA 2

Depth

244 mm

Laius

244 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

Certification

FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

Maximum internal memory

256 GB

Bluetooth

No

Motherboard chipset

AMD A620

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

2

Graphics card family

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 9000 Series
AMD Ryzen™ 8000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5 UDIMM

LAN controller

Dragon RTL8125BG

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

2

Supported storage drive interfaces

M.2, SATA

Number of SATA III connectors

2

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

RAID support

Yes

Power fan connector

Yes

Number of M.2 (E) slots

1

PCI Express x4 (Gen 3.x) slots

1
