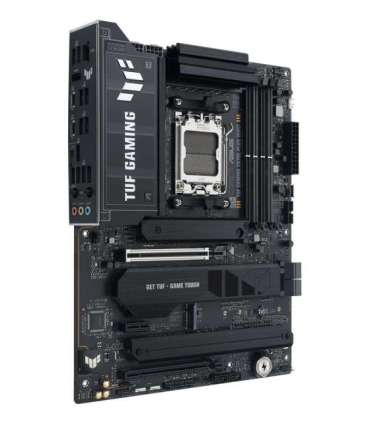

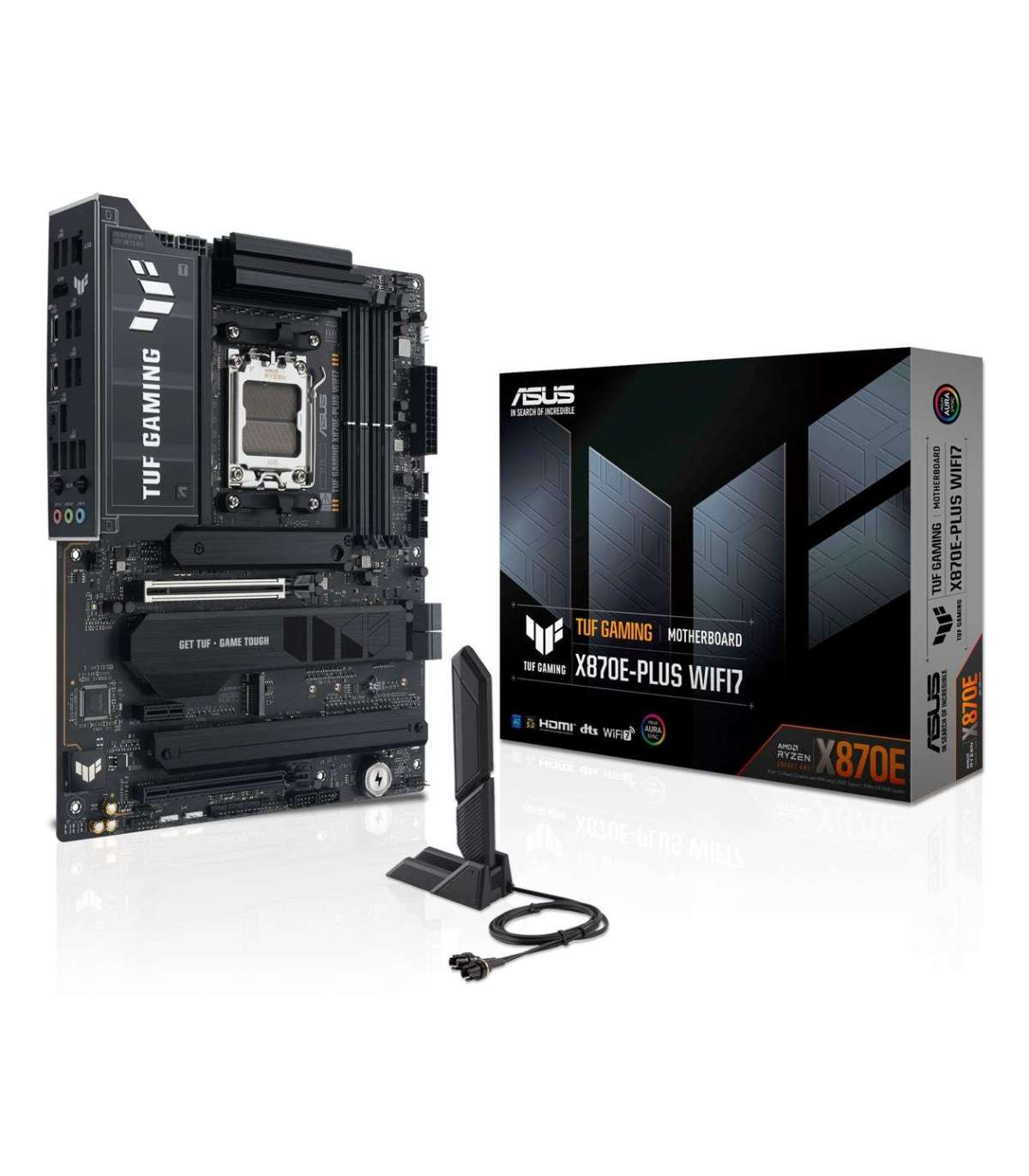

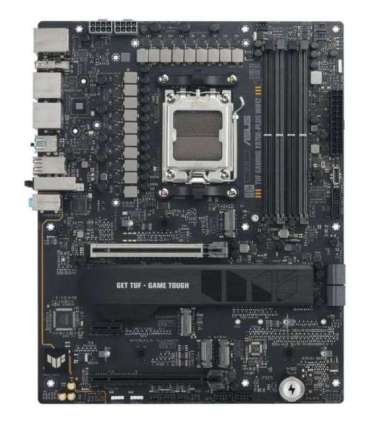

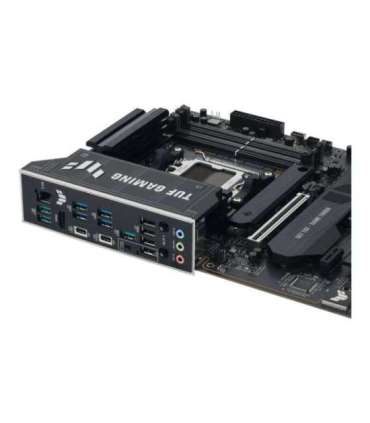

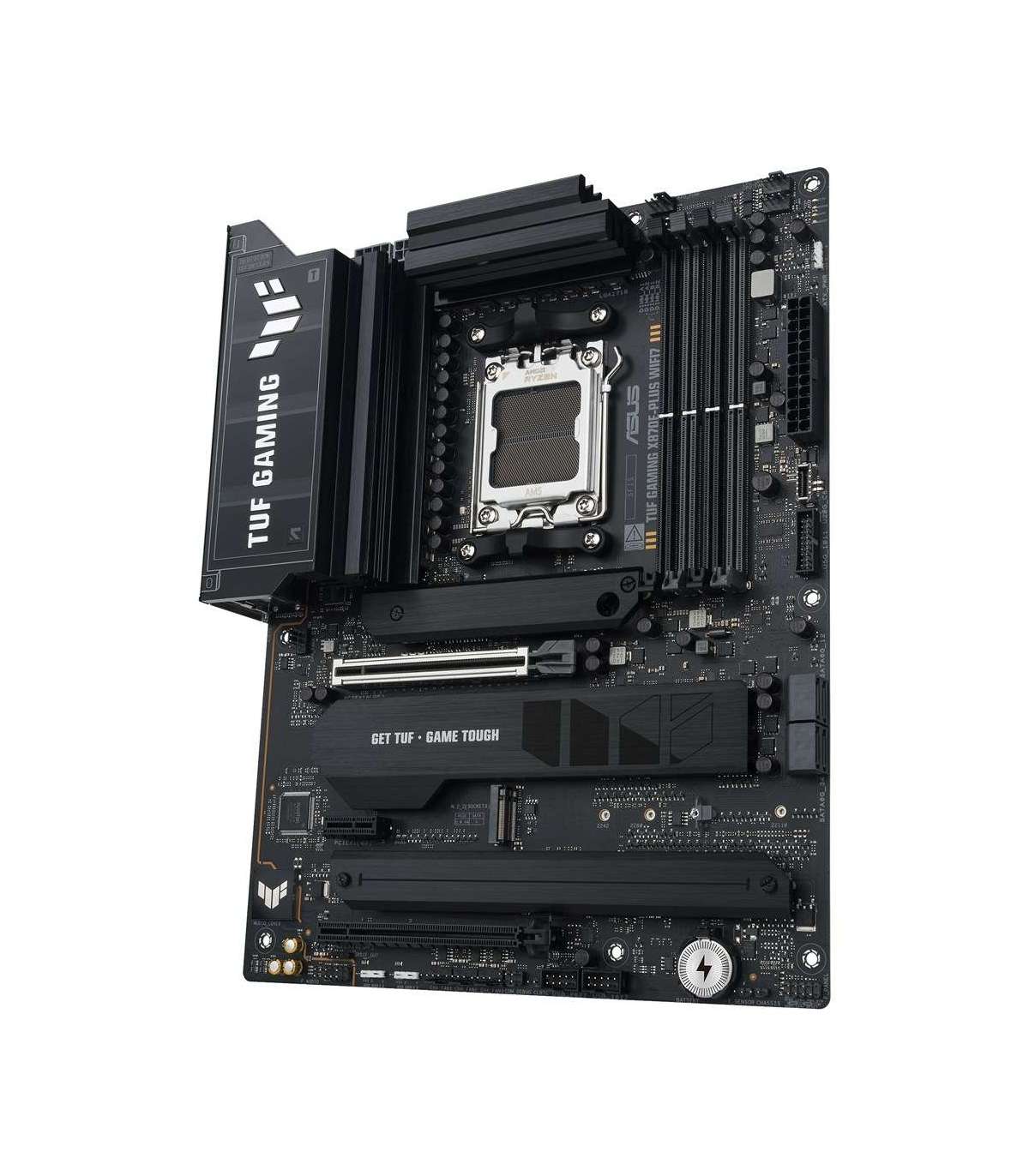

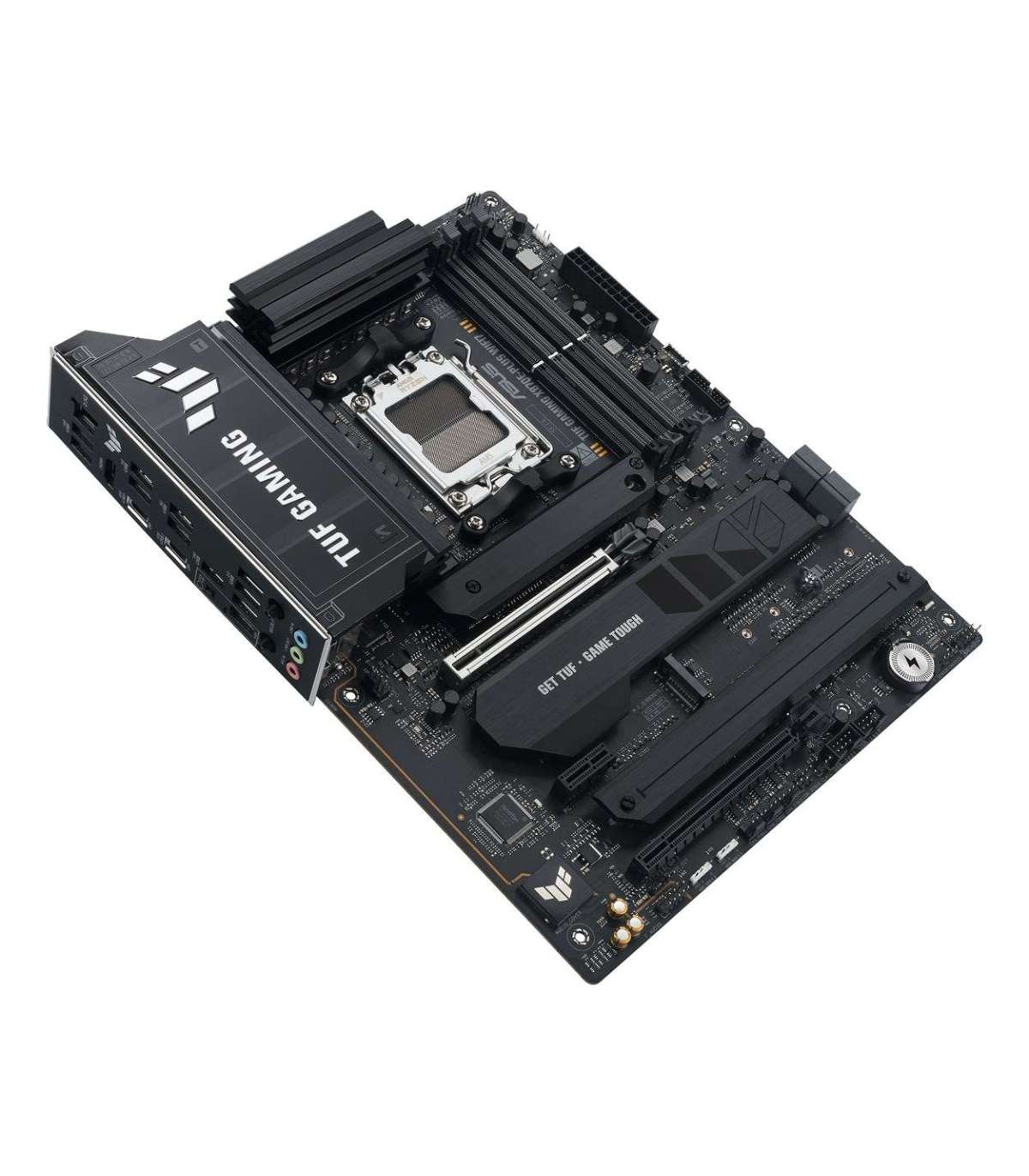

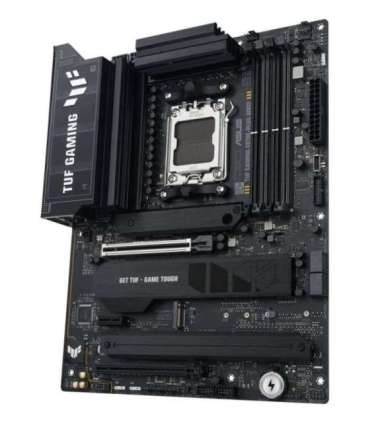

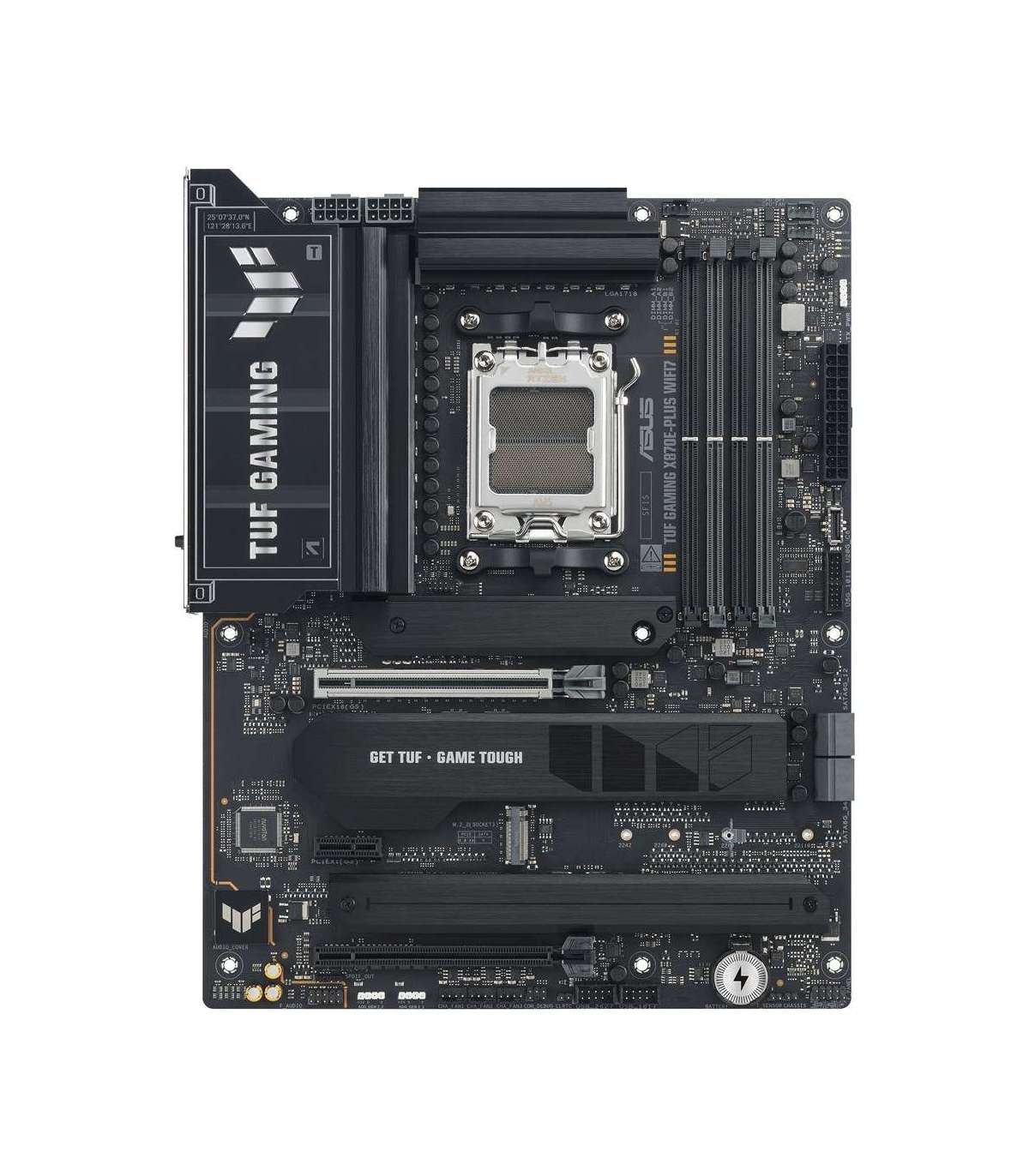

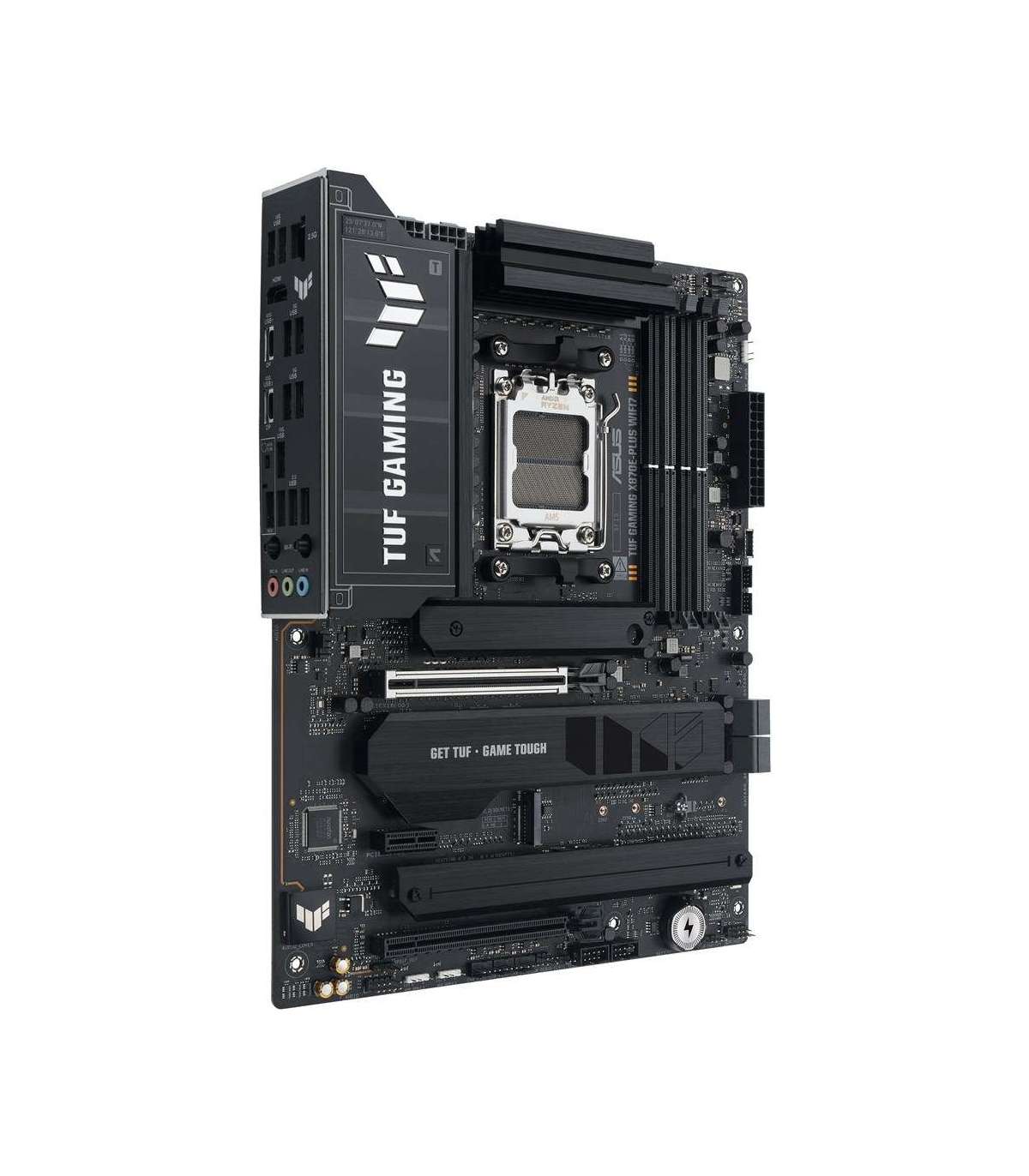

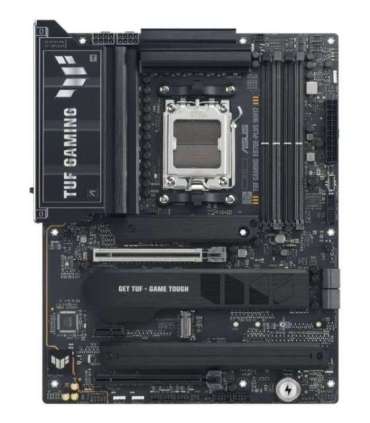

ASUS TUF GAMING X870E-PLUS WIFI7 AMD X870E Socket AM5 ATX

Lisainfo

Depth

244 mm

Kaal

1.56 kg

Kõrgus

48 mm

Laius

305 mm

Package weight

2.08 kg

Product colour

Hall

Power source type

ATX

Ethernet LAN

Yes

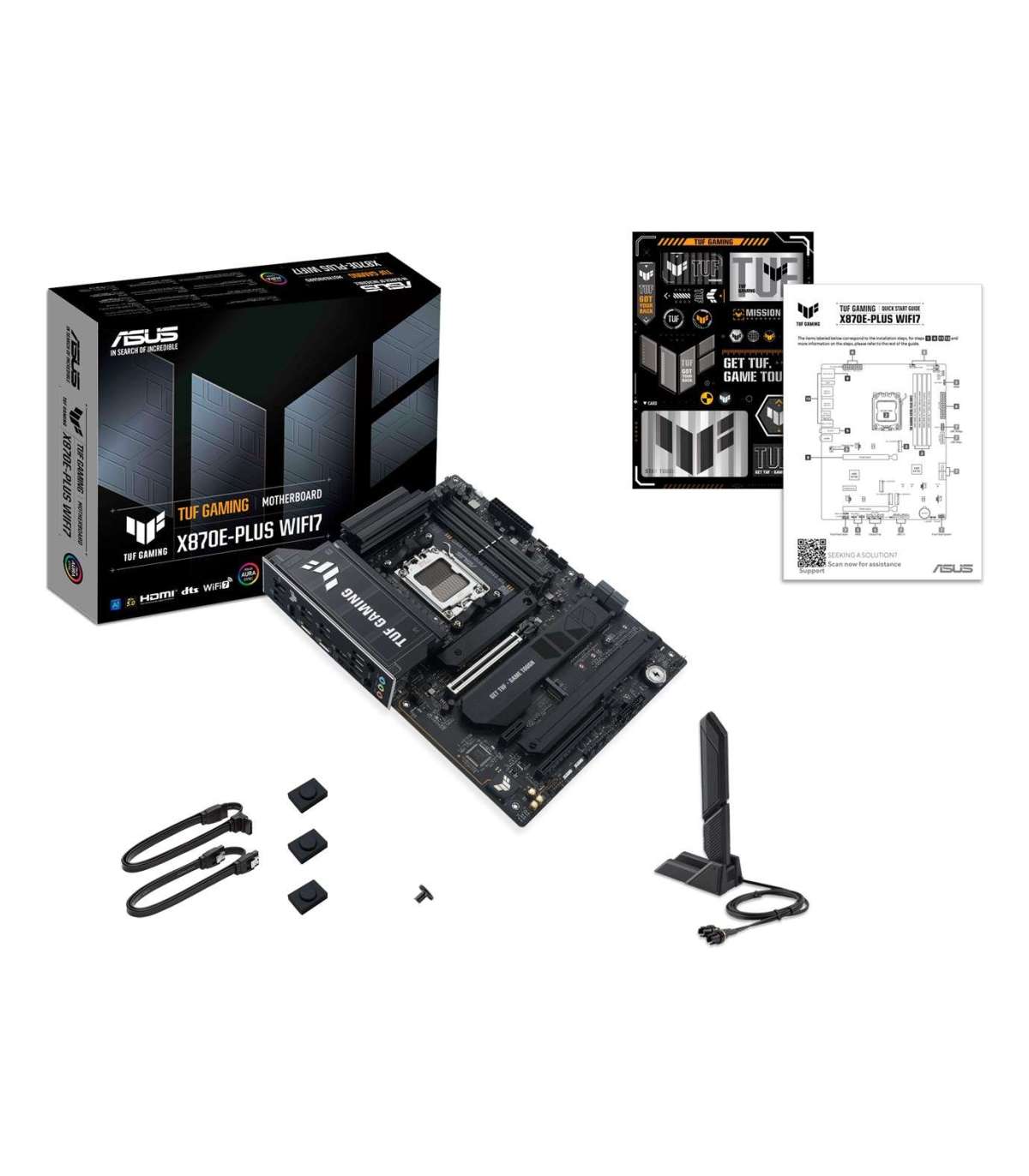

Cables included

SATA

Quick installation guide

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

Package width

353 mm

Package depth

273 mm

Package height

68 mm

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870E

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Memory channels

Dual-channel

USB4 Gen 3x2 ports quantity

2

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8000 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

8

RAID support

Yes

Line-in

Yes

Cooling type

Passive

Number of EPS power connectors (8-pin)

2

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Number of water pump connectors

1

Screws included

Yes

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

WiFi-AP antenna jack

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Number of temperature sensor headers

1

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0
