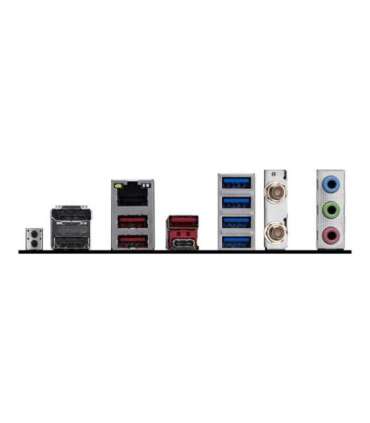

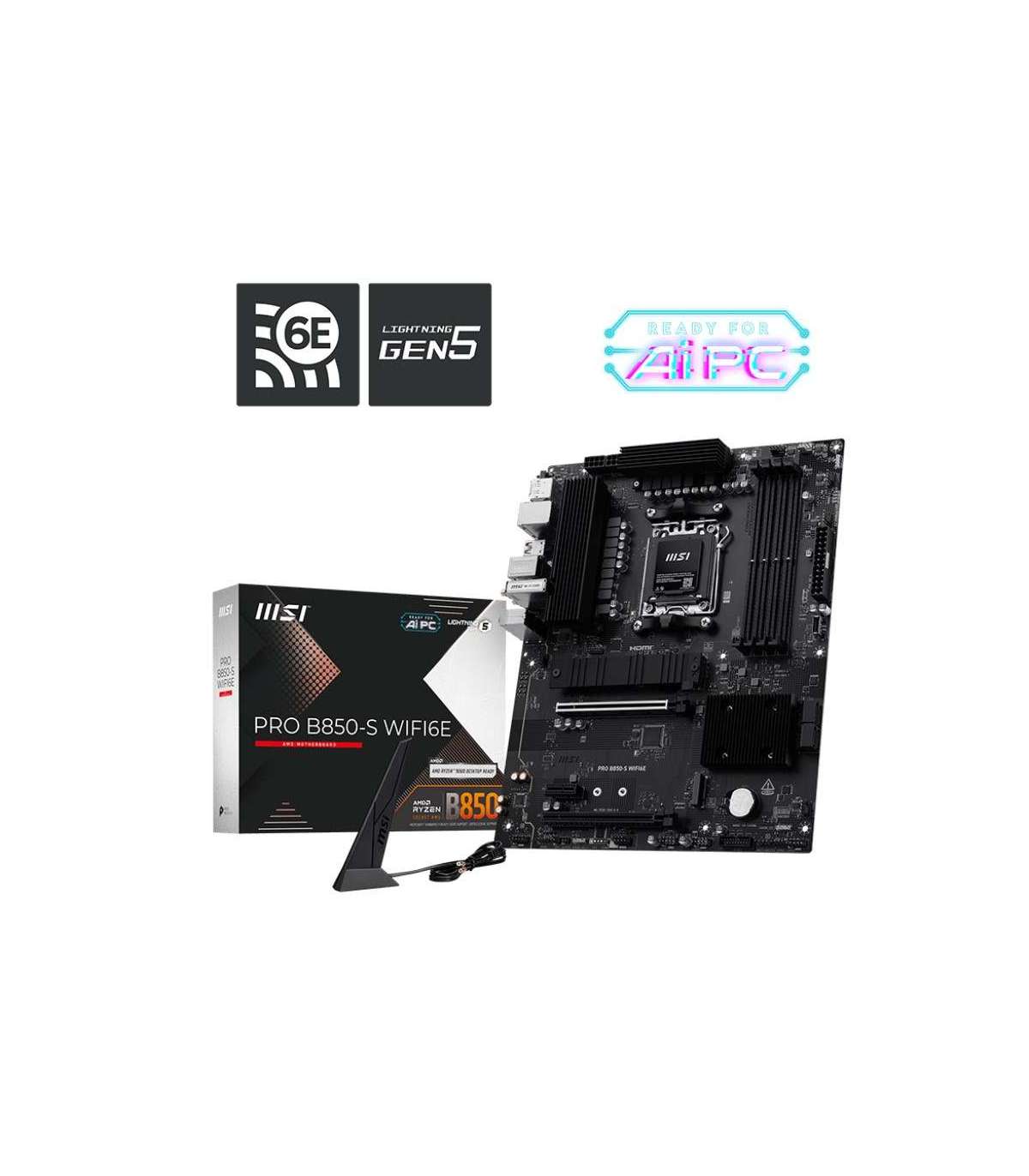

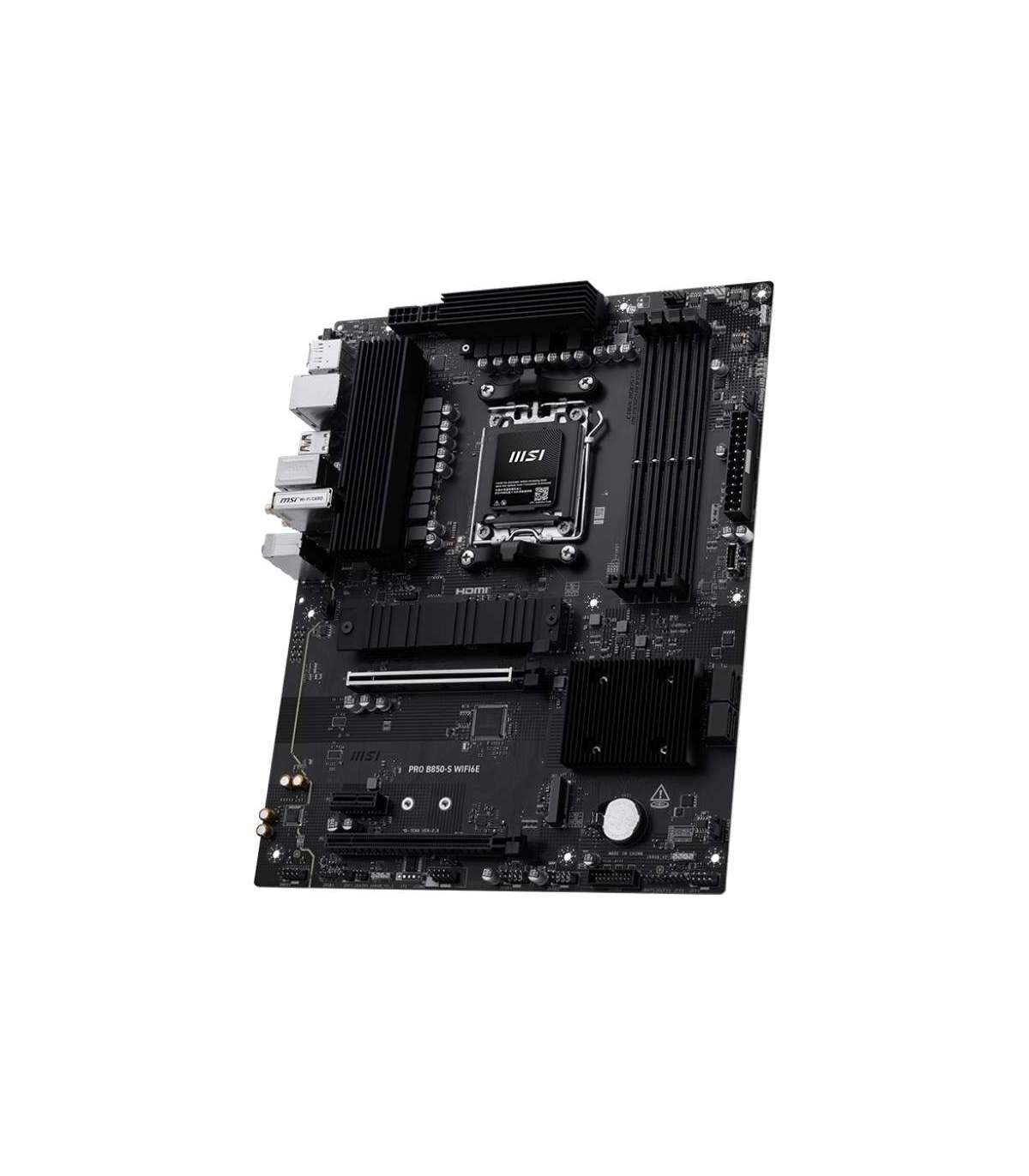

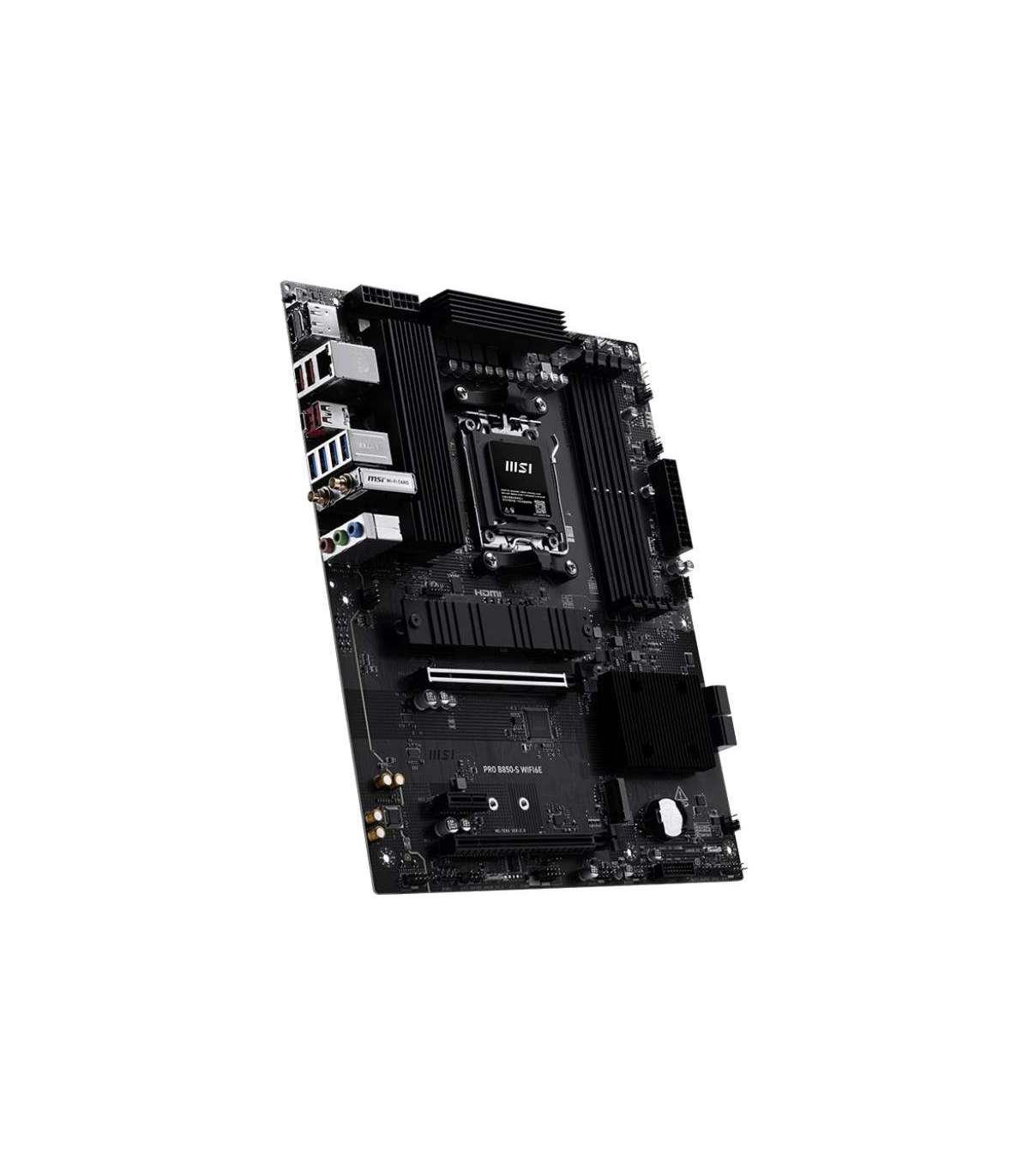

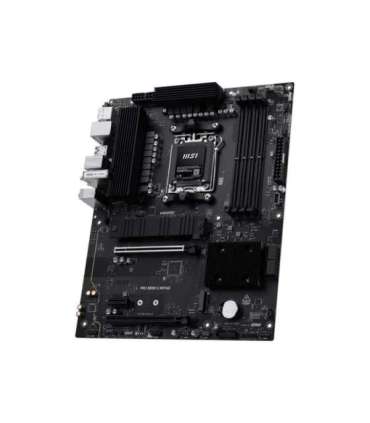

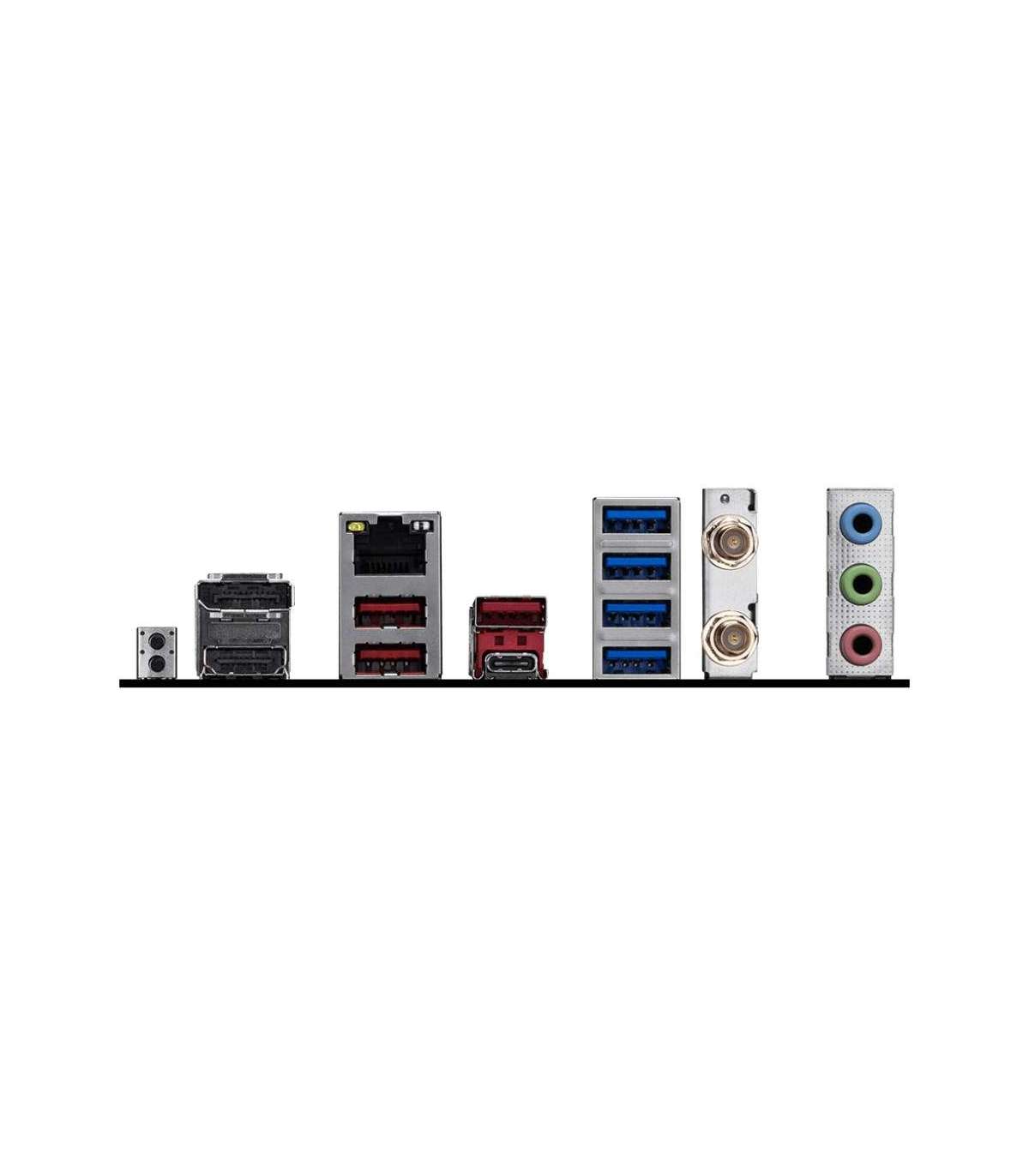

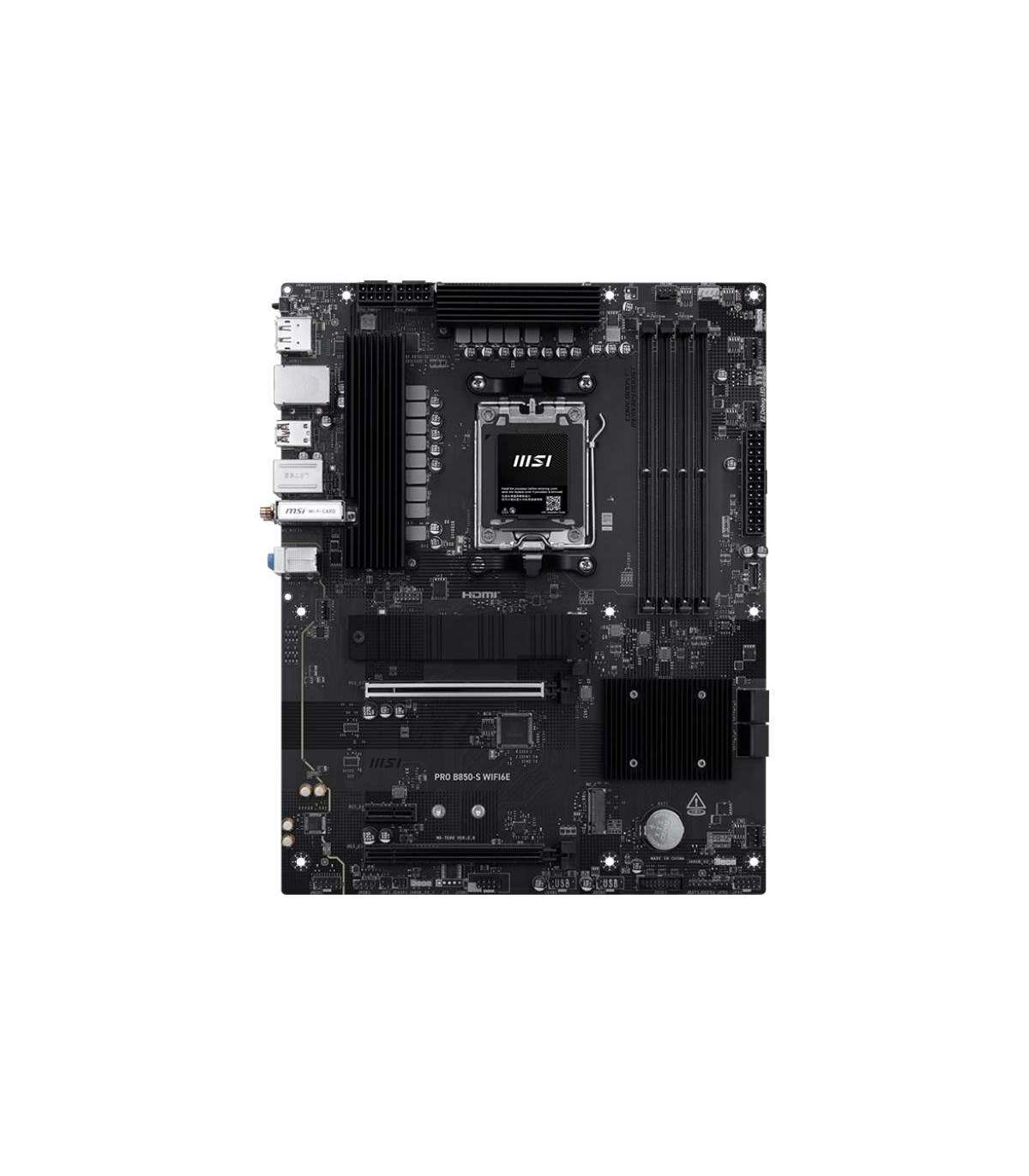

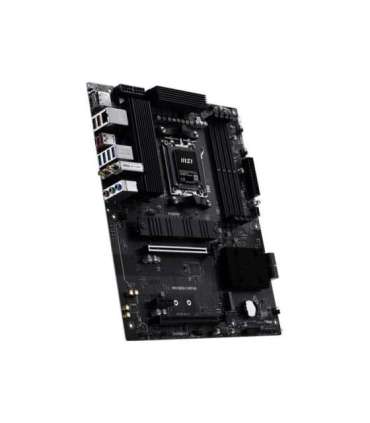

MSI PRO B850-S WIFI6E motherboard AMD B850 Socket AM5 ATX

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

256 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD B850

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125

Front panel audio connector

Yes

Number of COM connectors

1

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

M.2, SATA

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Front panel connector

Yes

RAID support

Yes

Power fan connector

Yes

Audio connector

Yes

Number of CPU fan connectors

1

Screws included

Yes

DisplayPort version

1.4

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

5.0

Clear CMOS button

Yes

PCI Express x4 (Gen 4.x) slots

1
