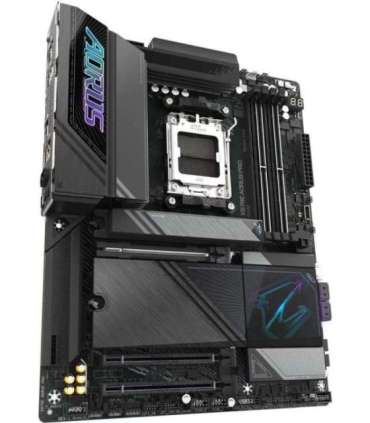

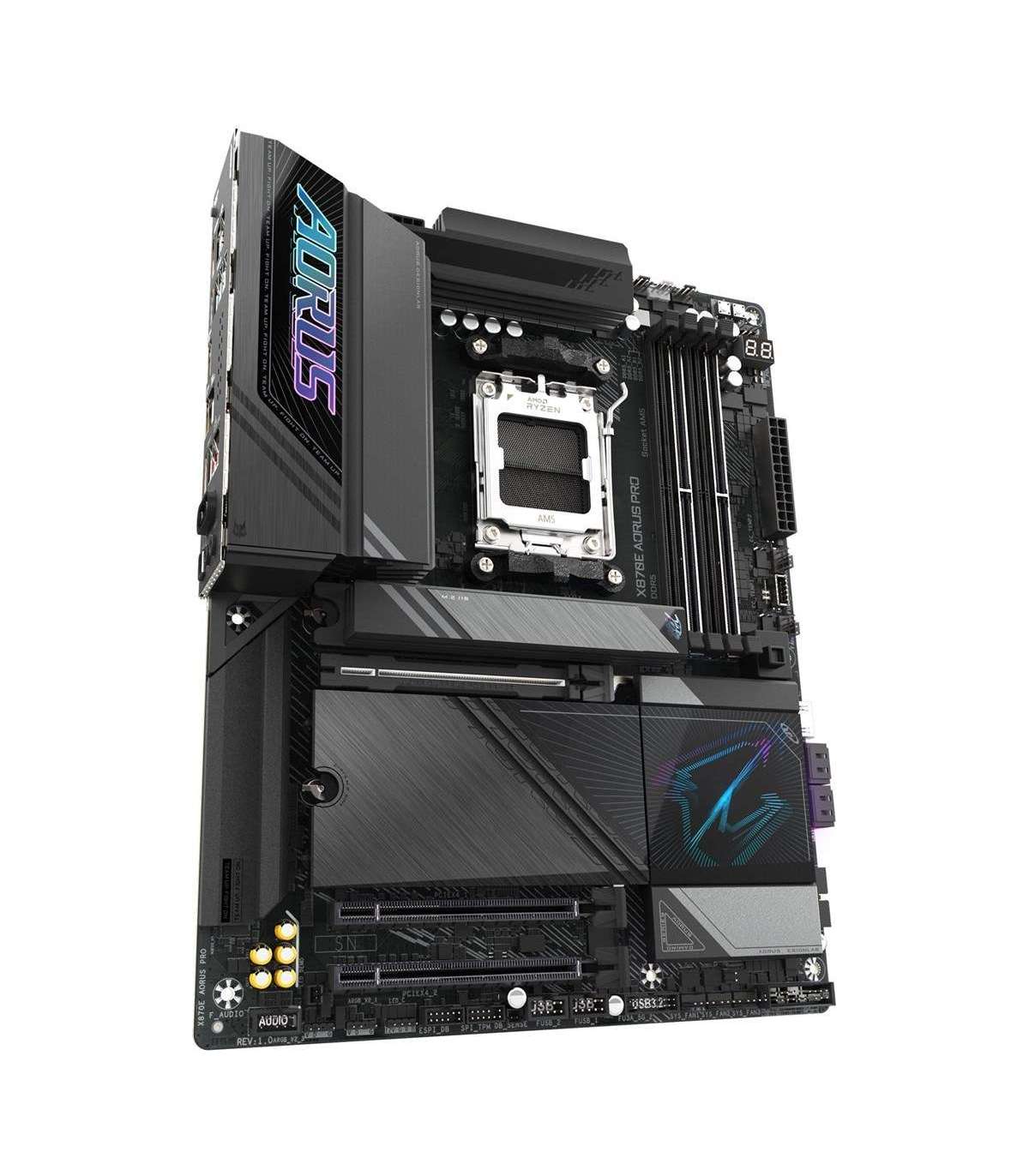

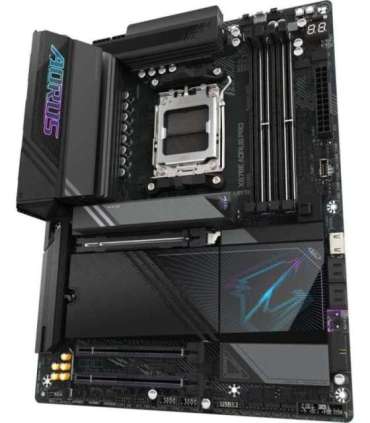

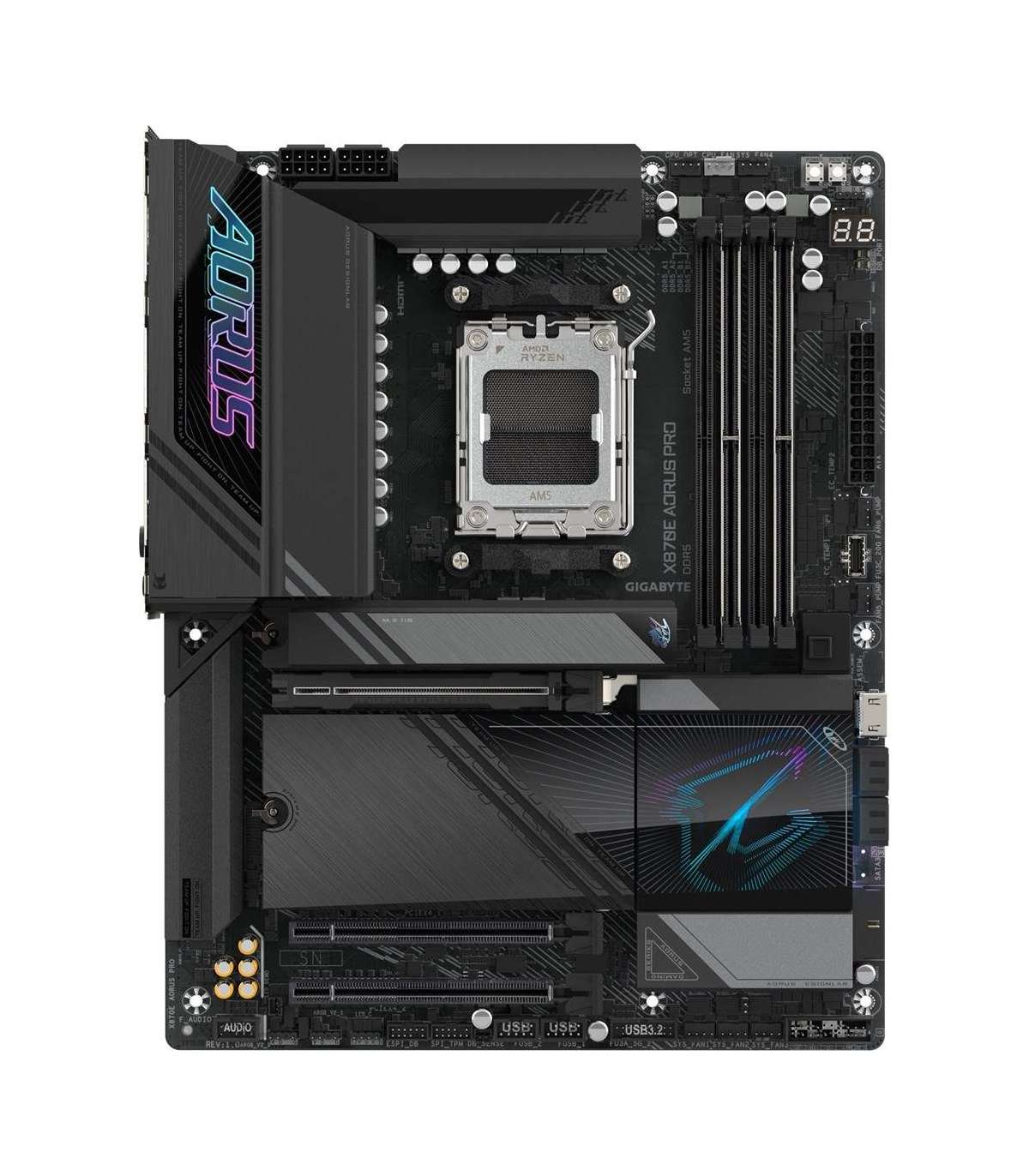

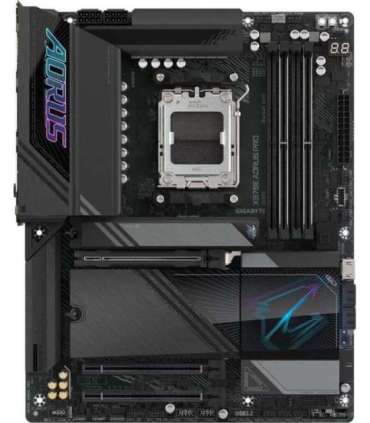

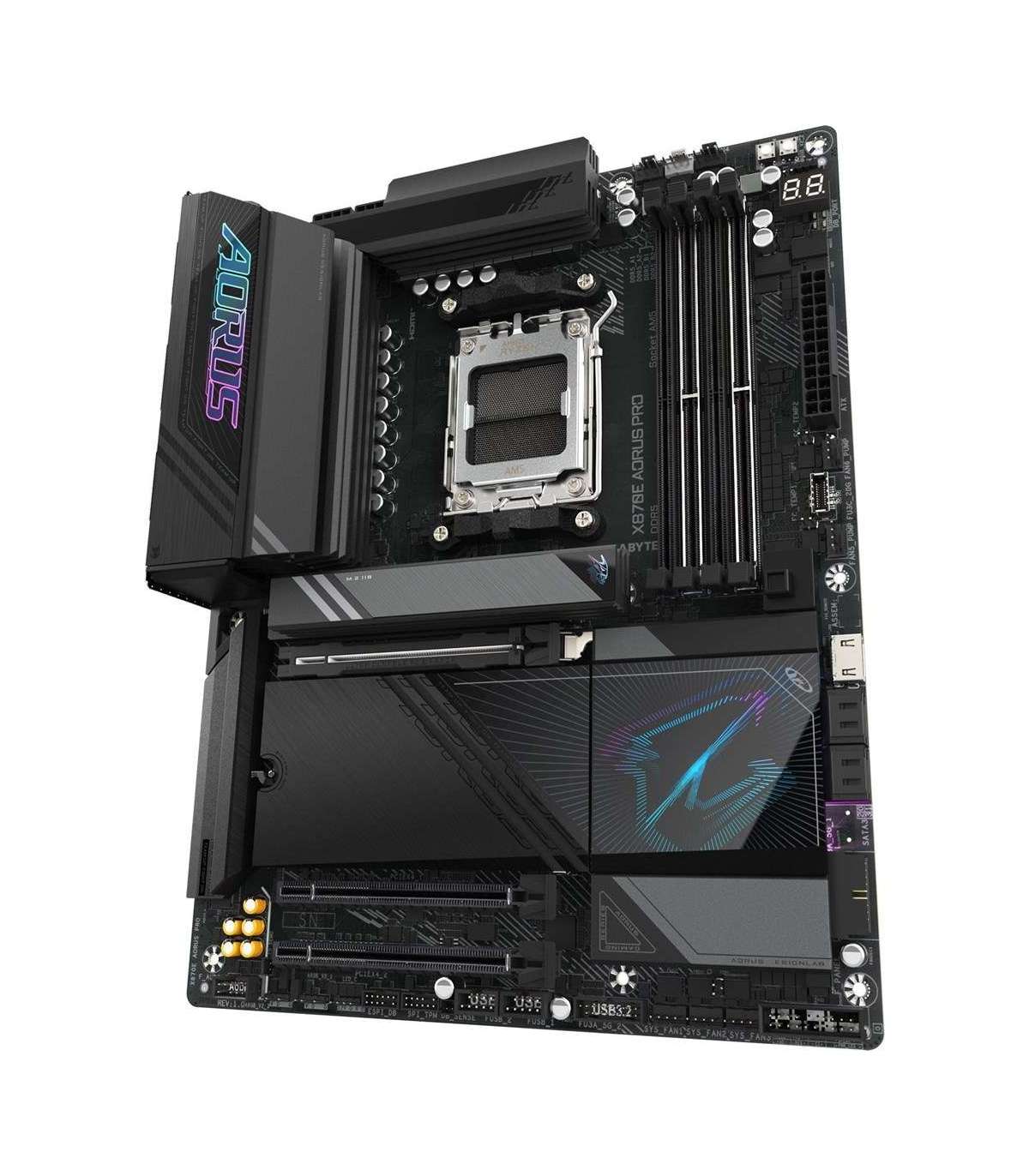

Gigabyte X870E AORUS PRO

Lisainfo

Depth

244 mm

Kaal

2.4 kg

Kõrgus

35 mm

Laius

305 mm

Package weight

2.74 kg

Product colour

Valge

Ethernet LAN

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11 x64

Package width

345 mm

Package depth

294 mm

Package height

80 mm

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

On-board graphics card

No

Maximum internal memory

256 GB

Country of origin

China

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD X870E

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Number of battery cells

1

Memory channels

Dual-channel

WLAN controller model

Qualcomm QCNCM865

Battery weight

3 g

Audio chip

Realtek ALC1220

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Warranty period

3 year(s)

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4400
4800
5600
6000
6200
6400 MHz
6600
6800
7000
7600 MHz
7800
8000 MHz
8200

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125

Number of chassis fan connectors

6

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

PC health monitoring

Fan
Temperature
Voltage

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8200 MHz

EPS power connector (8-pin)

Yes

Desktop Management Interface (DMI) version

2.7

Batteries included

Yes

Number of storage drives supported

2

RAID support

Yes

Battery type

CR2032

Lithium weight per battery

0.07 g

Products per shipping (inner) case

1 pc(s)

DirectX version

12.0

Supported memory module capacities

1GB
2GB
4GB
8GB
12GB
24GB
32GB

Audio connector

Yes

Maximum internal memory per slot

64 GB

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

4

Number of water pump connectors

2

Screws included

Yes

DisplayPort version

1.4

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

Maximum internal memory supported by processor

256 GB

Clear CMOS button

Yes

WiFi-AP antenna jack

2

USB 3.2 Gen 2x2 connectors

1

PCI Express x16 (Gen 5.x) slots

1

3rd M.2 highest PCI Express generation

5.0

3rd M.2 largest key size

22110

USB4 Gen 2x2 ports quantity

2

4th M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

PCI Express x4 slots

2
