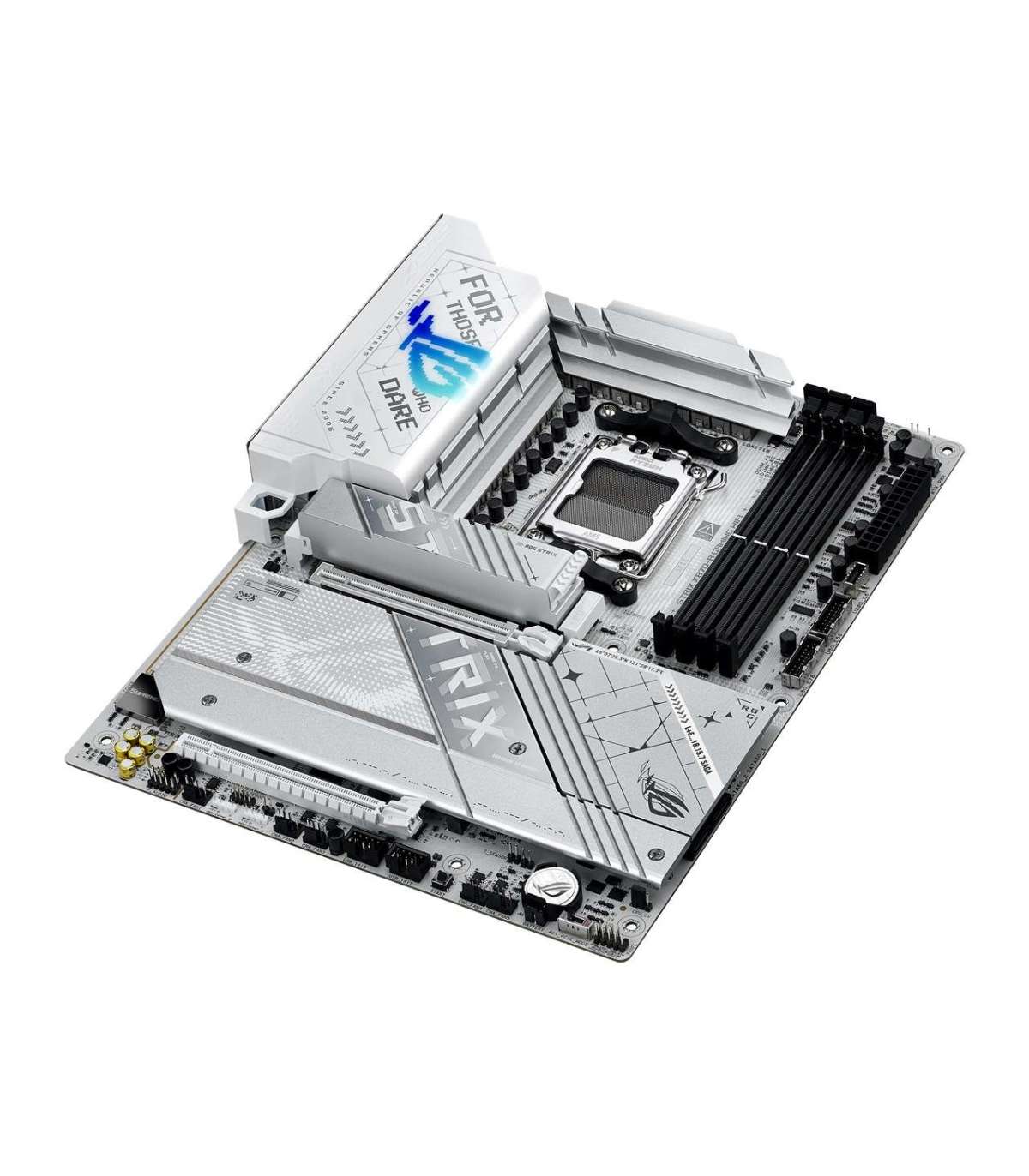

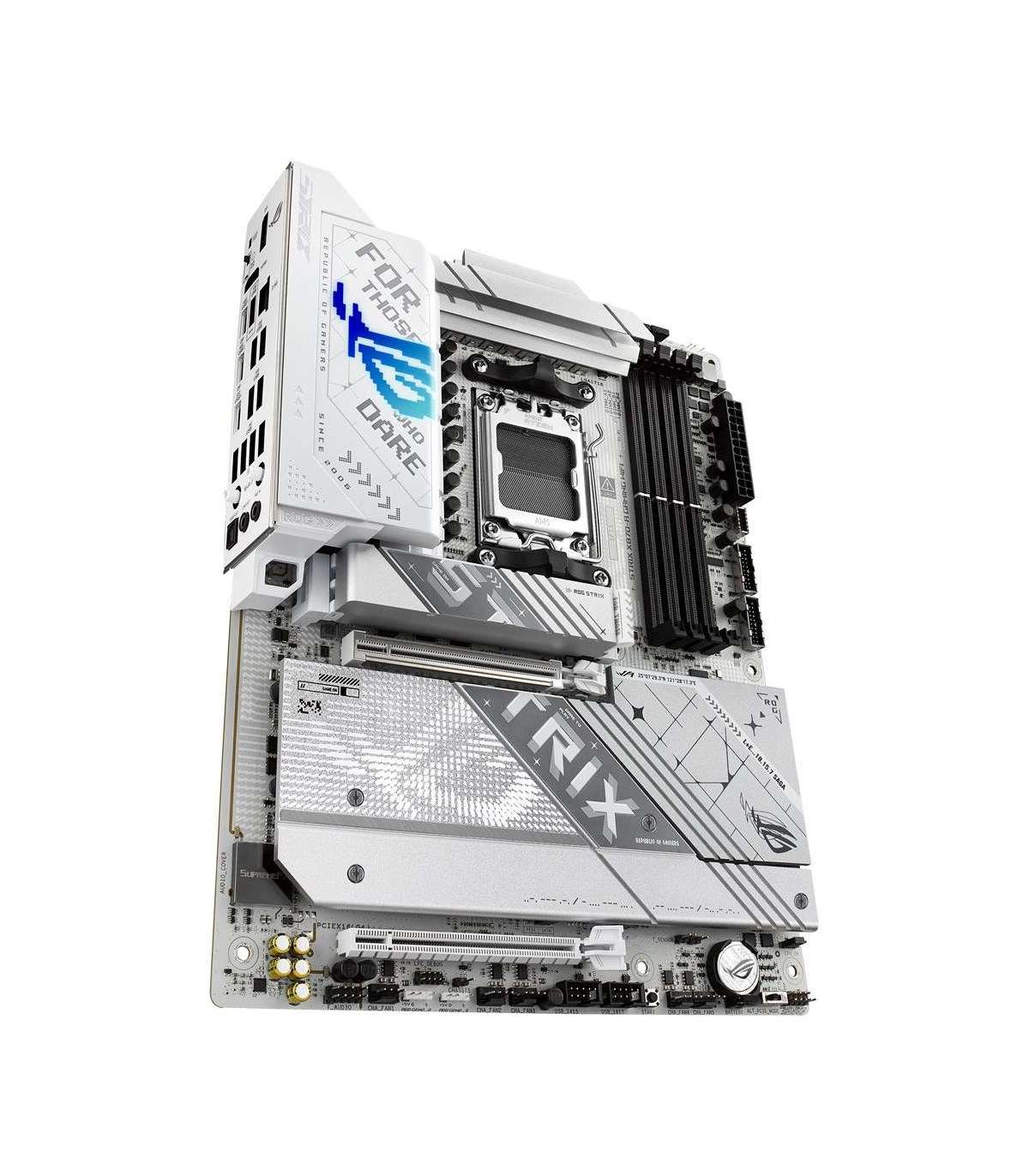

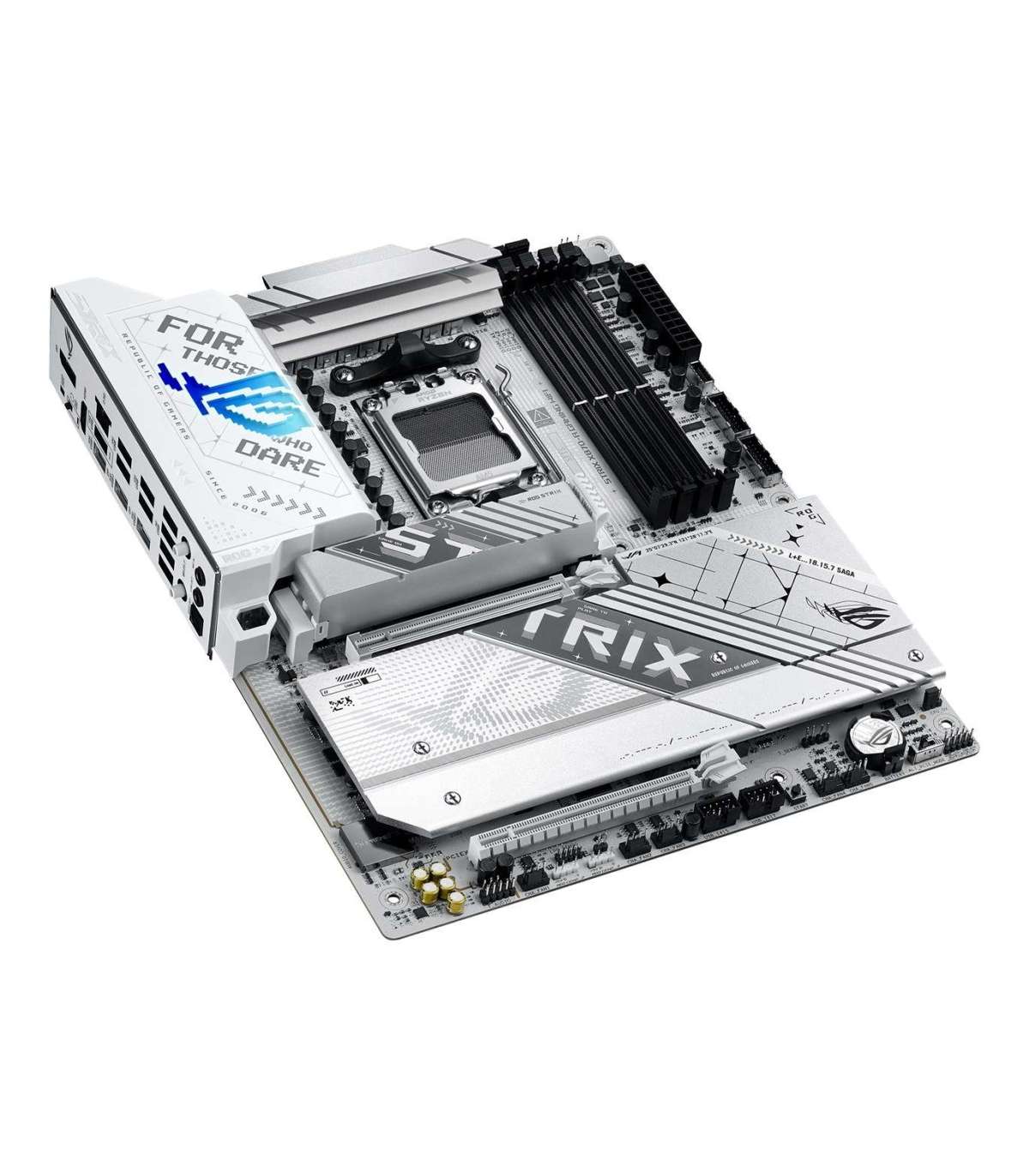

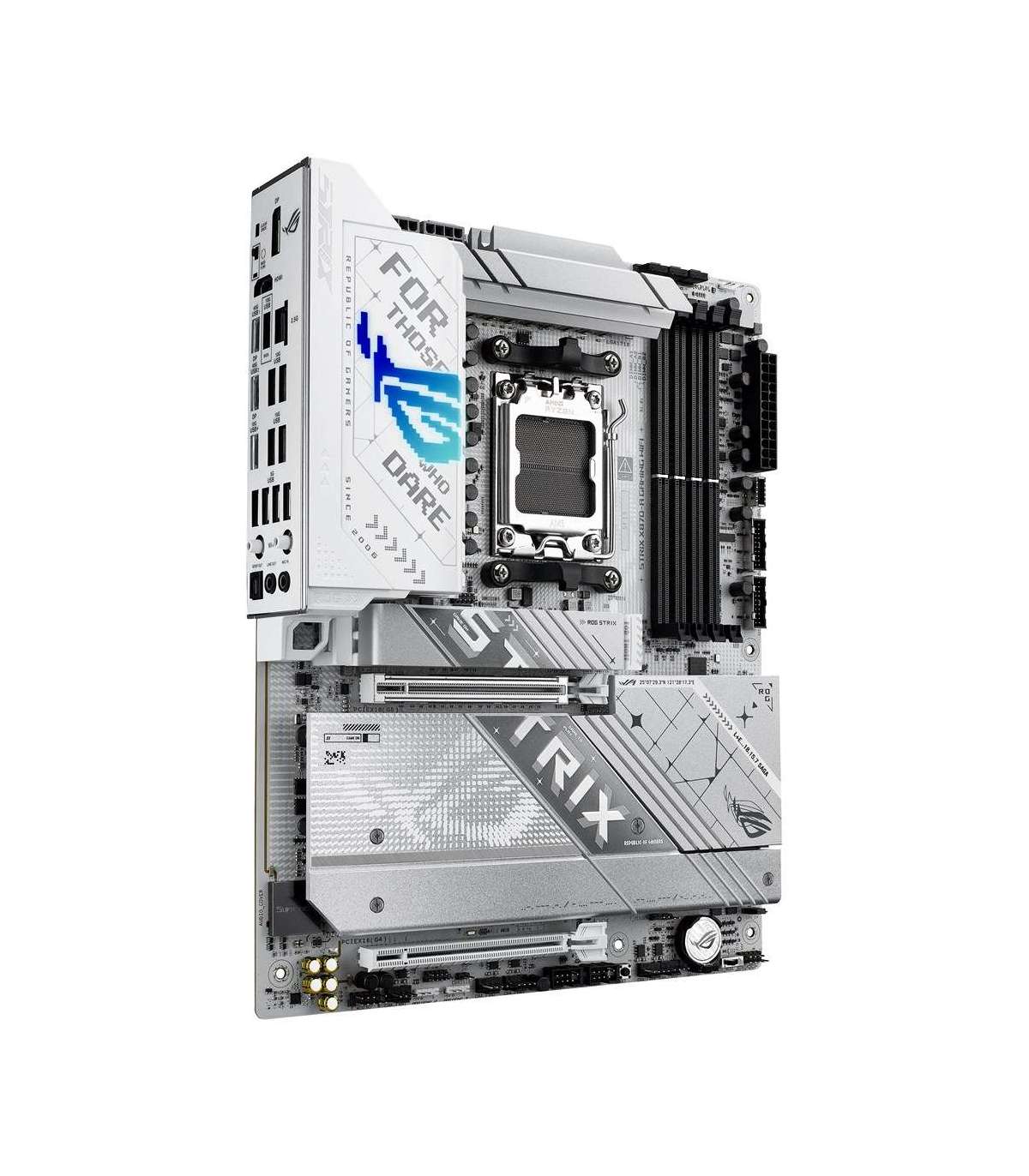

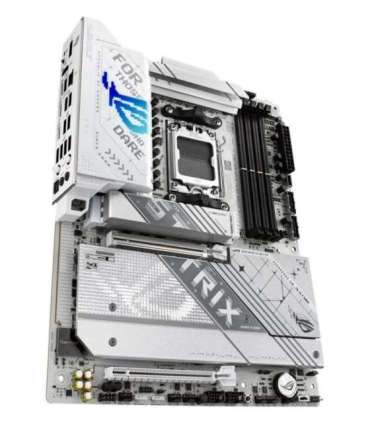

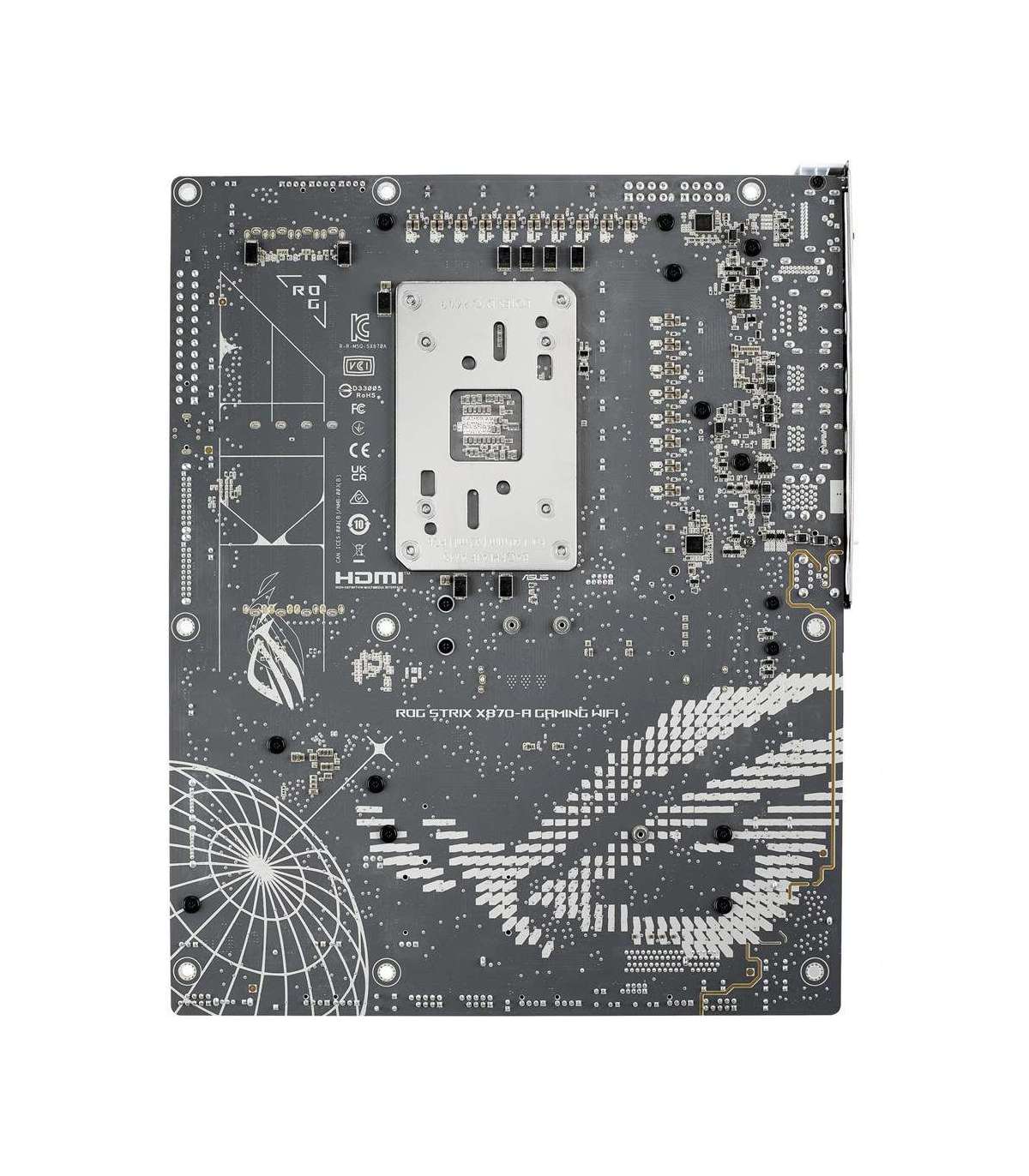

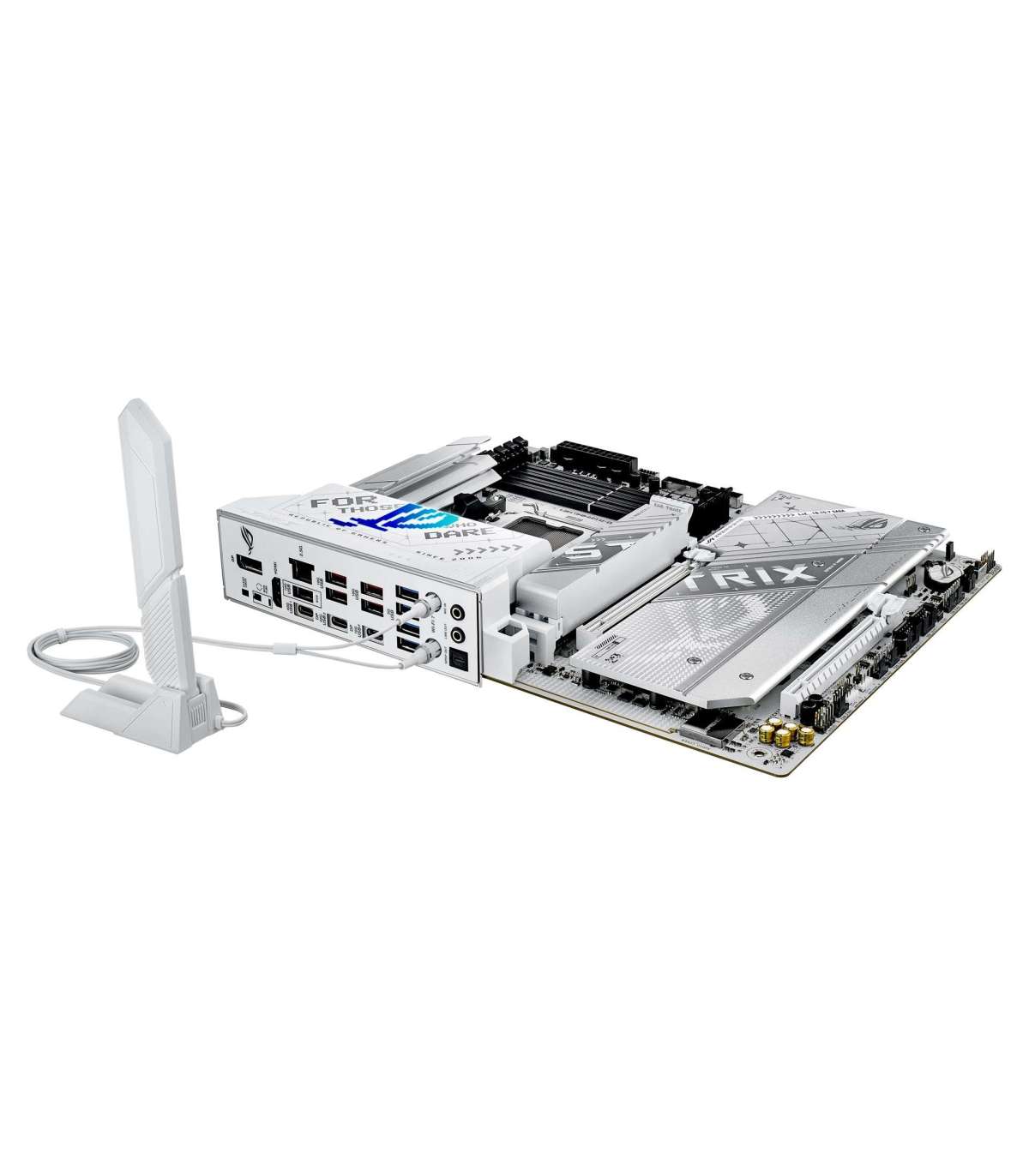

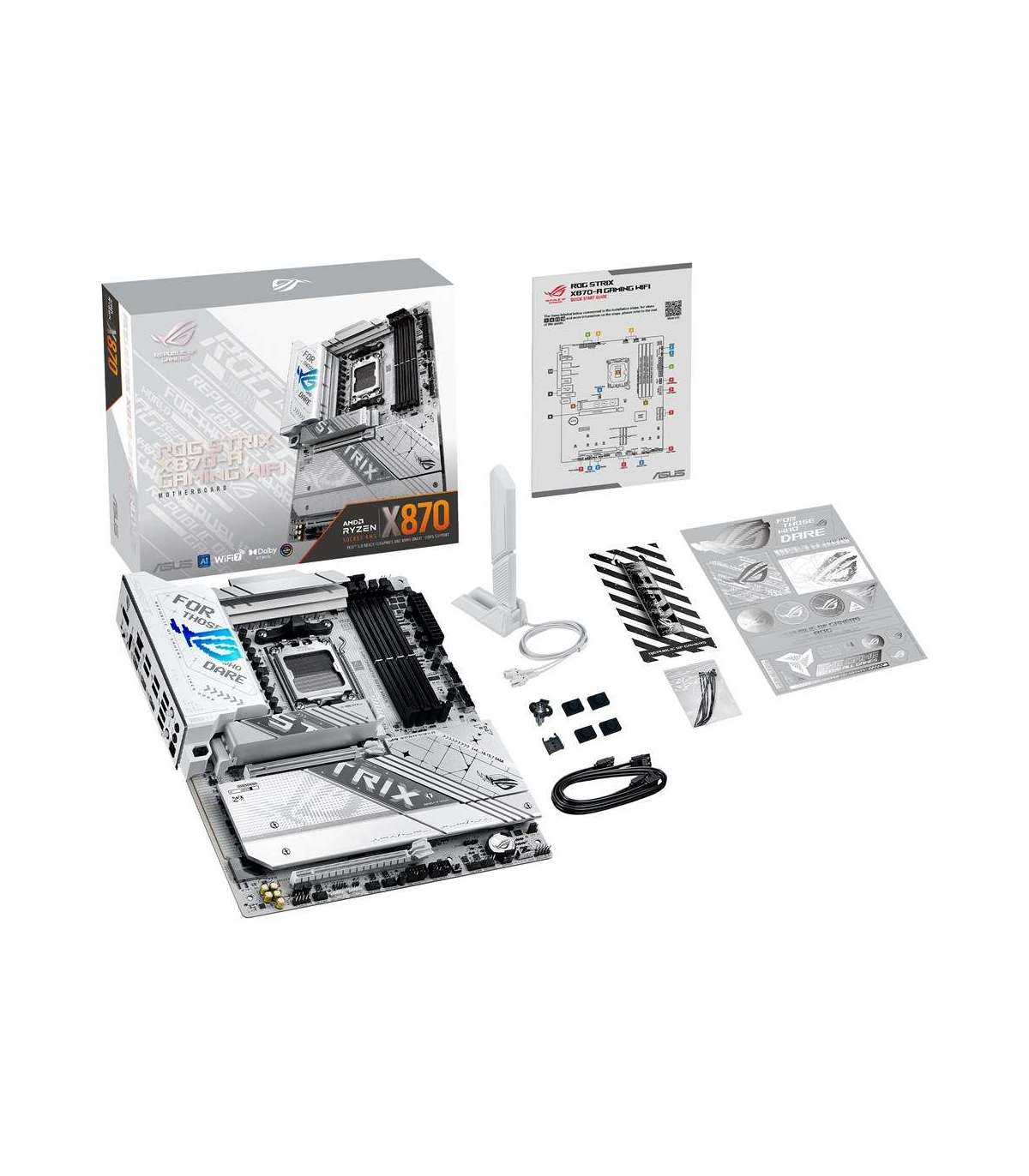

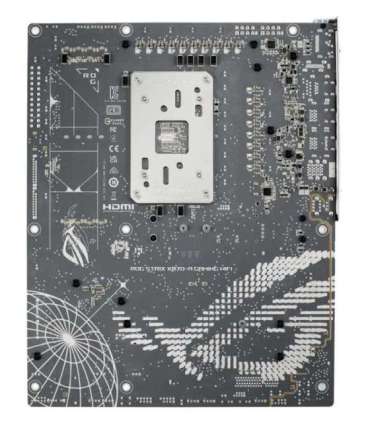

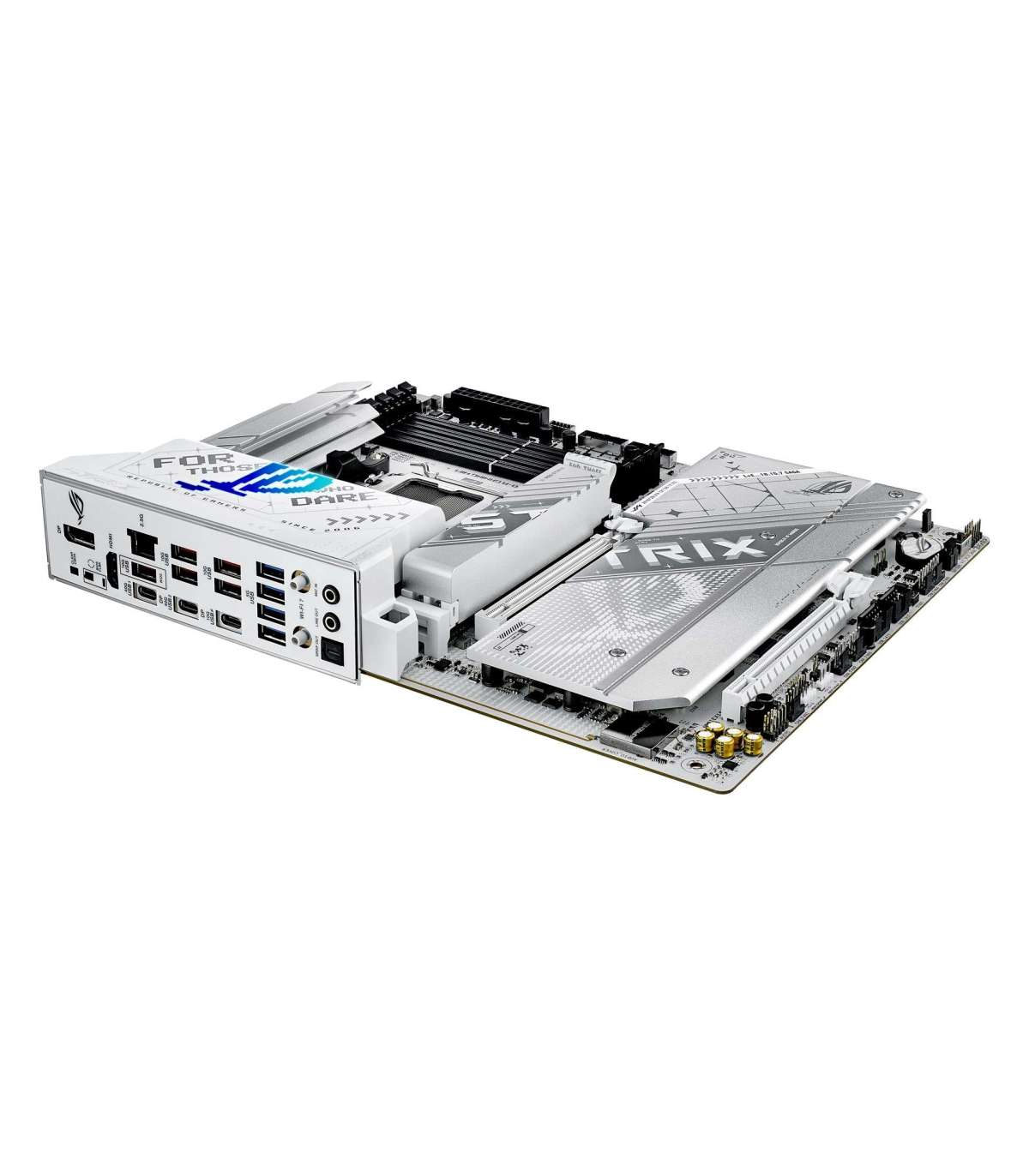

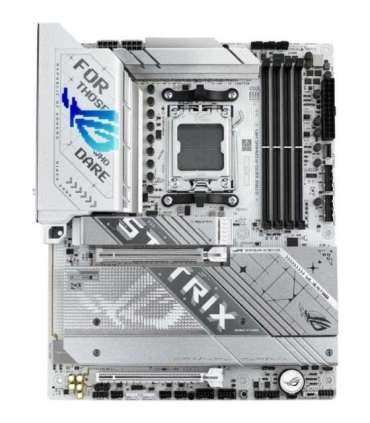

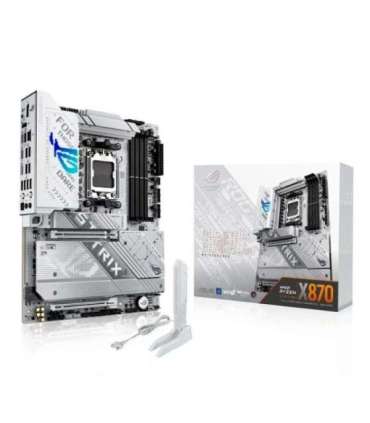

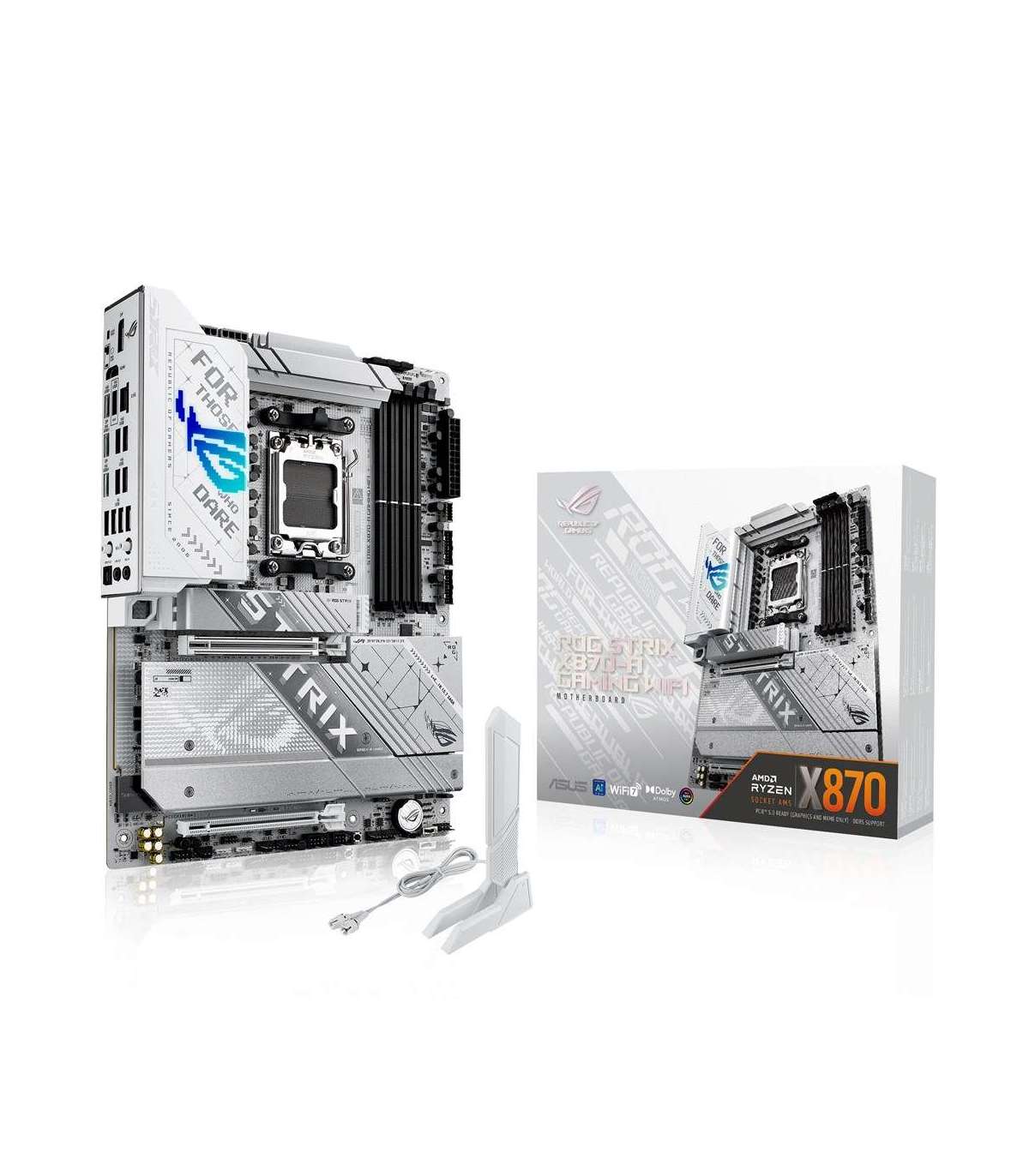

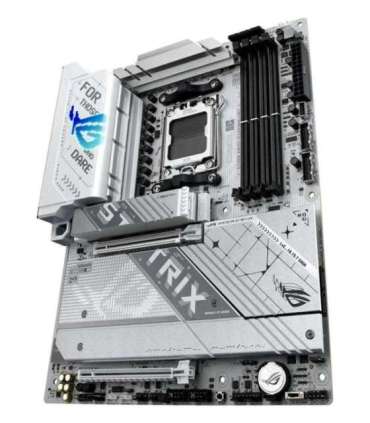

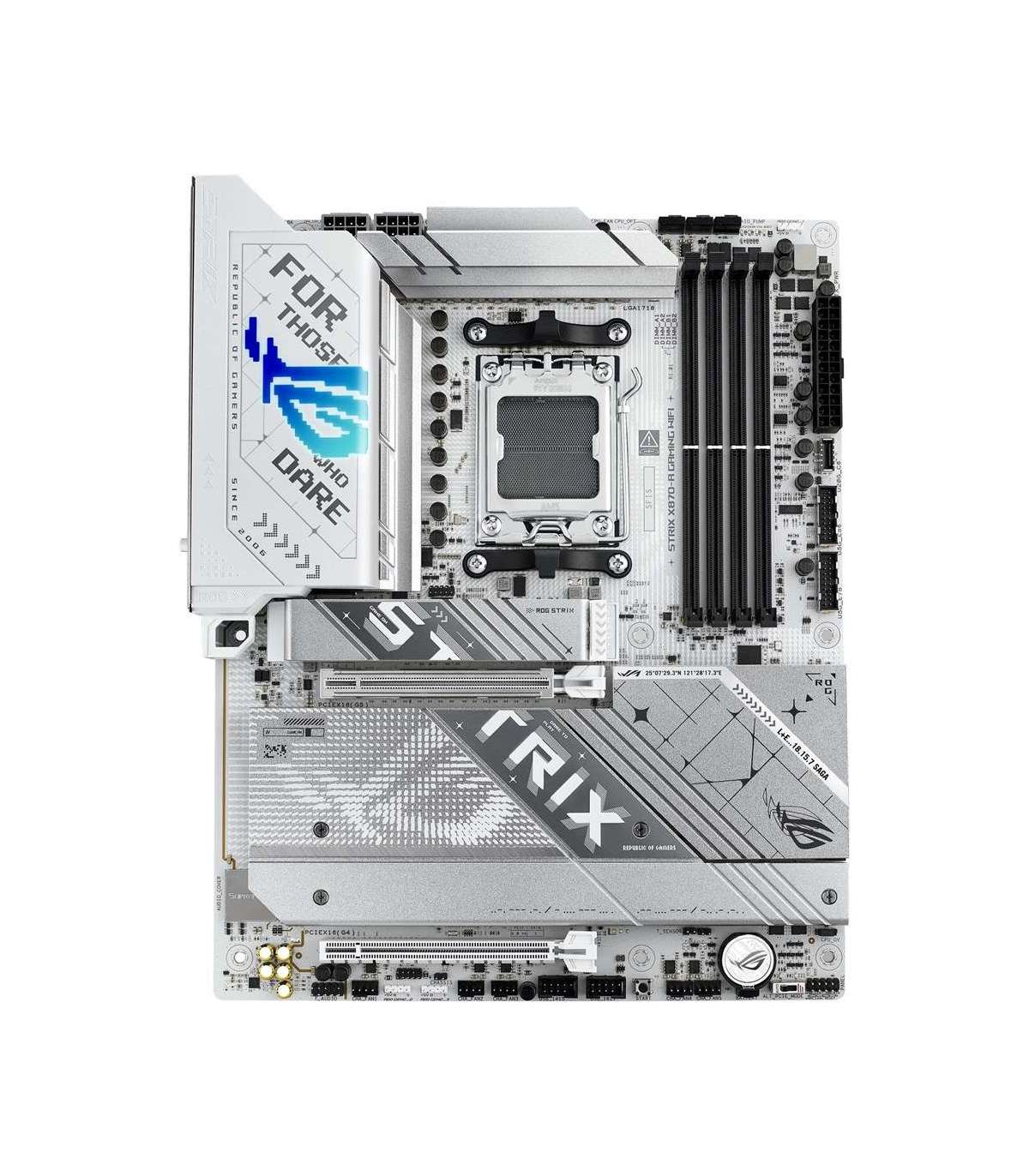

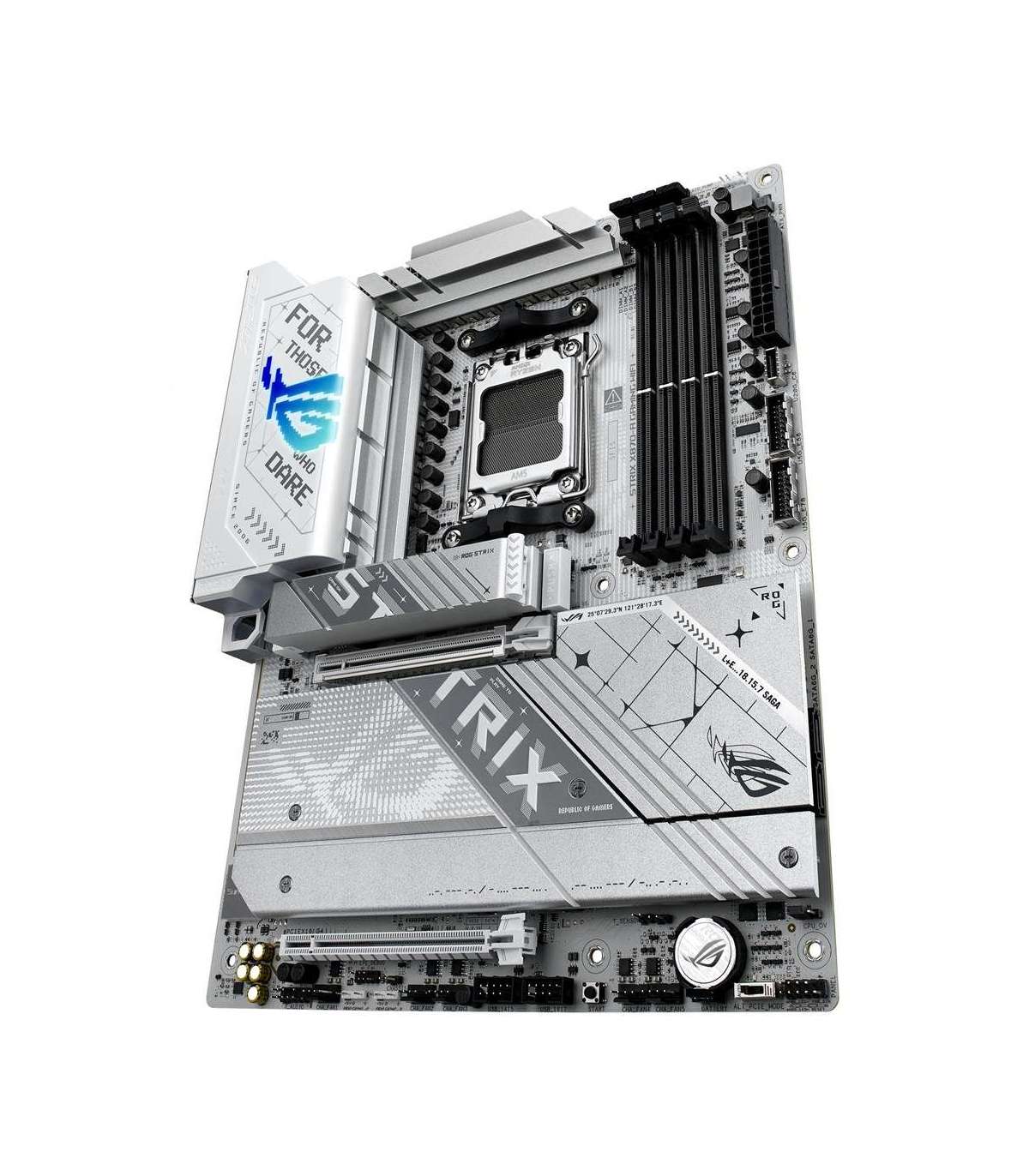

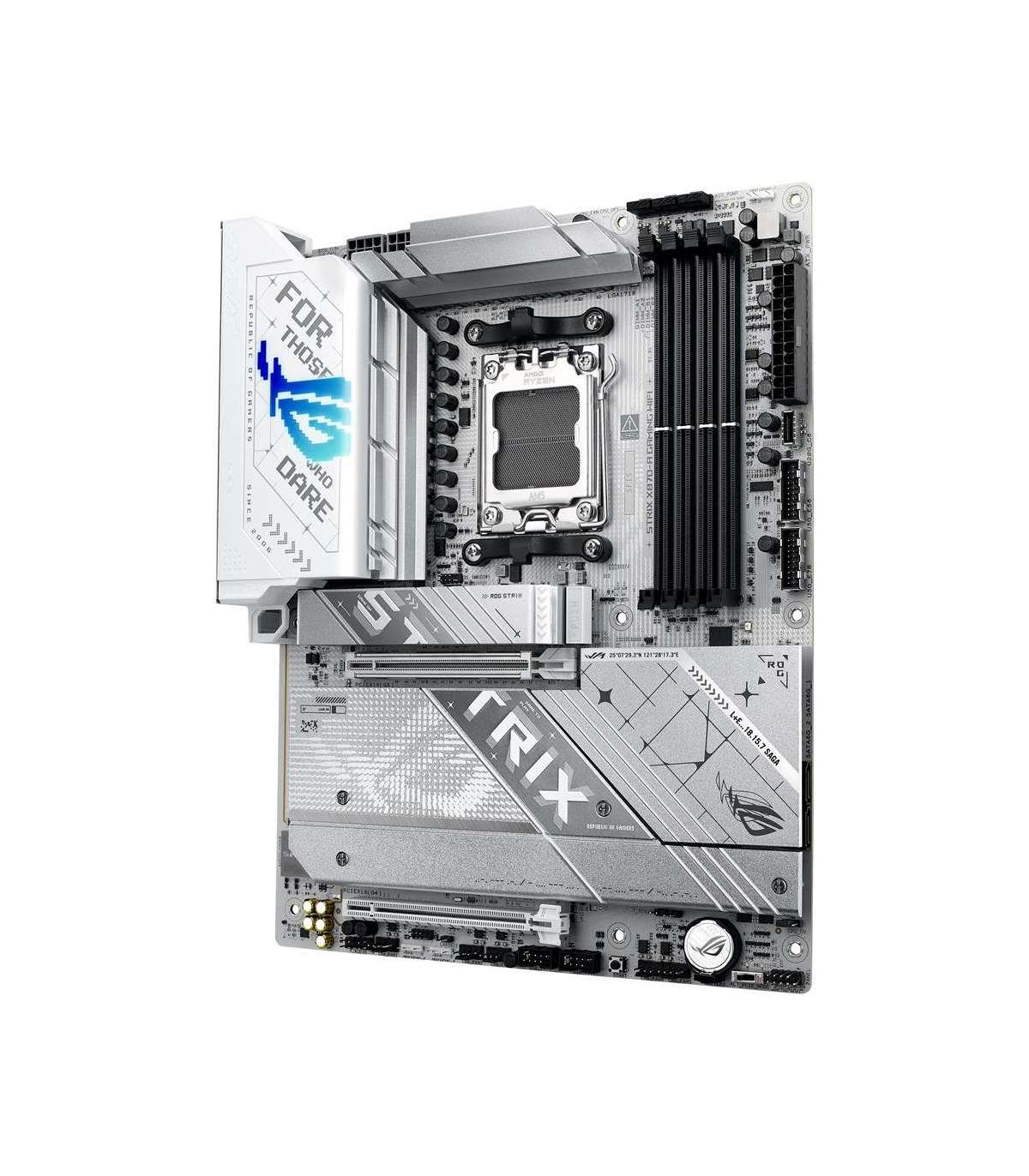

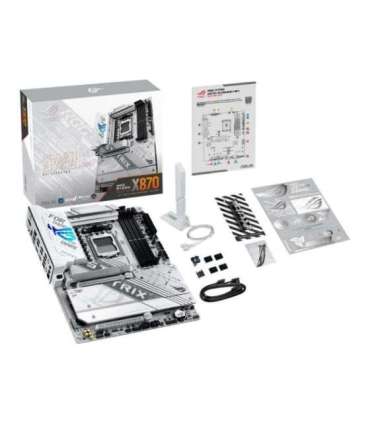

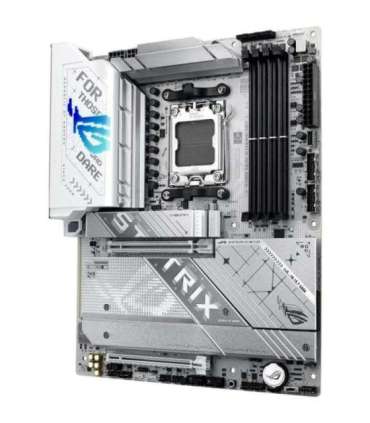

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX

Lisainfo

Depth

244 mm

Kaal

1.84 kg

Kõrgus

50 mm

Laius

305 mm

Package weight

2.32 kg

Product colour

Aluminium

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

Package width

353 mm

Package depth

273 mm

Package height

68 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

192 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4080

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

Socket AM5

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

5

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

2

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

2

12V power connector

Yes

Chassis intrusion connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Number of storage drives supported

6

RAID support

Yes

Clear CMOS button

Yes

WiFi-AP antenna jack

1

USB 3.2 Gen 2x2 connectors

1

PCI Express x16 (Gen 5.x) slots

1

USB4 Gen 2x2 ports quantity

2
