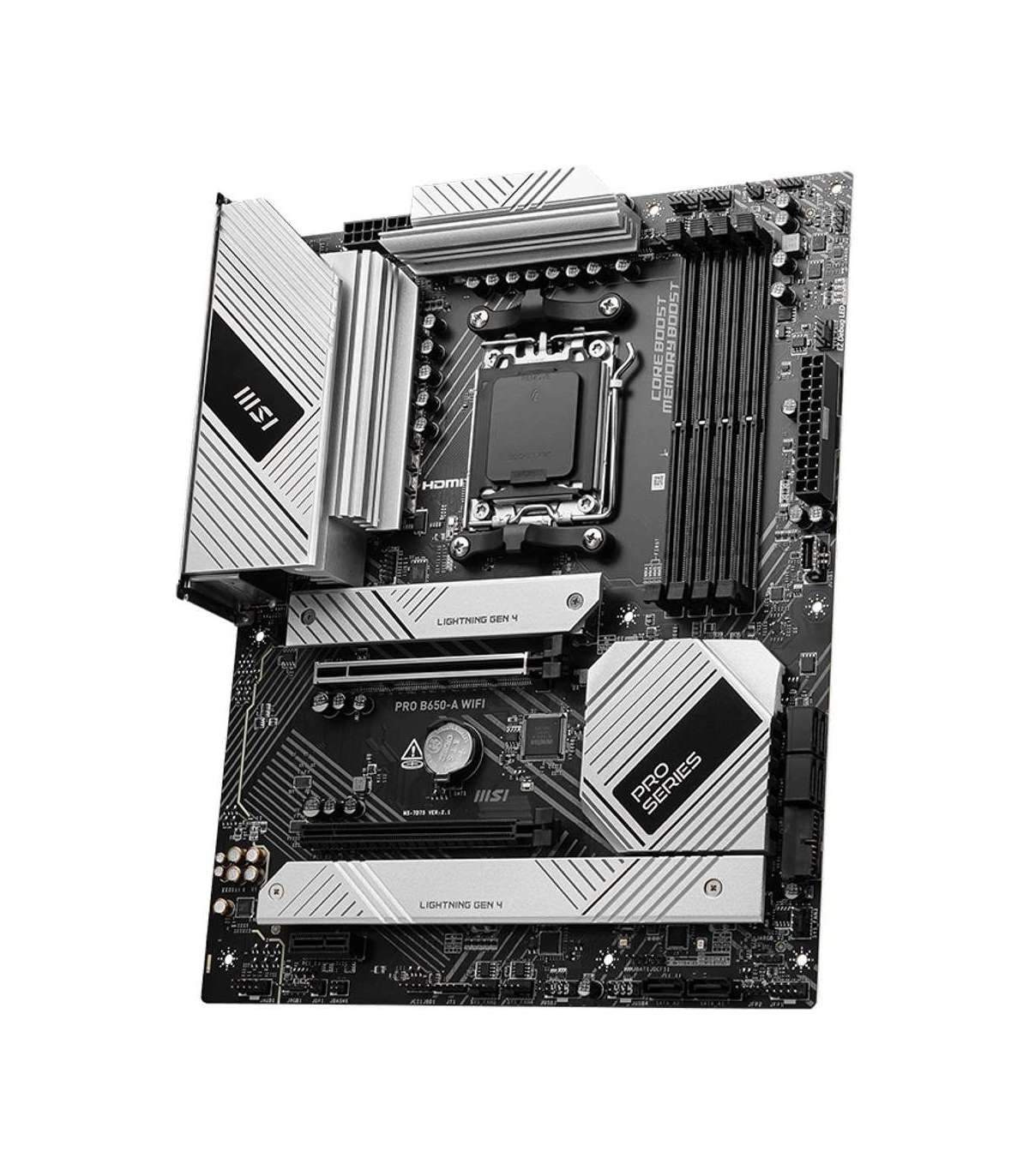

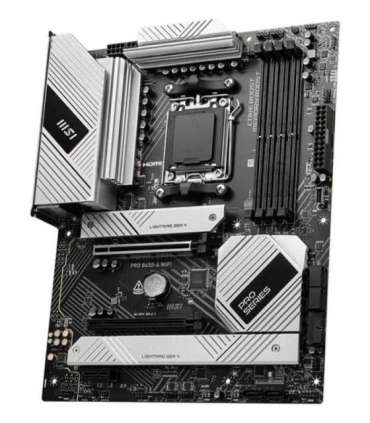

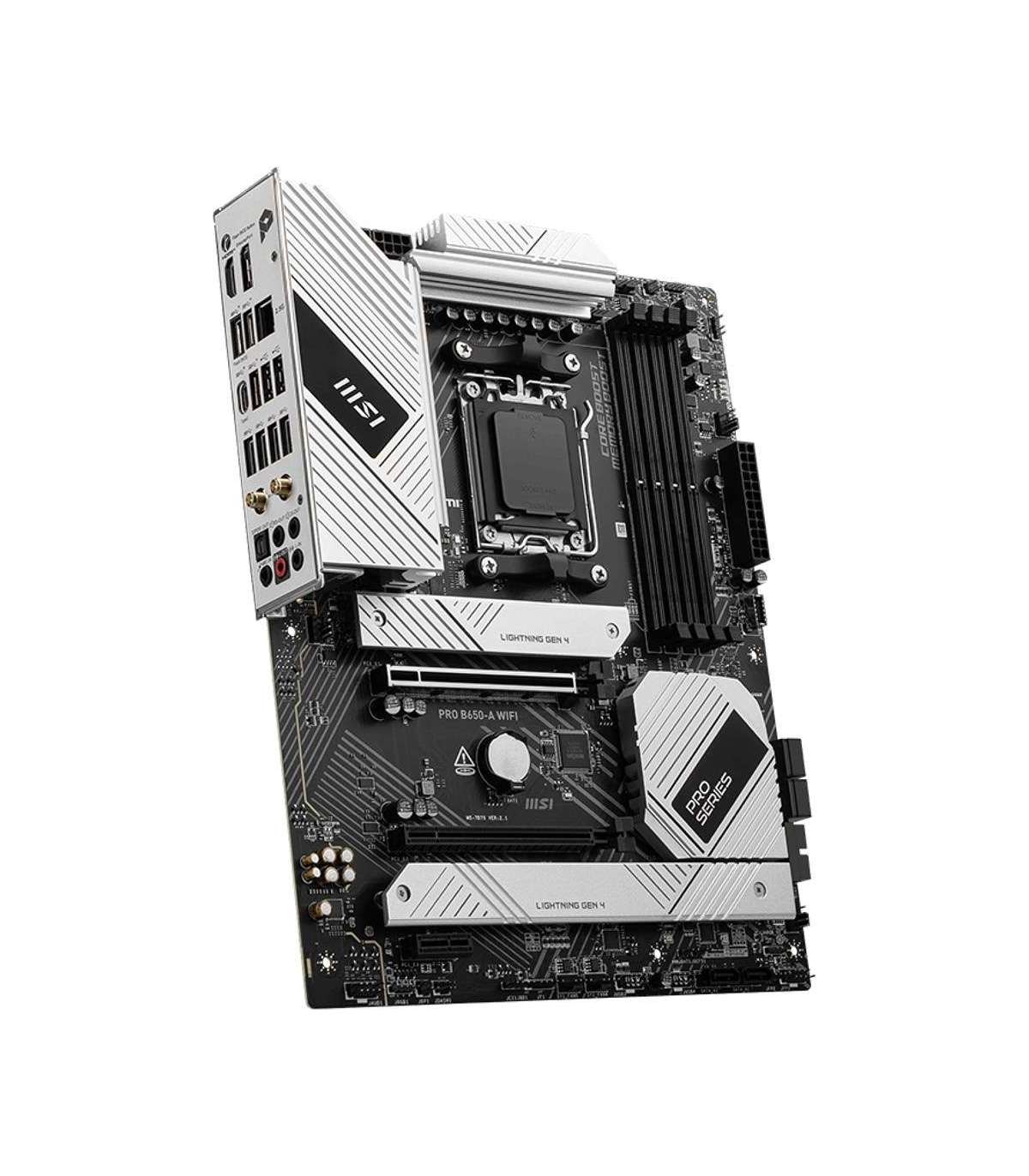

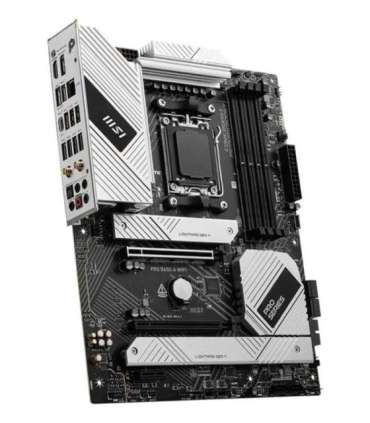

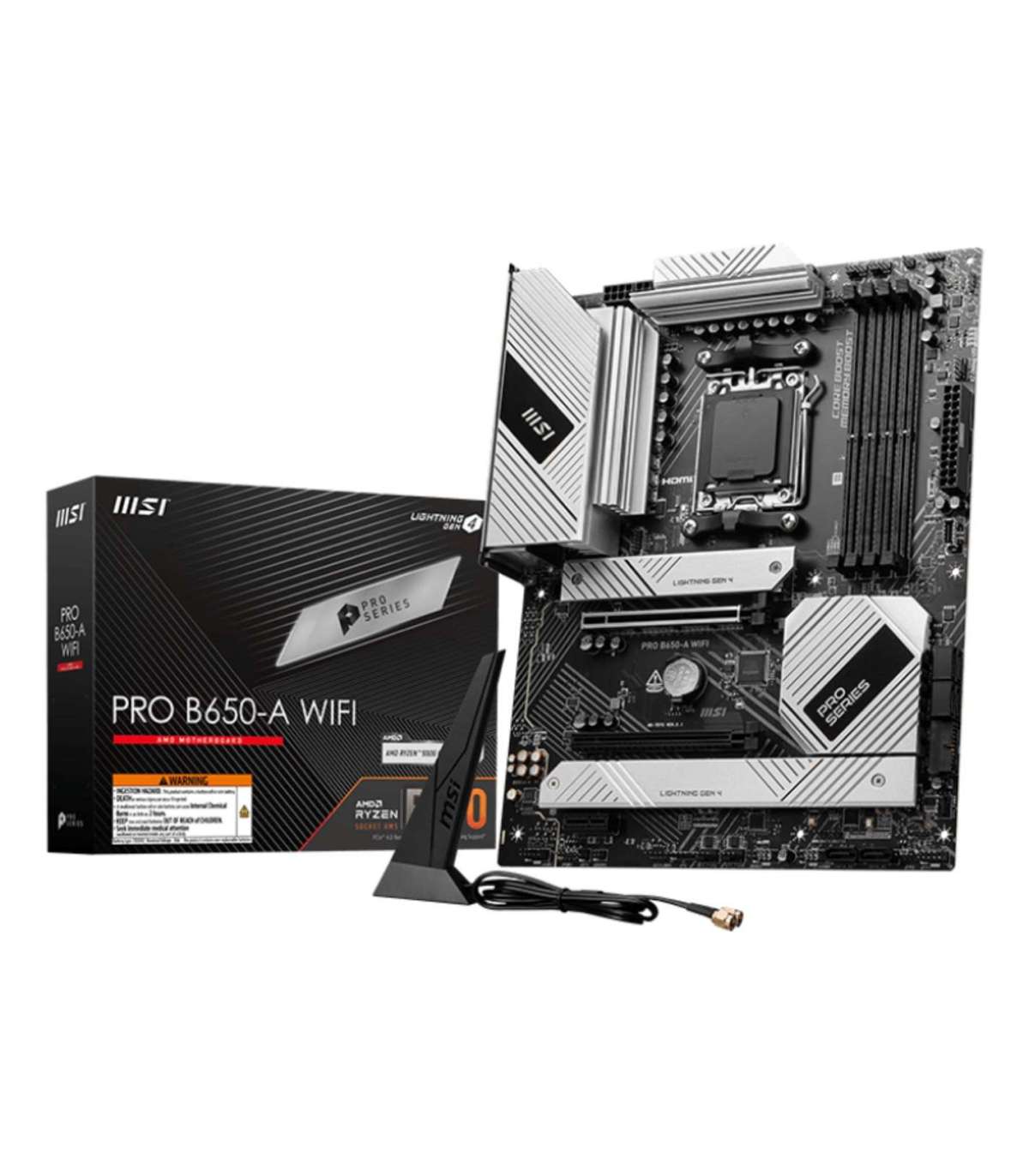

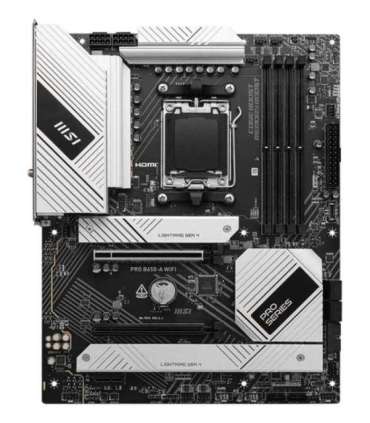

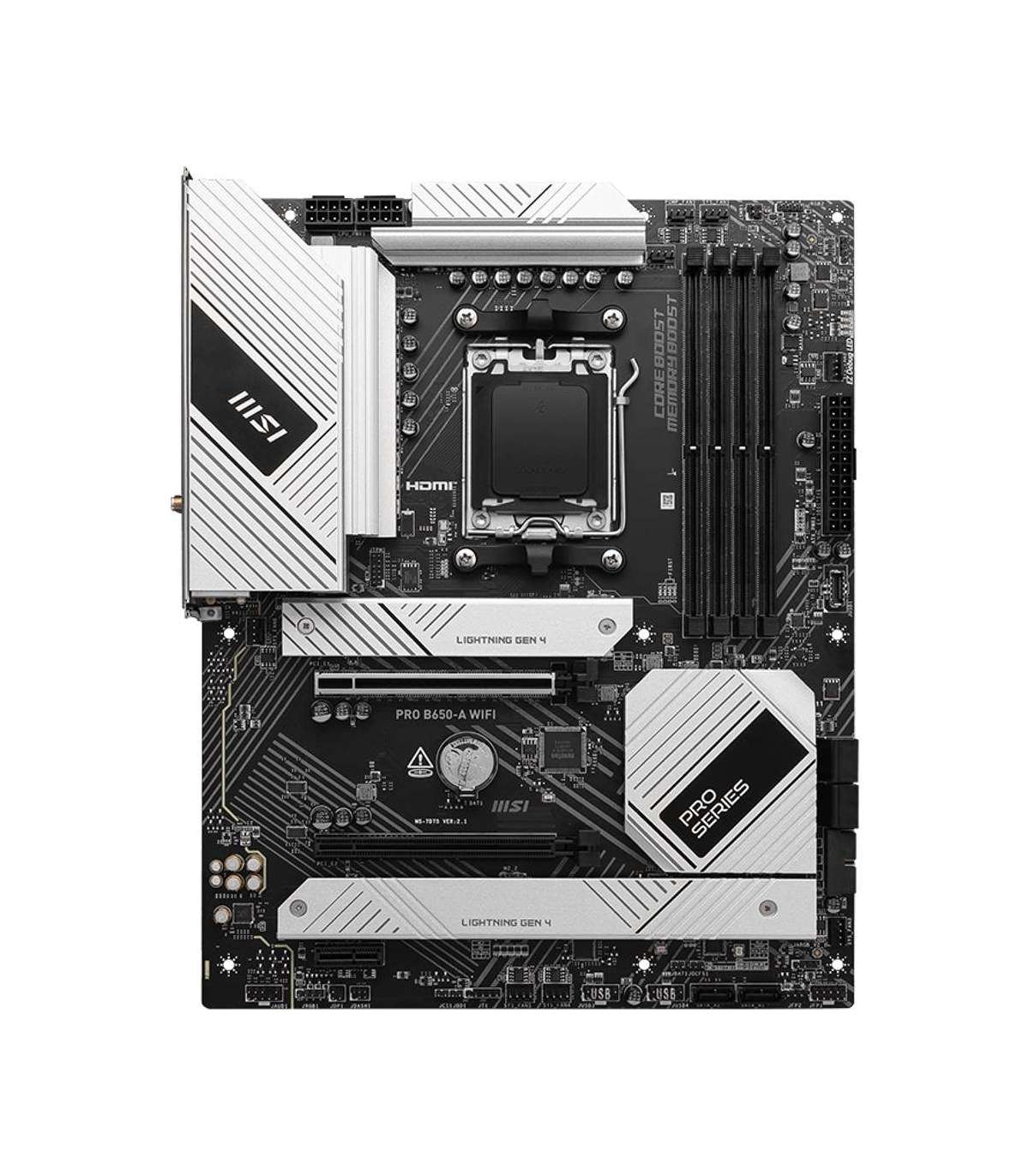

MSI PRO B650-A WIFI motherboard

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Ethernet LAN

Yes

Wi-Fi standards

802.11 ac
802.11 ax
802.11a
802.11b
802.11g
802.11n
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11 x64

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

256 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD B650

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Audio chip

Realtek ALC4080

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

4

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600 MHz
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125B

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

M.2, SATA

PCI Express x16 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

PC health monitoring

Fan

RAID levels

0
1
10

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

7600 MHz

Front panel connector

Yes

Line-in

Yes
