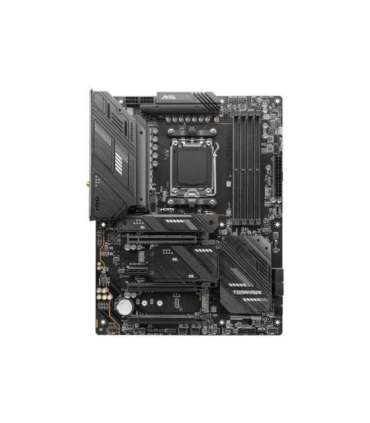

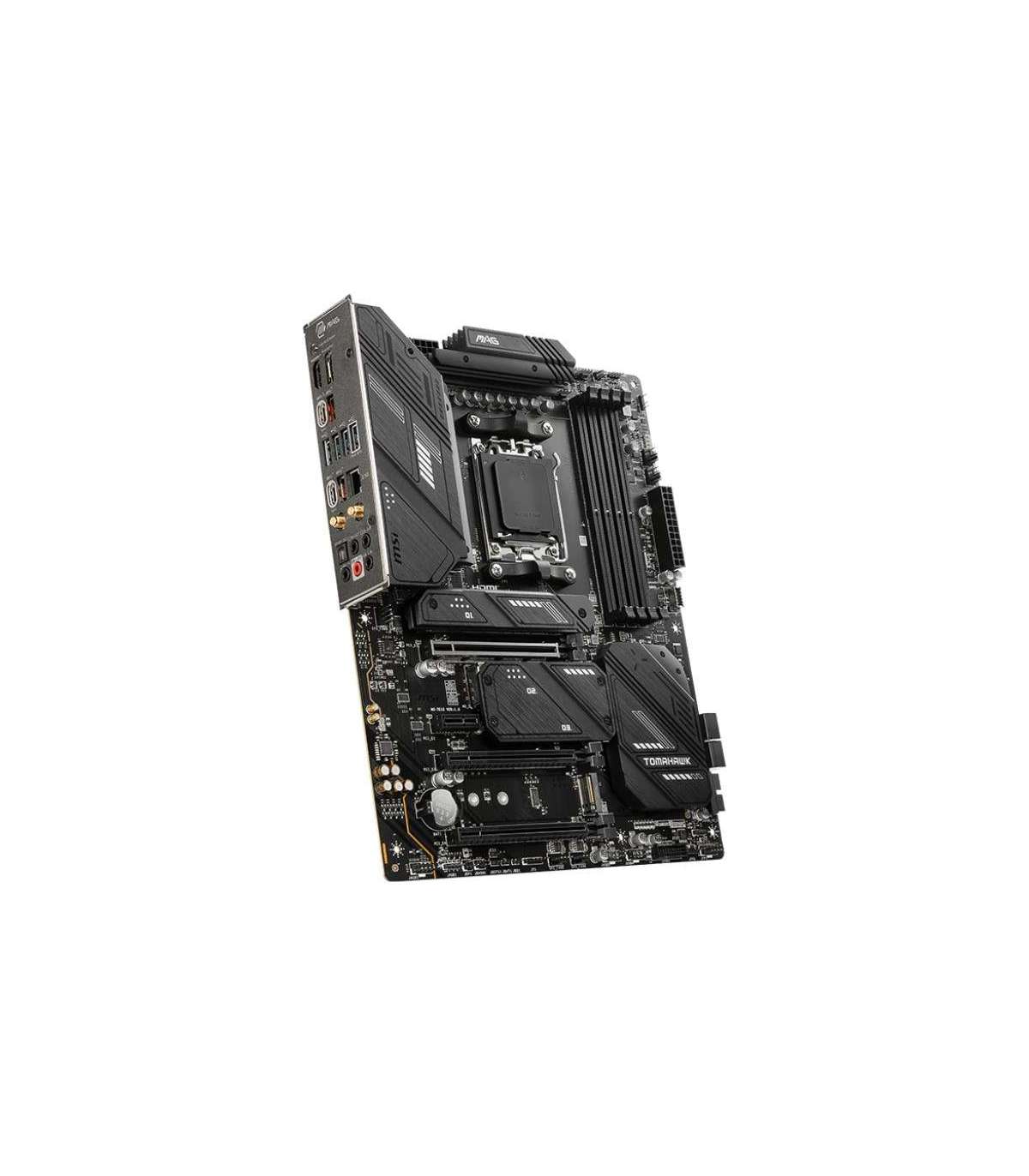

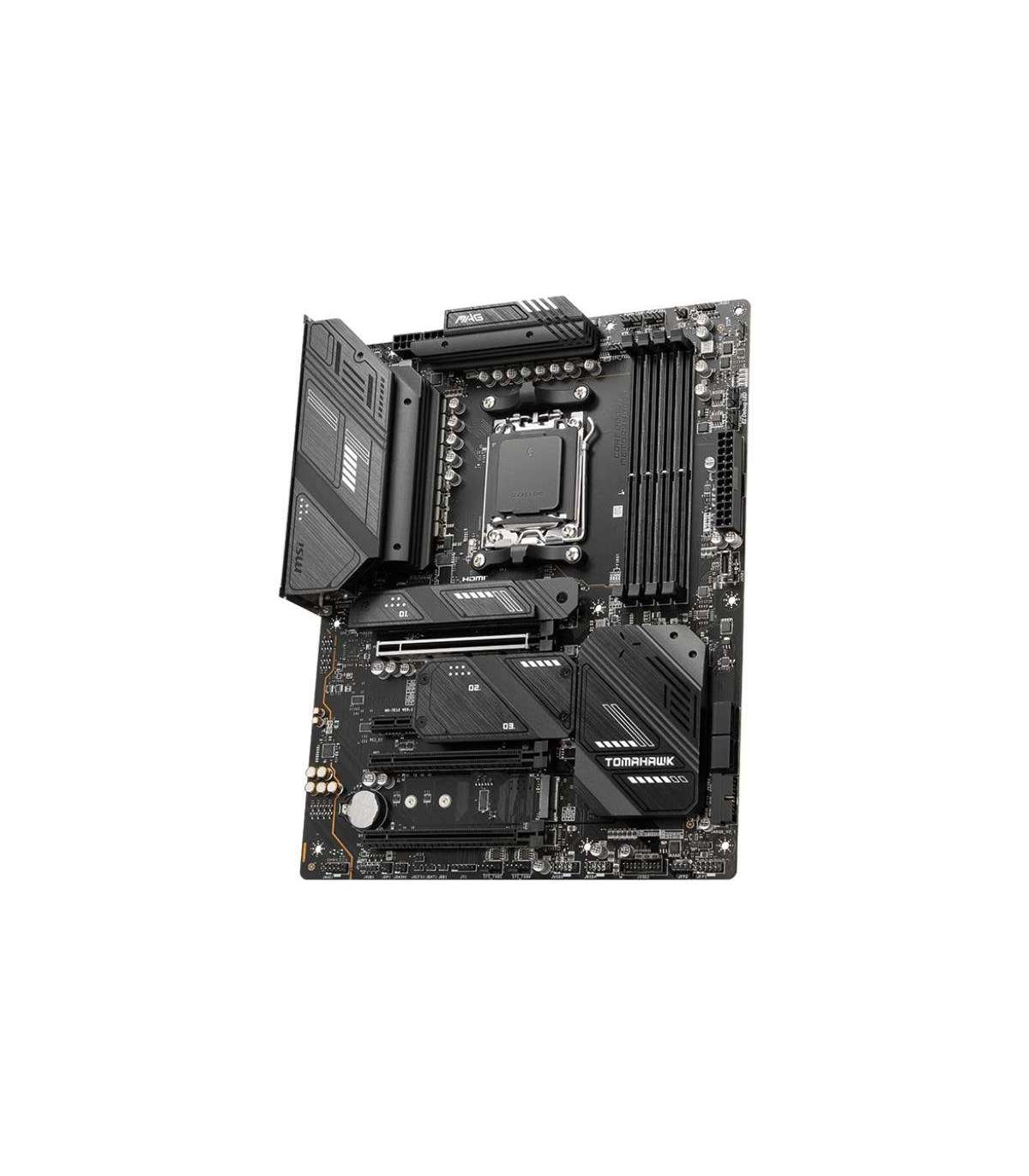

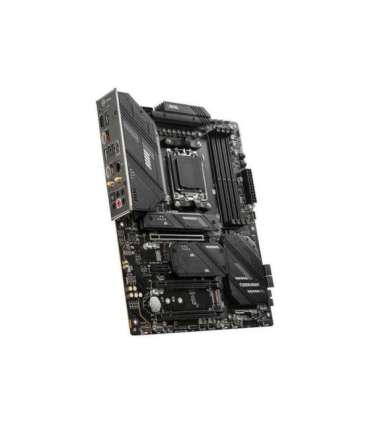

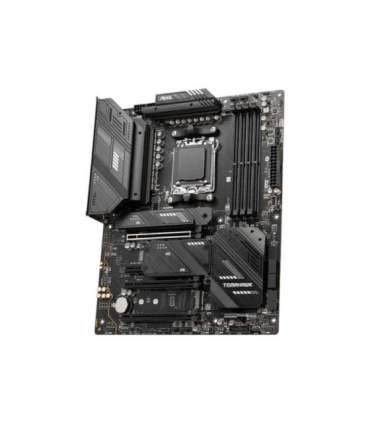

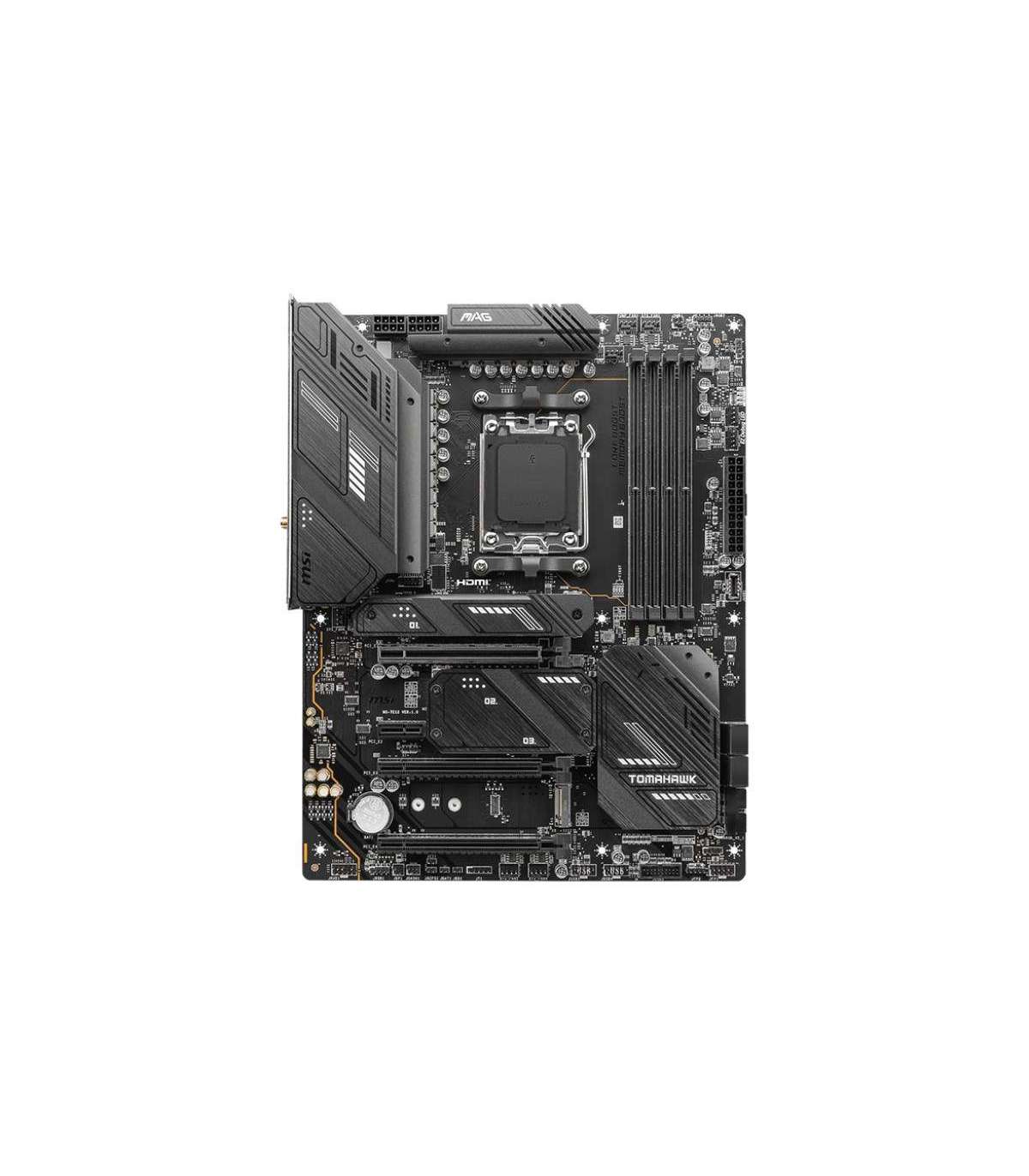

MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD X670

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC1200

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

4

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen™ 7

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400 MHz
6600

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125-BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Supported storage drive interfaces

M.2, SATA

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

Number of SATA III connectors

4

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

RAID levels

0
1
10

DisplayPorts quantity

1

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

6600 MHz

Front panel connector

Yes

RAID support

Yes

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1

AMD Opteron series

7000
