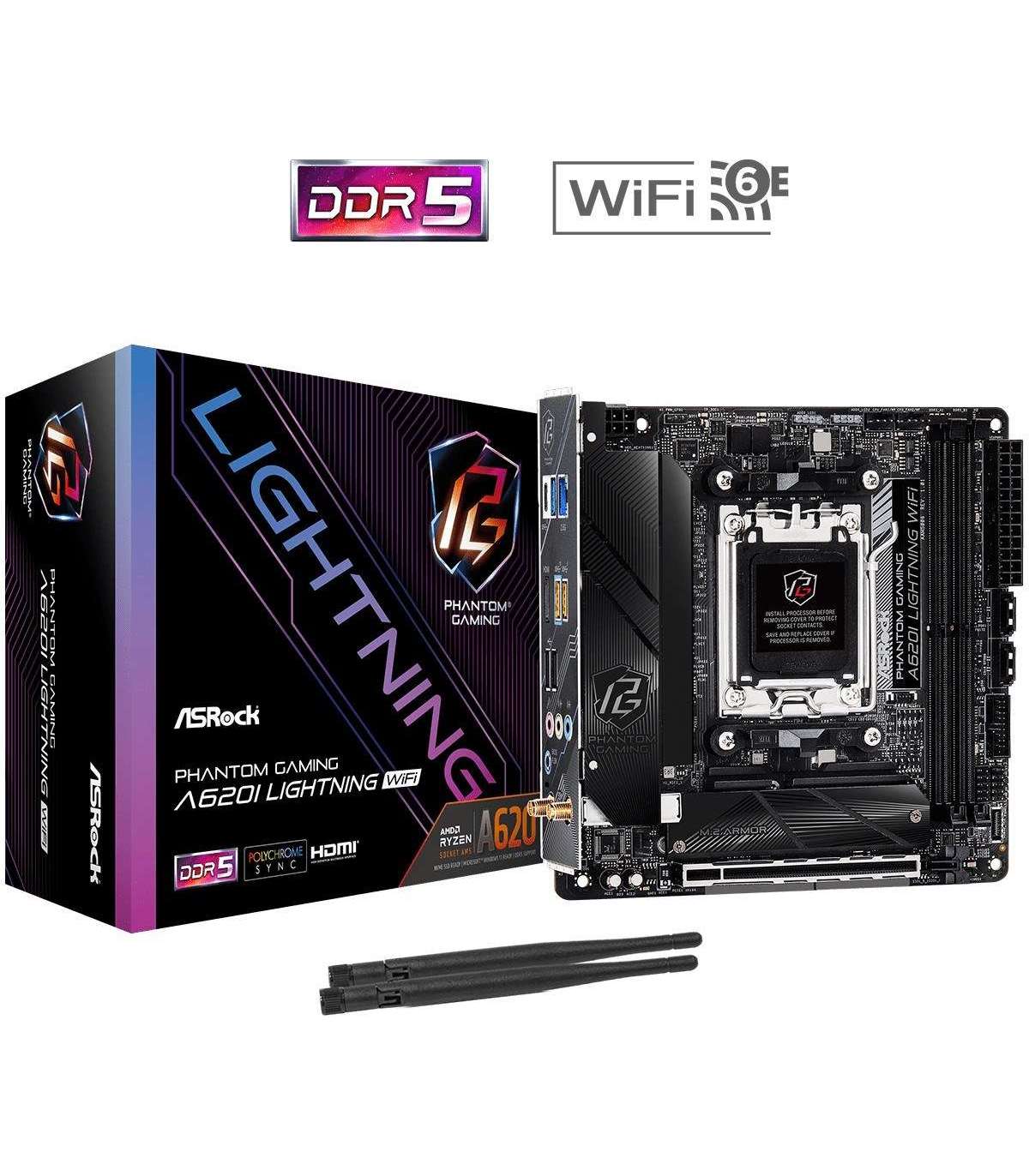

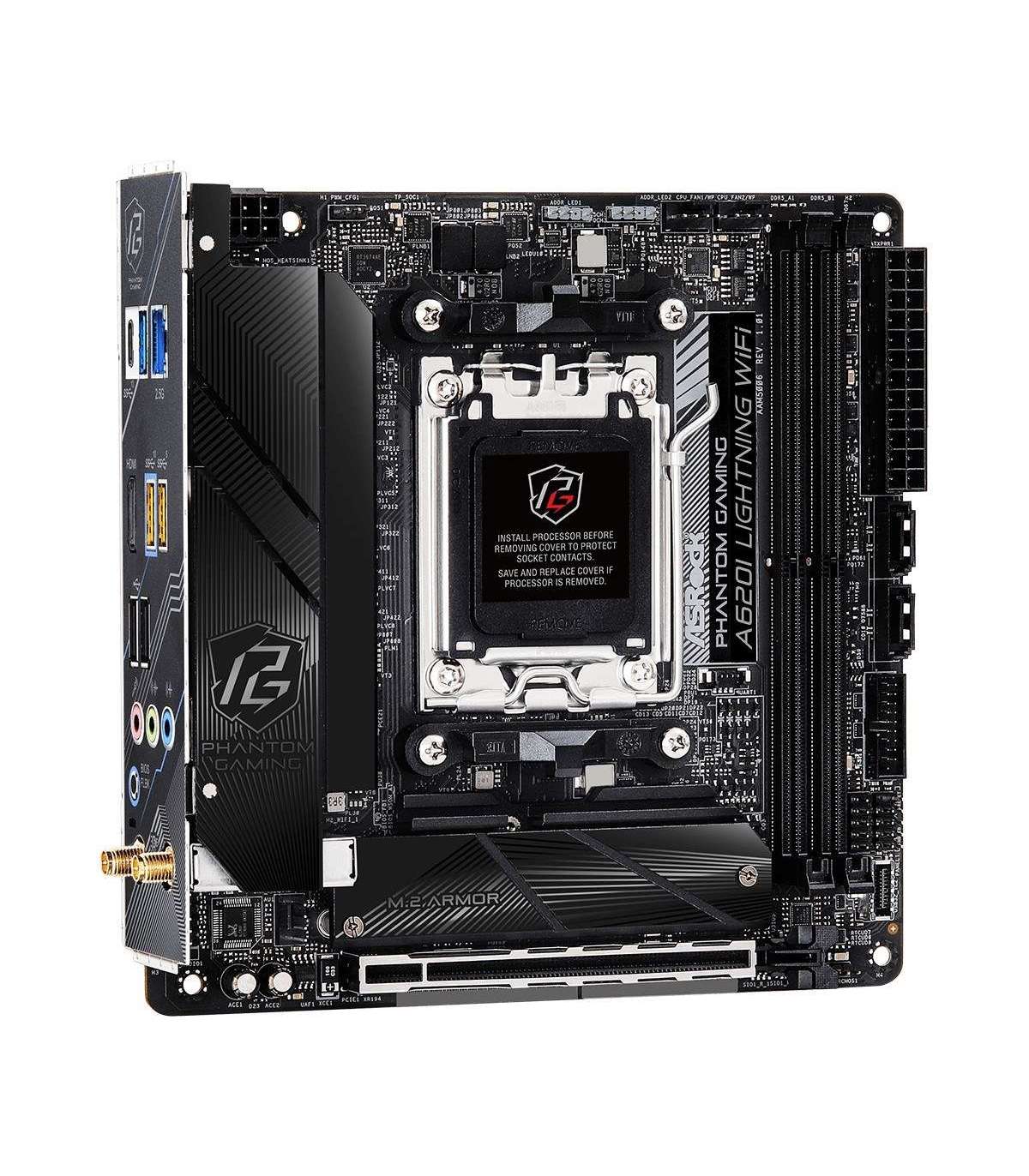

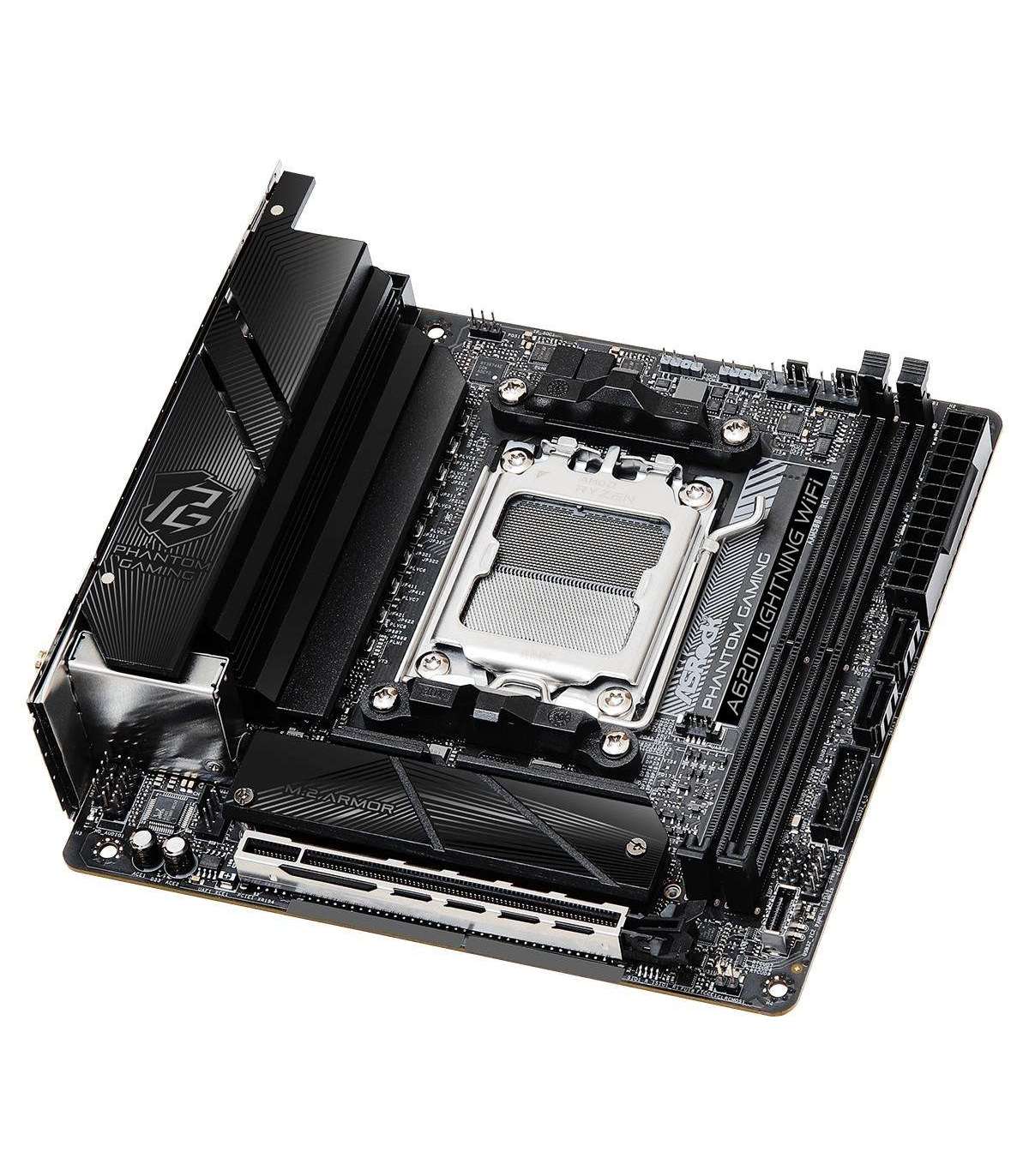

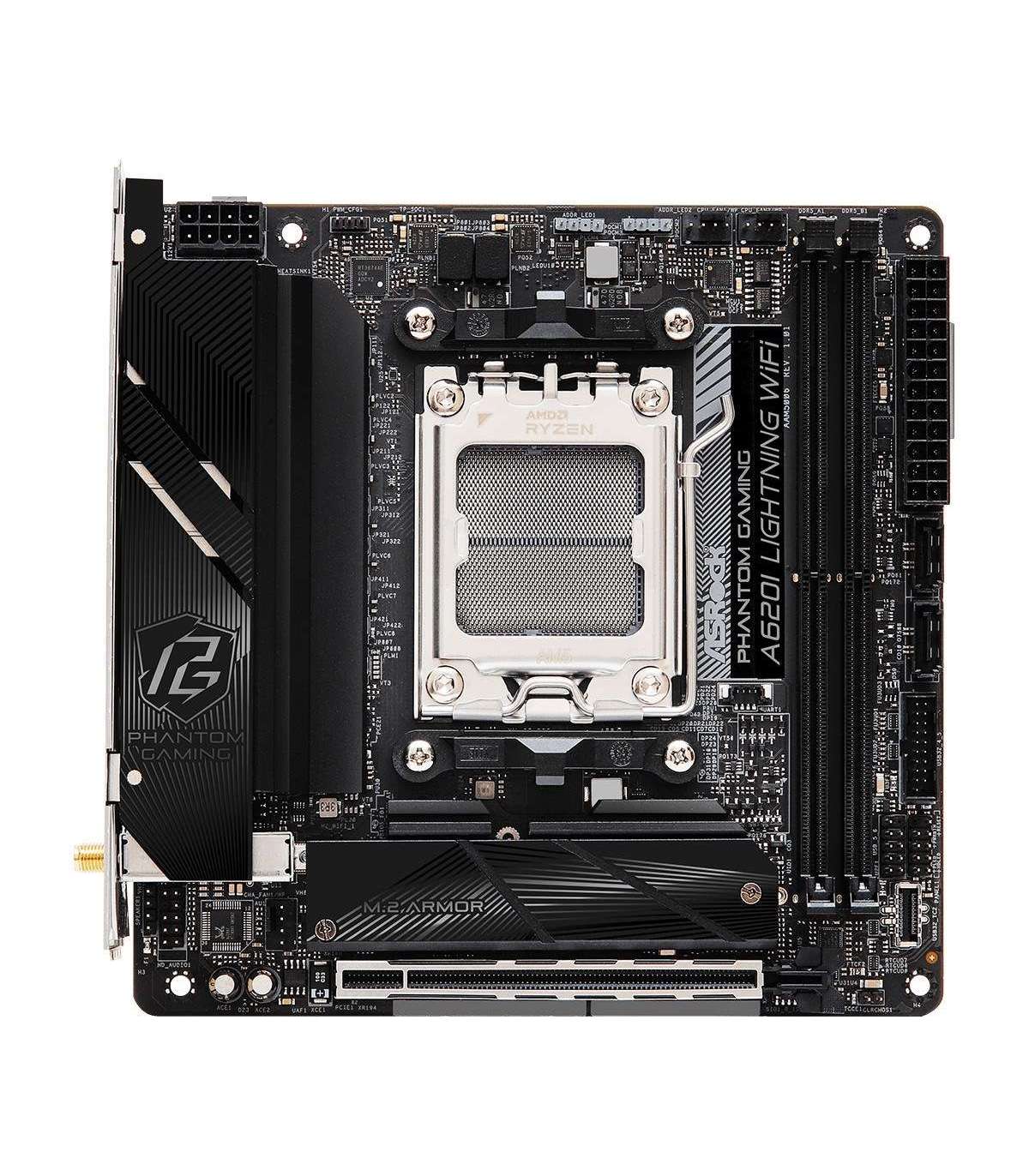

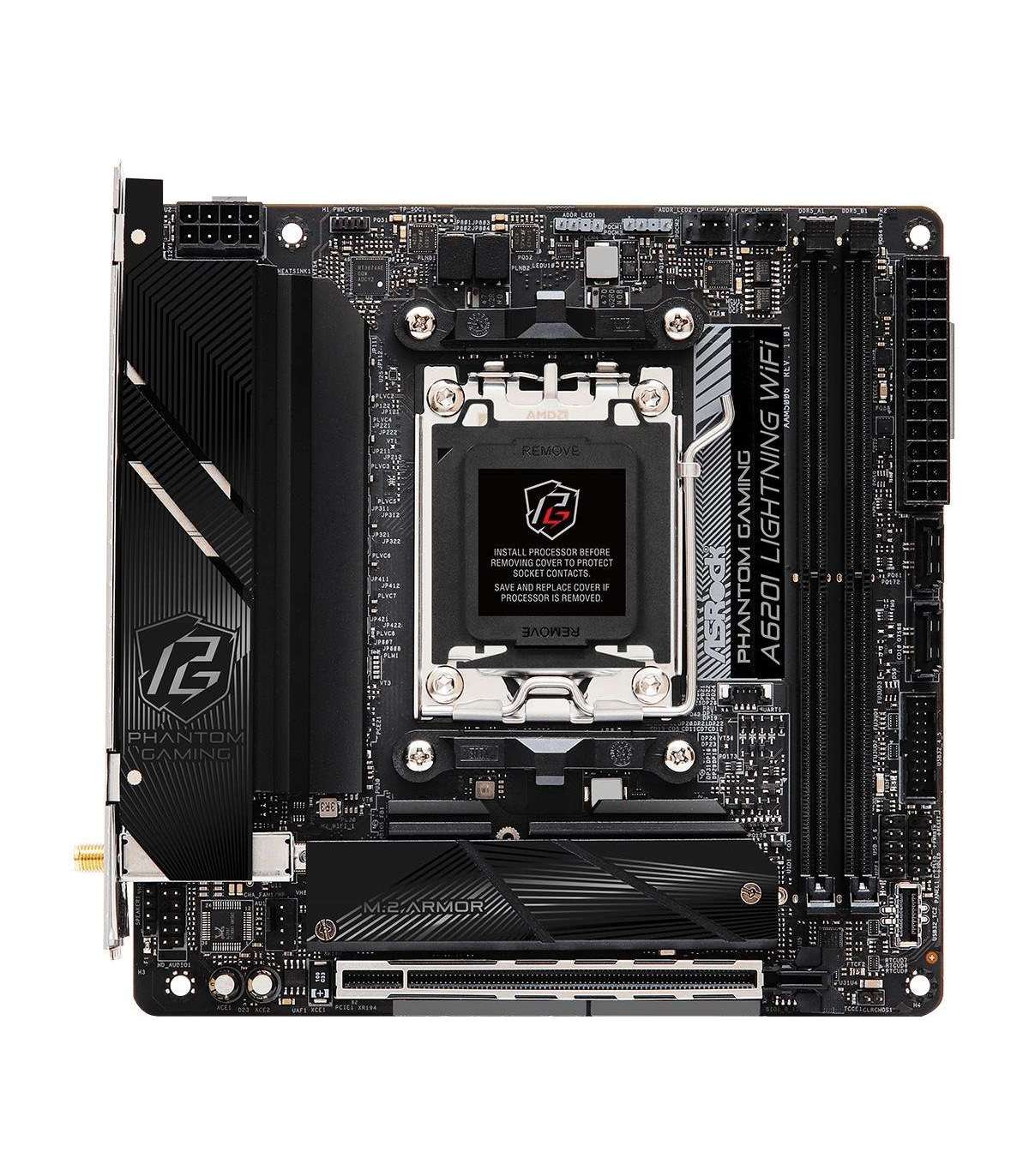

Asrock A620I LIGHTNING WIFI motherboard

Lisainfo

Depth

170 mm

Laius

170 mm

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

96 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

AMD A620

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

1

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen™ 7000 Series

Motherboard form factor

Mini-ITX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

Maximum number of SMP processors

1

Number of SATA III connectors

2

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

Number of storage drives supported

4

RAID support

Yes

Line-in

Yes

PCI Express x1 (Gen 4.x) slots

1

Wi-Fi antenna socket

Yes

USB Type-C socket on the front panel

Y

BIOS switch button

Yes
