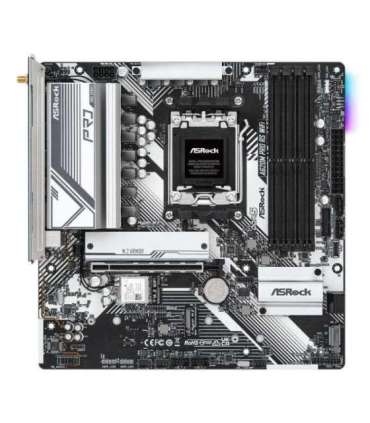

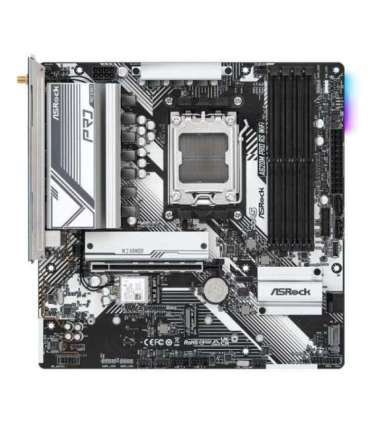

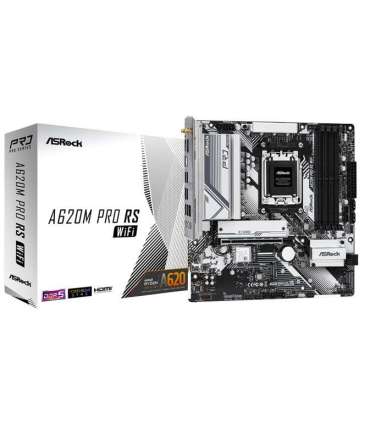

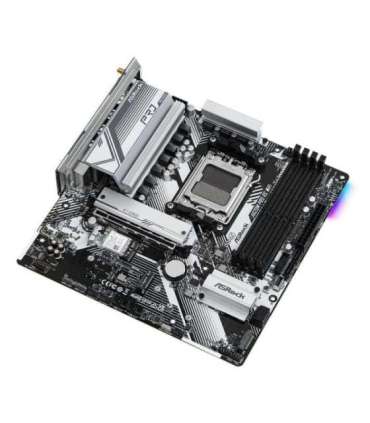

Asrock A620M Pro RS WiFi AMD A620 Socket AM5 micro ATX

Lisainfo

Videokaardi mudel

AMD RDNA 2

Depth

244 mm

Laius

244 mm

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
Wi-Fi 4 (802.11n)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

Certification

FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

Maximum internal memory

128 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

AMD A620

HDMI version

2.1

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

3

Memory channels

Dual-channel

Headphone outputs

1

USB 2.0 connectors

4

Graphics card family

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek 8111H

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA

Microphone in

Yes

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Number of storage drives supported

3

RAID support

Yes

Power fan connector

Yes

Line-in

Yes

DisplayPort version

1.4

WiFi-AP antenna jack

2
