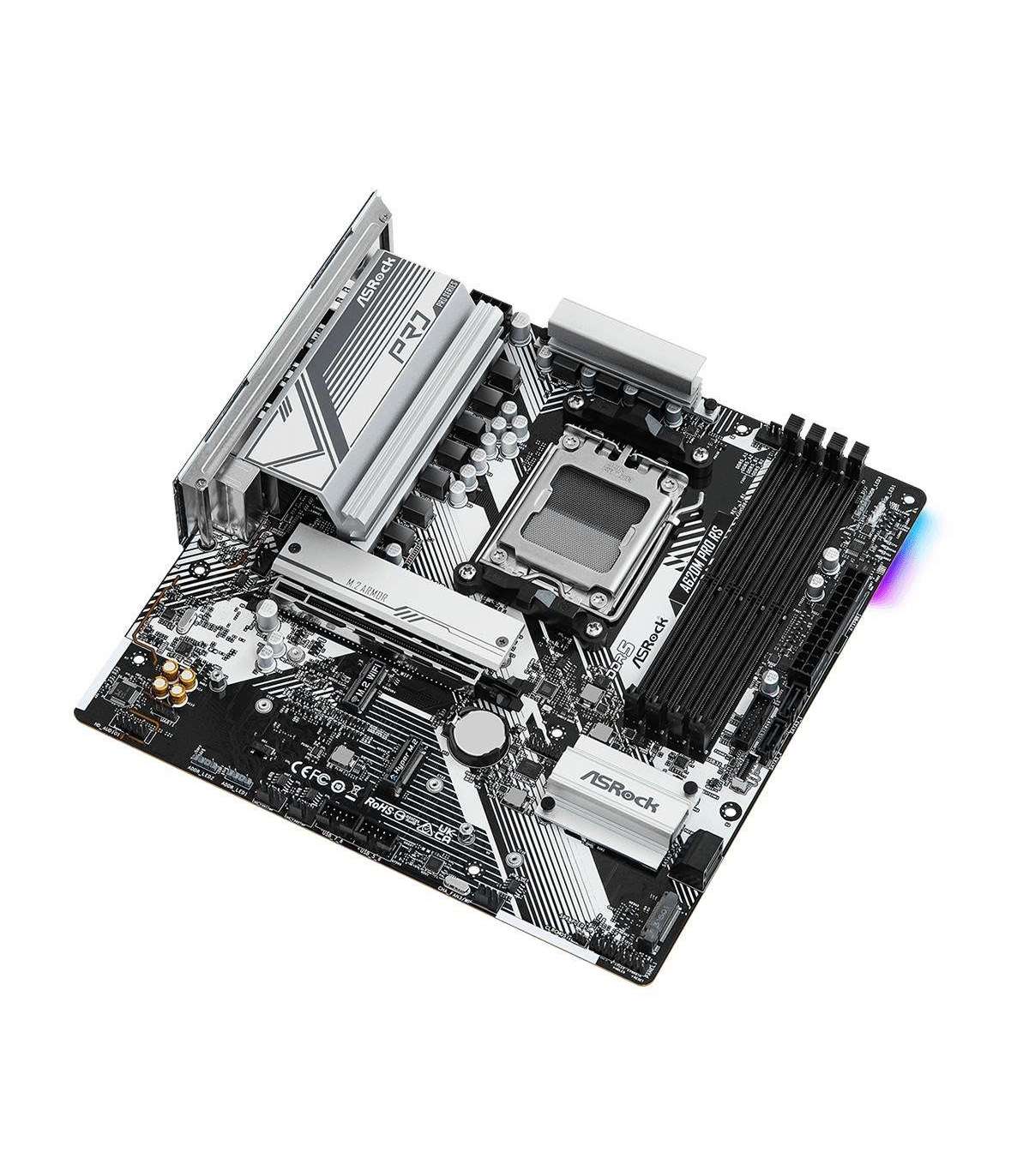

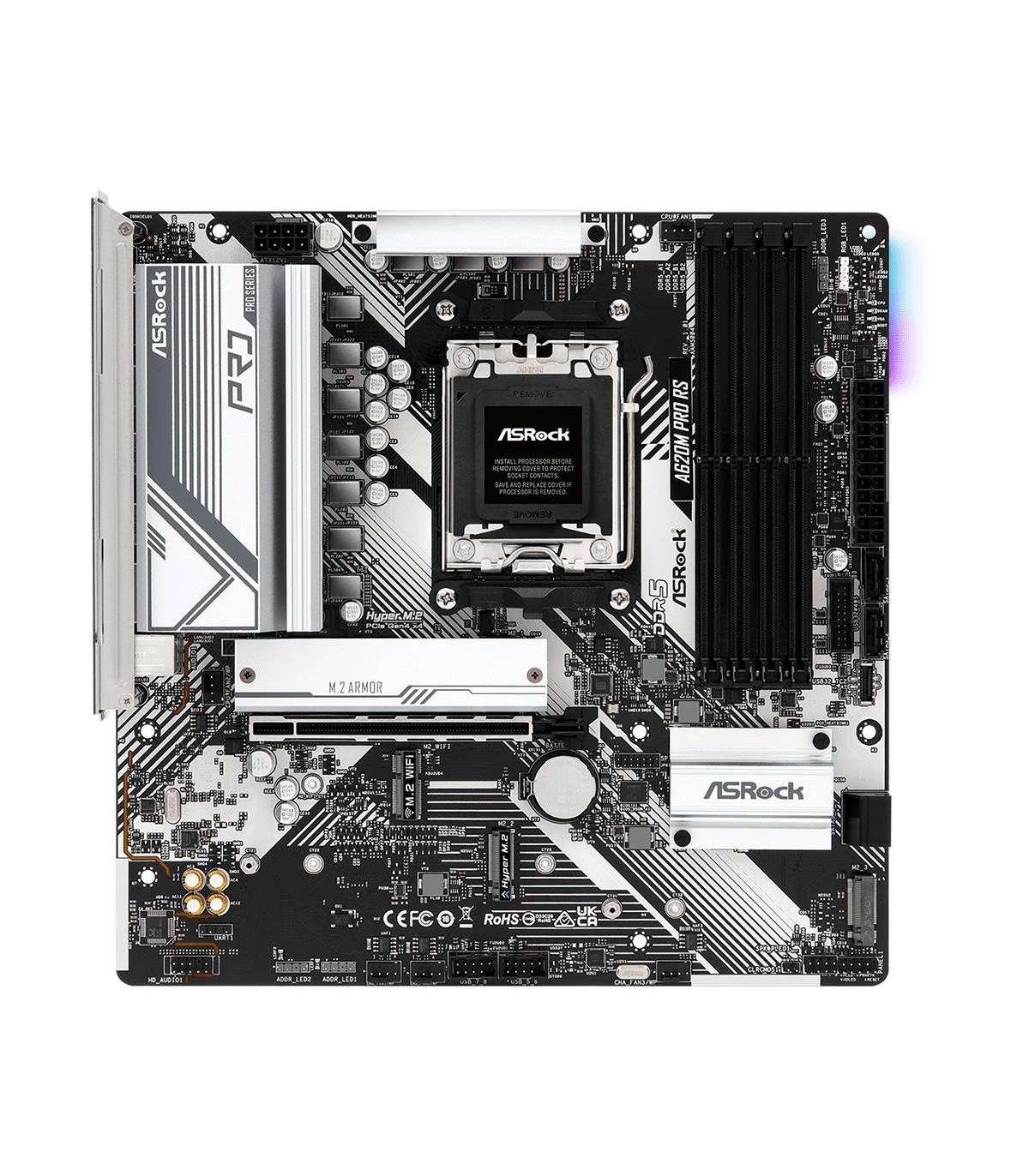

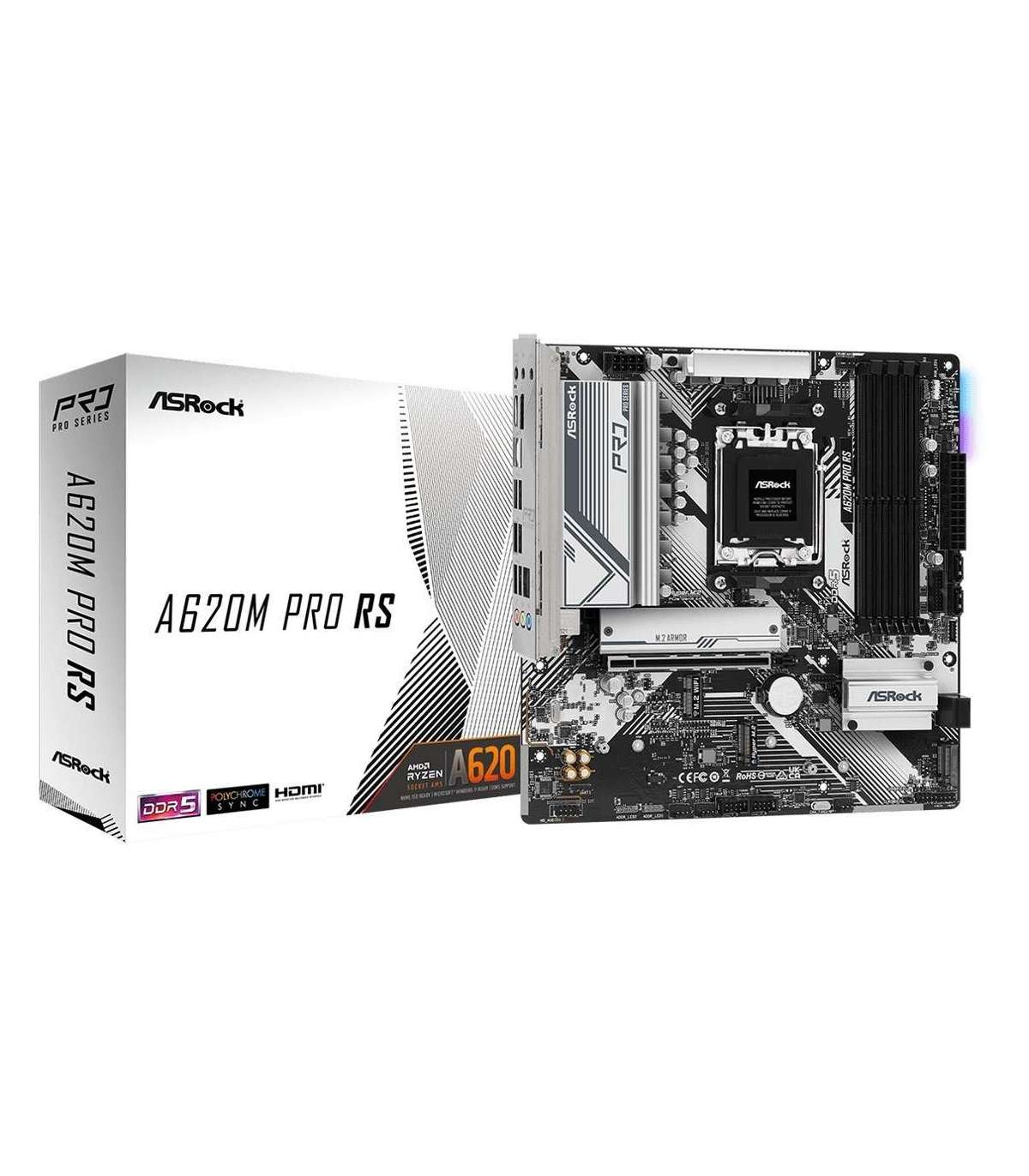

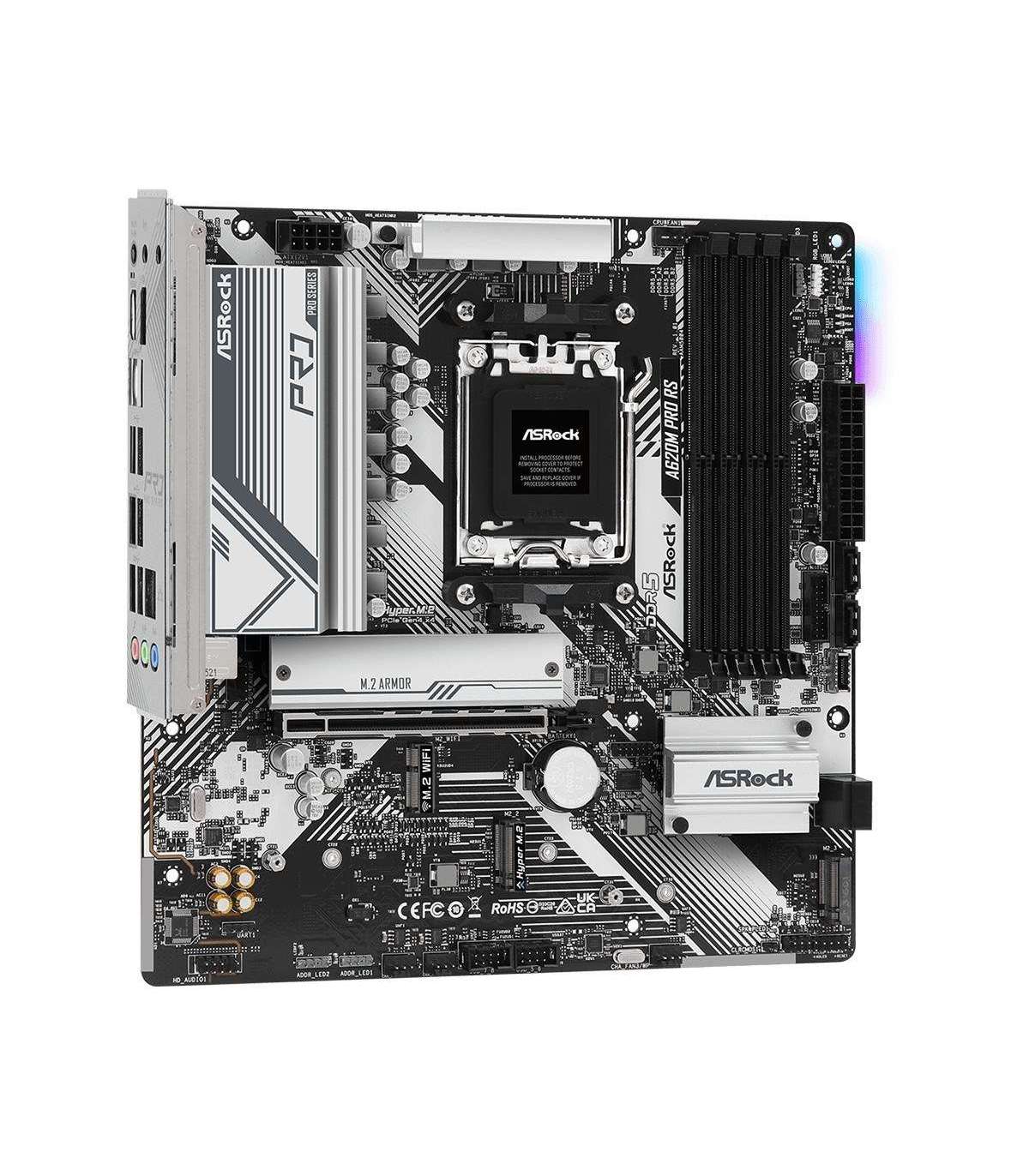

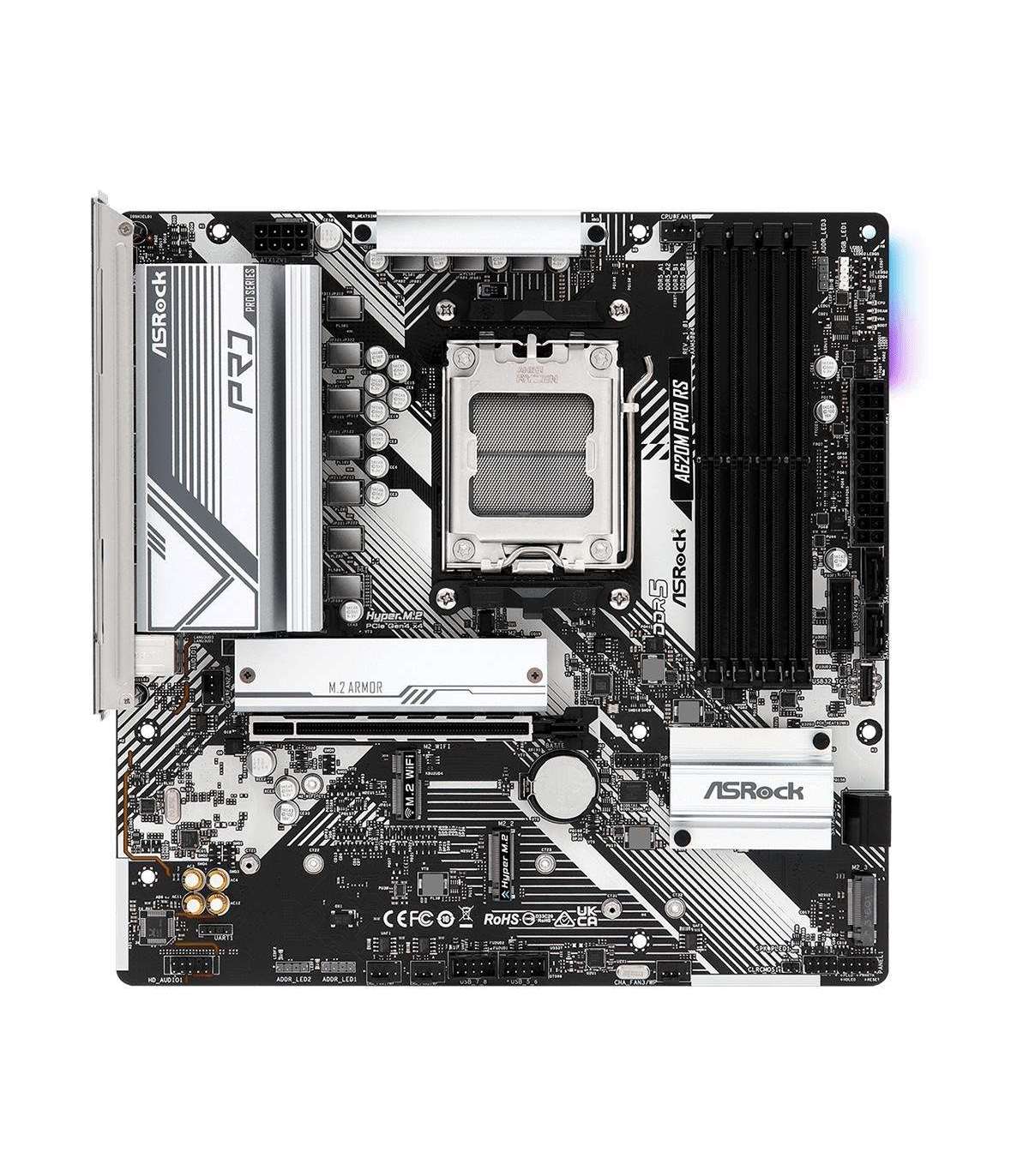

Asrock A620M Pro RS motherboard

Lisainfo

Videokaardi mudel

AMD RDNA 2

Depth

244 mm

Laius

244 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Certification

FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

Maximum internal memory

128 GB

Bluetooth

No

Motherboard chipset

AMD A620

HDMI version

2.1

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

3

Memory channels

Dual-channel

Headphone outputs

1

USB 2.0 connectors

4

Graphics card family

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 9 7th Gen

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek 8111H

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA

Microphone in

Yes

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Number of storage drives supported

3

RAID support

Yes

Power fan connector

Yes

Line-in

Yes

DisplayPort version

1.4
