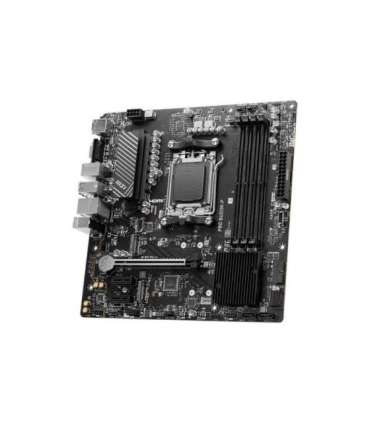

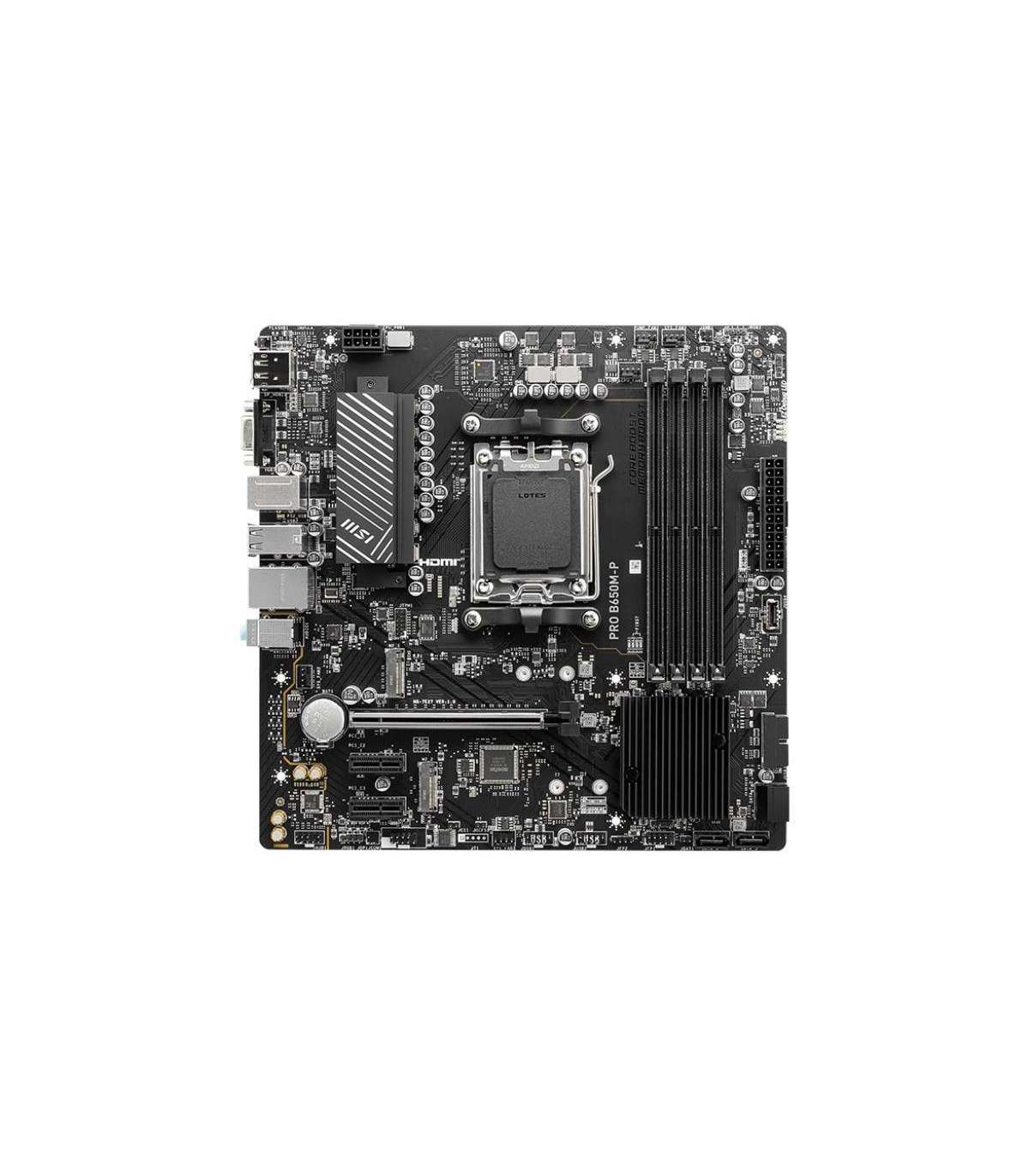

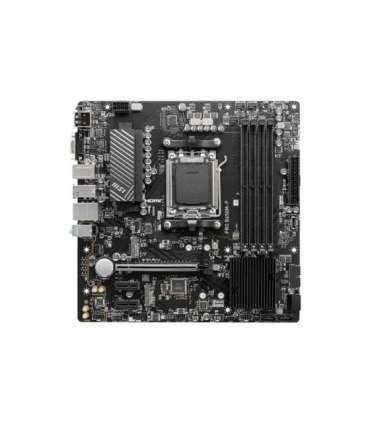

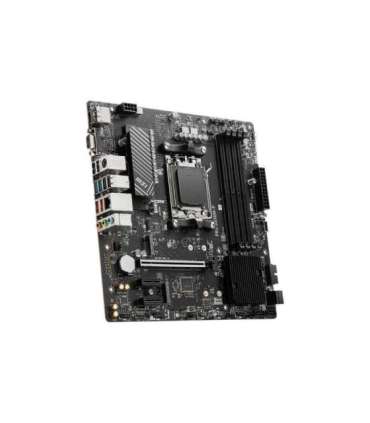

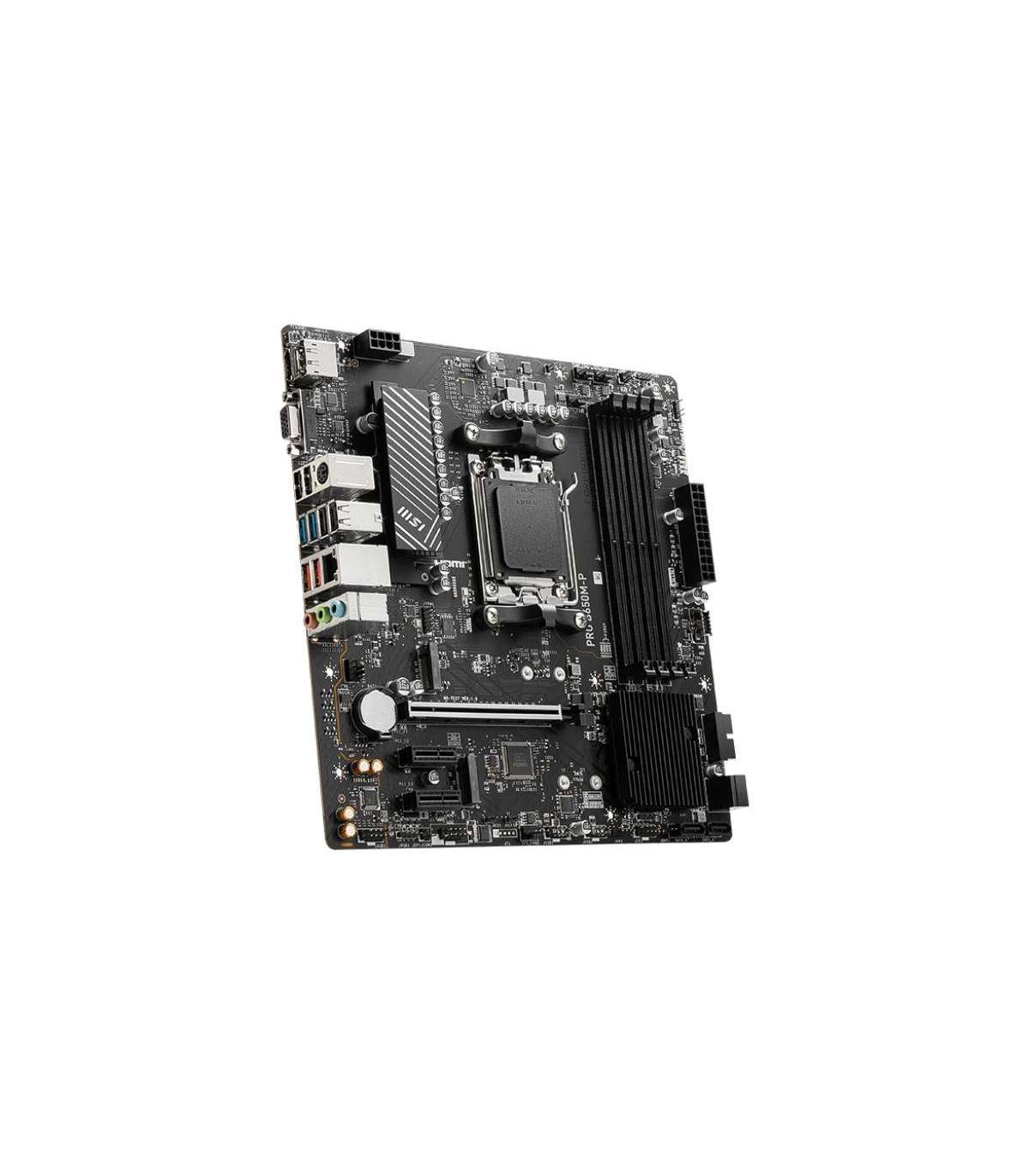

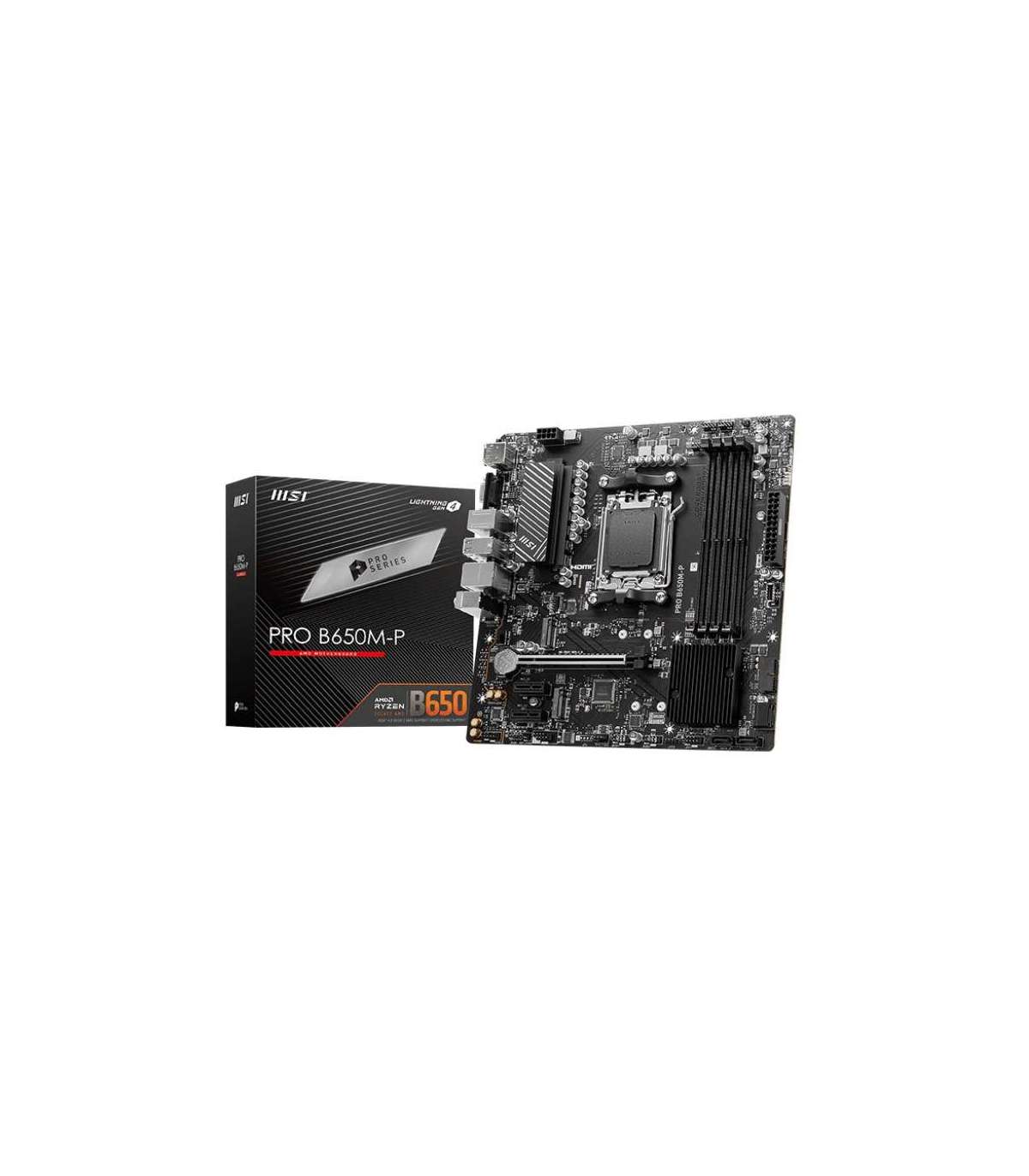

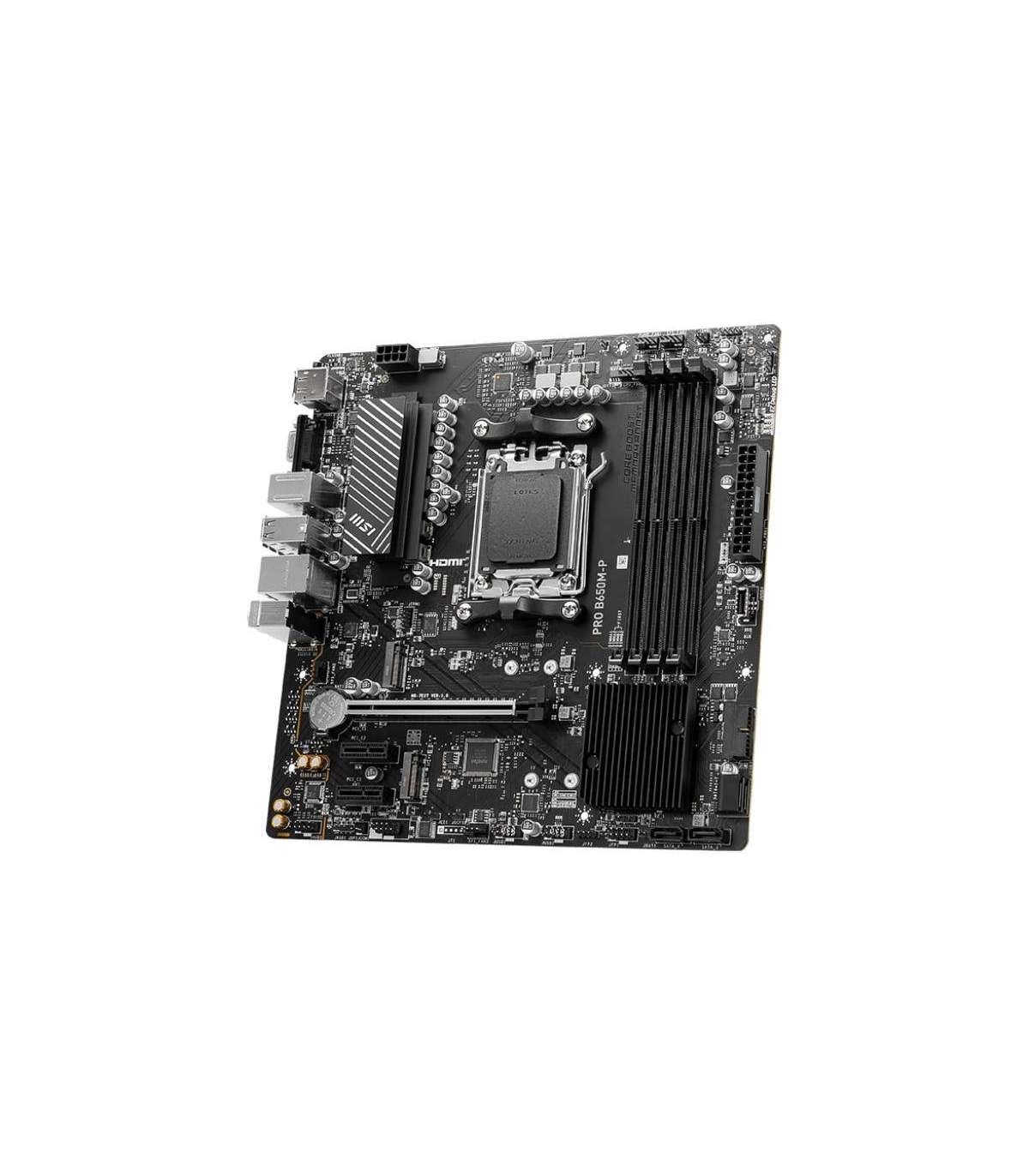

MSI PRO B650M-P motherboard AMD B650 Socket AM5 micro ATX

Lisainfo

Depth

243.8 mm

Laius

243.8 mm

Product colour

Must

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

192 GB

Motherboard chipset

AMD B650

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Audio chip

Realtek ALC897

Headphone outputs

1

USB 2.0 connectors

4

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125-BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

PC health monitoring

Fan

Number of SATA III connectors

4

Chassis intrusion connector

Yes

RAID levels

0
1
10

DisplayPorts quantity

1

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

Front panel connector

Yes

RAID support

Yes

Line-in

Yes

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
