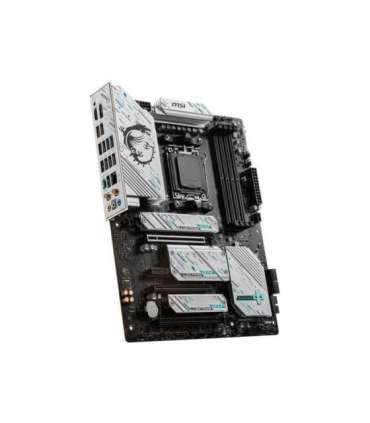

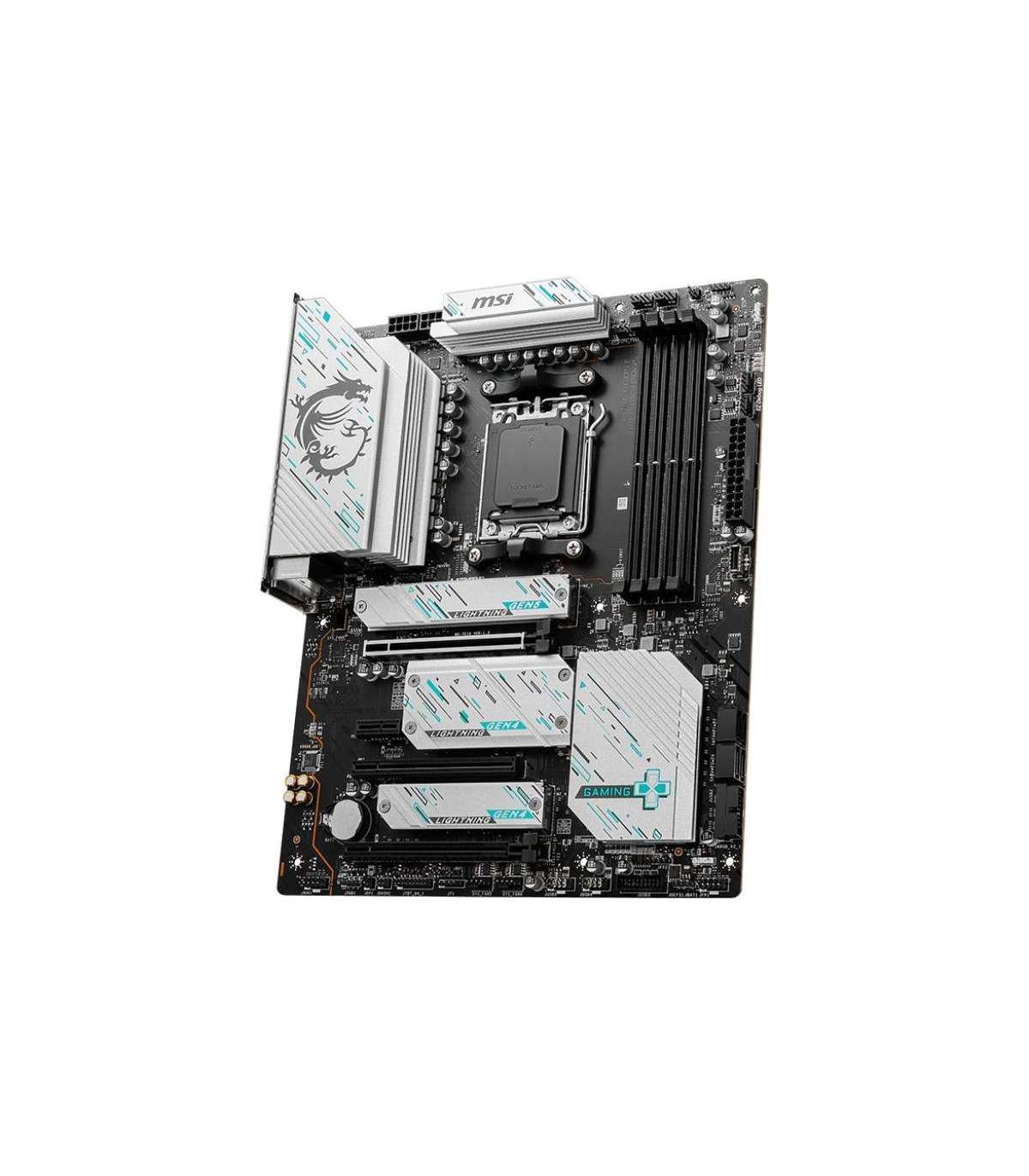

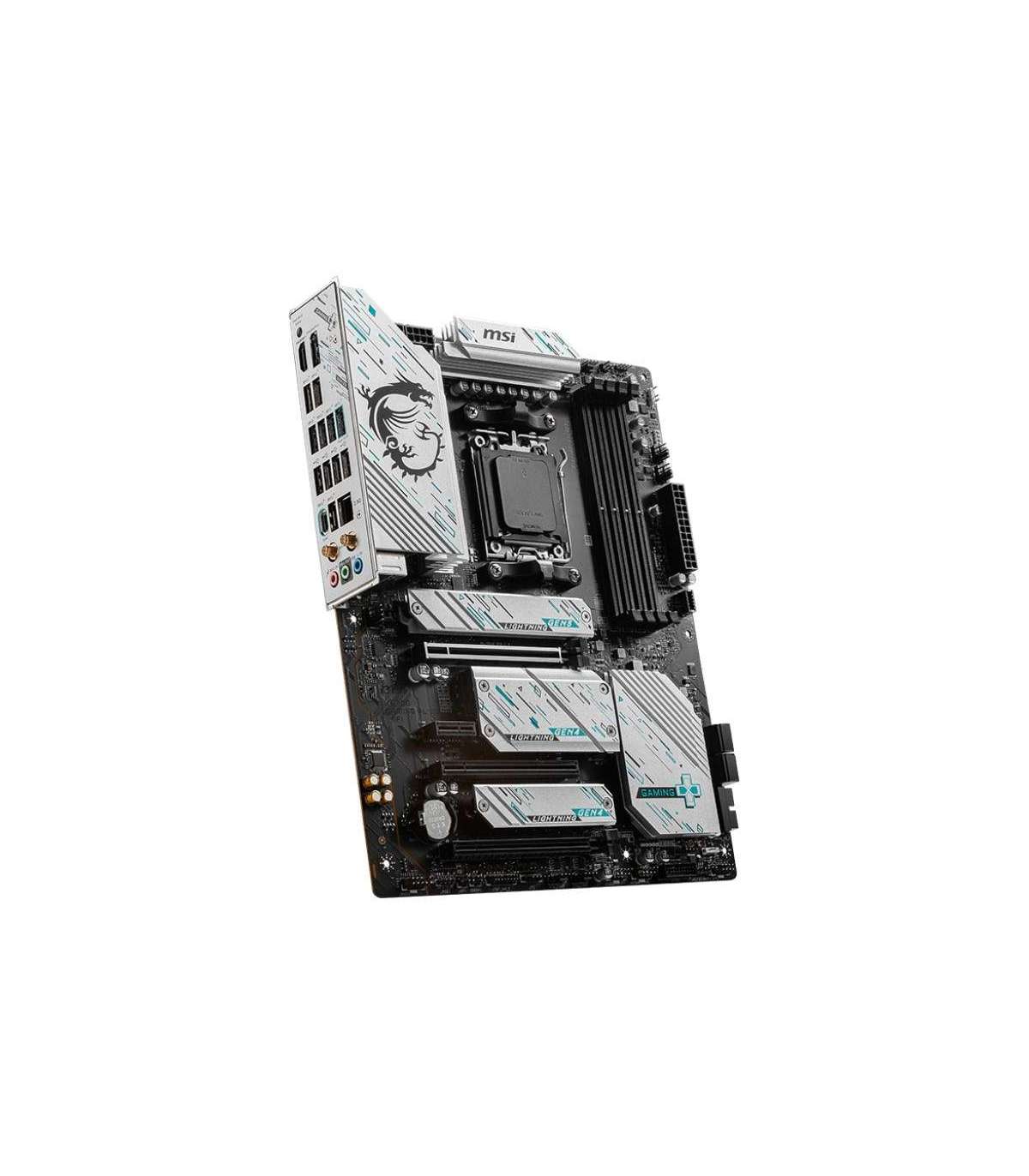

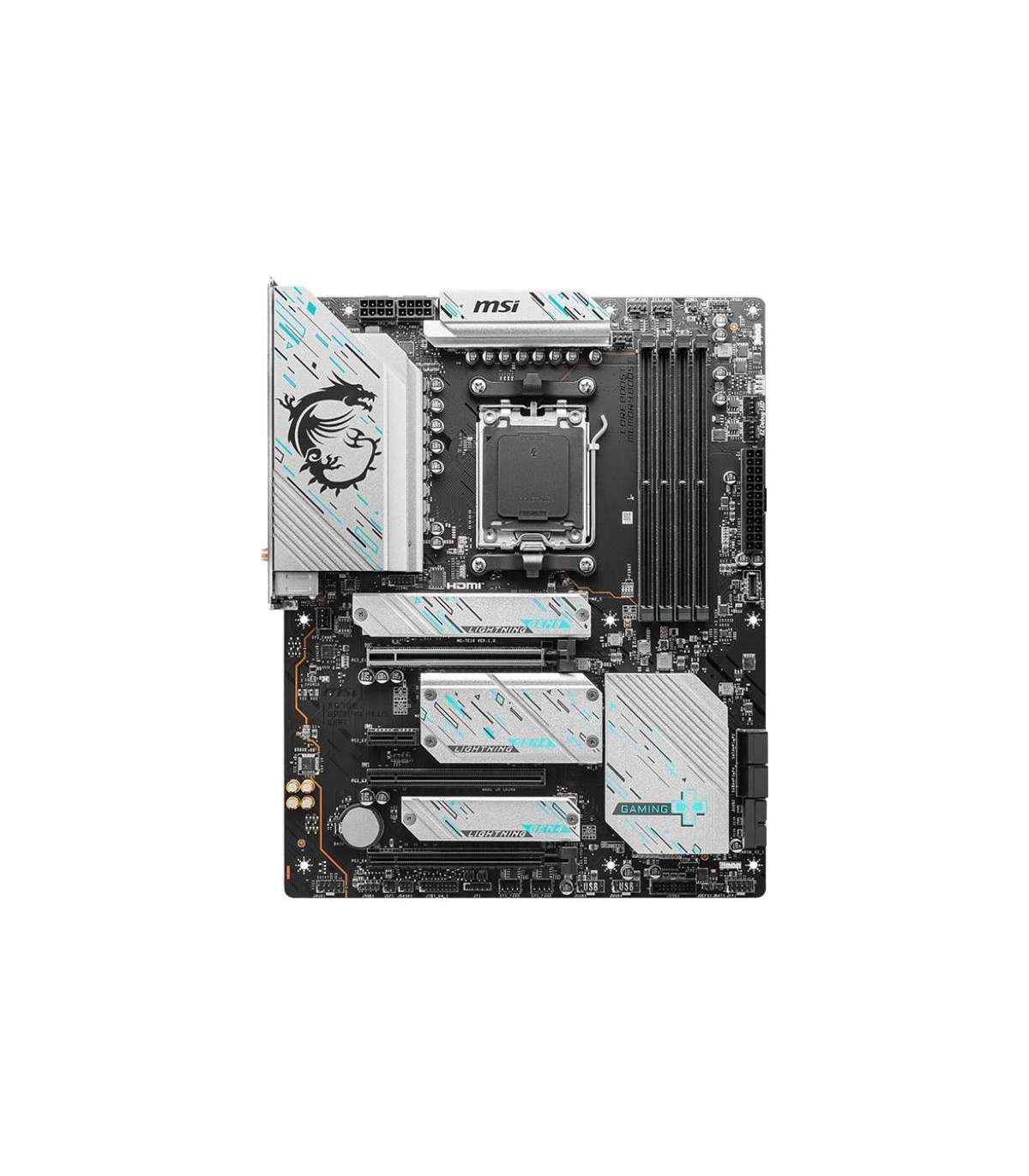

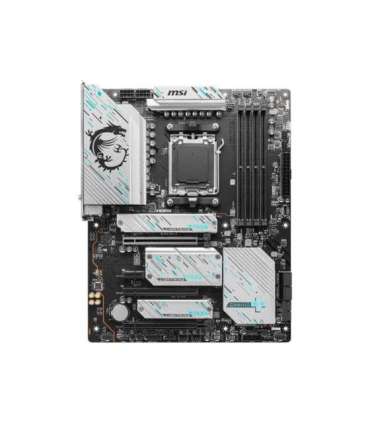

MSI X670E GAMING PLUS WIFI motherboard AMD X670 Socket AM5 ATX

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Product colour

Aluminium
Must

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

192 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD X670

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

4

Processor socket

Socket AM5

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125-BG

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

RAID levels

0
1
10

DisplayPorts quantity

1

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

RAID support

Yes

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

2
