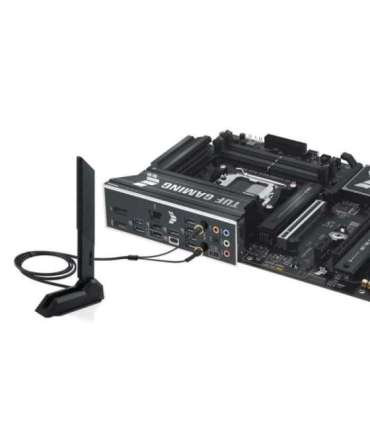

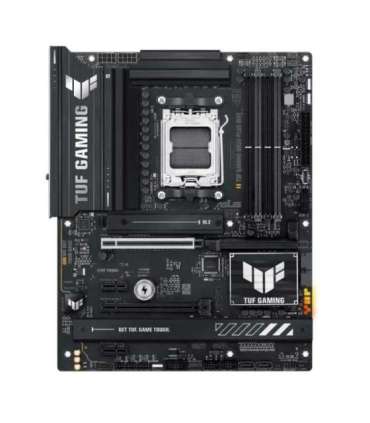

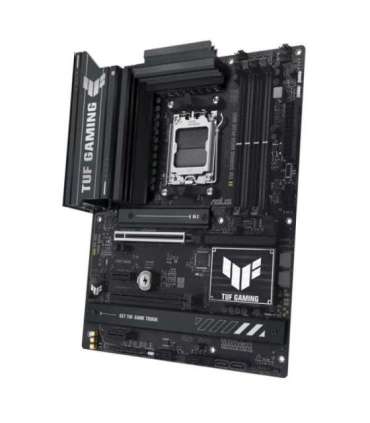

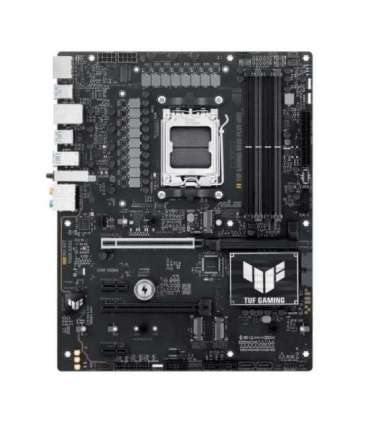

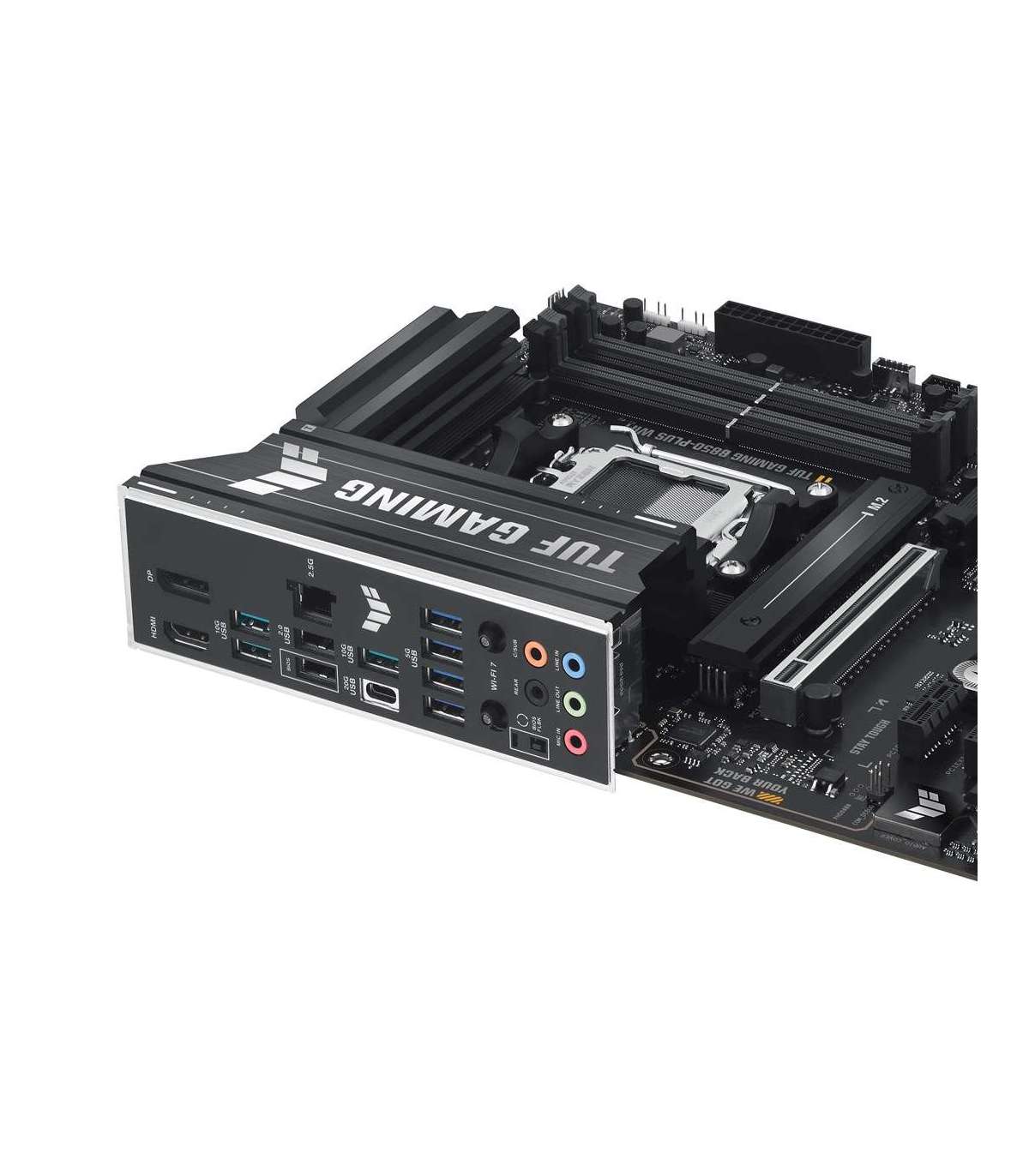

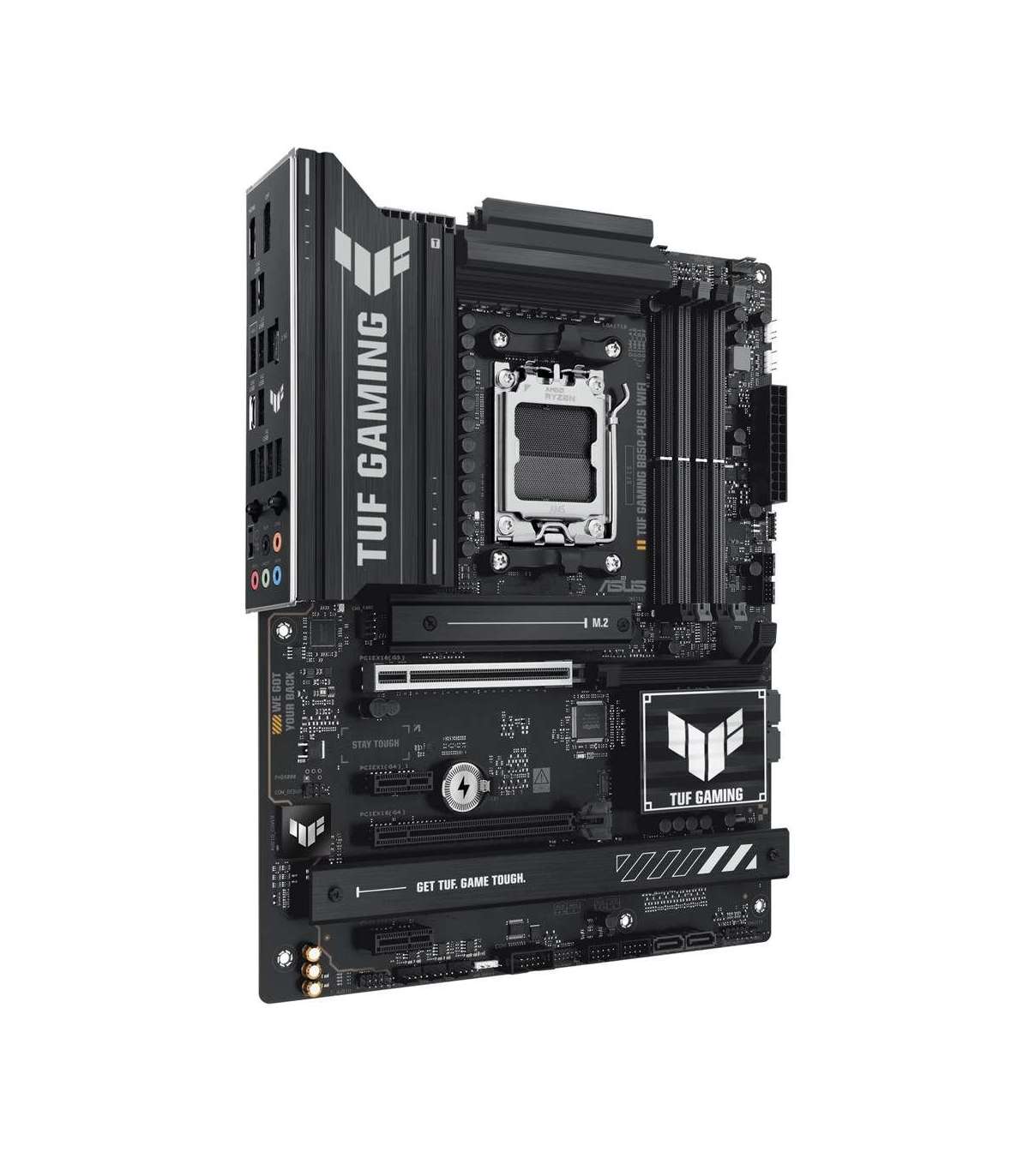

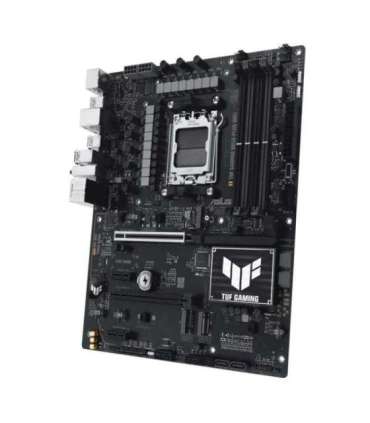

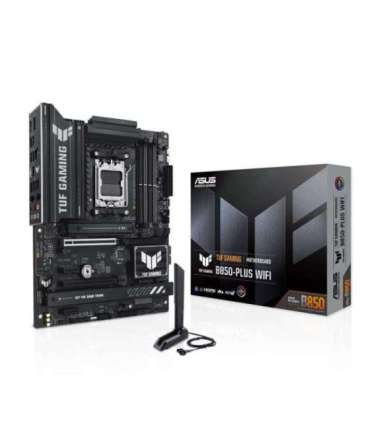

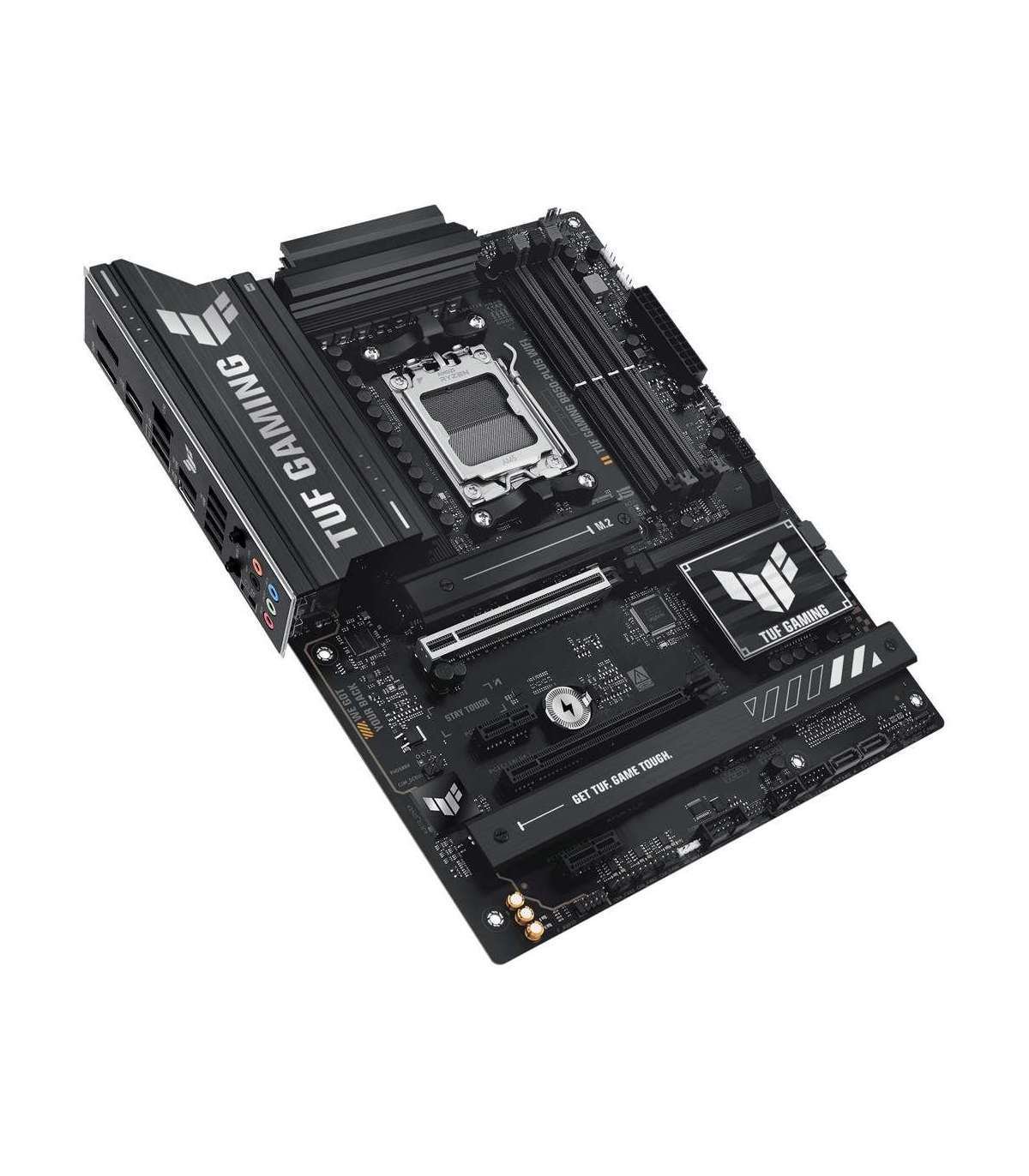

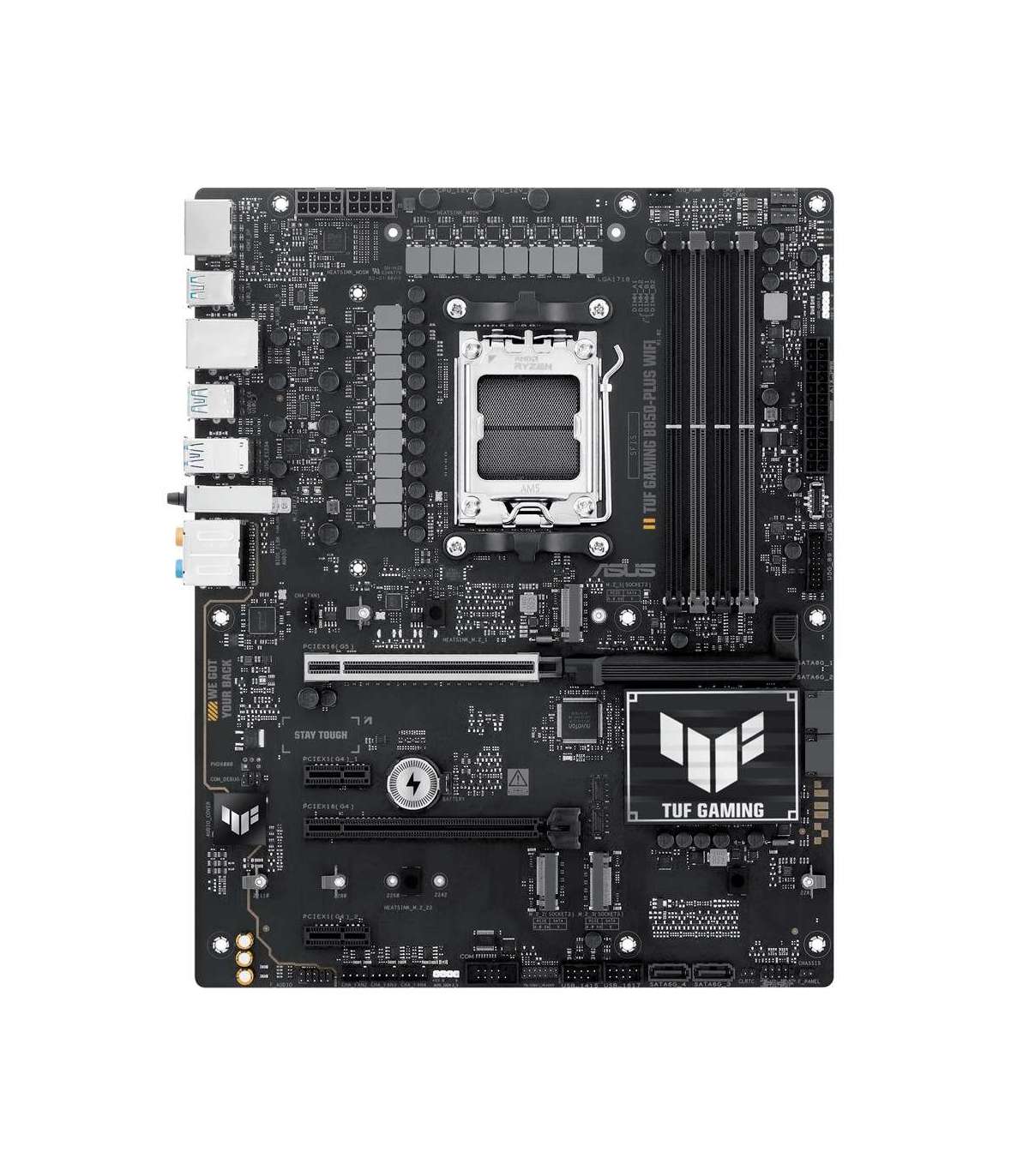

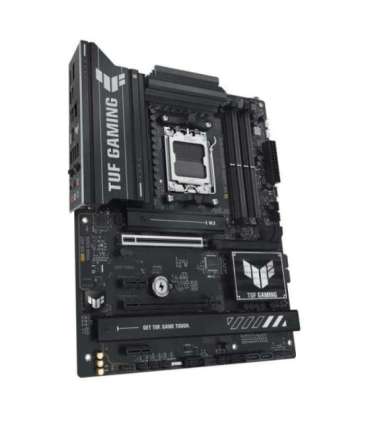

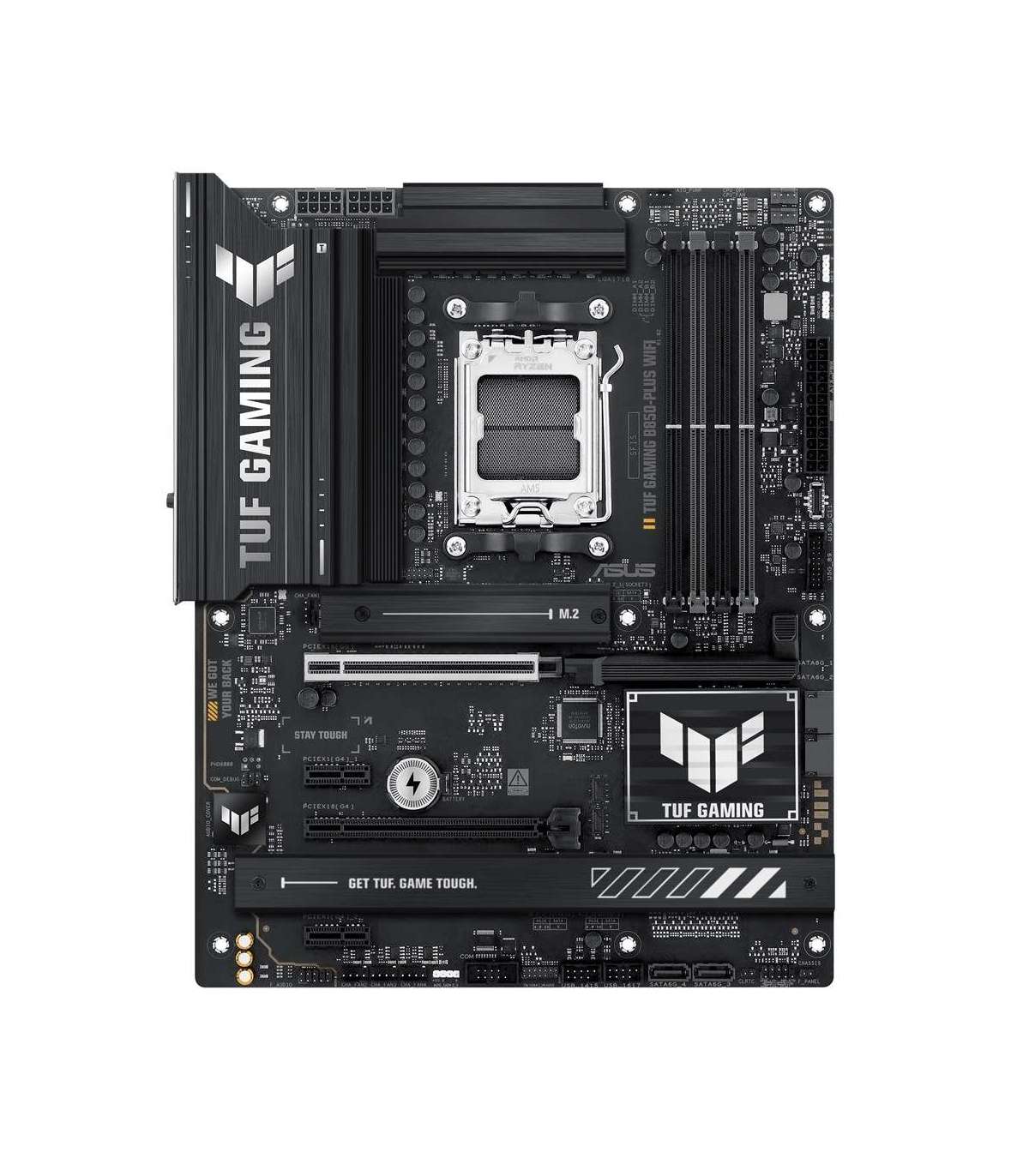

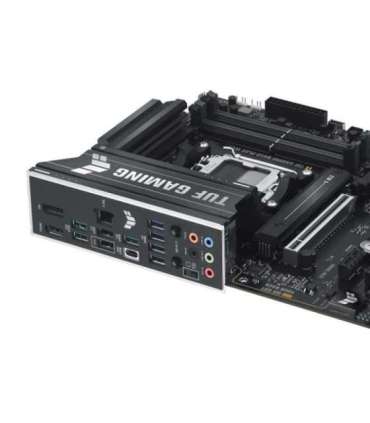

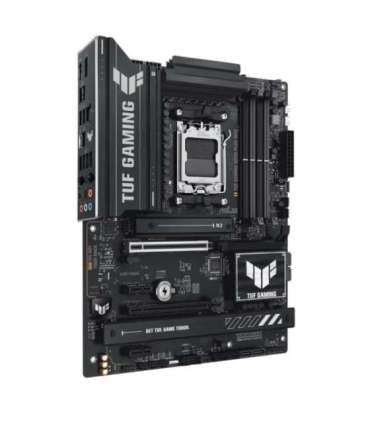

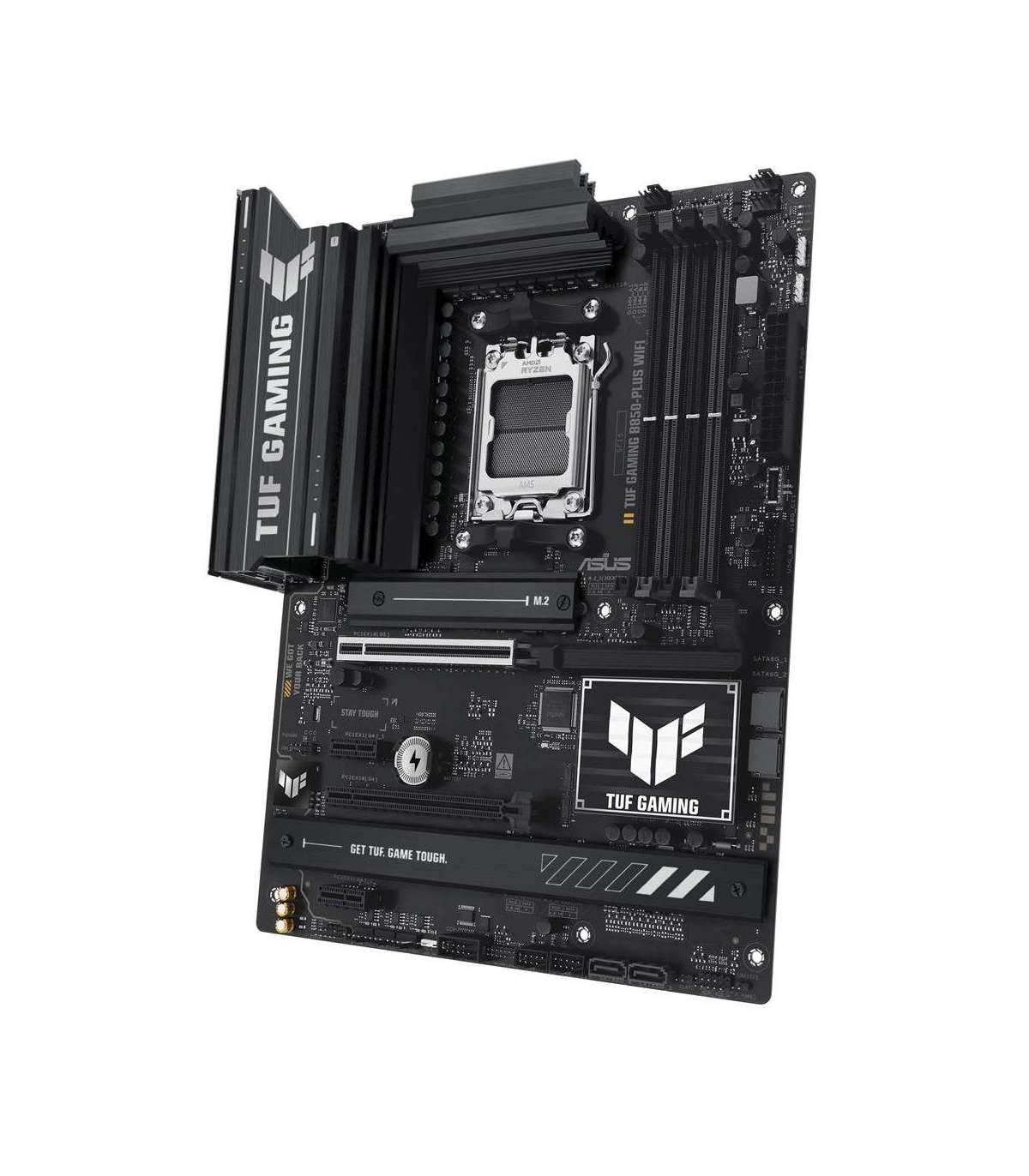

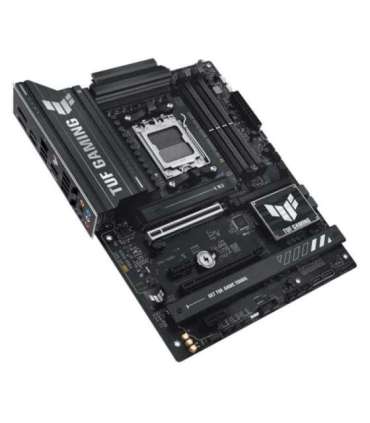

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Socket AM5 ATX

Lisainfo

Depth

244 mm

Kaal

1.32 kg

Laius

305 mm

Package weight

1.81 kg

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

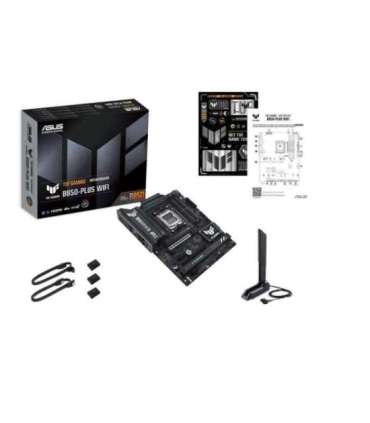

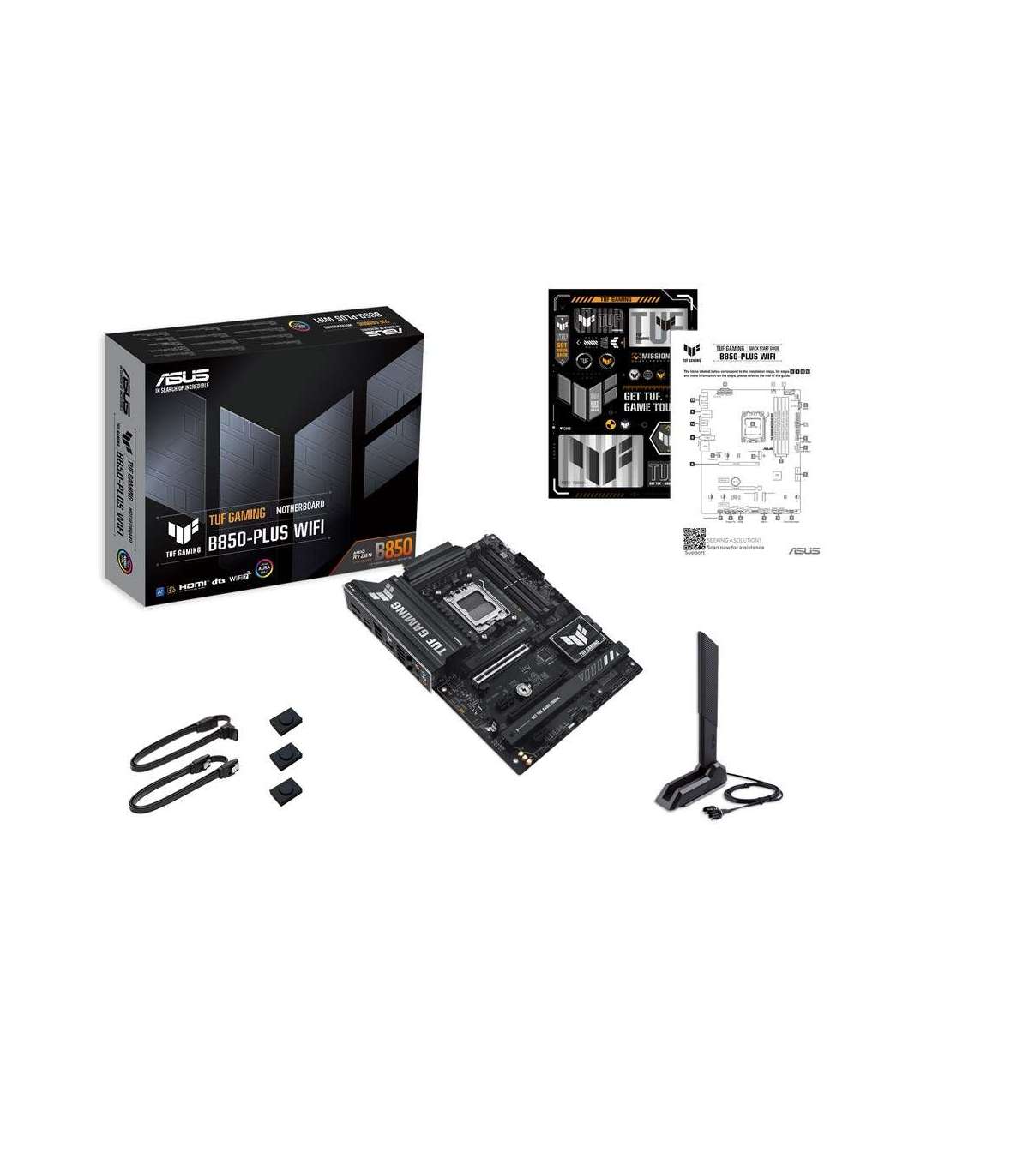

Cables included

SATA

Quick installation guide

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

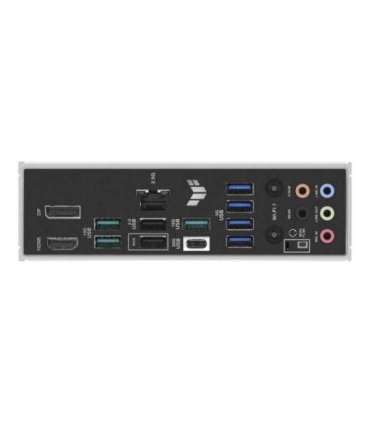

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

Package width

353 mm

Package depth

273 mm

Package height

68 mm

Warnings

Do not disassemble to avoid damage to internal components and loss of warranty.

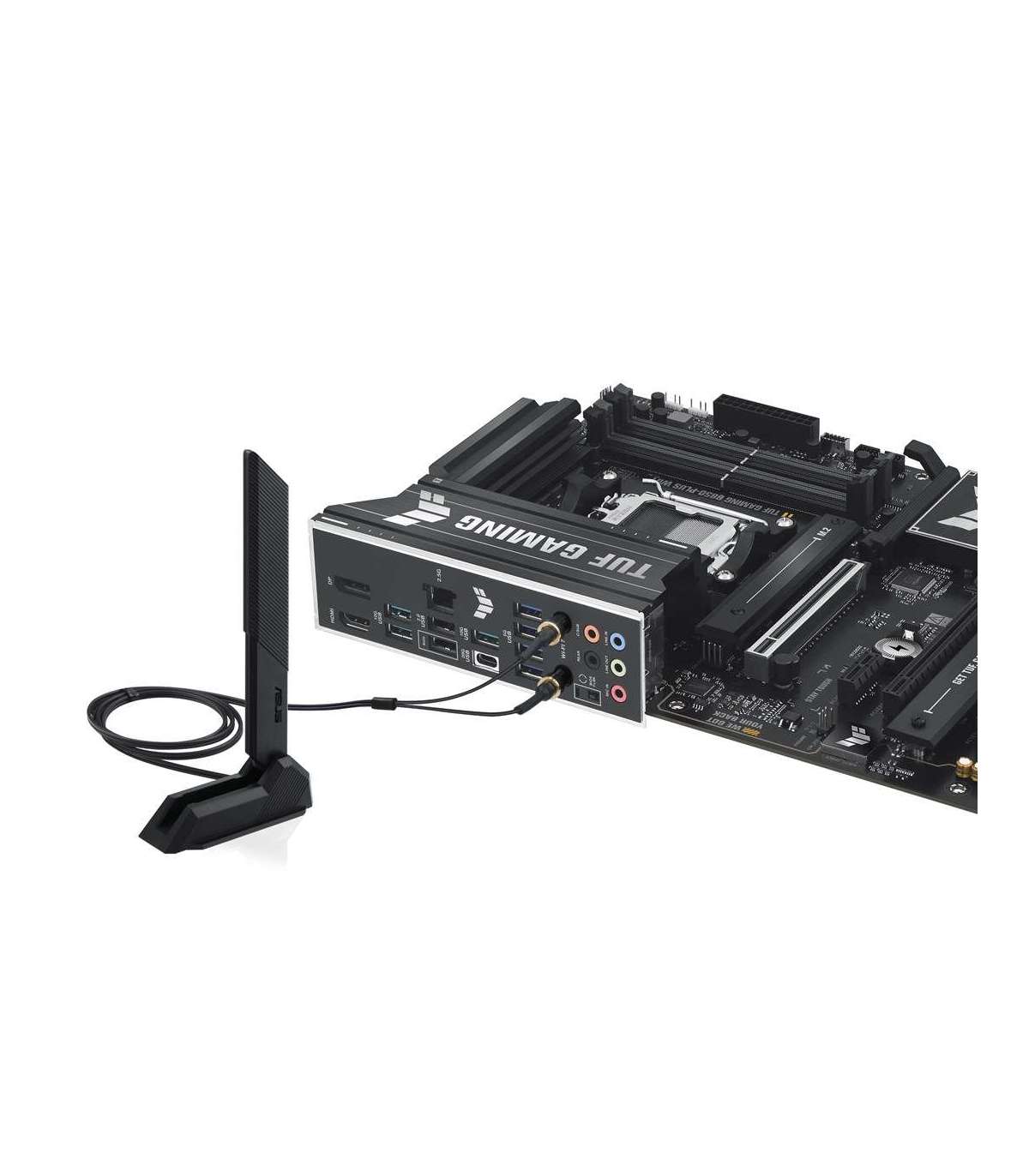

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

192 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD B850

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC1220

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

Number of SATA III connectors

4

Chassis intrusion connector

Yes

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8000 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

7

RAID support

Yes

Line-in

Yes

Number of EPS power connectors (8-pin)

2

Number of CPU fan connectors

2

Number of RGB LED pin headers

3

Number of water pump connectors

1

DisplayPort version

1.4

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

Clear CMOS button

Yes

WiFi-AP antenna jack

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

2

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280
