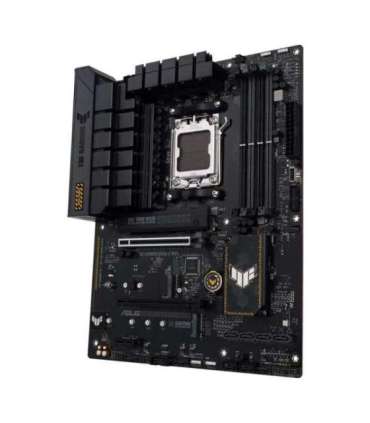

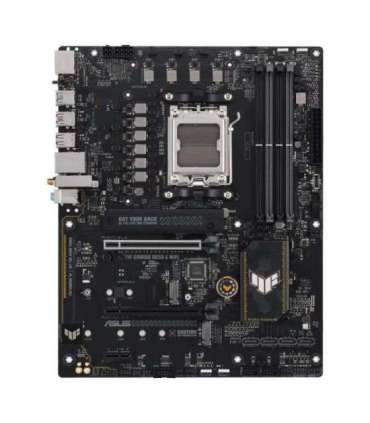

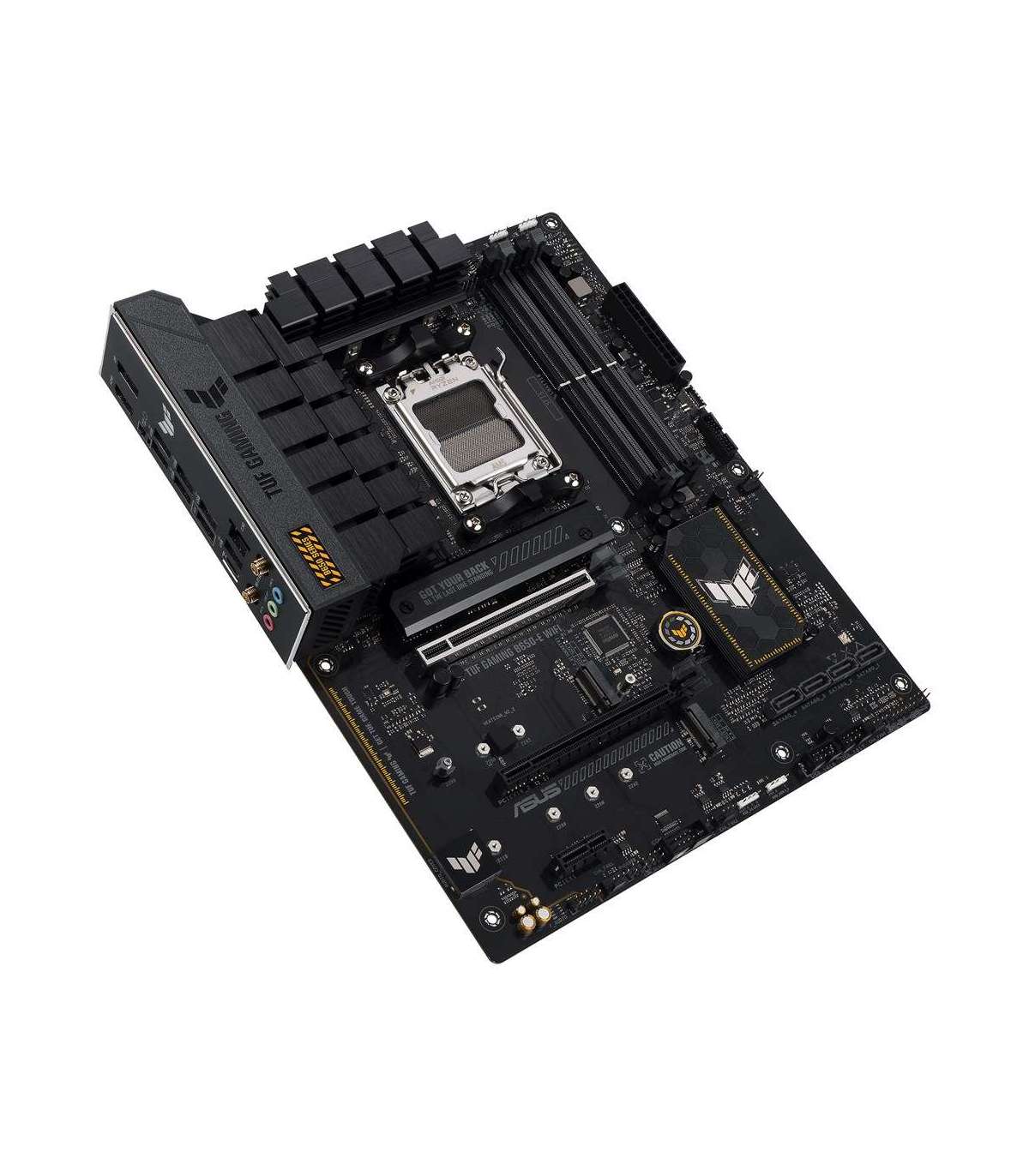

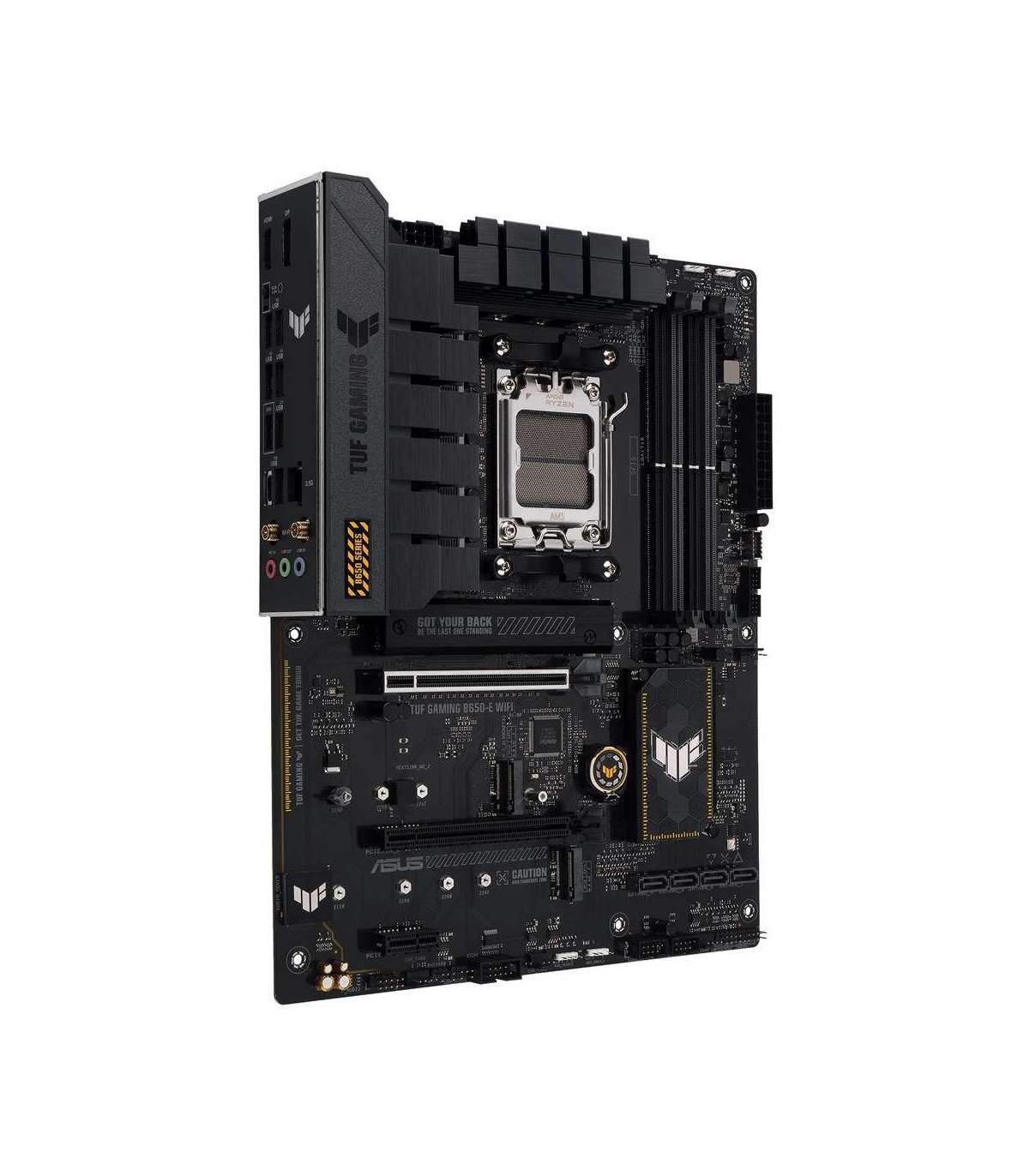

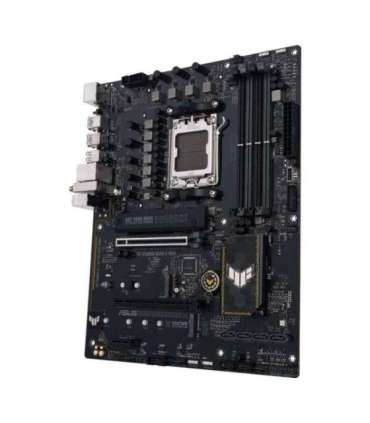

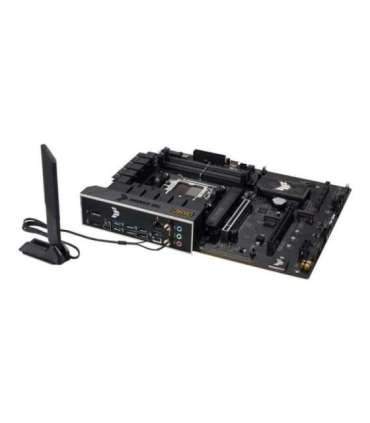

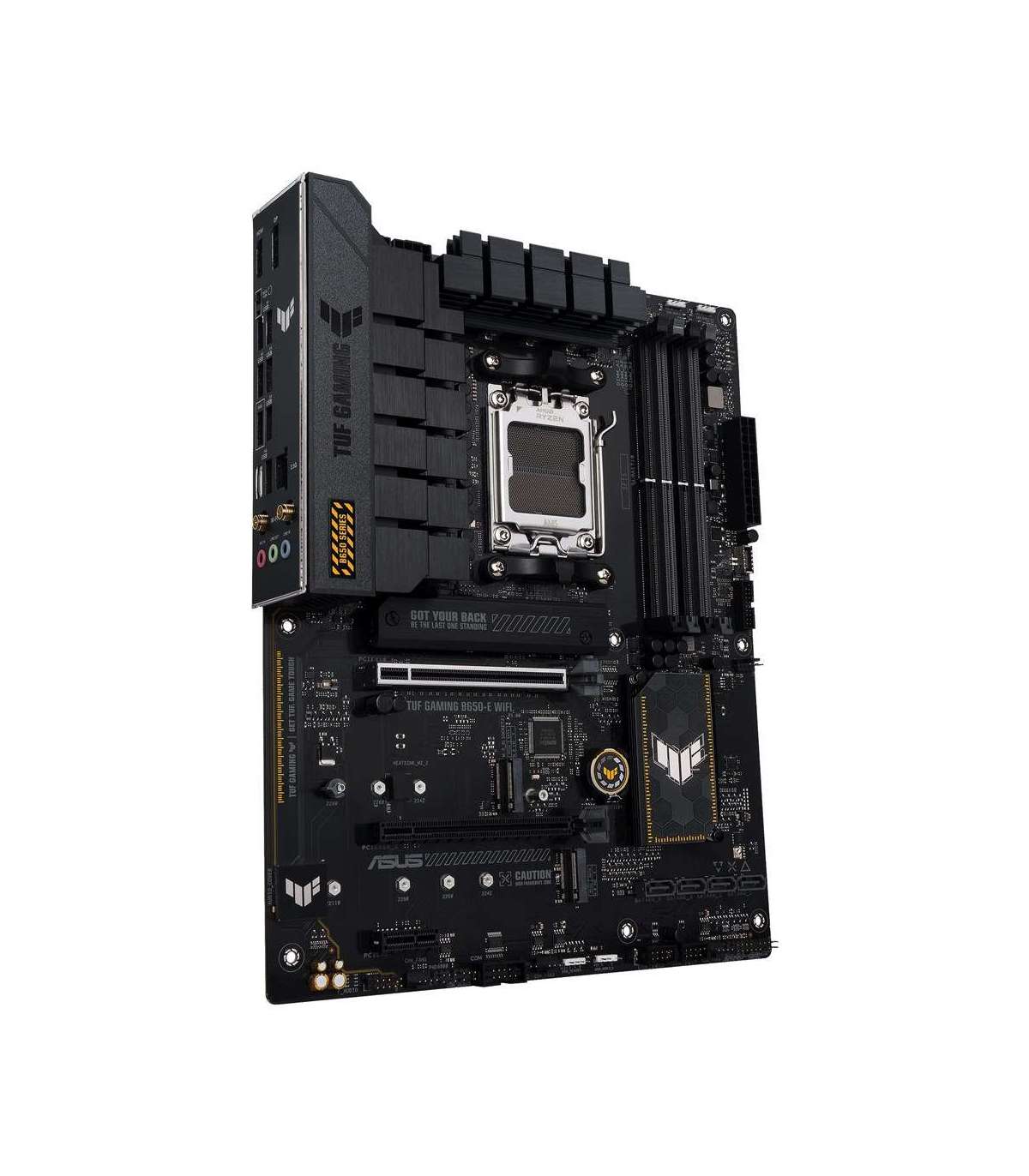

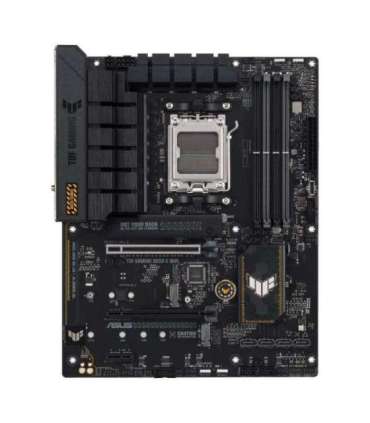

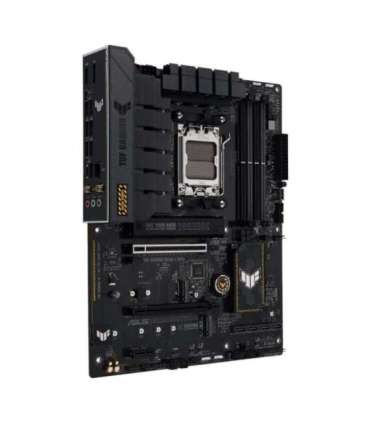

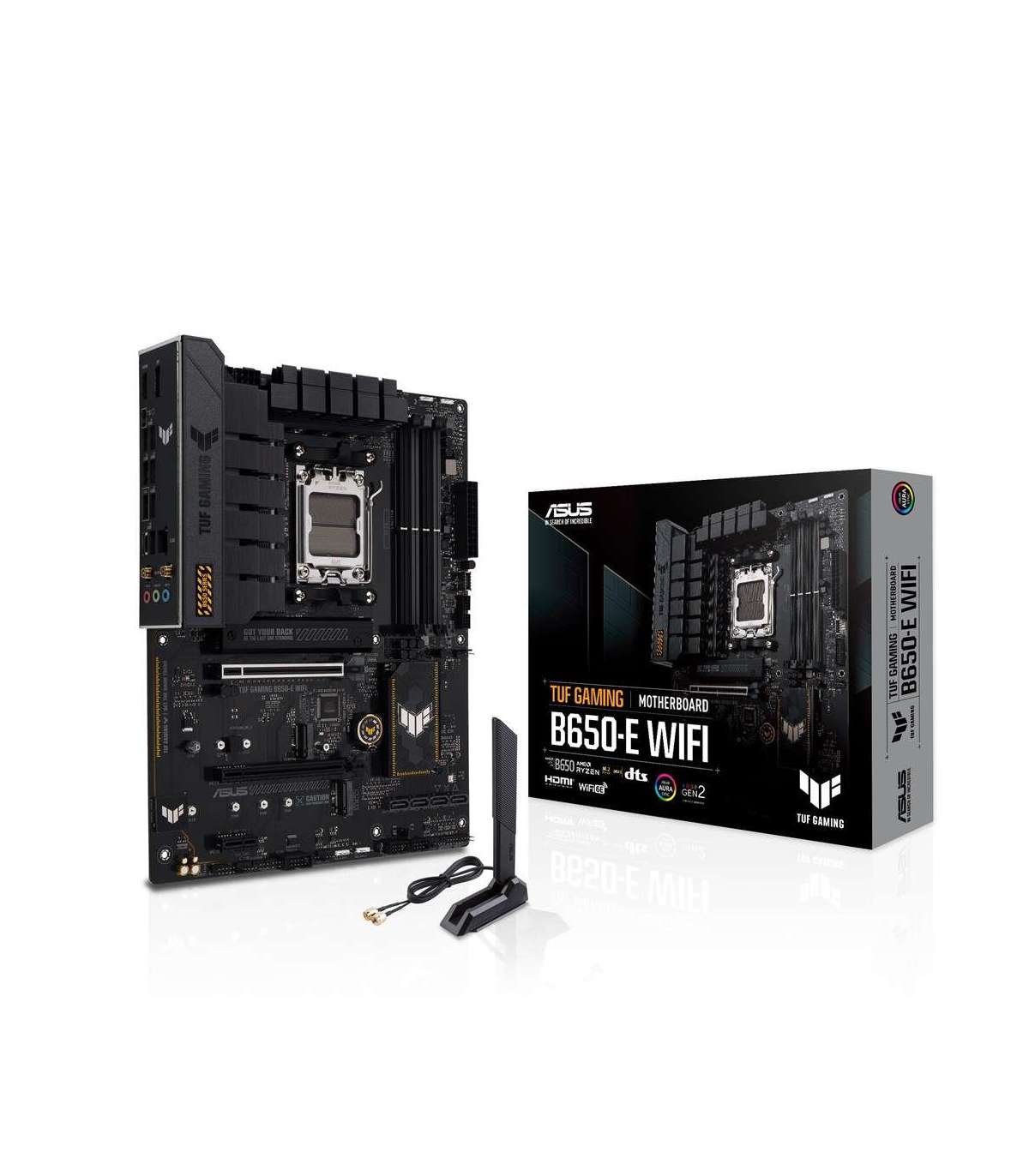

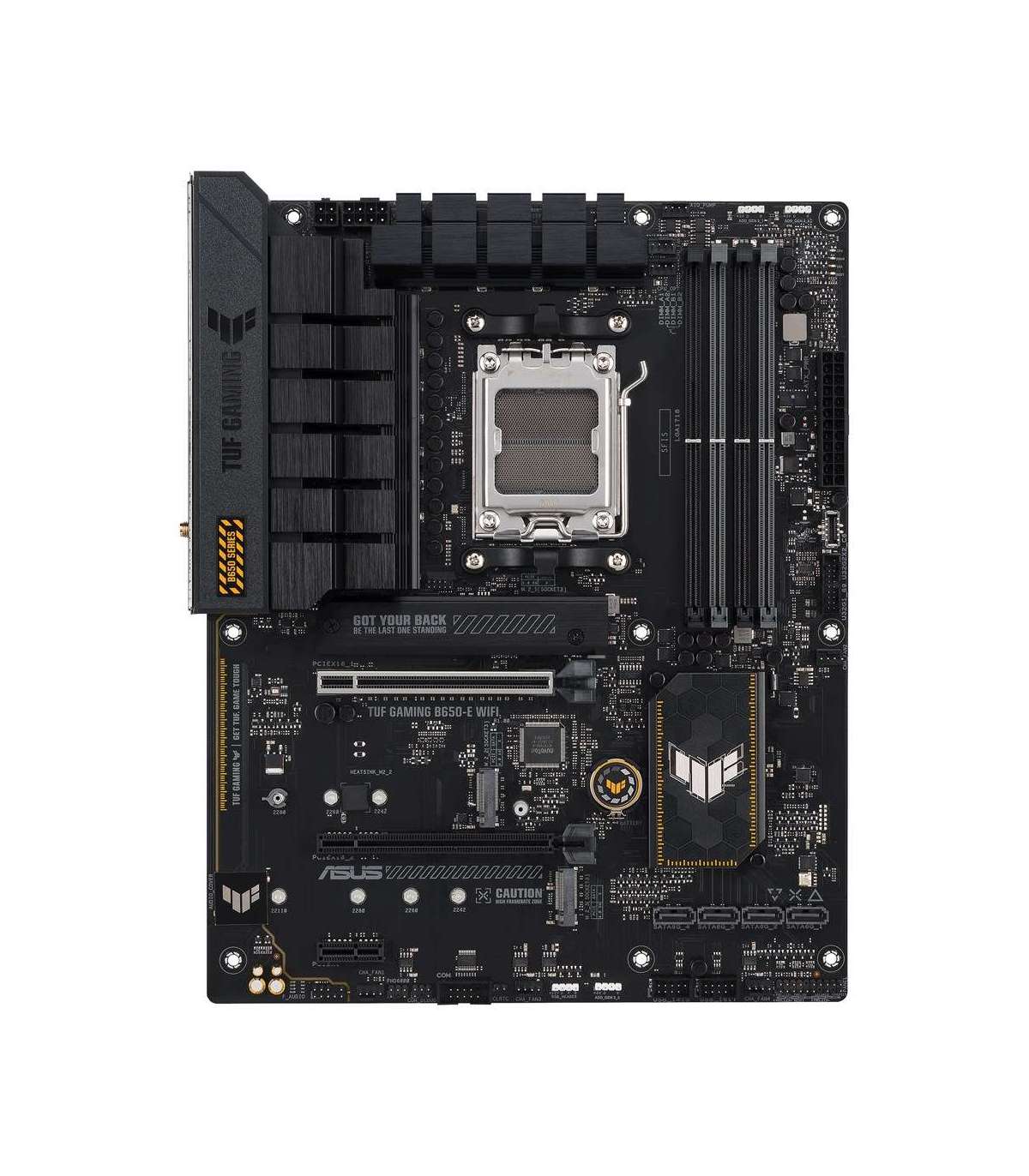

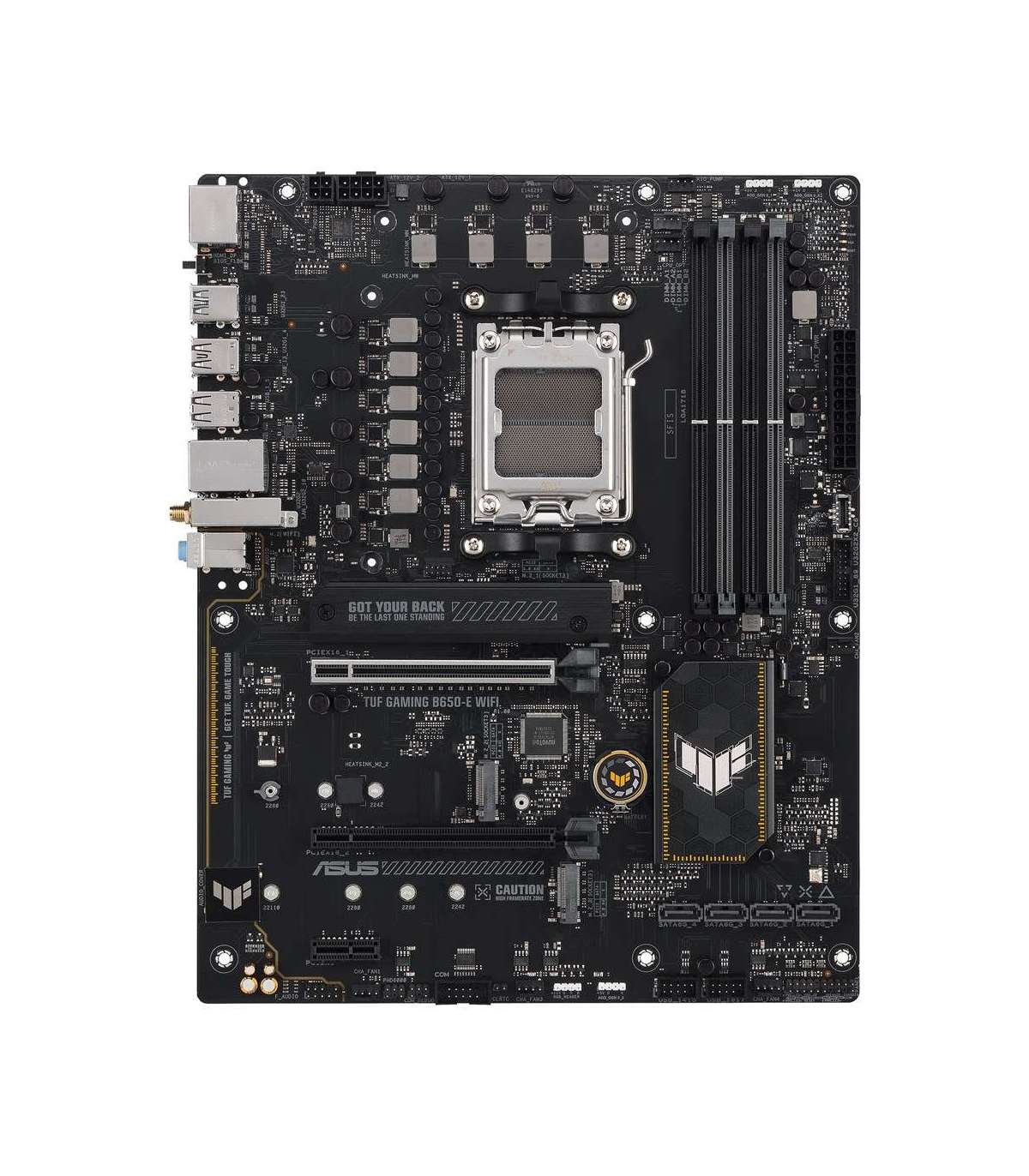

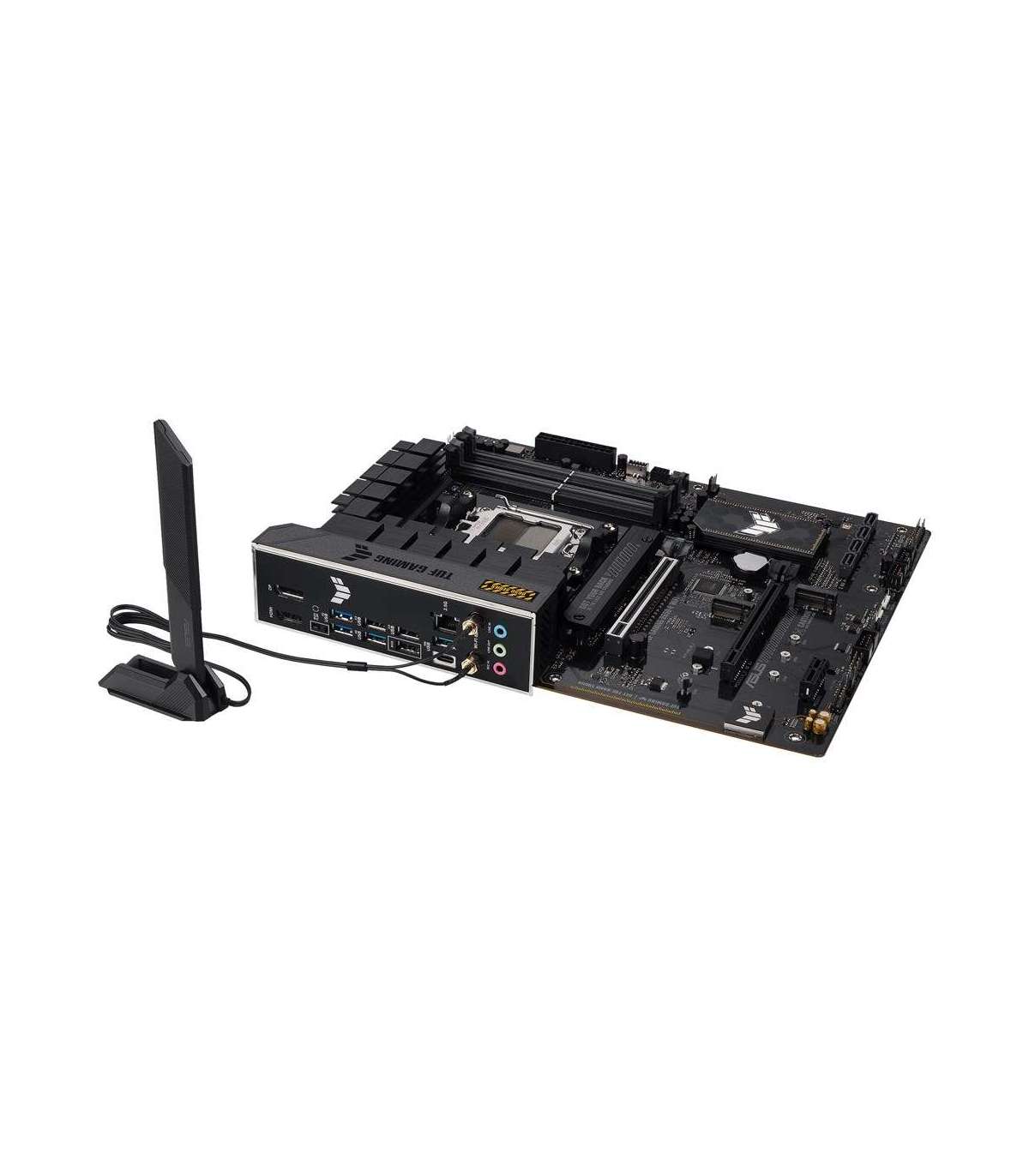

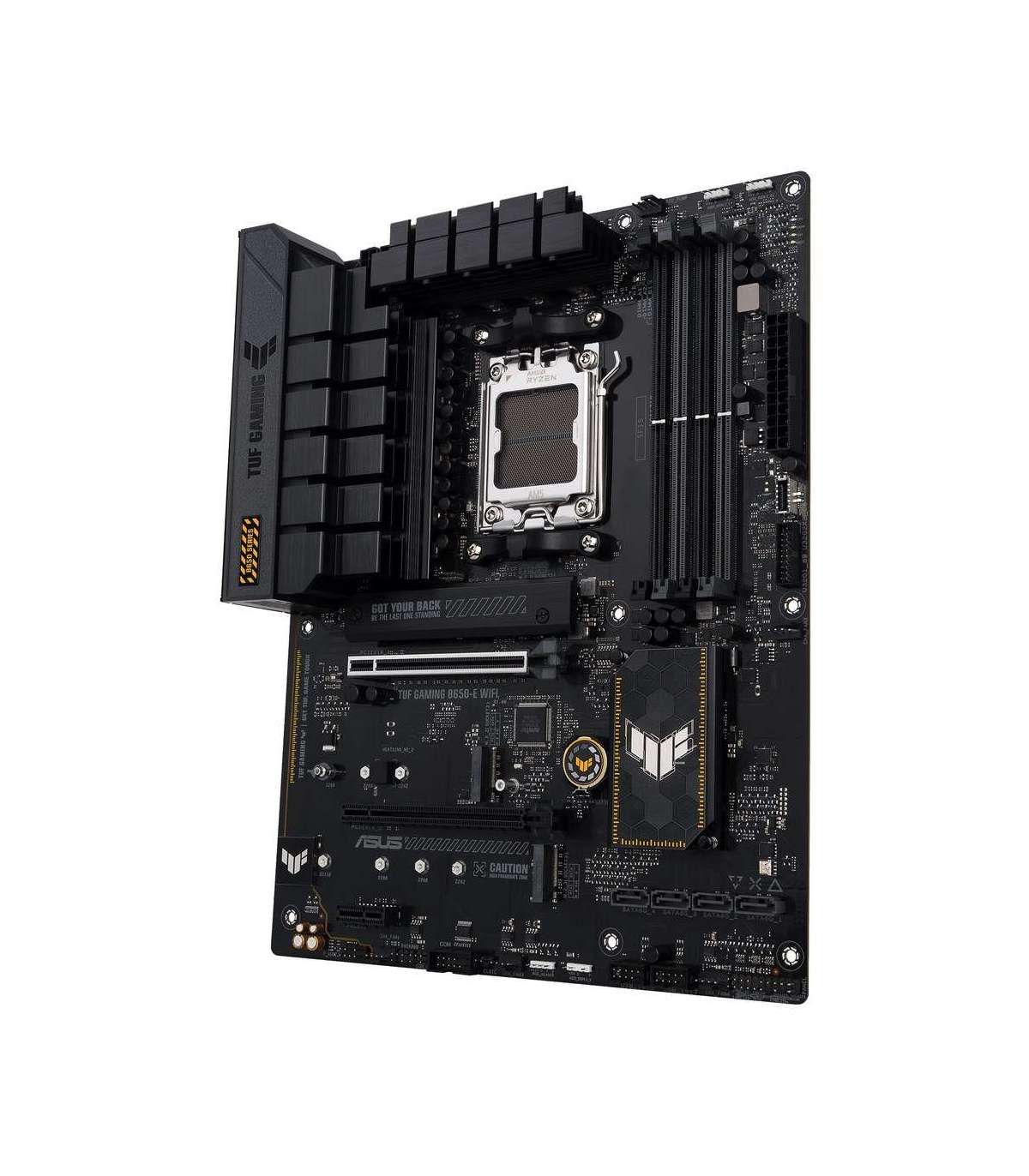

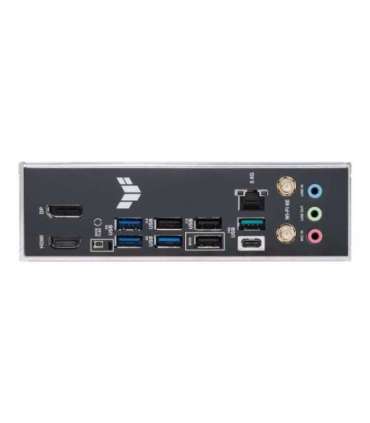

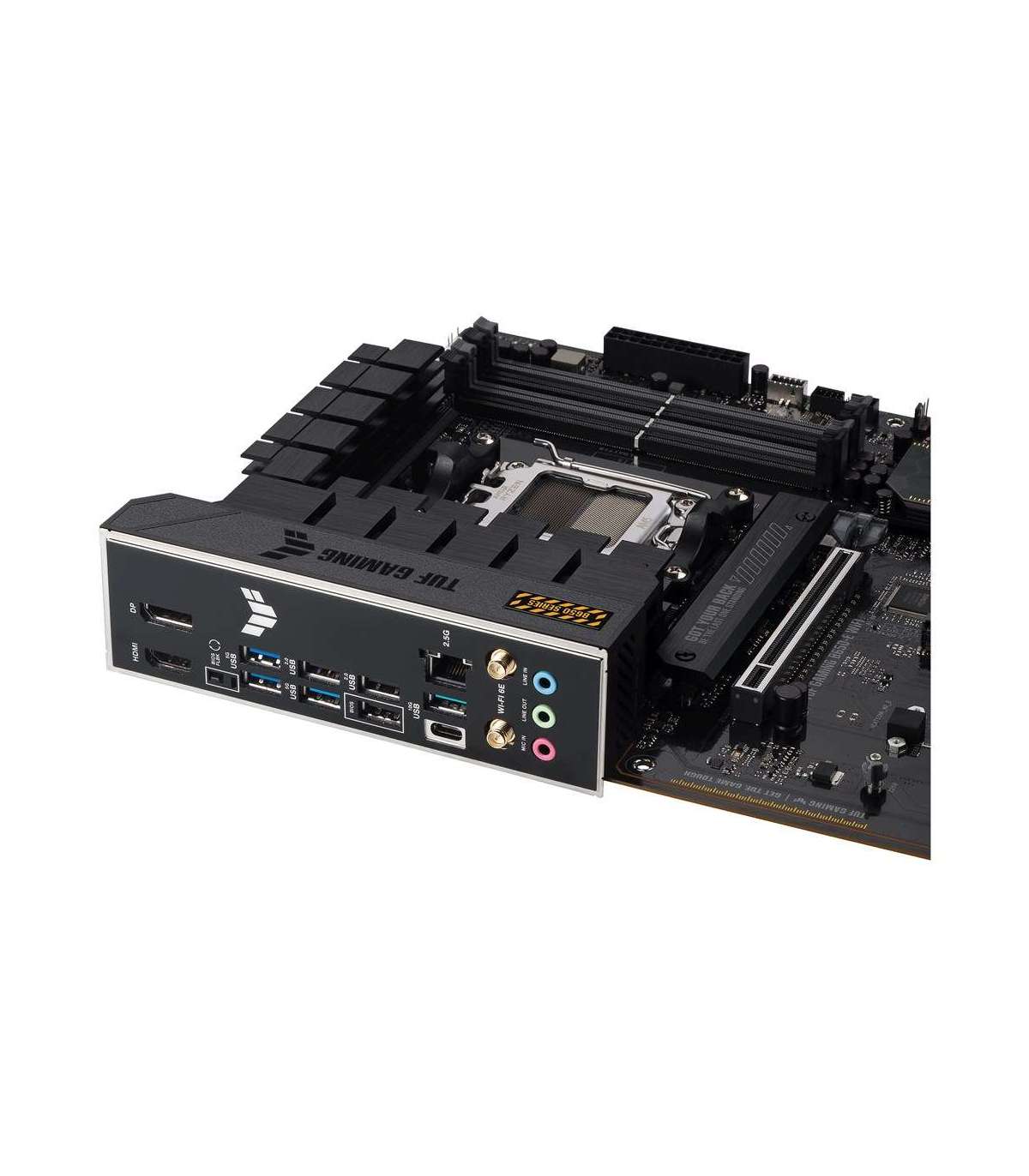

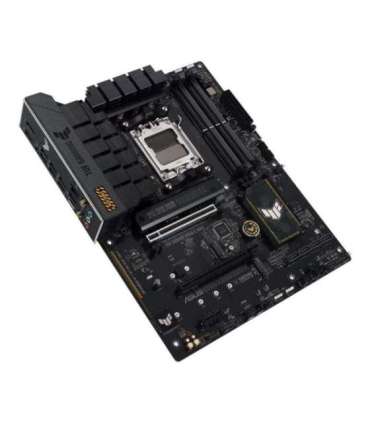

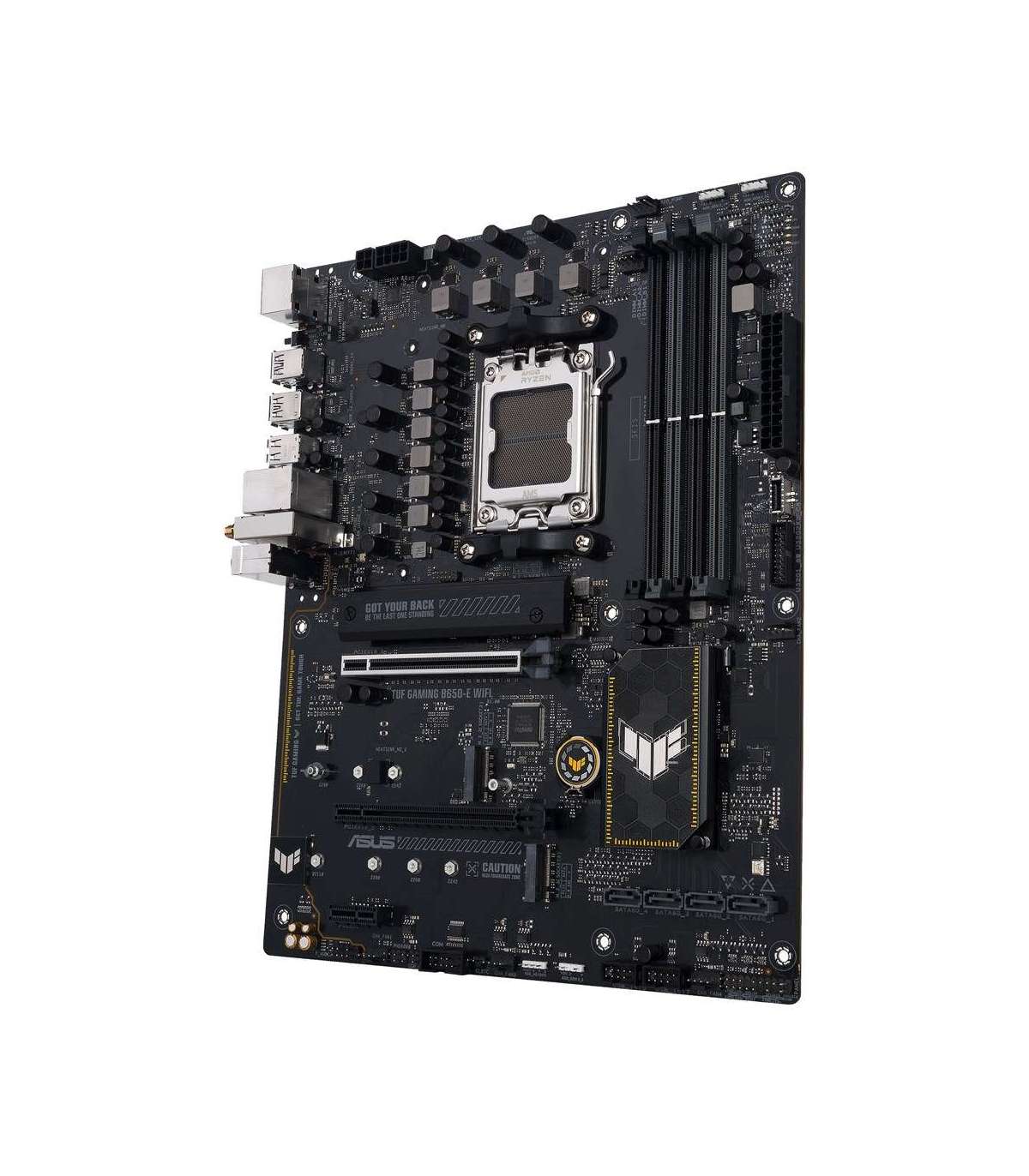

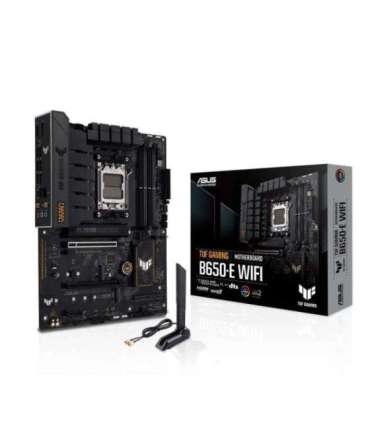

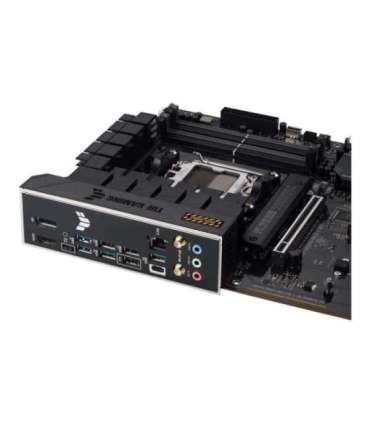

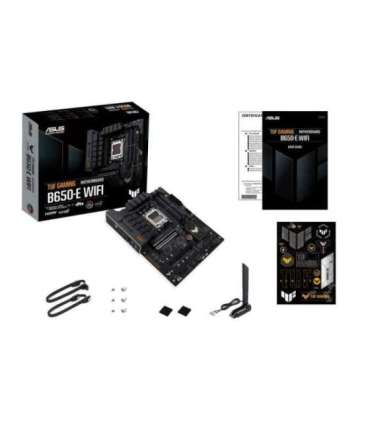

ASUS TUF GAMING B650-E WIFI AMD B650 Socket AM5 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Package weight

1.36 kg

Product colour

Must

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11

Package width

338 mm

Package depth

273 mm

Package height

68 mm

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

3

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

192 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD B650

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

2

Processor socket

Socket AM5

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400 MHz
6600
6800
7000
7200 MHz
7600 MHz
7800
8000 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

3

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8000 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

7

RAID support

Yes

WiFi-AP antenna jack

1

PCI Express x1 (Gen 4.x) slots

1

Peripheral (Molex) power connectors (4-pin)

1

USB 3.2 Gen 2x2 connectors

1
