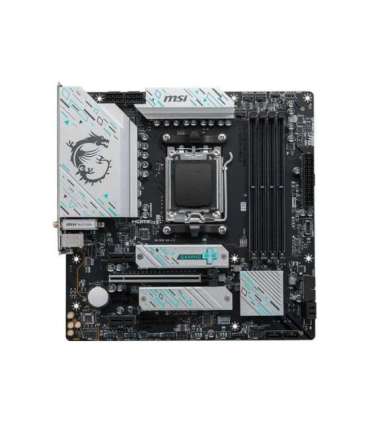

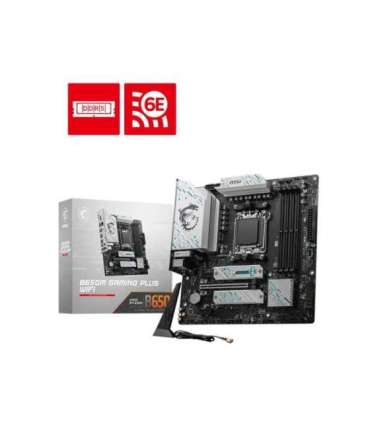

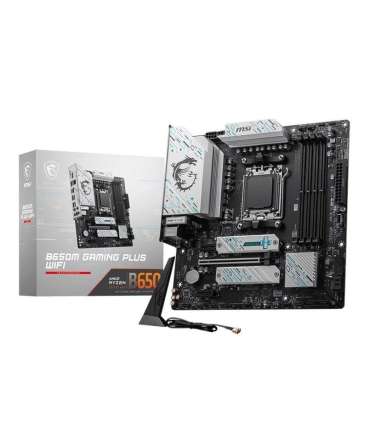

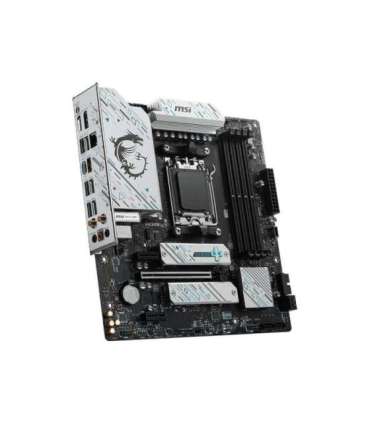

MSI B650M GAMING PLUS WIFI motherboard AMD B650 Socket AM5 micro ATX

Lisainfo

Depth

243.8 mm

Laius

243.8 mm

Product colour

Must

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

192 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD B650

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

Socket AM5

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400 MHz
6600
6800
7000
7200 MHz

Unbuffered memory

Yes

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Front panel audio connector

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, PCI Express

Parallel processing technology support

Not supported

Number of SATA III connectors

4

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
5
10

DisplayPorts quantity

1

S/PDIF out port

Yes

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

7200 MHz

Front panel connector

Yes

RAID support

Yes

DisplayPort version

1.4

Maximum internal memory supported by processor

192 GB

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
