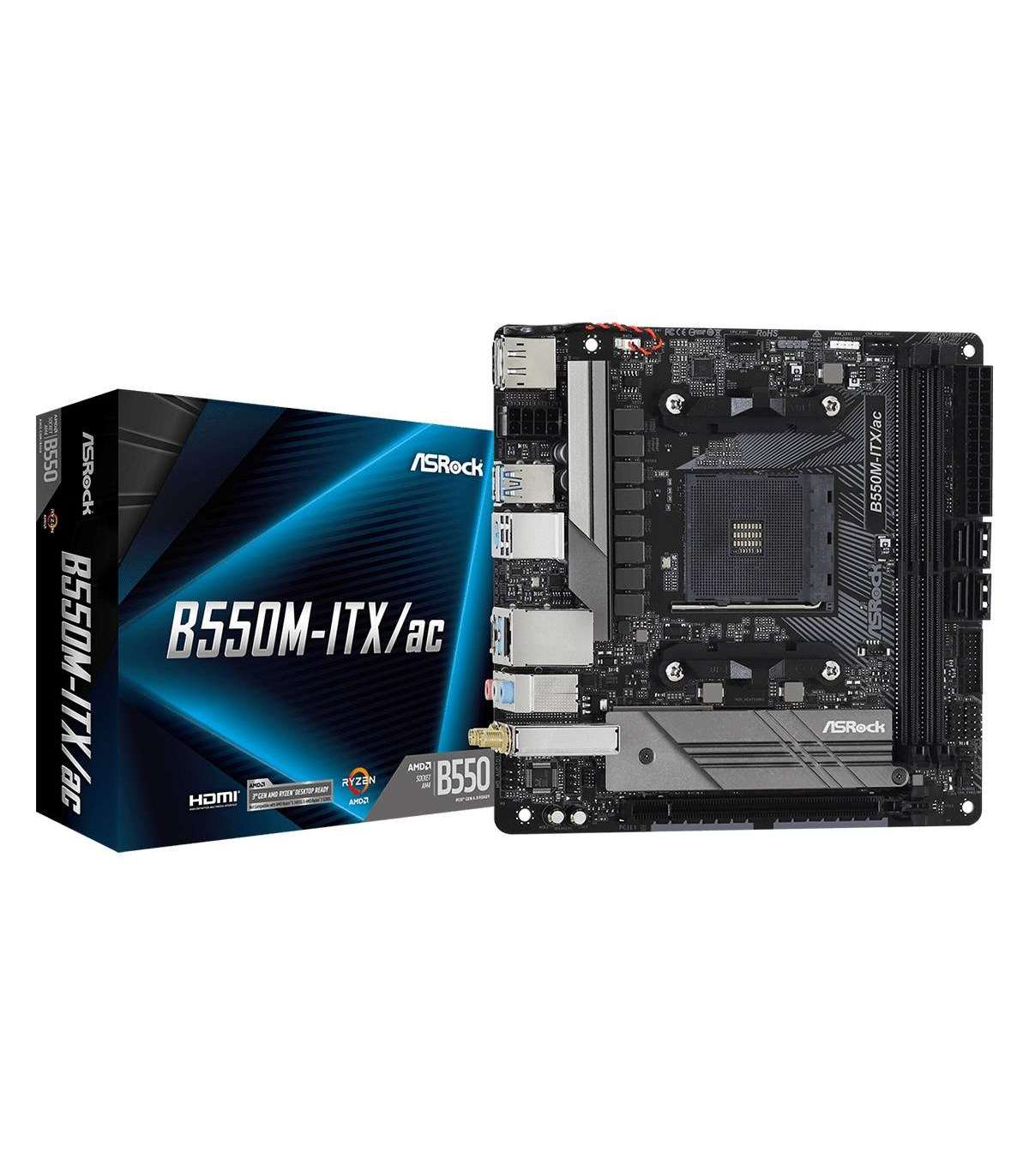

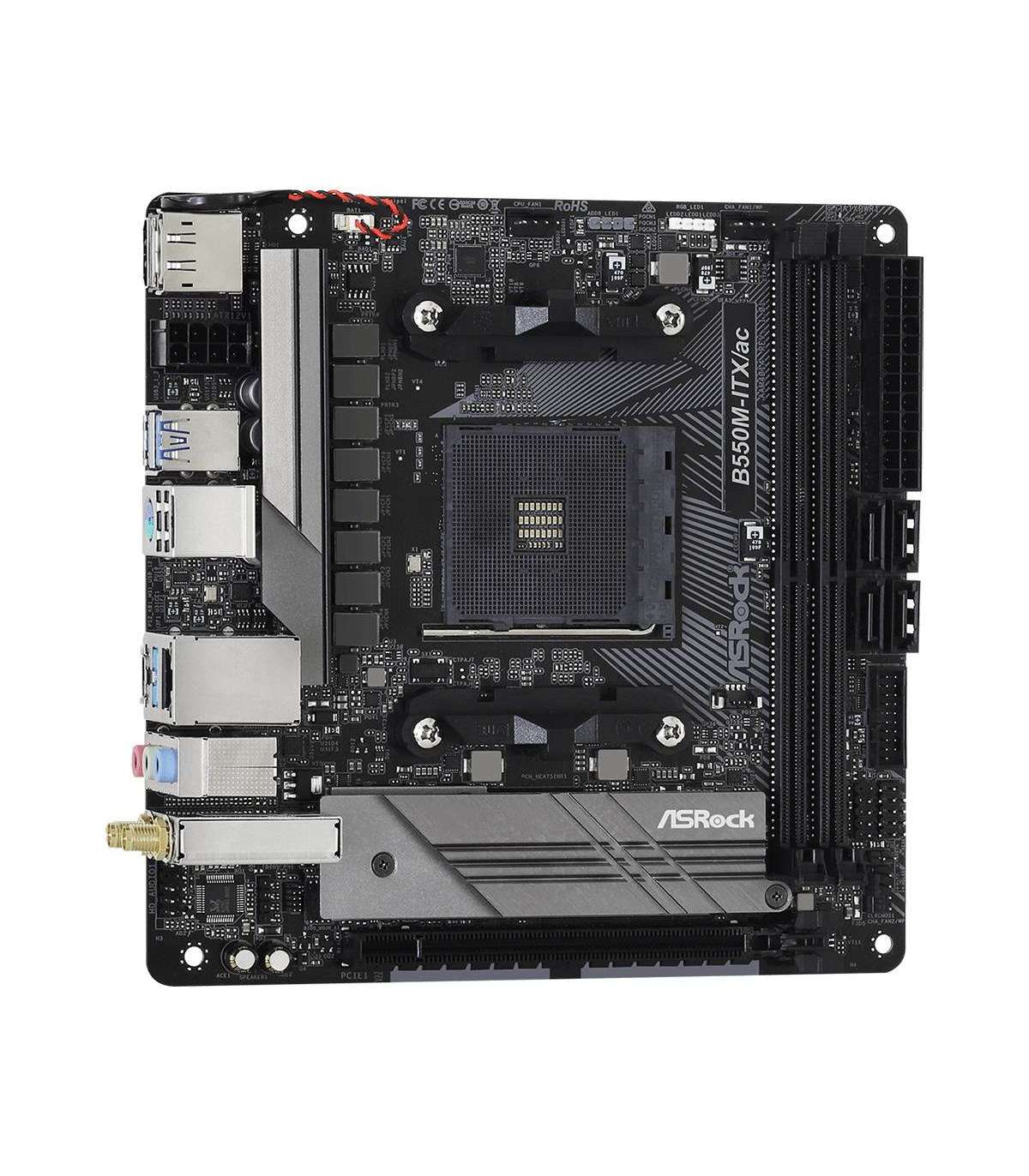

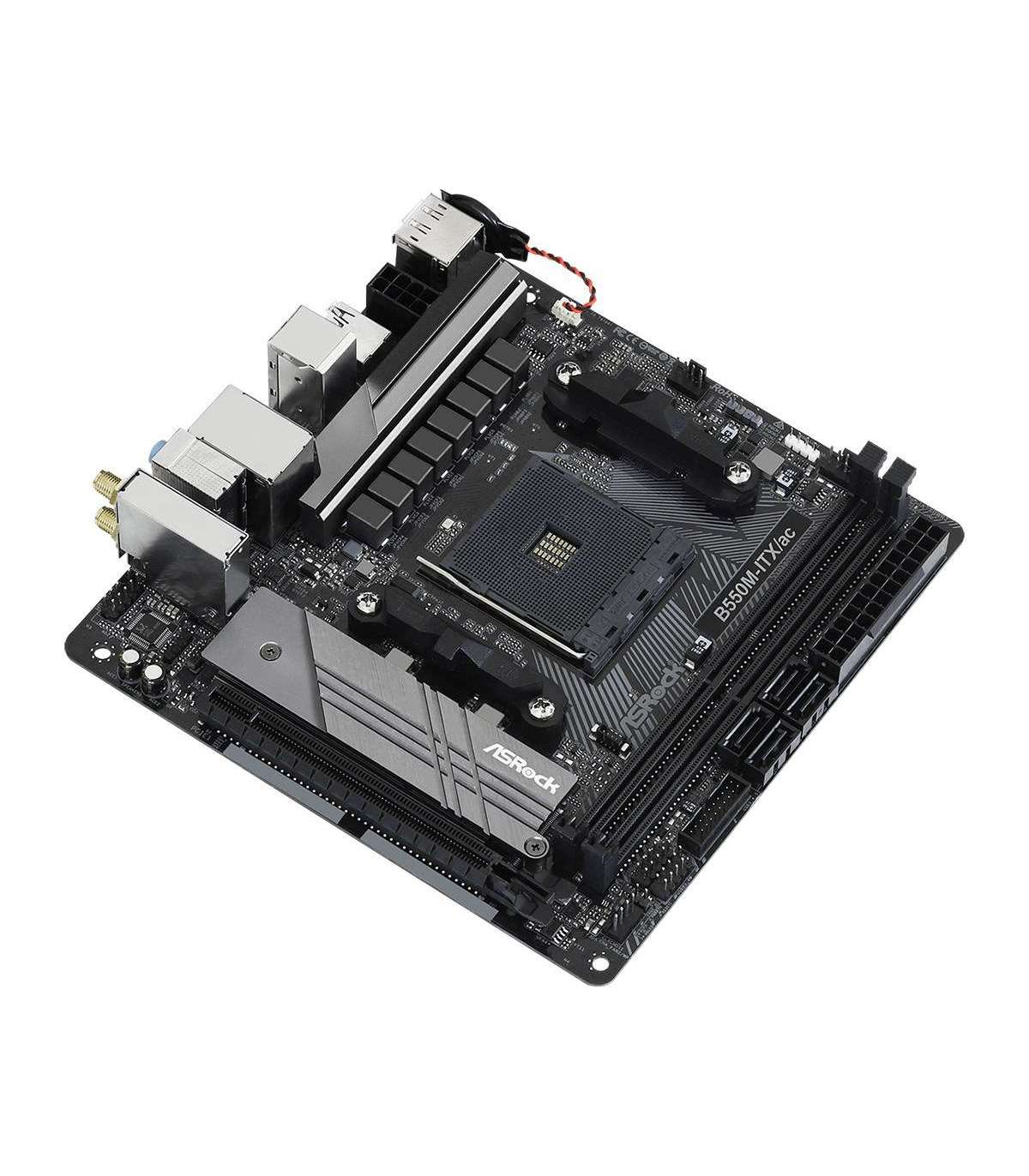

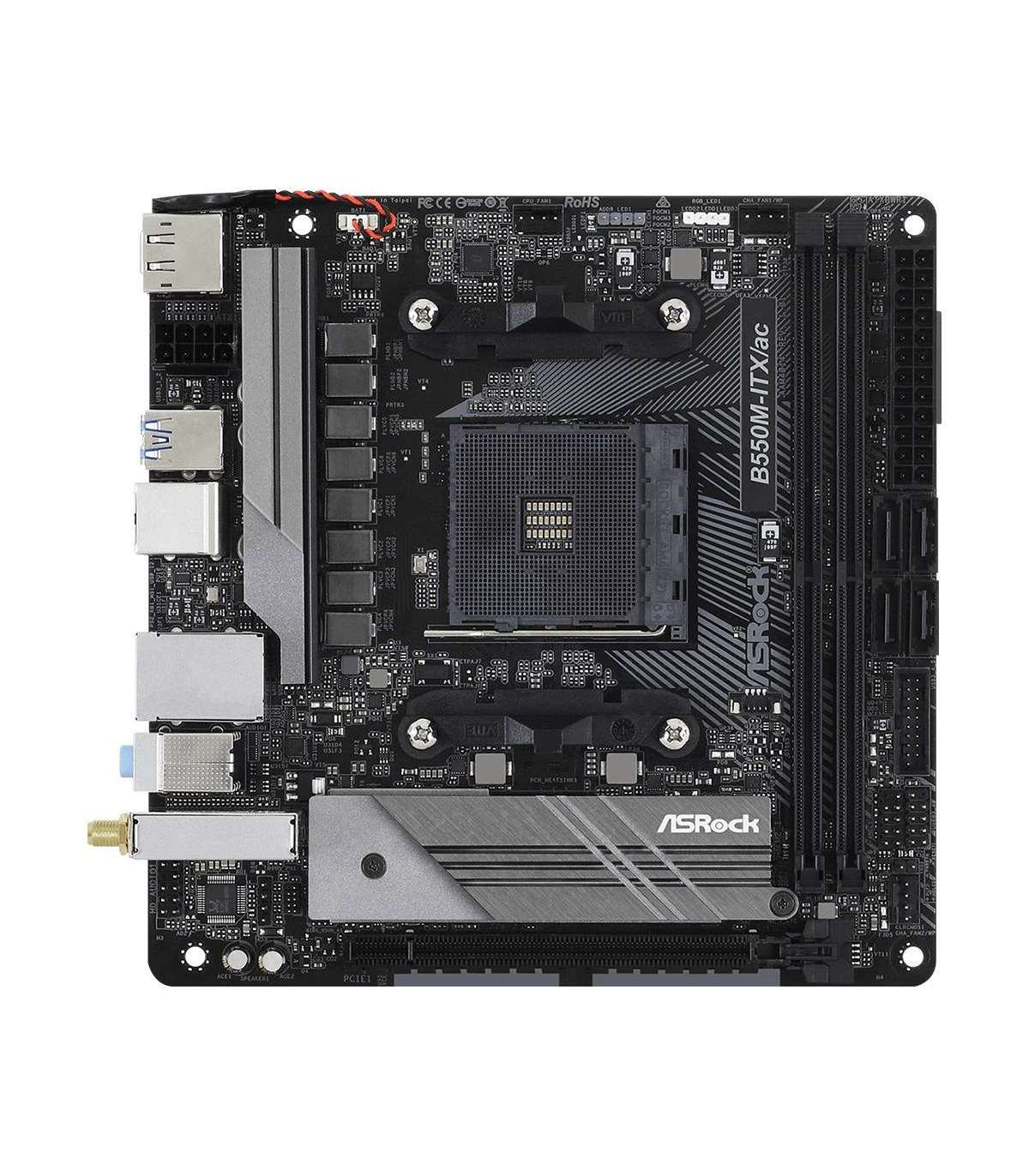

Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550

Lisainfo

Videokaardi mudel

Radeon Vega

Depth

170 mm

Laius

170 mm

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

2

Wake-on-LAN ready

Yes

Wi-Fi

Yes

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

Maximum internal memory

64 GB

Bluetooth version

4.2

Bluetooth

Yes

Motherboard chipset

AMD B550

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC887

USB 2.0 connectors

2

Graphics card family

AMD

Processor socket

Socket AM4

Compatible processor series

3rd Generation AMD Ryzen 5
3rd Generation AMD Ryzen™ 3
3rd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen™ 9

Motherboard form factor

mini ITX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2667
2933
3200
3466
3600
3733
3800
3866
4000
4133
4200
4266
4333
4400
4466
4533 MHz
4600

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, Serial ATA III

PS/2 ports quantity

1

Drivers included

Yes

Maximum number of SMP processors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

DisplayPorts quantity

1

HDCP

Yes

EPS power connector (8-pin)

Yes

DirectX version

12.0

DisplayPort version

1.4
