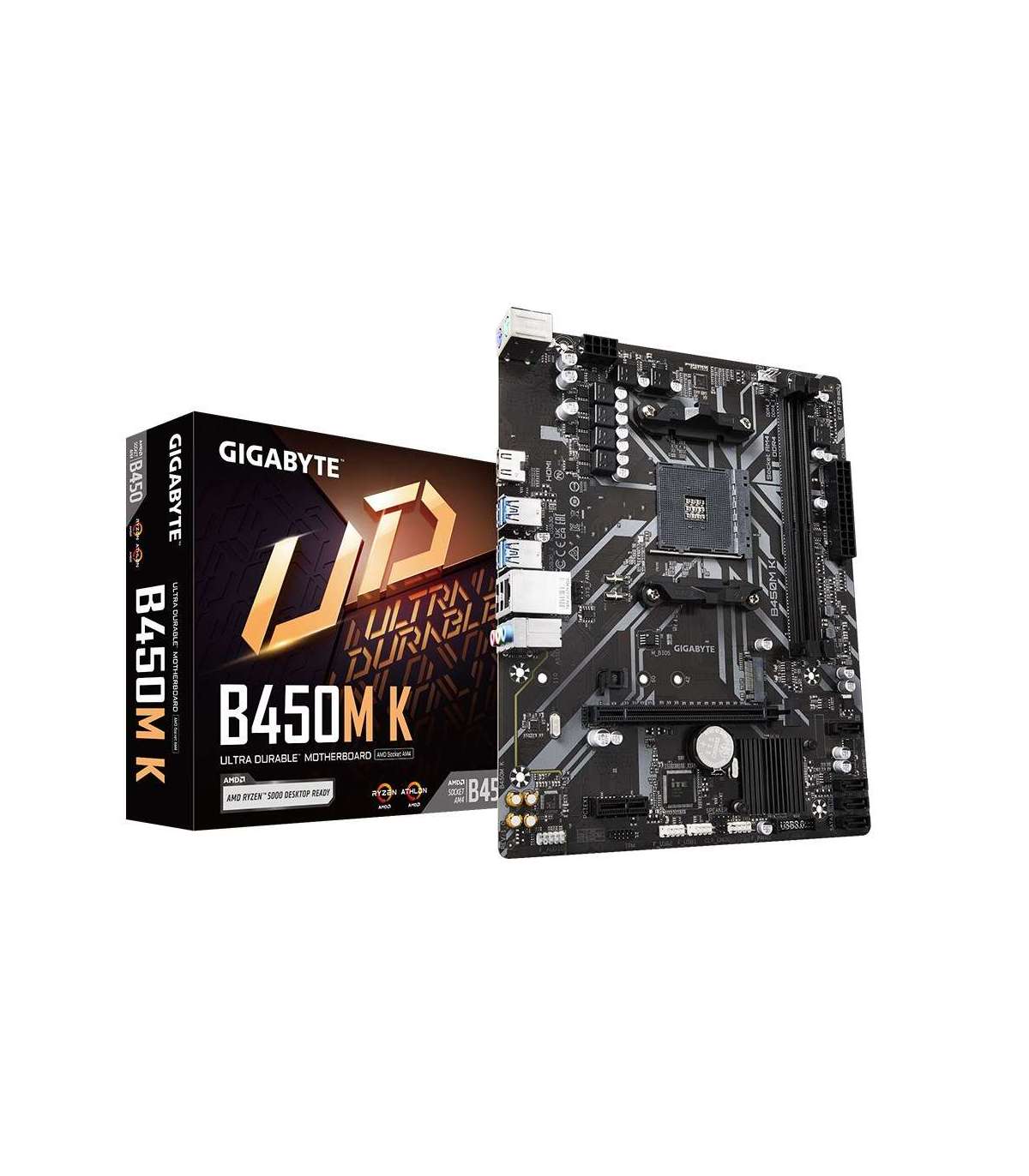

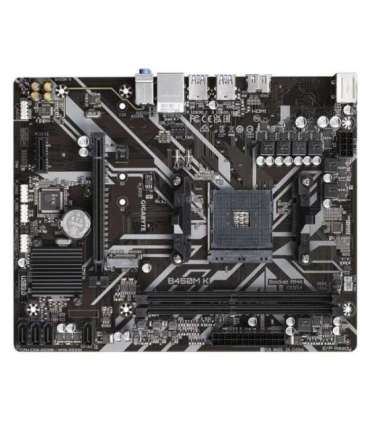

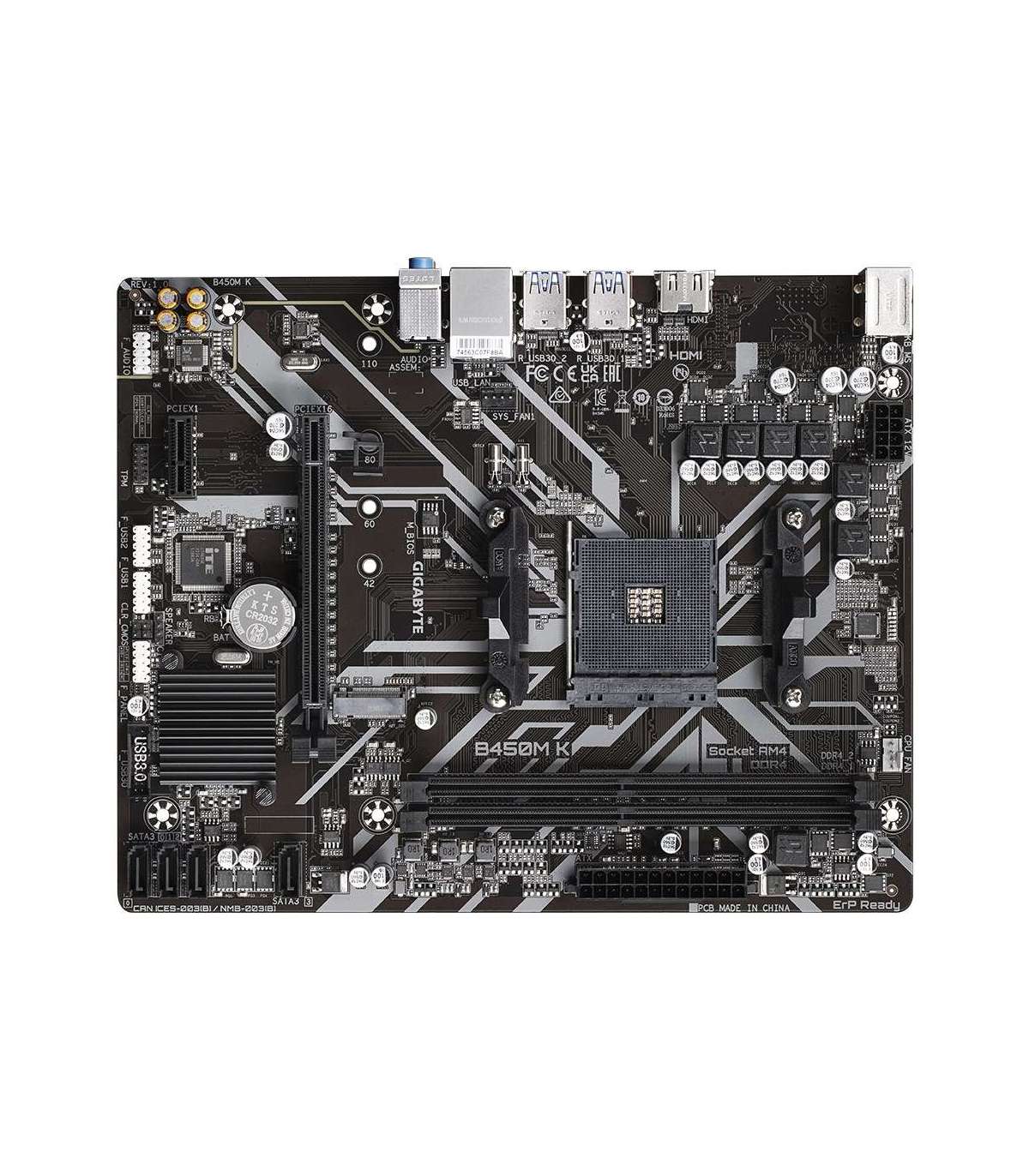

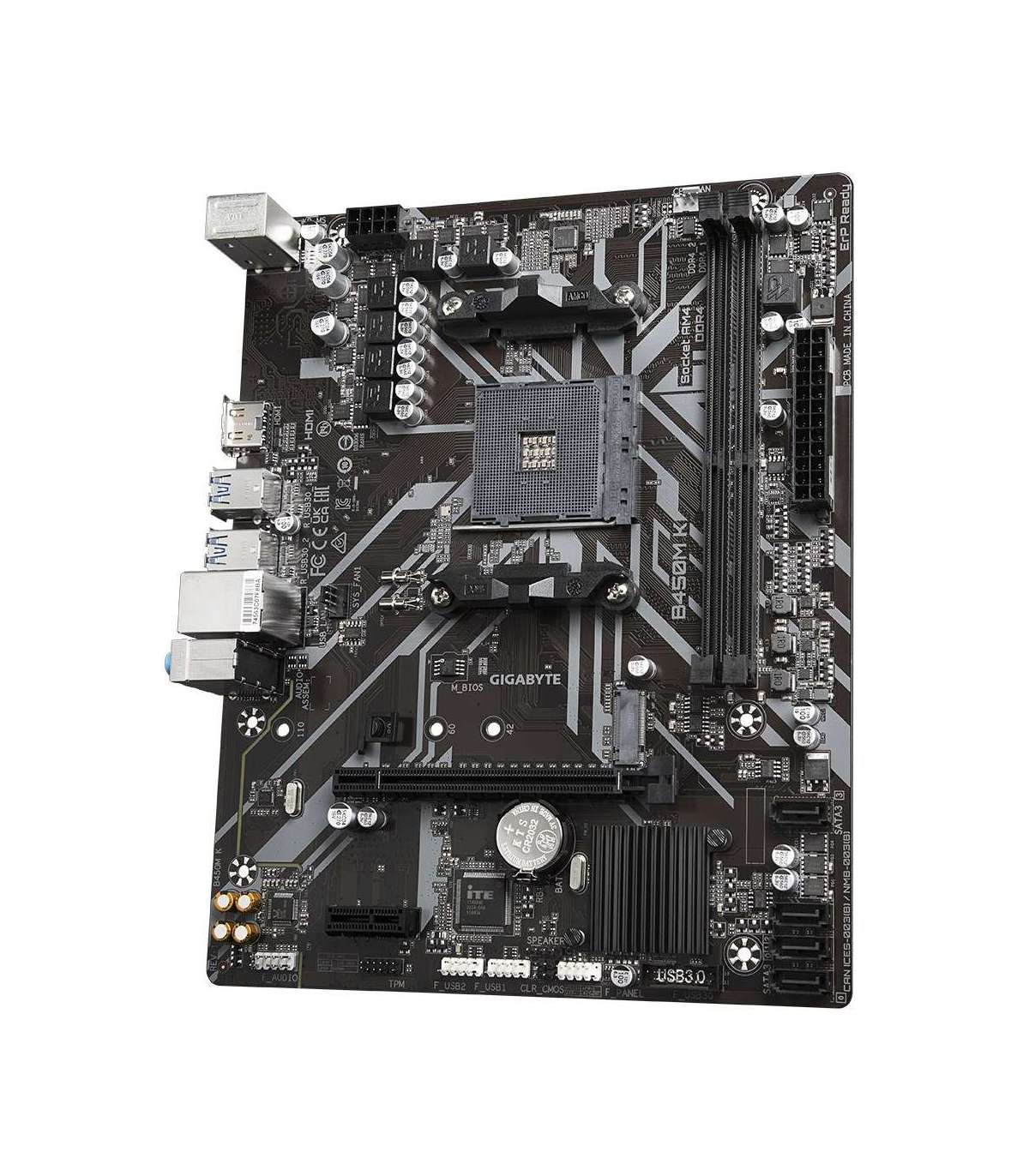

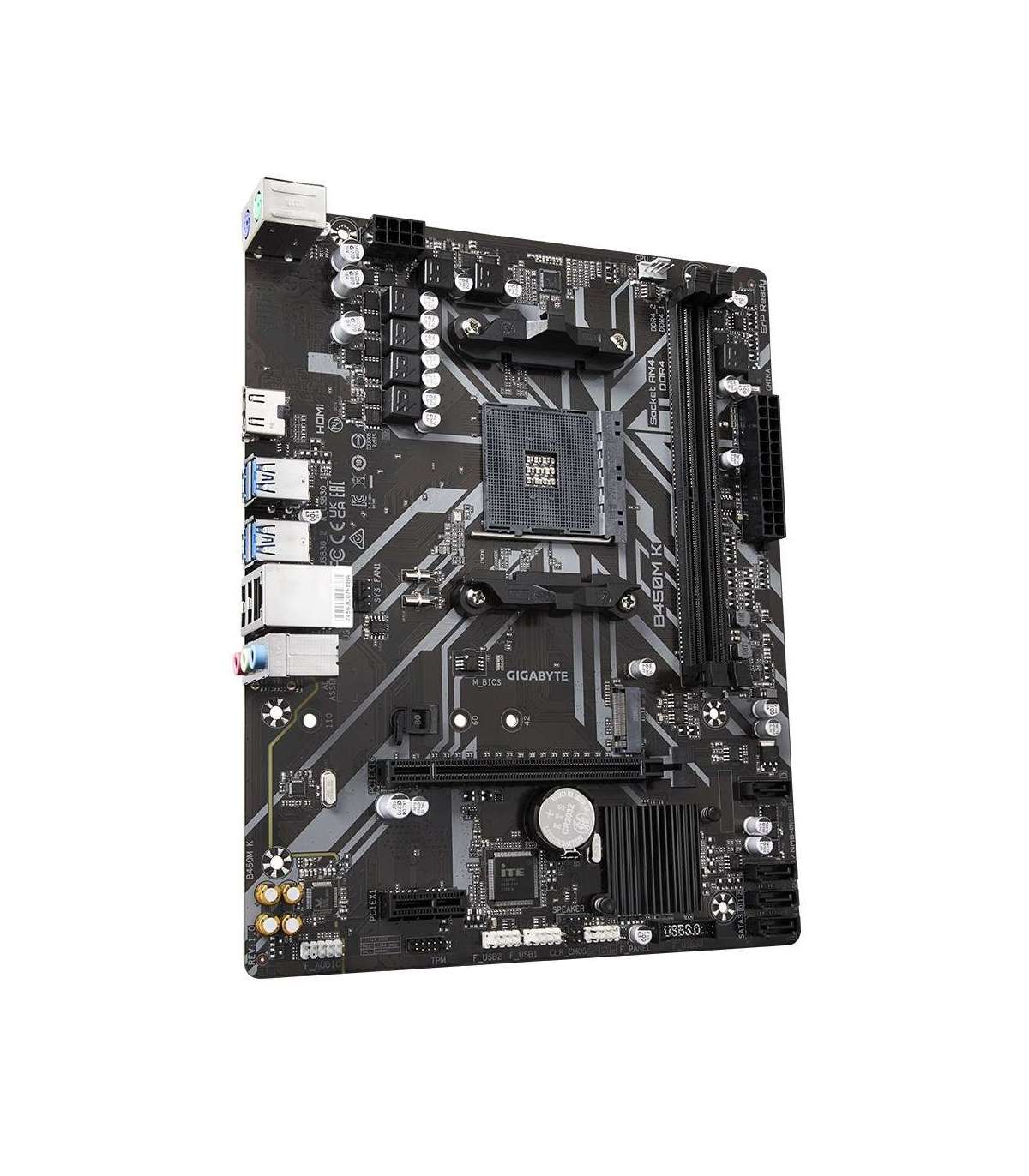

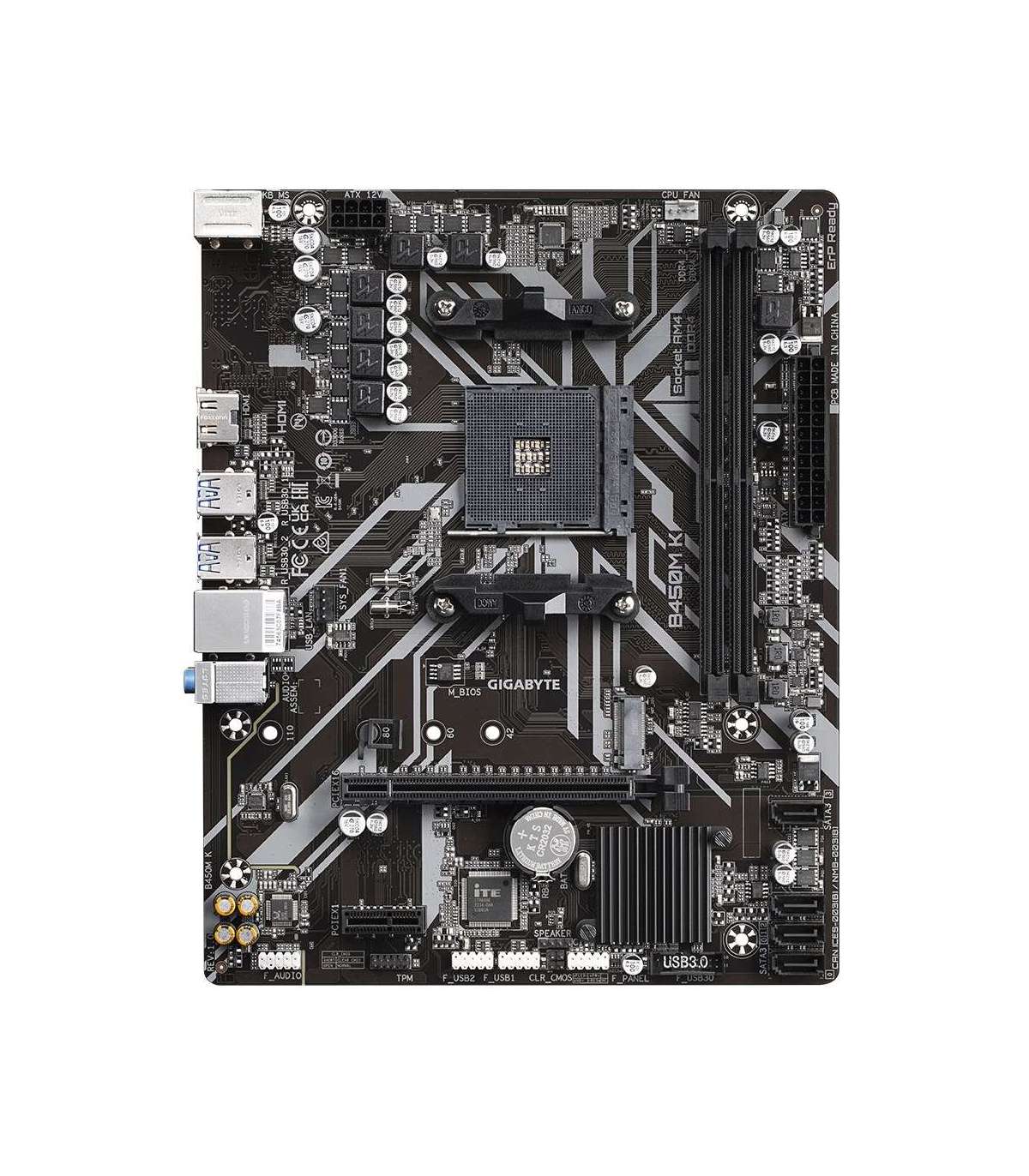

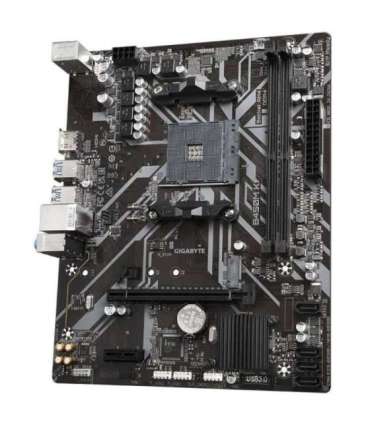

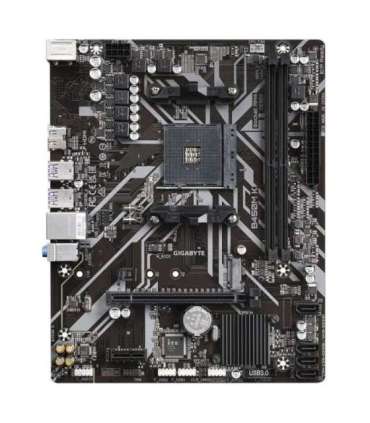

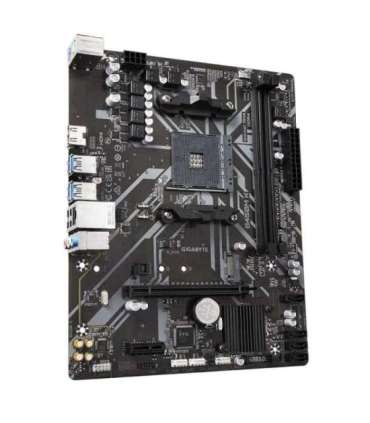

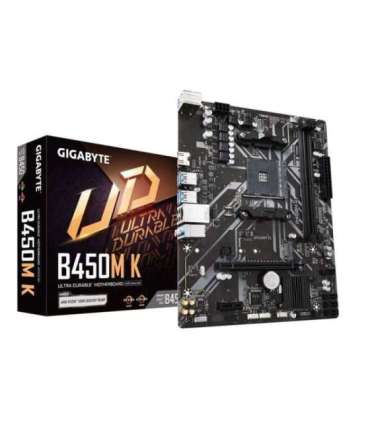

Gigabyte B450M K (rev. 1.0) AMD B450 Socket AM4 micro ATX

Lisainfo

Depth

195 mm

Laius

244 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

64 GB

Motherboard chipset

AMD B450

HDMI version

2.0

HDMI ports quantity

1

Memory channels

Dual-channel

Bundled software

Norton Internet Security (OEM version)
LAN bandwidth management software

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

2nd Generation AMD Ryzen™ 3
2nd Generation AMD Ryzen™ 5
2nd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen 5
3rd Generation AMD Ryzen™ 3
3rd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen™ 9
AMD Athlon
AMD Ryzen™ 3
AMD Ryzen™ 5
AMD Ryzen™ 7

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2667
2933
3466
3600

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Number of chassis fan connectors

1

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

SATA III

PS/2 ports quantity

2

PCI Express x16 (Gen 3.x) slots

1

Drivers included

Yes

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

Maximum graphics card memory

16000 MB

PC health monitoring

Fan
Temperature
Voltage

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

RAID levels

0
1
10

Number of M.2 (M) slots

1

HDCP

Yes

Front panel connector

Yes

Desktop Management Interface (DMI) version

2.7

PCI Express x1 (Gen 2.x) slots

2

Audio connector

Yes

S/PDIF out connector

Yes
