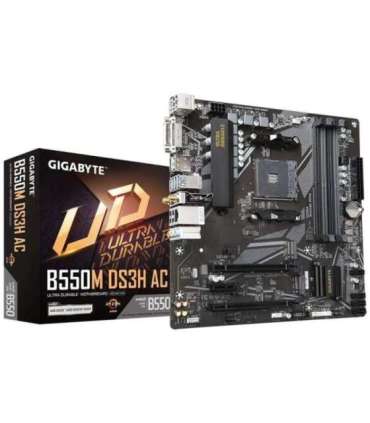

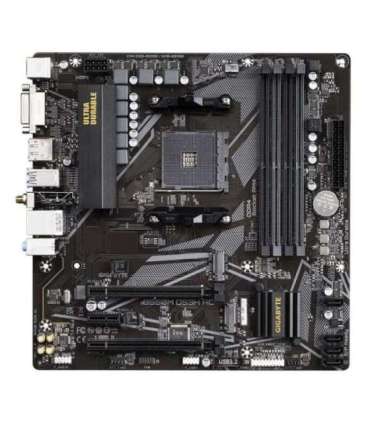

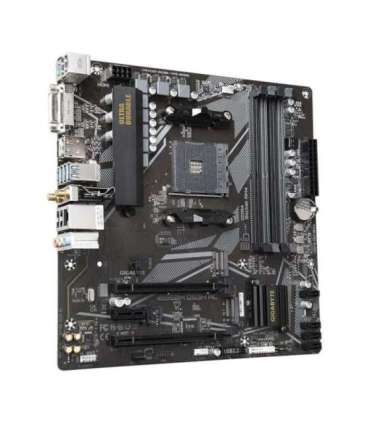

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550

Lisainfo

Depth

244 mm

Kõrgus

35 mm

Laius

244 mm

Package weight

1.09 kg

Product colour

Bronze

Power source type

ATX

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Package width

270 mm

Package depth

268 mm

Package height

68 mm

Warnings

Avoid direct contact with sensitive electronic components.
Dispose of according to local electro-waste regulations.
Store away from water and sources of moisture.

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Maximum internal memory

128 GB

Country of origin

China

Bluetooth version

4.2

Bluetooth

Yes

Motherboard chipset

AMD B550

HDMI version

2.1

HDMI ports quantity

1

Number of battery cells

1

Memory channels

Dual-channel

WLAN controller model

Realtek RTL8821CE

Battery weight

3 g

Audio chip

Realtek ALC897

Bundled software

Norton® Internet Security
LAN bandwidth management software

Warranty period

3 year(s)

Headphone outputs

1

USB 2.0 connectors

1

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series
AMD Ryzen 4000 Series
AMD Ryzen 5000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2667
2933
3200
3400
3466
3600
3733
3866
4000
4133
4266
4400
4600
4733

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Number of chassis fan connectors

2

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

PC health monitoring

Fan
Temperature
Voltage

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM4

HDCP

Yes

Supported memory clock speed (max)

4733 MHz

EPS power connector (8-pin)

Yes

Desktop Management Interface (DMI) version

2.7

Batteries included

Yes

Number of storage drives supported

6

RAID support

Yes

Battery type

CR2032

Lithium weight per battery

0.07 g

Products per shipping (inner) case

1 pc(s)

DirectX version

12.0

DVI-D ports quantity

1

Audio connector

Yes

Line-in

Yes

Cooling type

Passive

Maximum internal memory per slot

32 GB

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

5

Number of water pump connectors

2

Screws included

Yes

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

3.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

WiFi-AP antenna jack

2

Serial port headers

1
