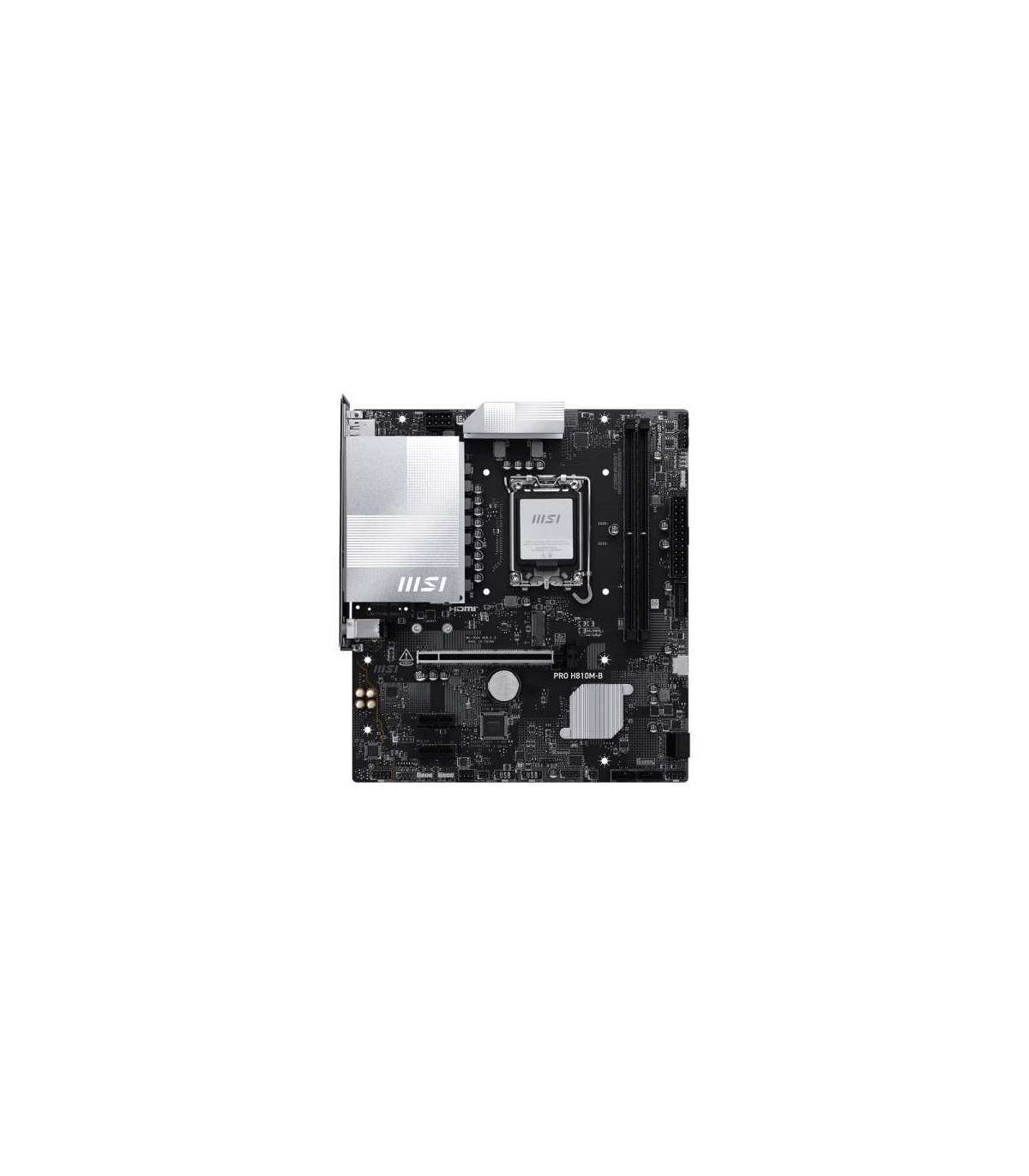

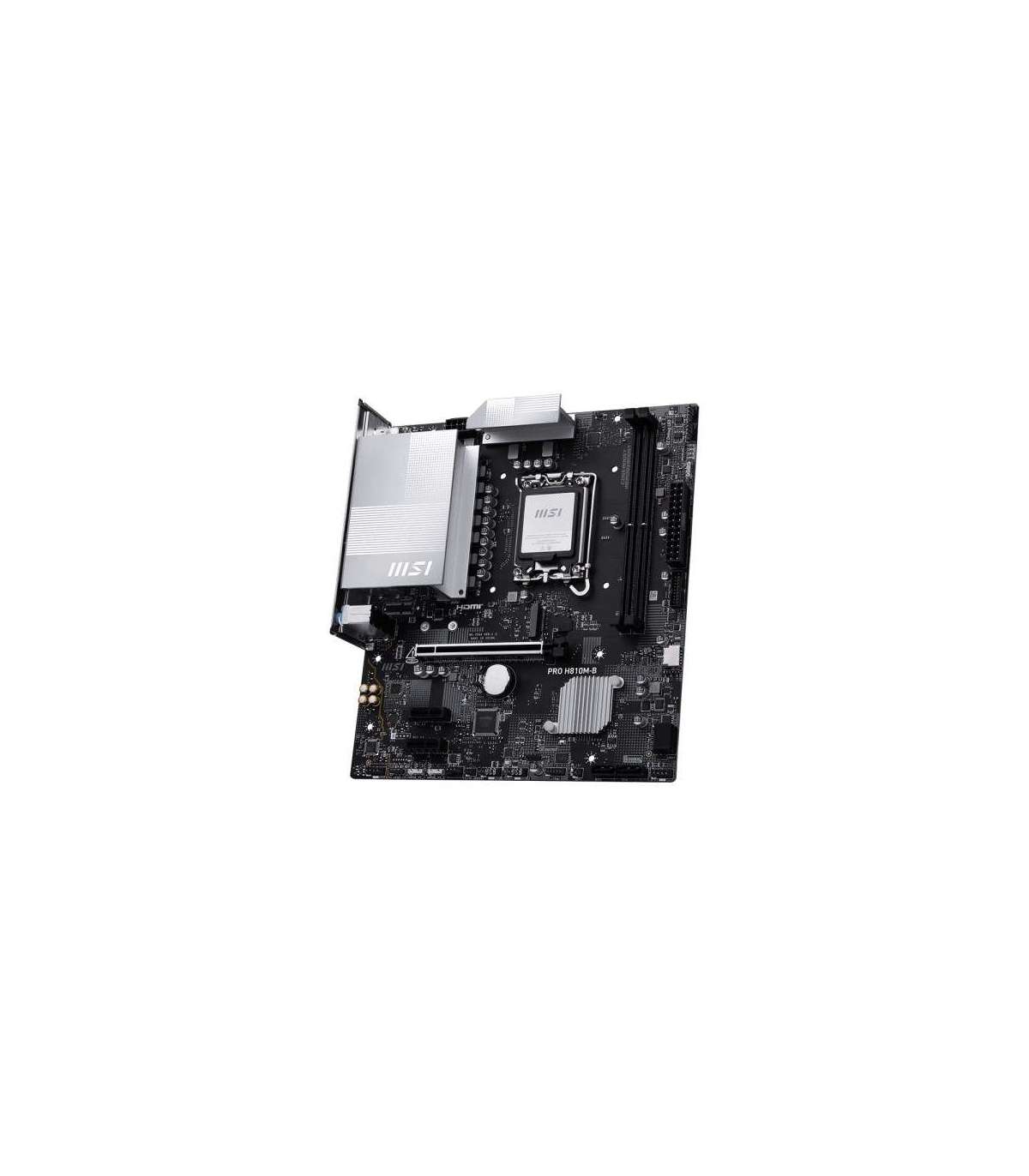

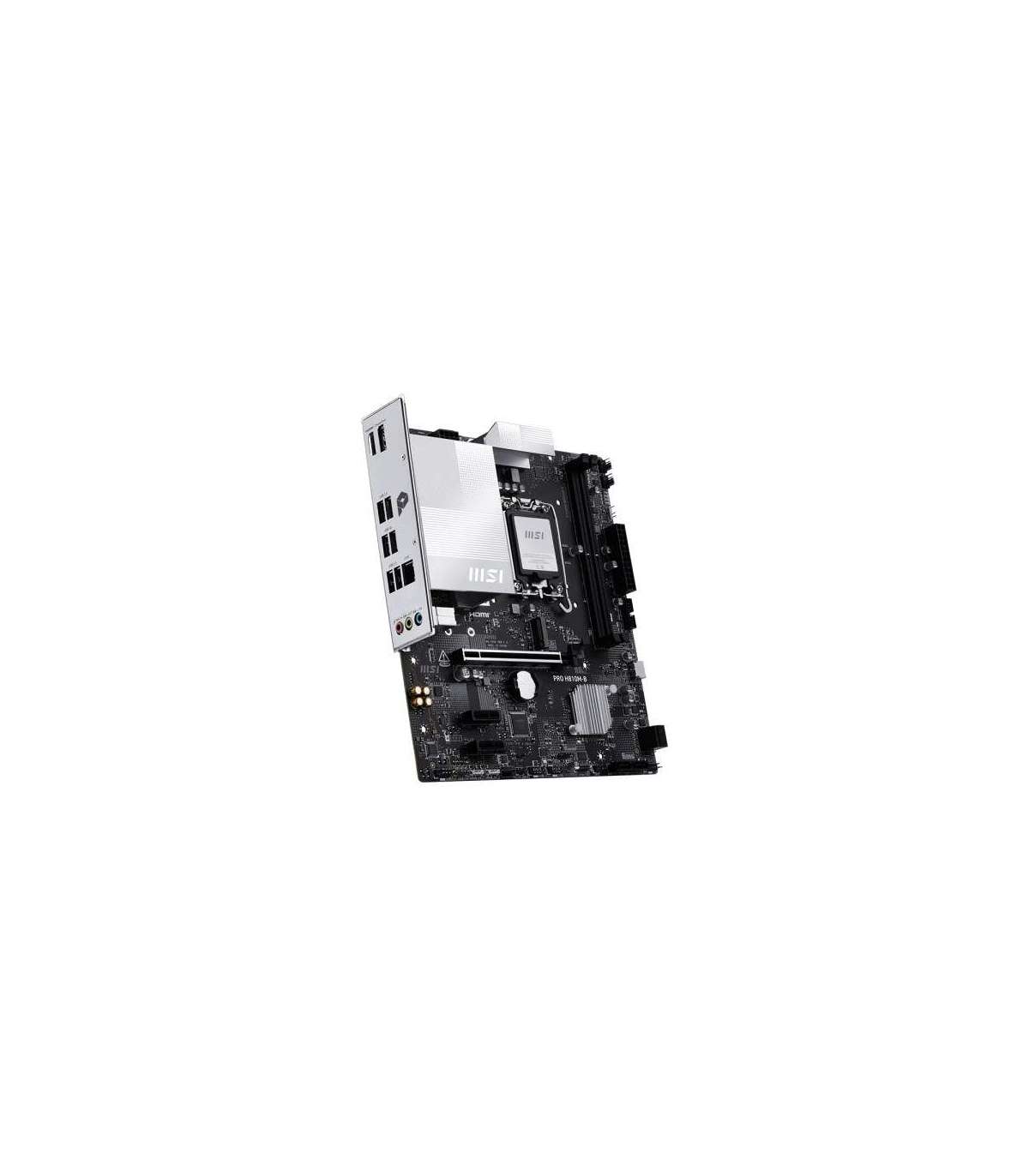

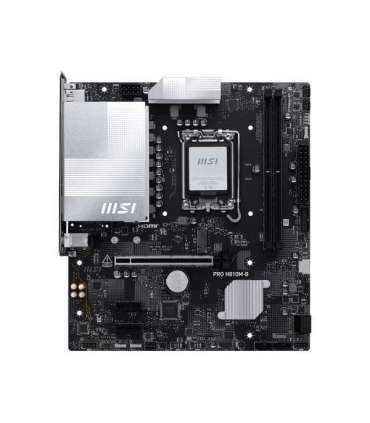

MSI PRO H810M-B motherboard Intel H810 LGA 1851 (Socket V1) micro ATX

Lisainfo

Depth

243.8 mm

Laius

220 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

USB 2.0 ports quantity

4

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel H810

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800
6400 MHz

Number of memory slots

2

Supported memory types

DDR5 UDIMM

Number of chassis fan connectors

2

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Supported storage drive interfaces

SATA III

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

Number of M.2 (M) slots

1

PCI Express x1 slots

2

Power fan connector

Yes

Audio connector

Yes

Number of RGB LED pin headers

1

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

2

PCI Express x16 (Gen 5.x) slots

1

USB 3.2 (Gen 2) Type-C ports quantity

1
