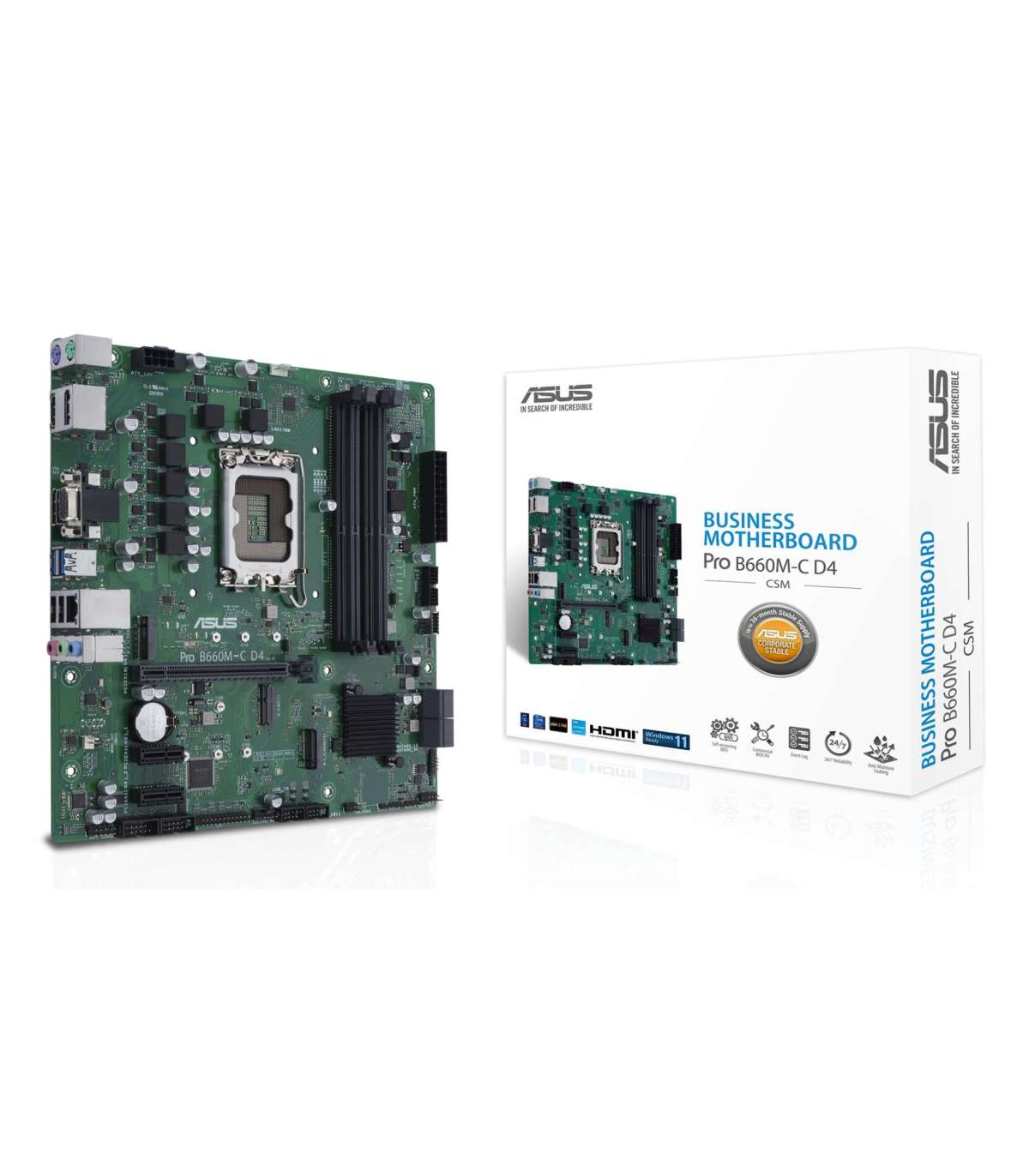

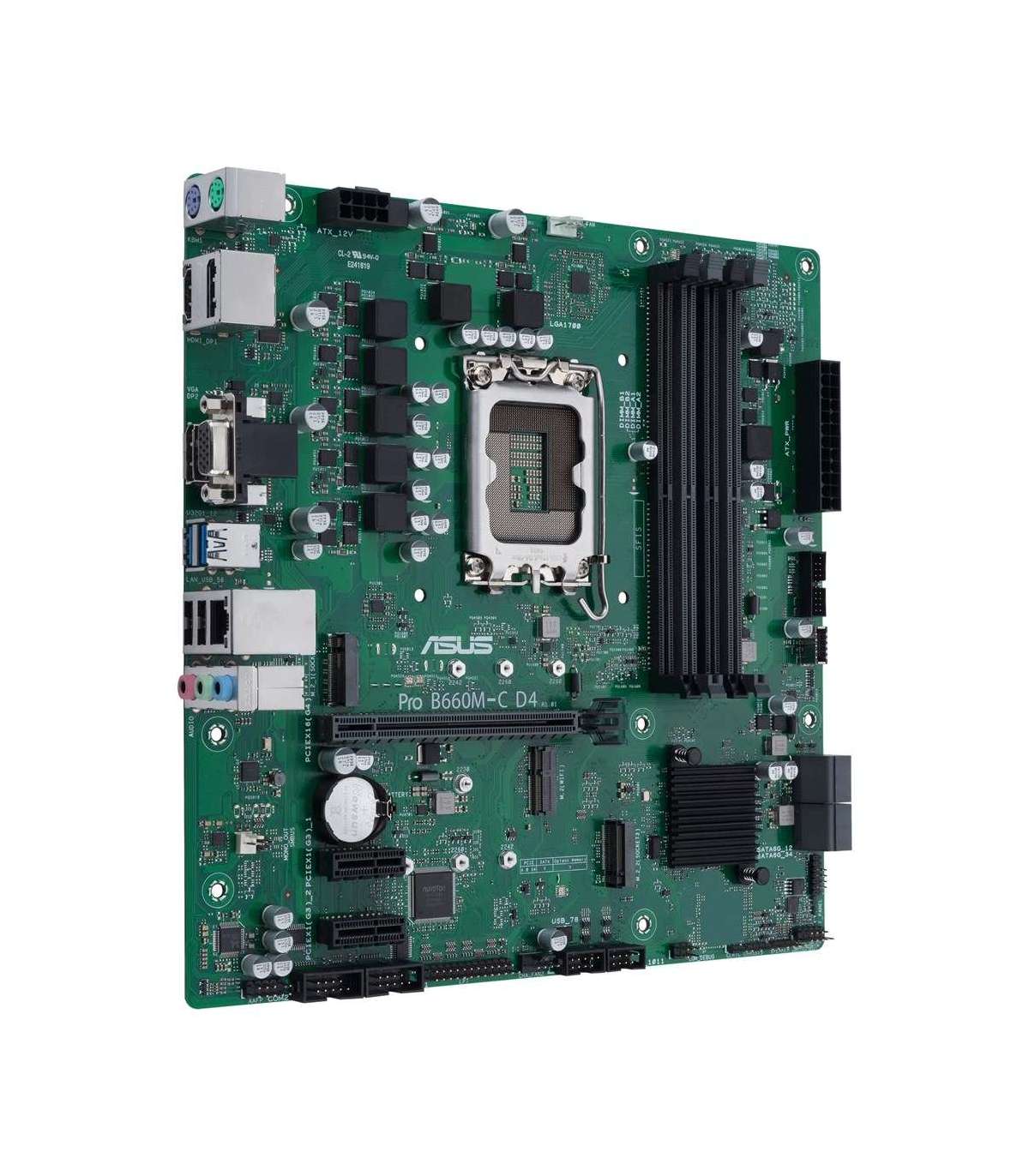

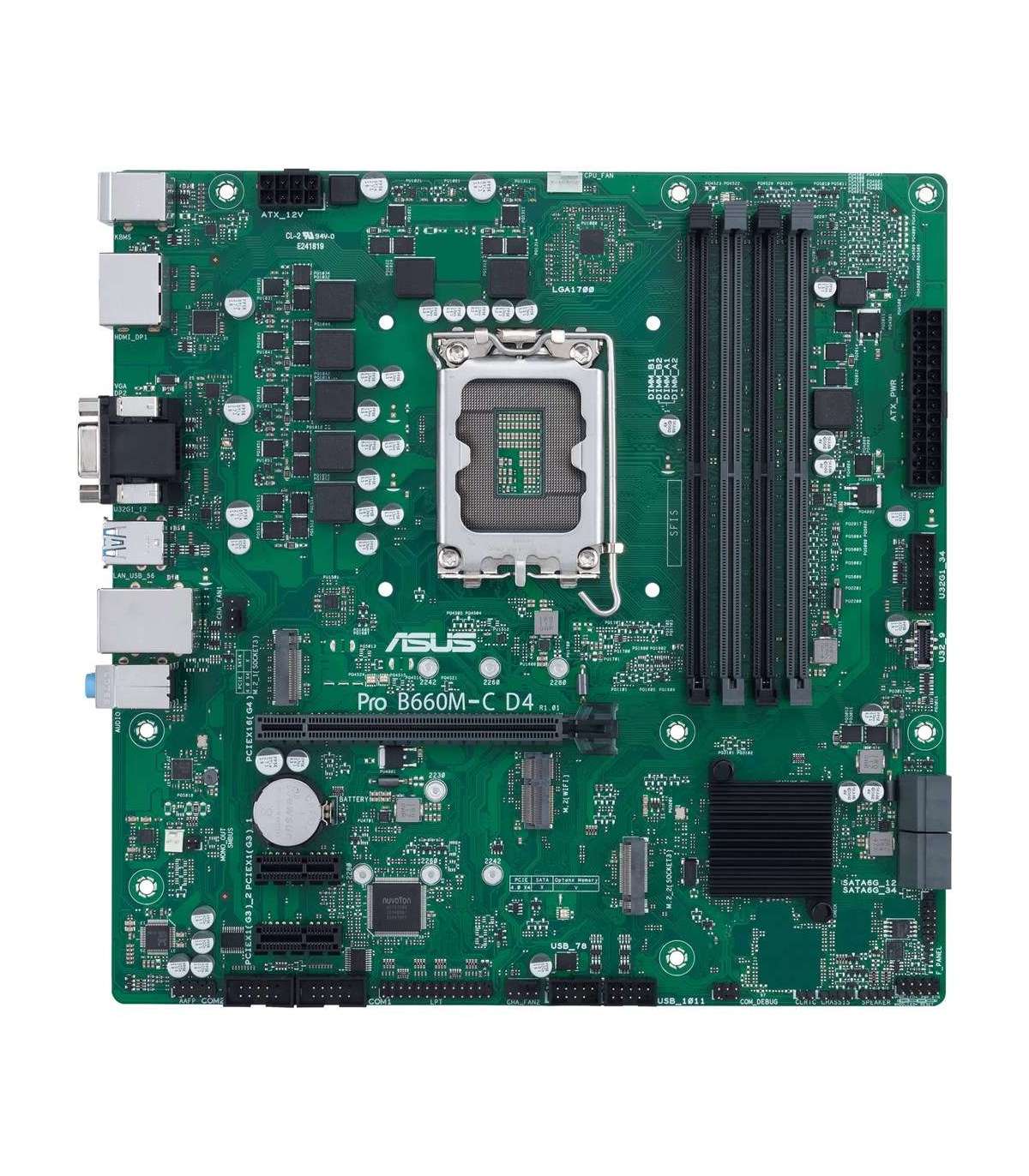

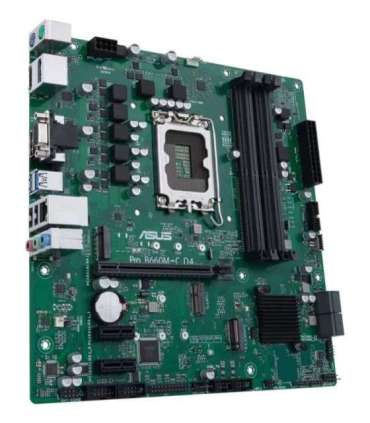

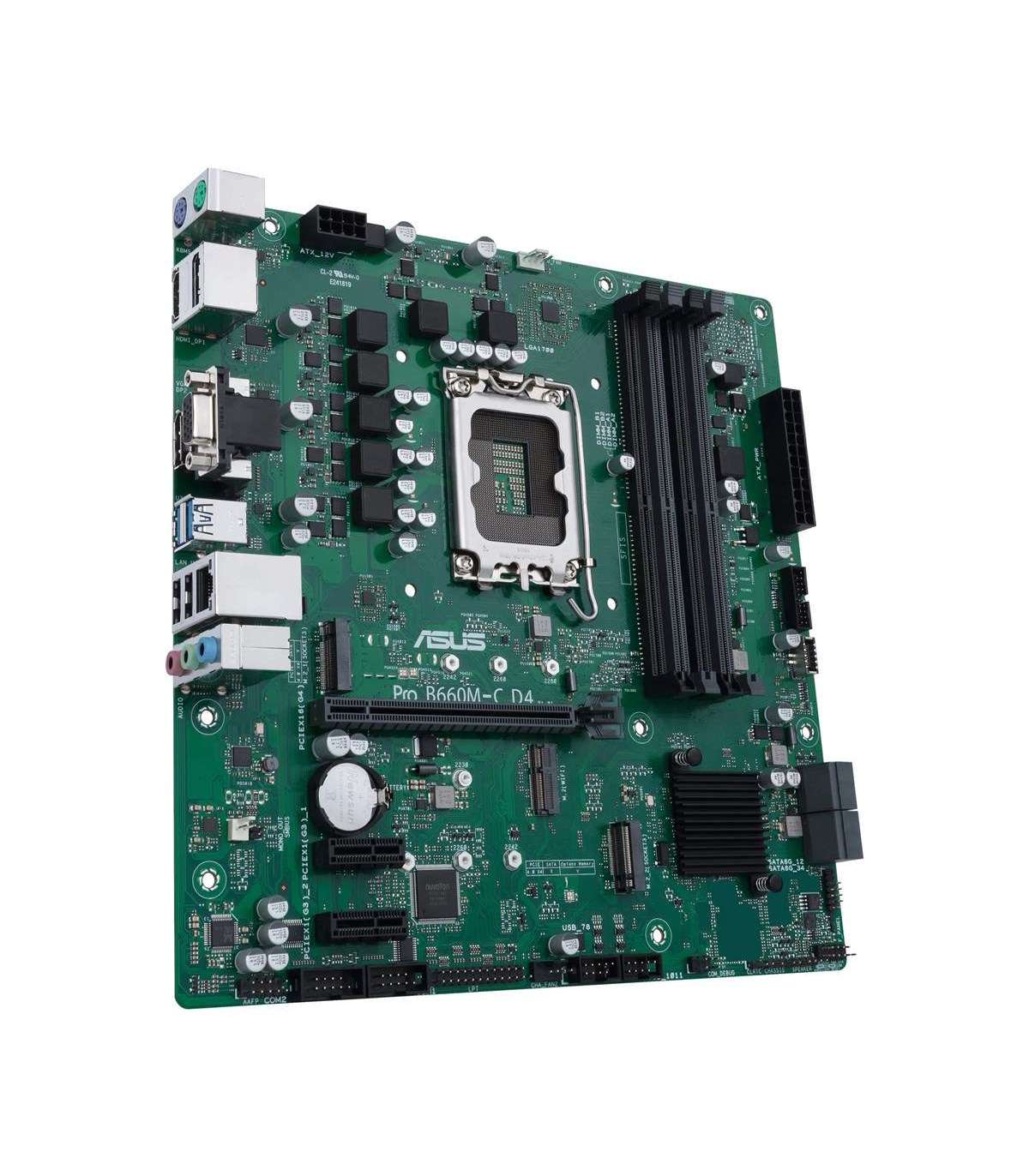

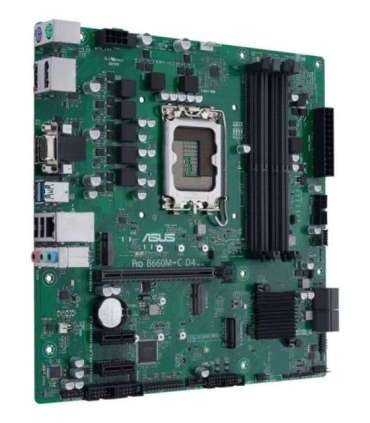

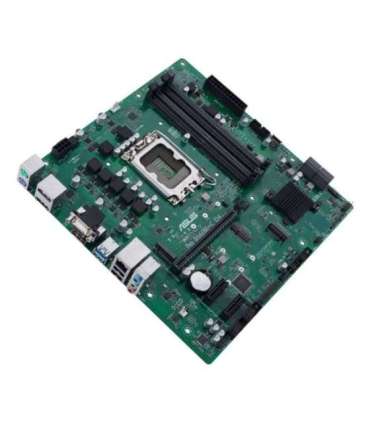

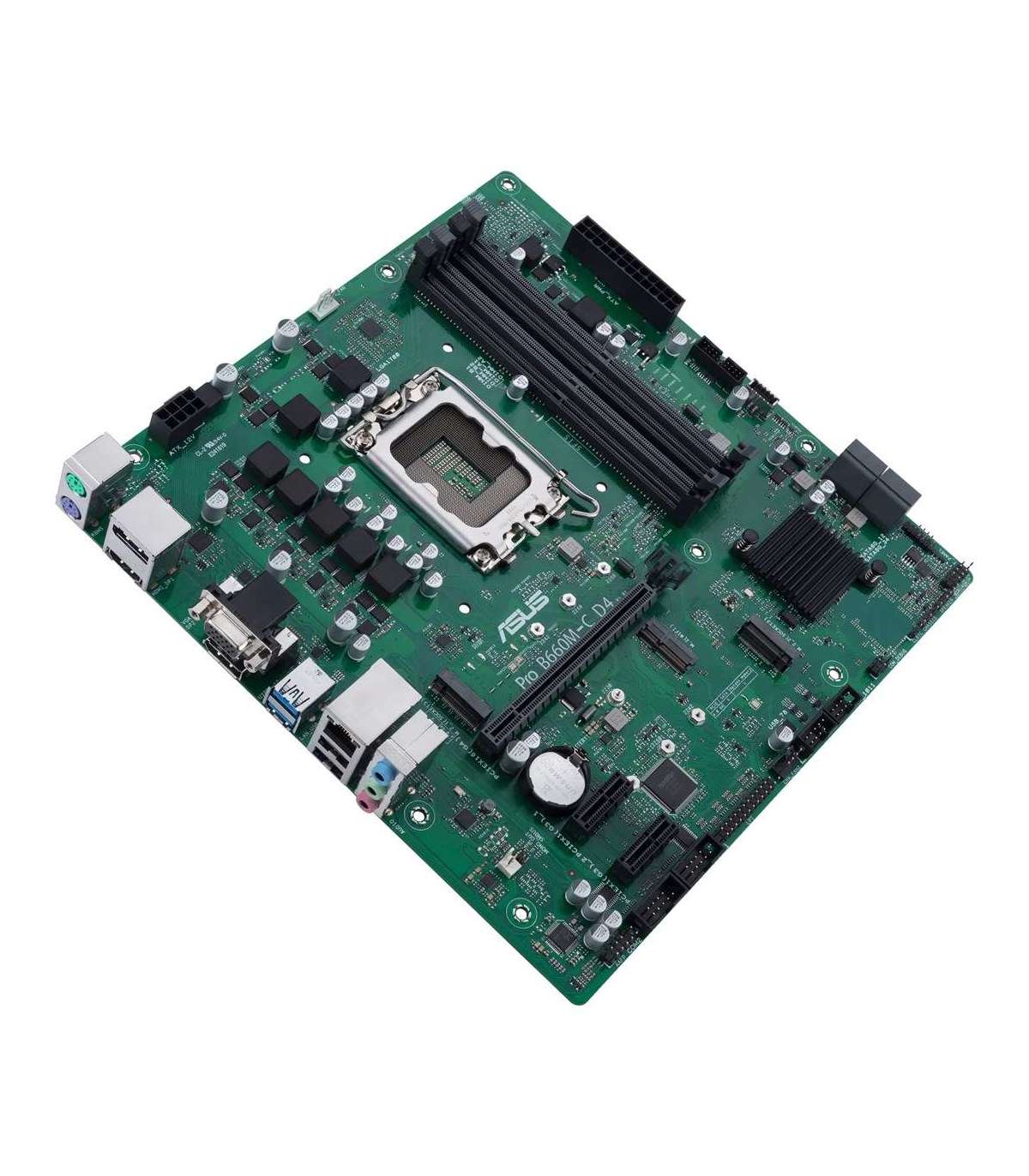

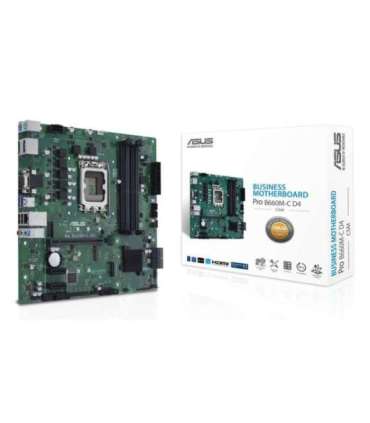

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

Lisainfo

Depth

244 mm

Kaal

634 g

Kõrgus

51 mm

Laius

244 mm

Product colour

Roheline

Ethernet LAN

Yes

Cables included

SATA

Top Wi-Fi standard

Not available

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Harmonized System (HS) code

84733020

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

No

Maximum internal memory

128 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

Intel B660

HDMI version

2.1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133 MHz
2400
2666
2800
2933
3000
3200
3333
3400
3466
3600
3733
4000
4400
4600
4800 MHz
5000

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

M.2, SATA

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Drivers included

Yes

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

RAID support

Yes

DisplayPort version

1.4

Number of displays supported

3
