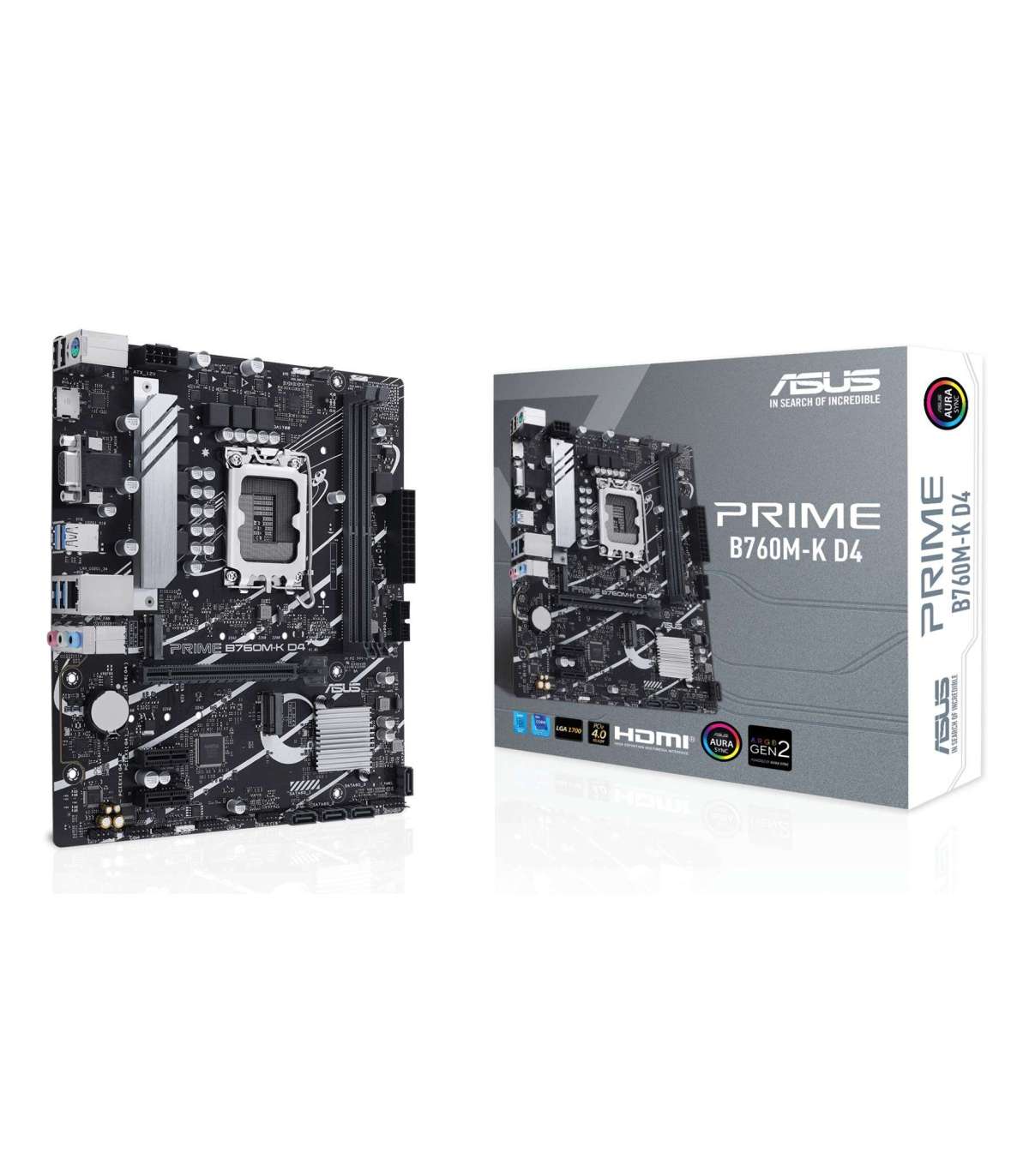

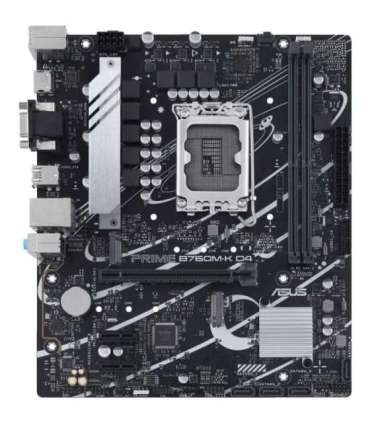

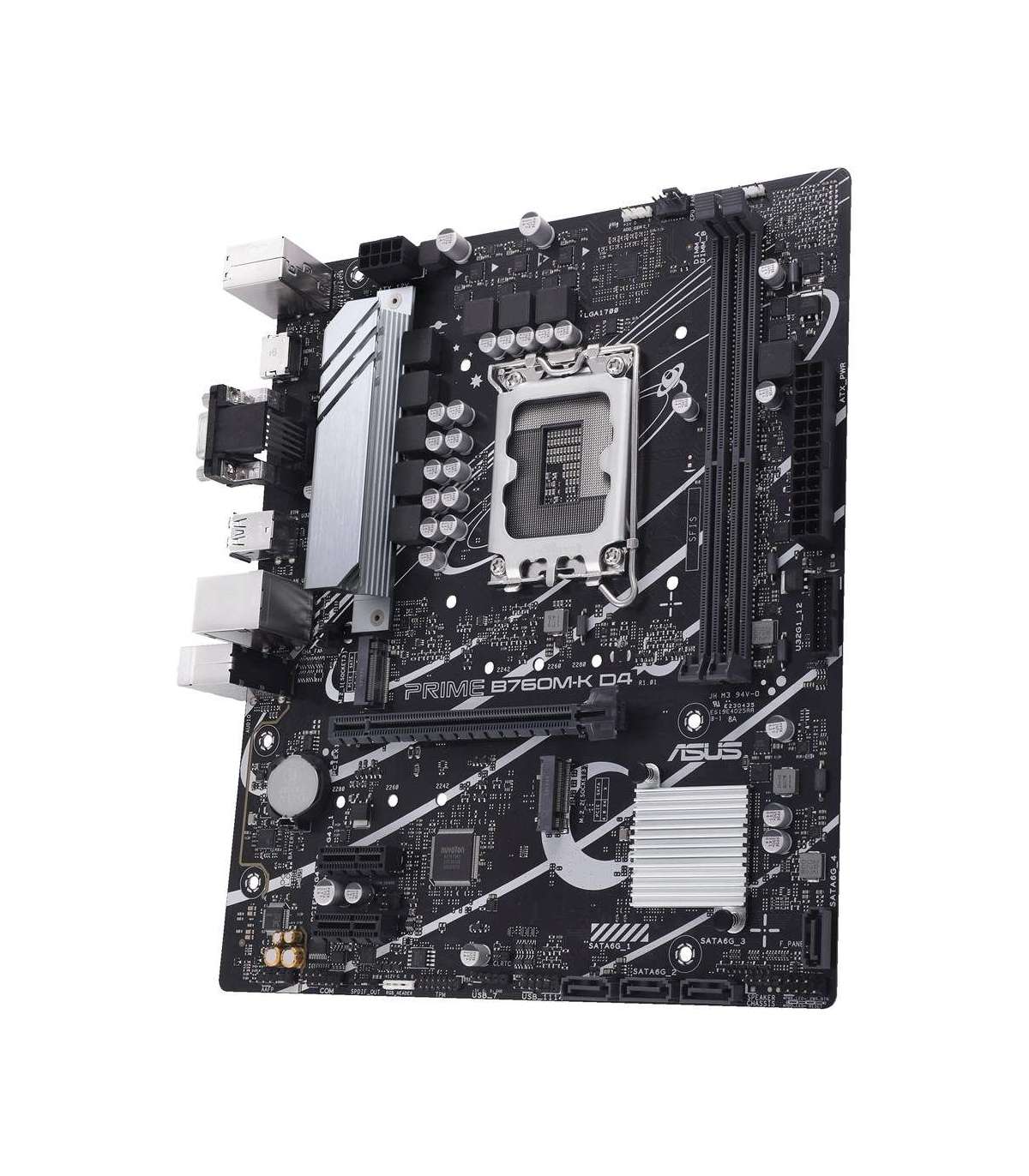

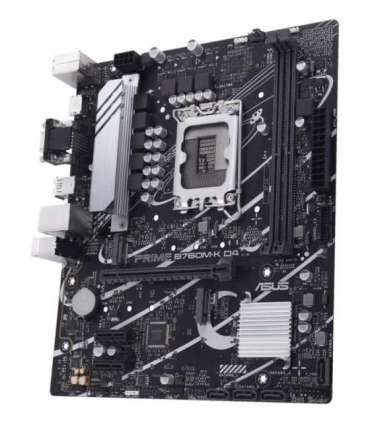

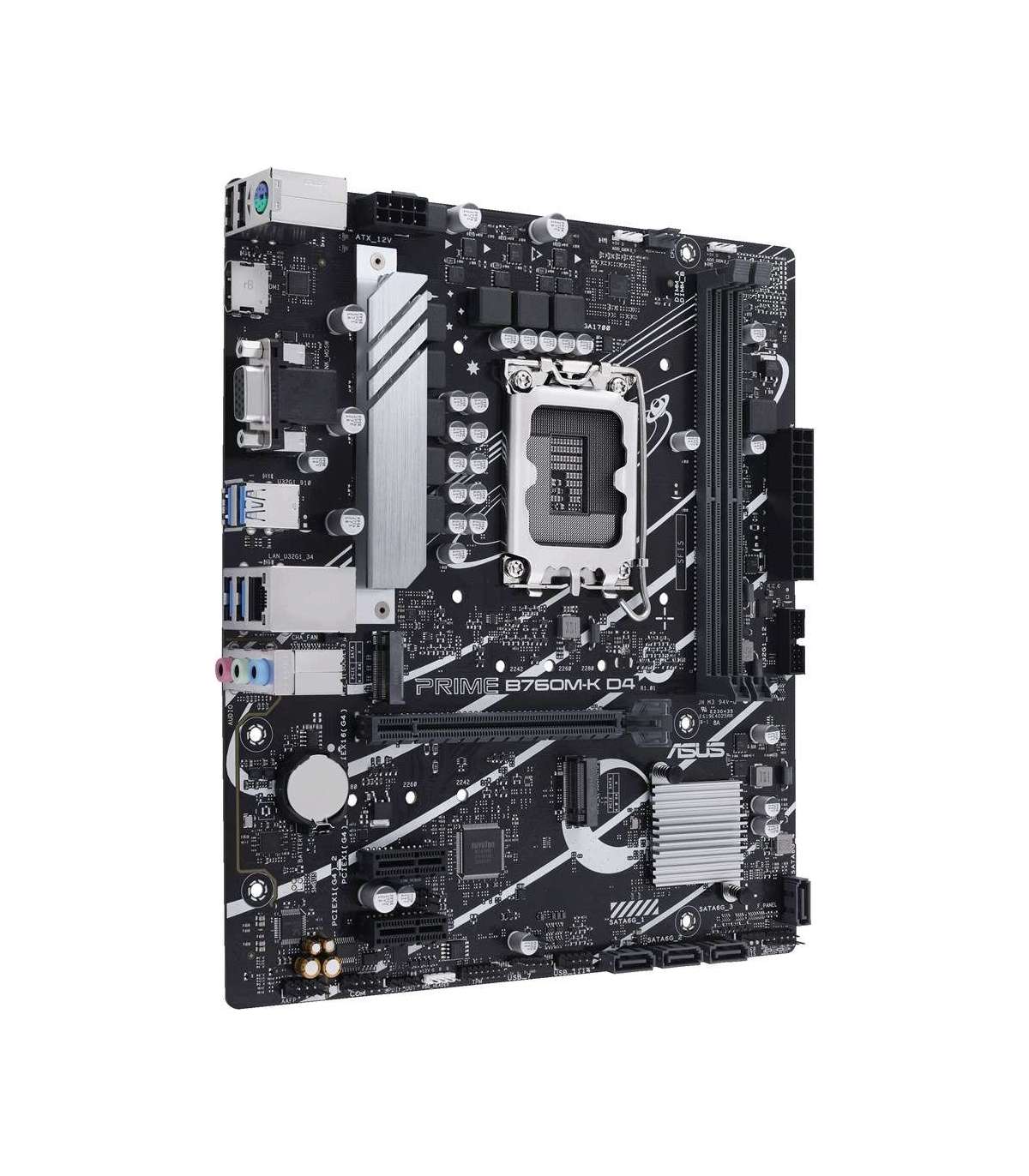

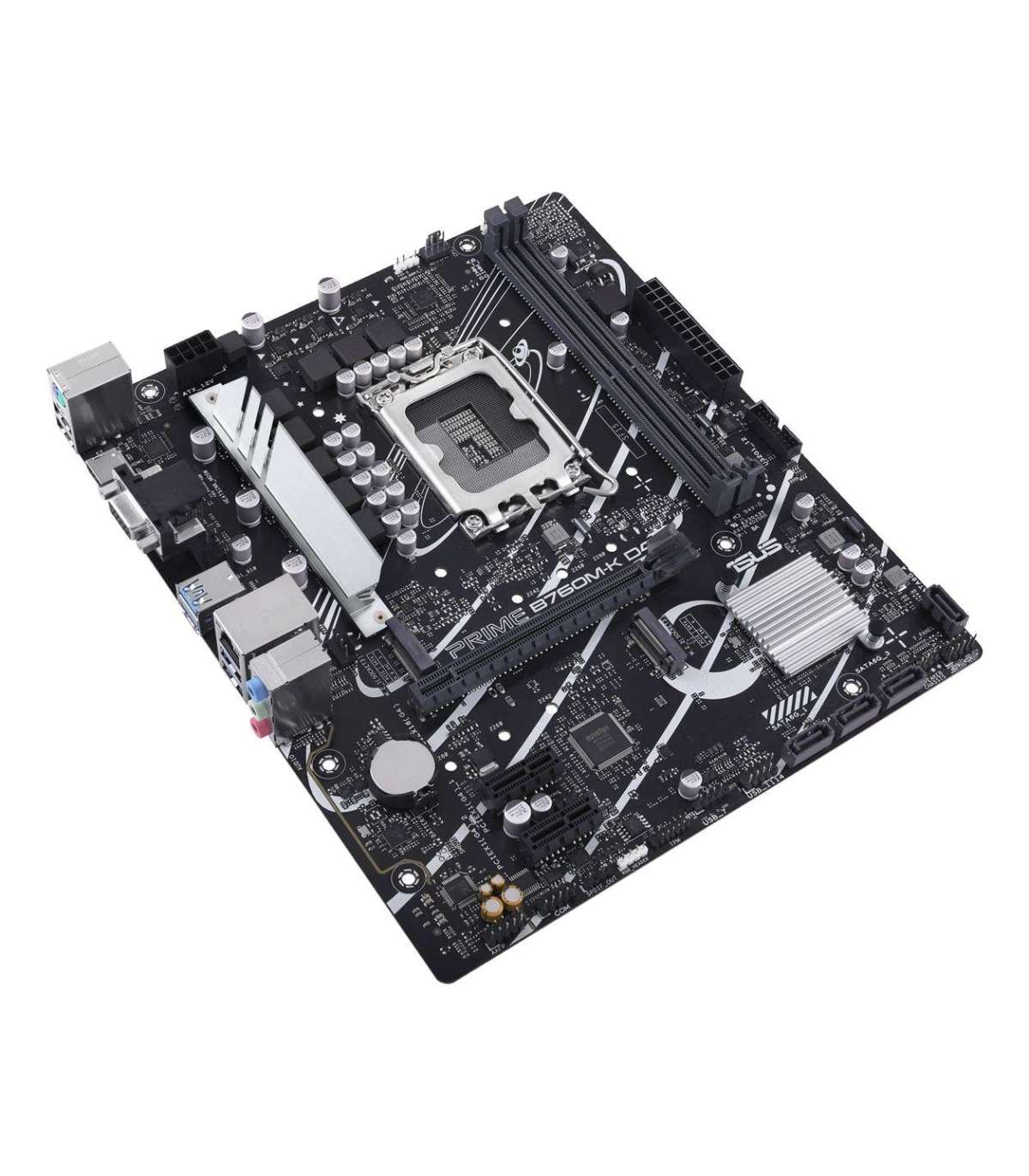

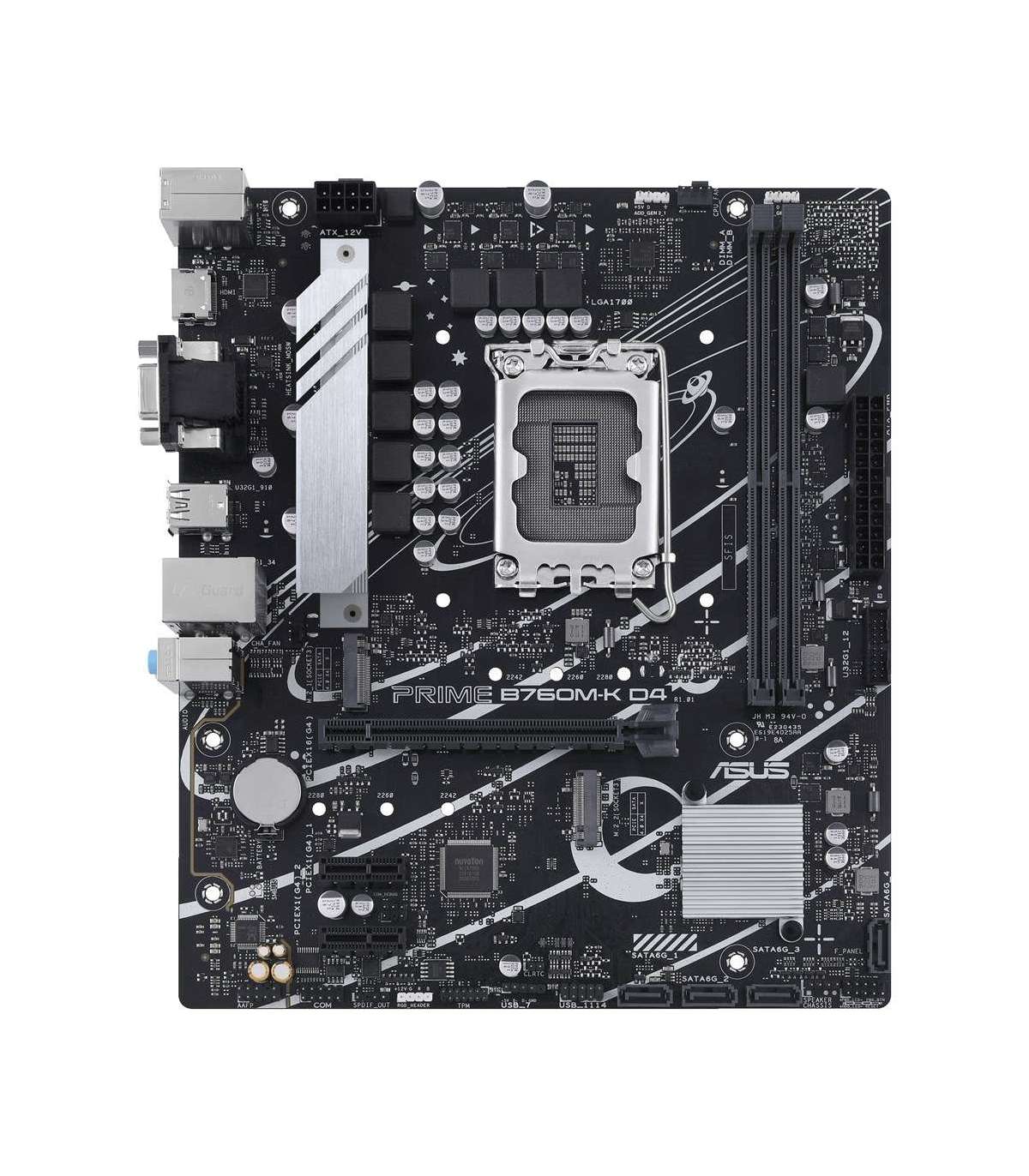

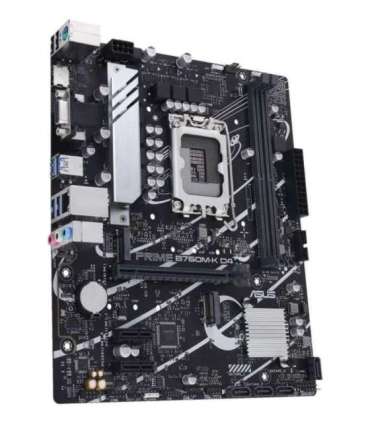

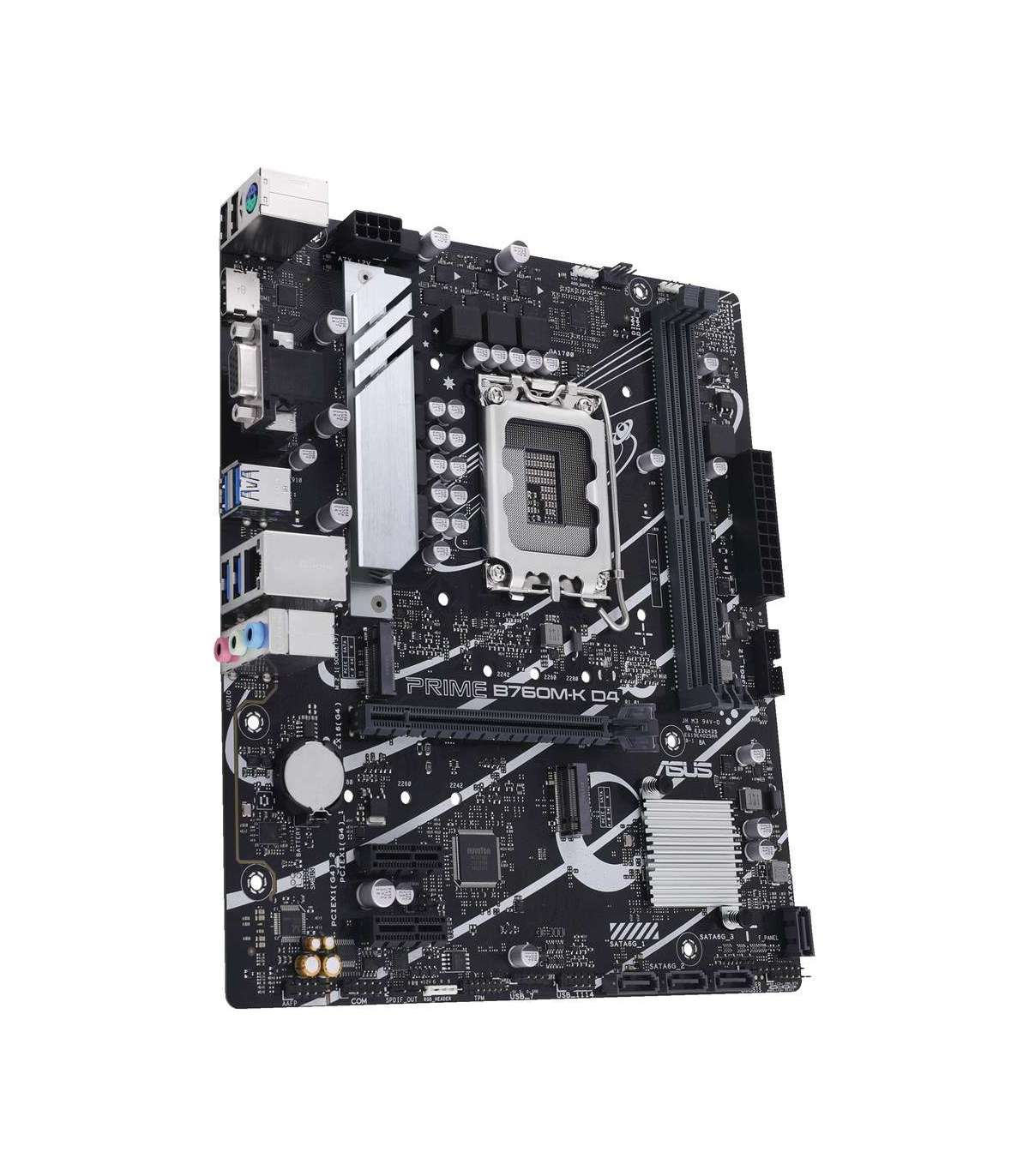

ASUS Prime B760M-K D4 Intel B760 LGA 1700 micro ATX motherboard

Lisainfo

Depth

211 mm

Kaal

528 g

Kõrgus

36 mm

Laius

244 mm

Package weight

926.3 g

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11

Package width

270 mm

Package depth

51.5 mm

Package height

263 mm

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wake-on-LAN ready

Yes

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A

Maximum internal memory

64 GB

Motherboard chipset

Intel B760

HDMI ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666
2800
2933
3000
3200
3333
3400
3466
3600
3733
4000
4266
4400 MHz
4600
4800
5000
5066
5333 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Number of chassis fan connectors

1

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

Microphone in

Yes

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

5333 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

6

RAID support

Yes

S/PDIF out connector

Yes

PCI Express x1 (Gen 4.x) slots

2
