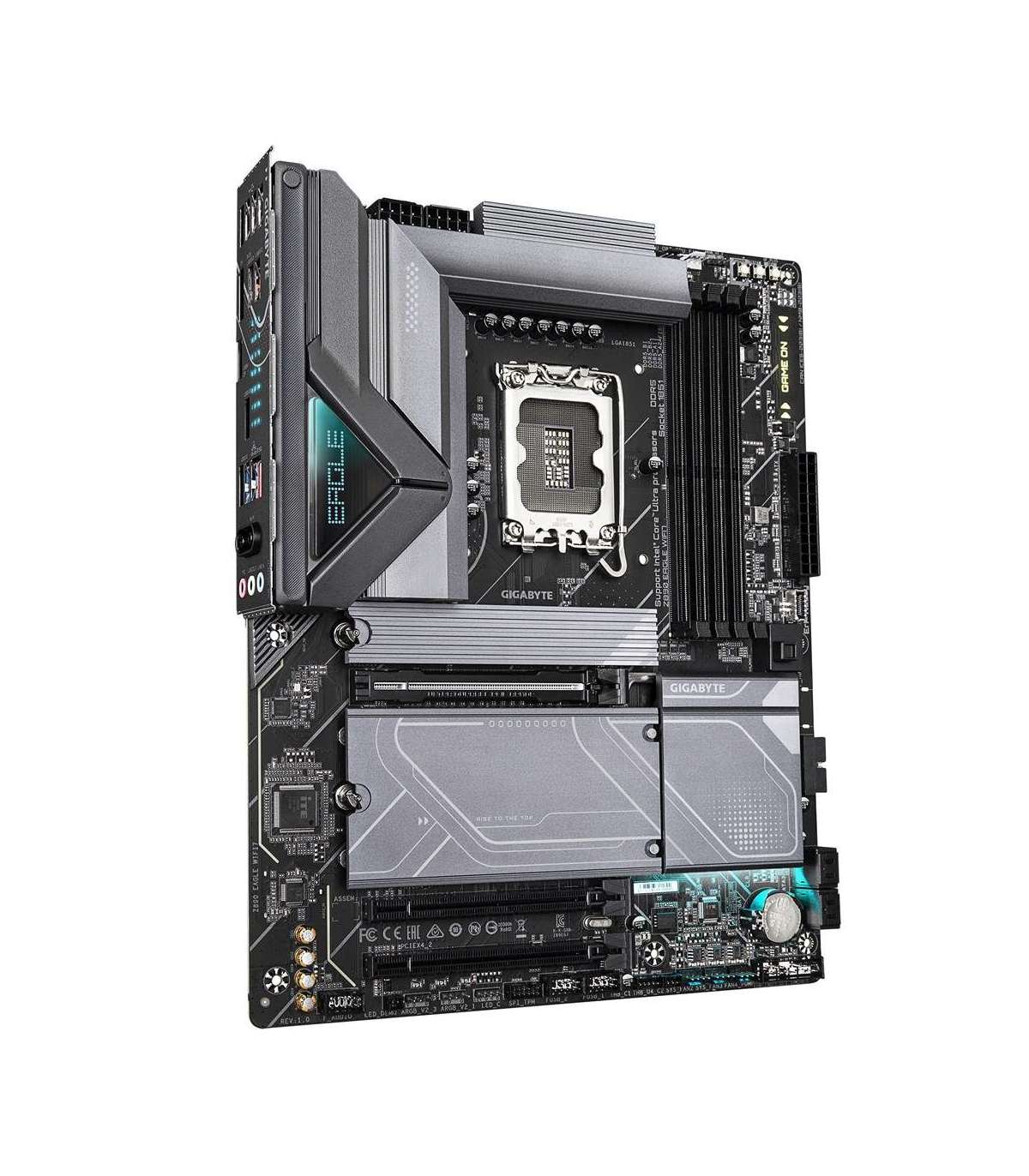

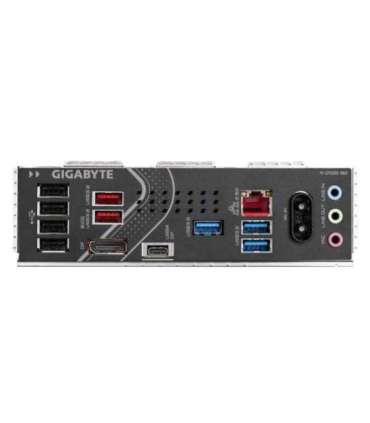

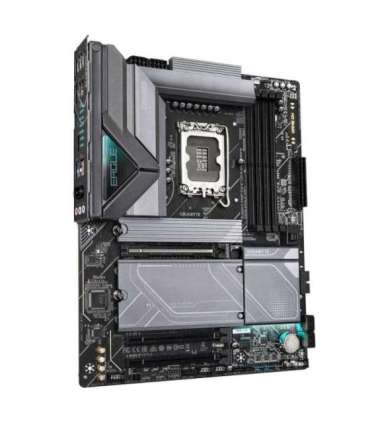

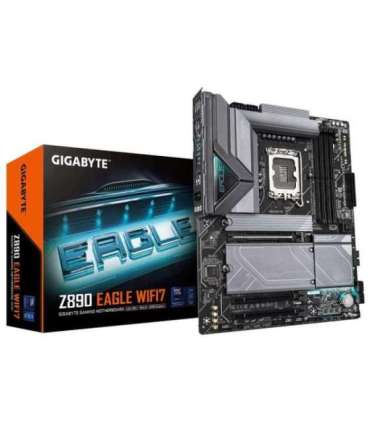

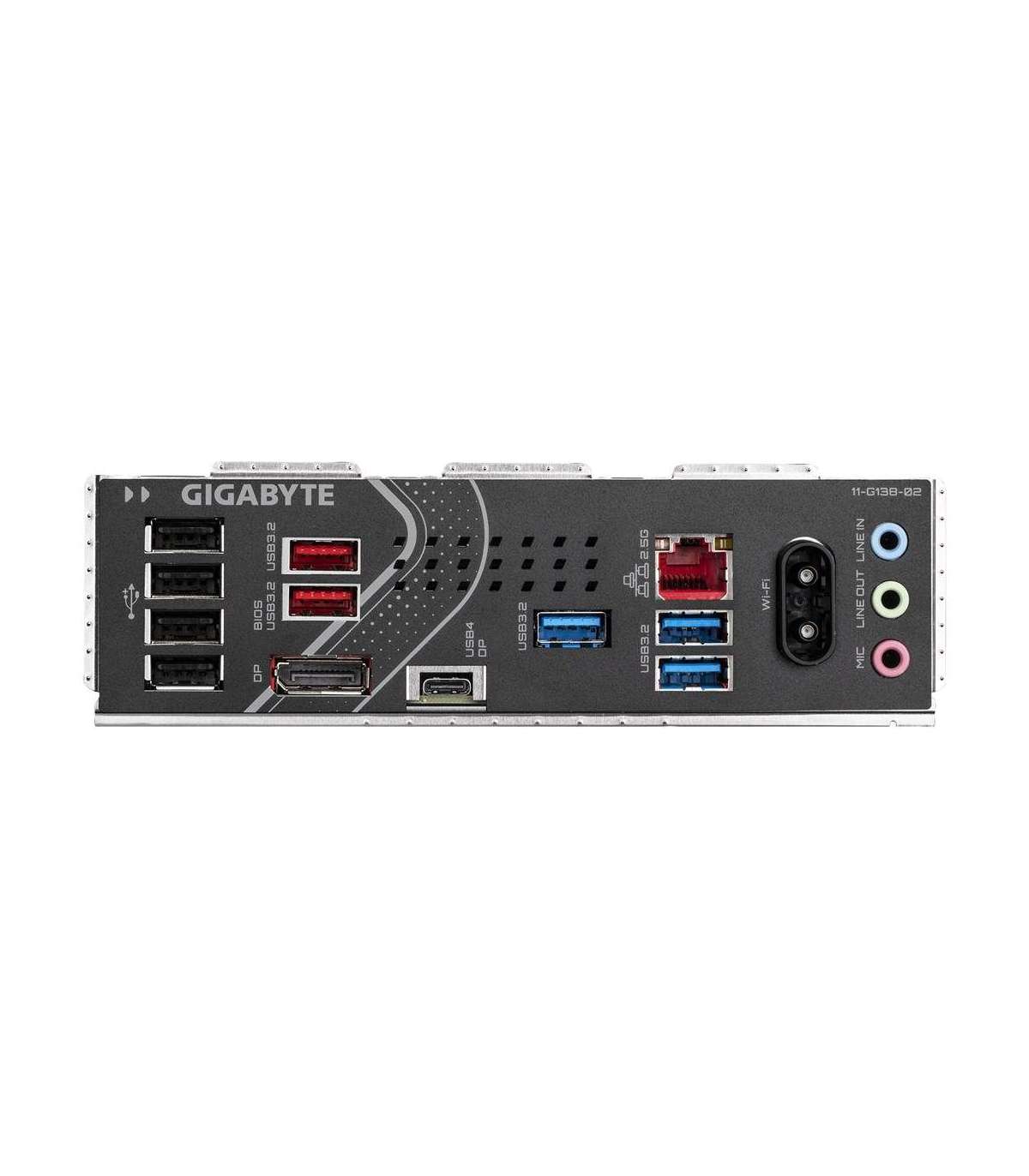

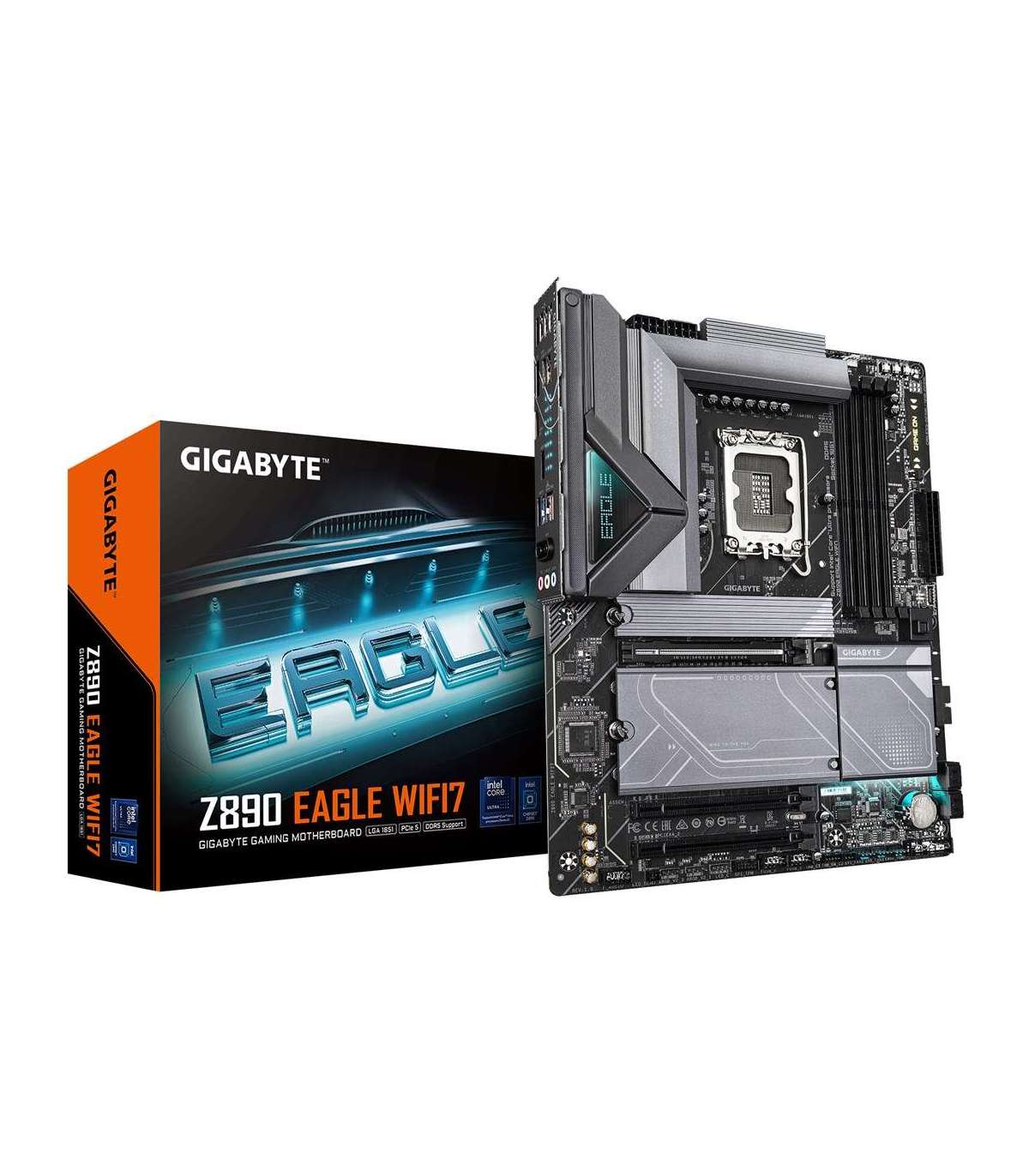

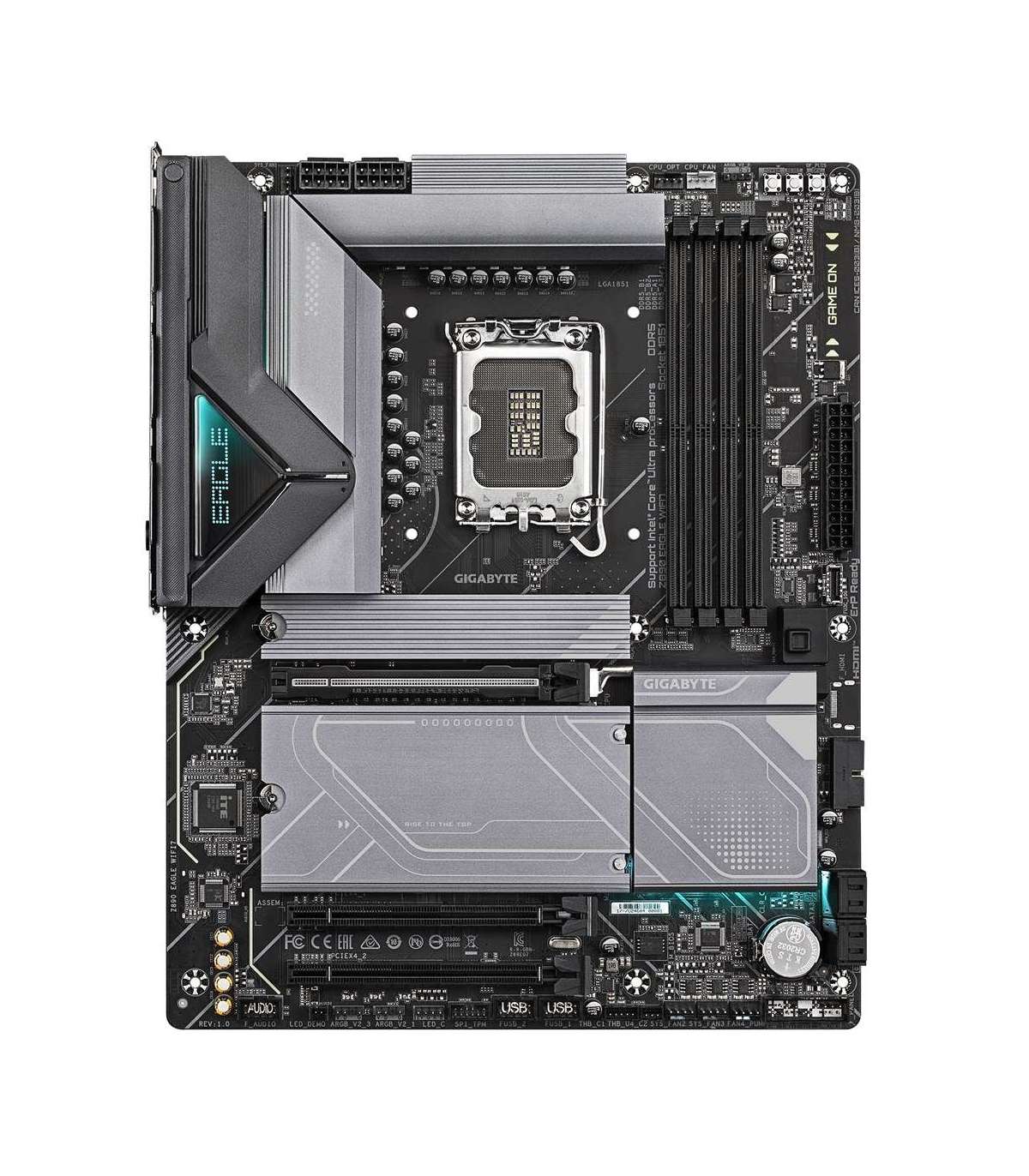

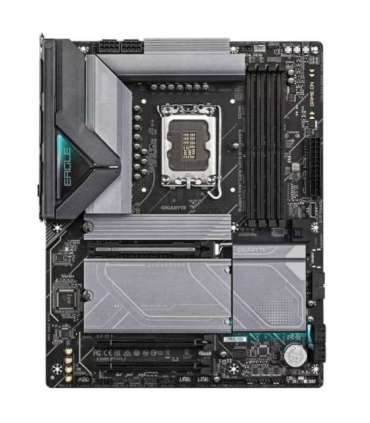

GIGABYTE Z890 EAGLE WIFI7 Motherboard

Lisainfo

Depth

244 mm

Kaal

1.78 kg

Kõrgus

35 mm

Laius

305 mm

Package weight

2.02 kg

Product colour

Must

Ethernet LAN

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11 x64

Package width

335 mm

Package depth

270 mm

Package height

80 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Maximum internal memory

256 GB

Country of origin

China

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

Intel Z890

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Number of battery cells

1

Memory channels

Dual-channel

WLAN controller model

MediaTek MT7925

Battery weight

3 g

Audio chip

Realtek ALC1220

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Warranty period

3 year(s)

USB 2.0 connectors

2

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

5600
5800
6000
6200
6400
6600 MHz
6800
7000 MHz
7200
7400
7600 MHz
7800 MHz
7900
7950
8000
8266
8400 MHz
8600

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

8

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

Non-ECC

PC health monitoring

Fan
Temperature
Voltage

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

2

S/PDIF out port

Yes

Number of M.2 (M) slots

4

Supported processor sockets

LGA 1851

Supported memory clock speed (max)

8800 MHz

EPS power connector (8-pin)

Yes

Desktop Management Interface (DMI) version

2.7

Batteries included

Yes

Number of storage drives supported

4

RAID support

Yes

PCI Express x16 slots

1

Battery type

CR2032

Lithium weight per battery

0.07 g

Products per shipping (inner) case

1 pc(s)

DirectX version

12.0

Supported memory module capacities

1GB
2GB
4GB
8GB
12GB
16GB
24GB
32GB
40GB
48GB
64GB

Total number of SATA connectors

4

Maximum internal memory supported by processor

256 GB

Clear CMOS button

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Thunderbolt ports quantity

2
