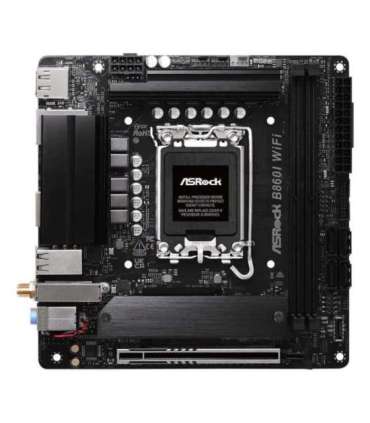

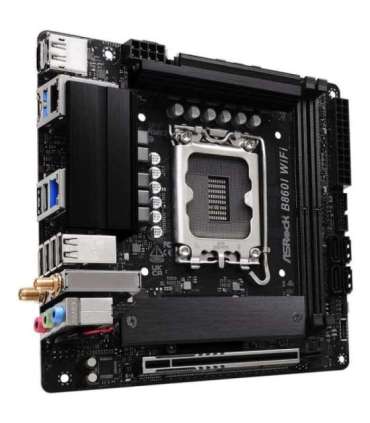

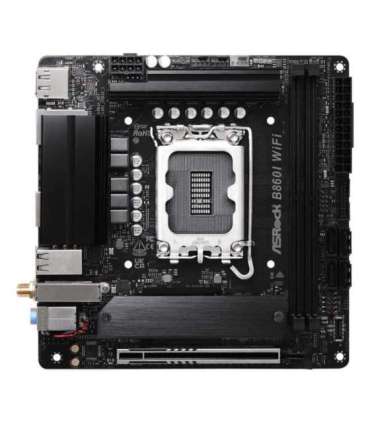

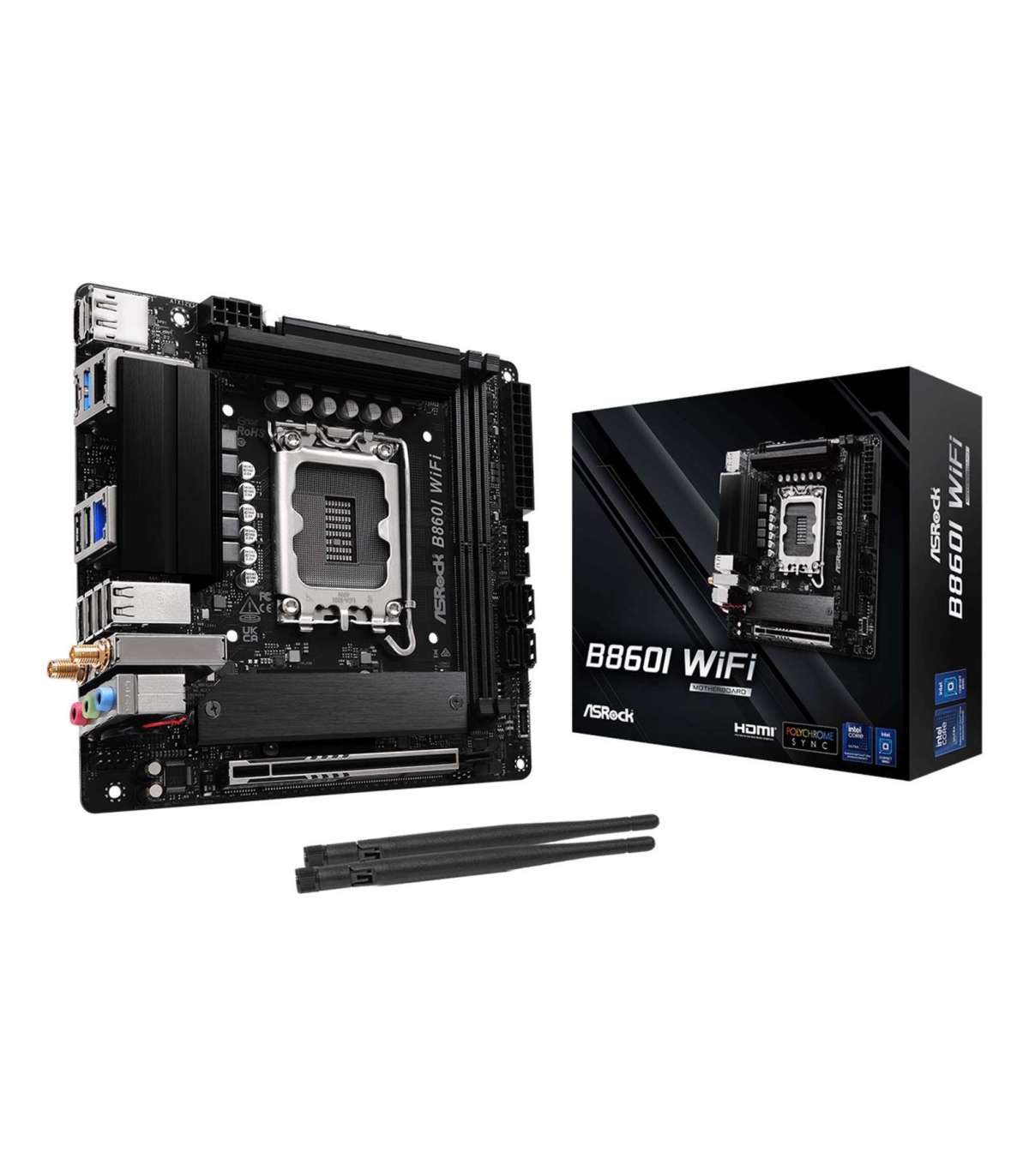

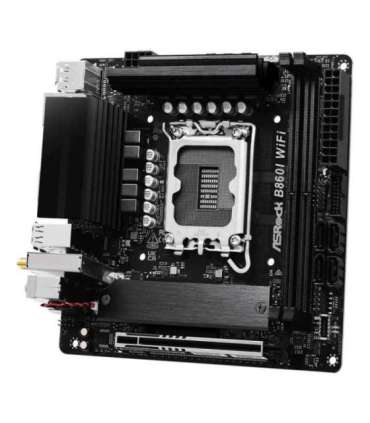

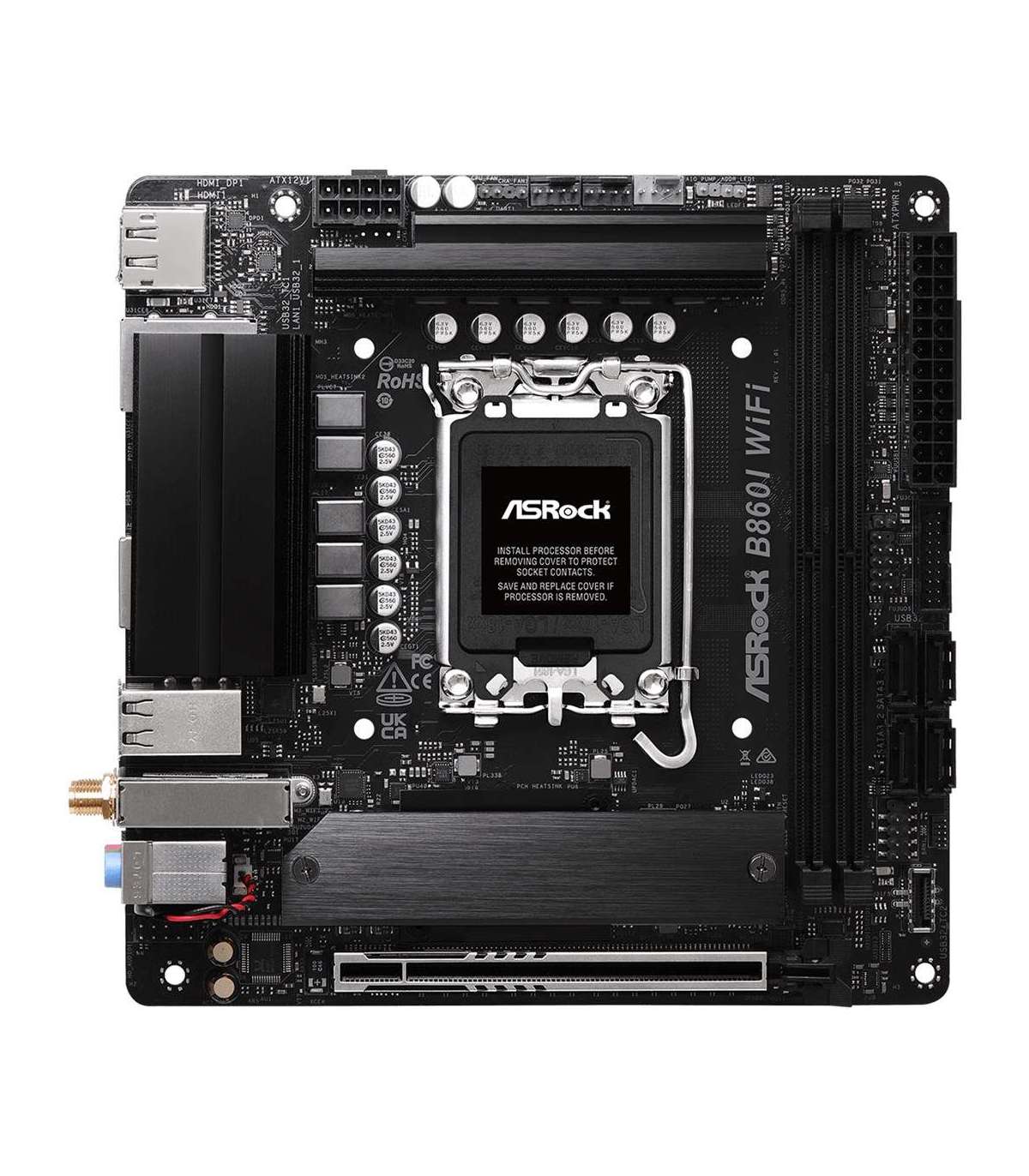

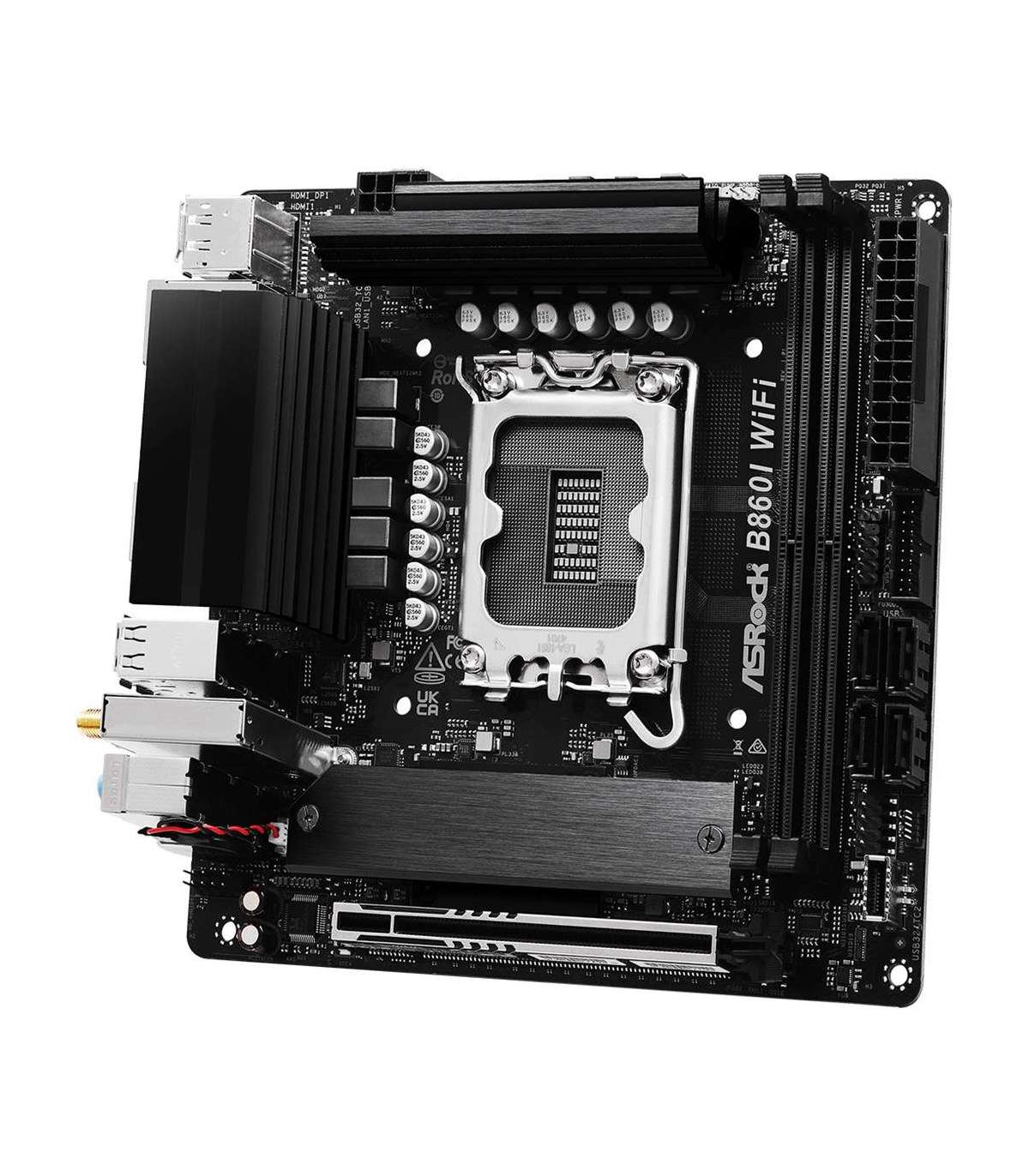

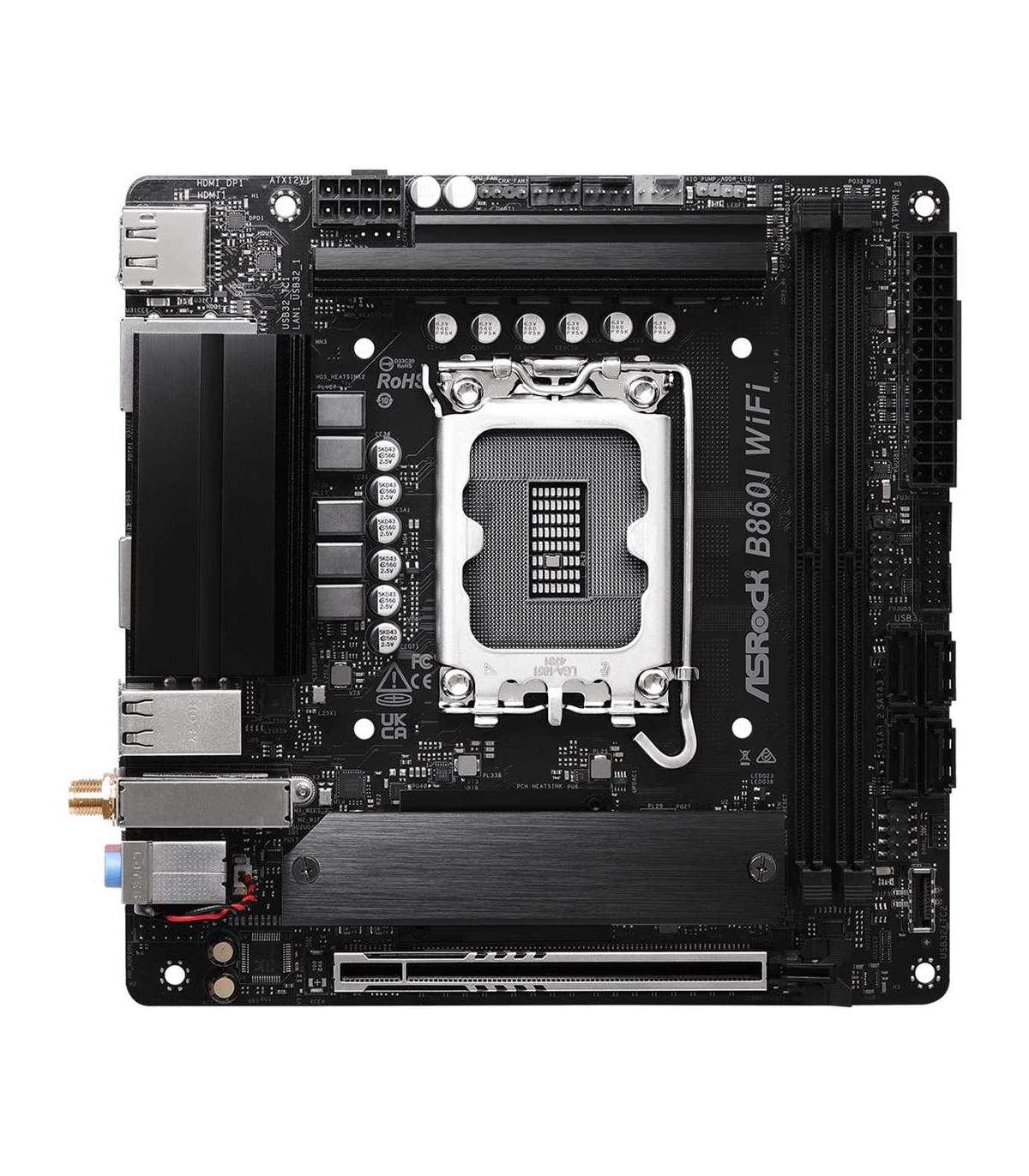

Asrock B860I WiFi Intel B860 LGA 1851 (Socket V1) mini ITX

Lisainfo

Depth

170 mm

Laius

170 mm

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 11 x64

Warnings

Do not open or modify the motherboard to prevent damage.
In case of installation problems, contact a qualified service technician.
When disposing of the product, follow local regulations for the recycling of electronics.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

Yes

Maximum internal memory

128 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

Intel B860

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

1

Graphics card family

Intel

Processor socket

LGA 1851 (Socket V1)

Motherboard form factor

mini ITX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Number of chassis fan connectors

1

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

RGB LED pin header

Yes

RAID levels

0
1
5
10

DisplayPorts quantity

1

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

RAID support

Yes

Line-in

Yes

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

1

Screws included

Yes

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1
