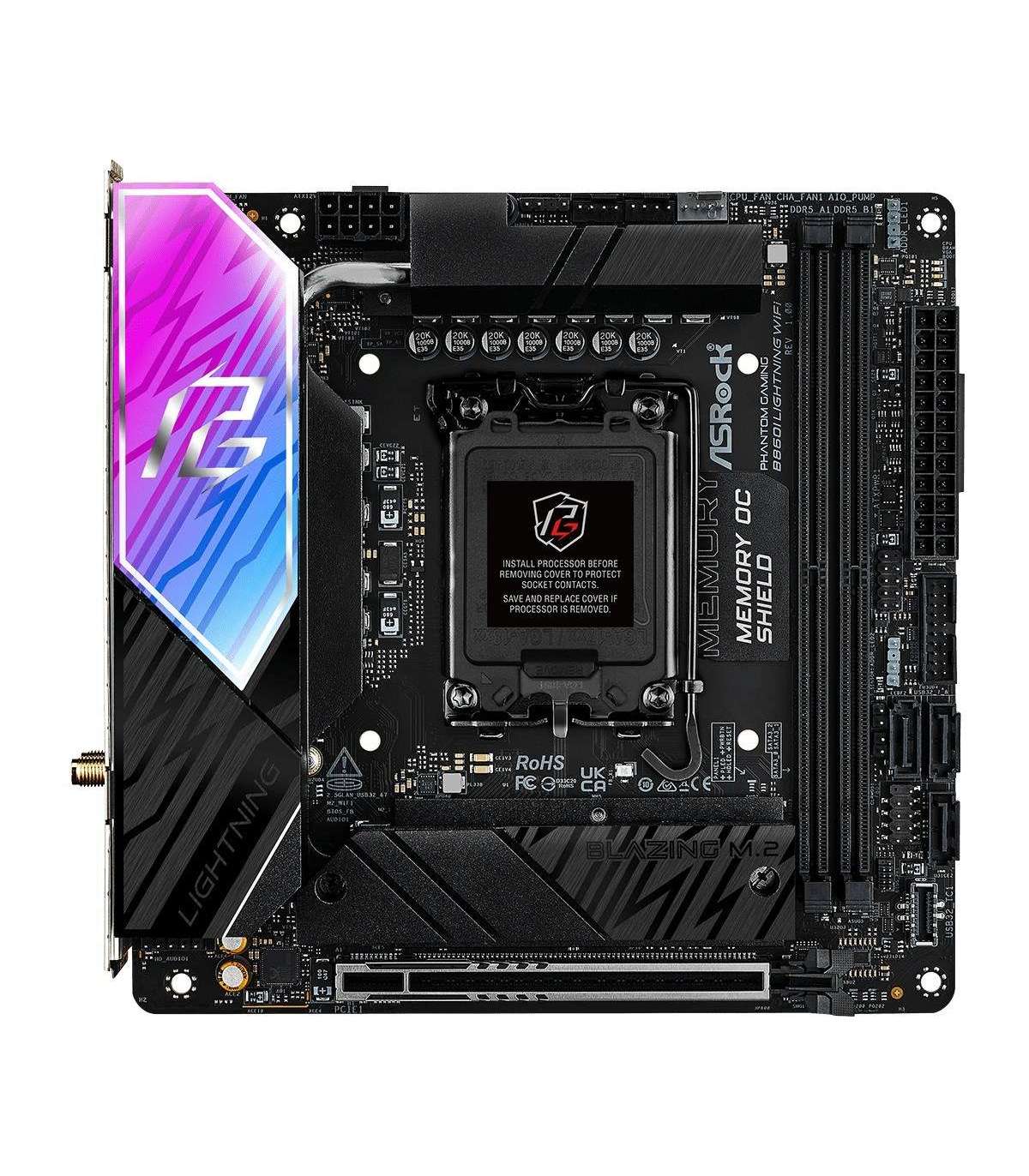

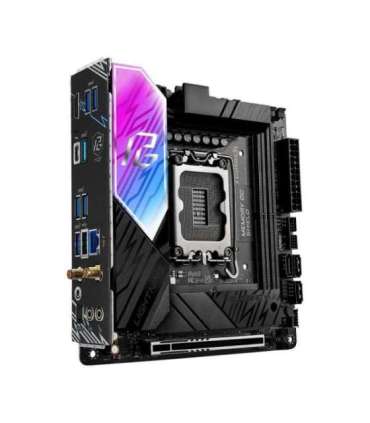

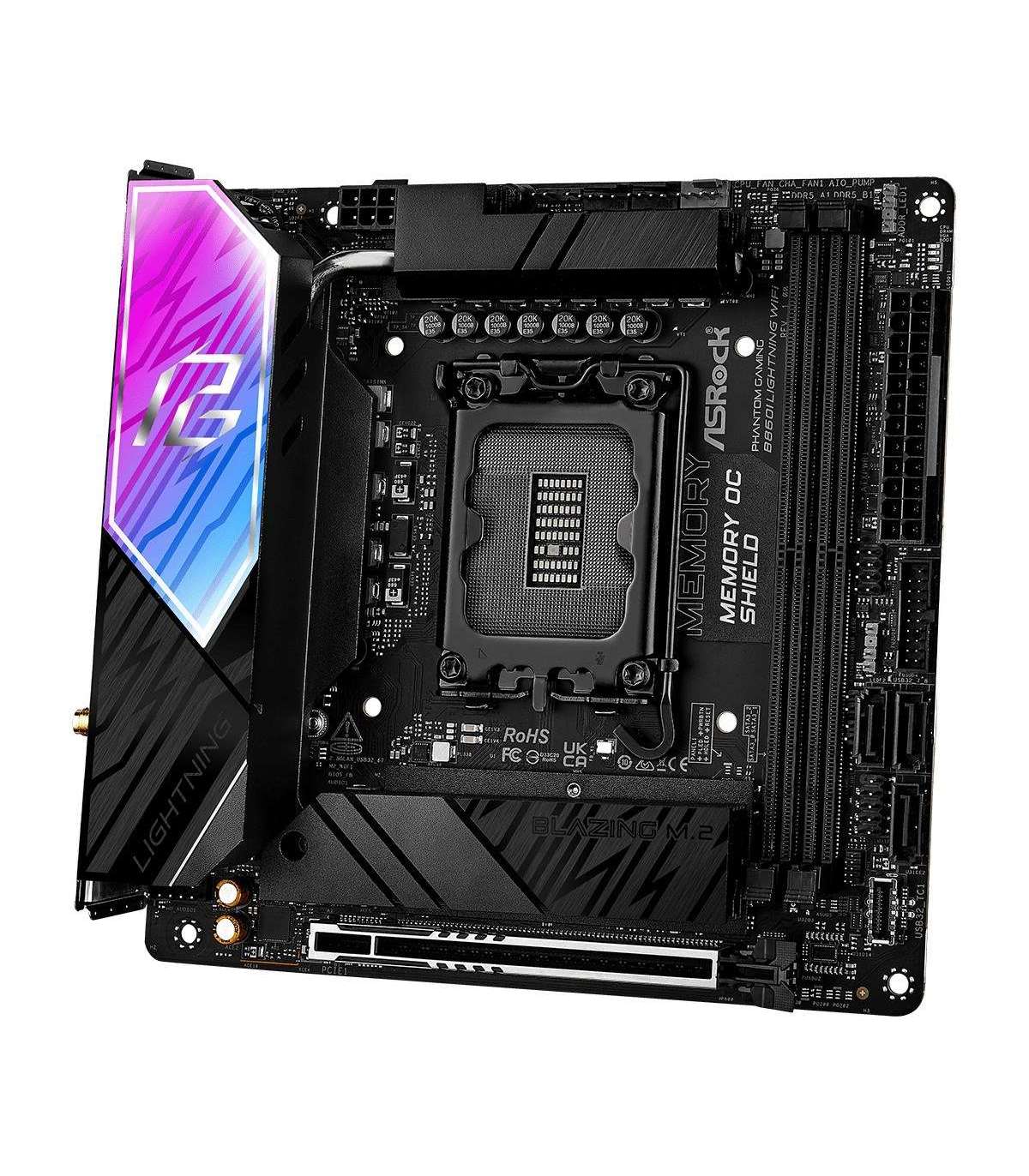

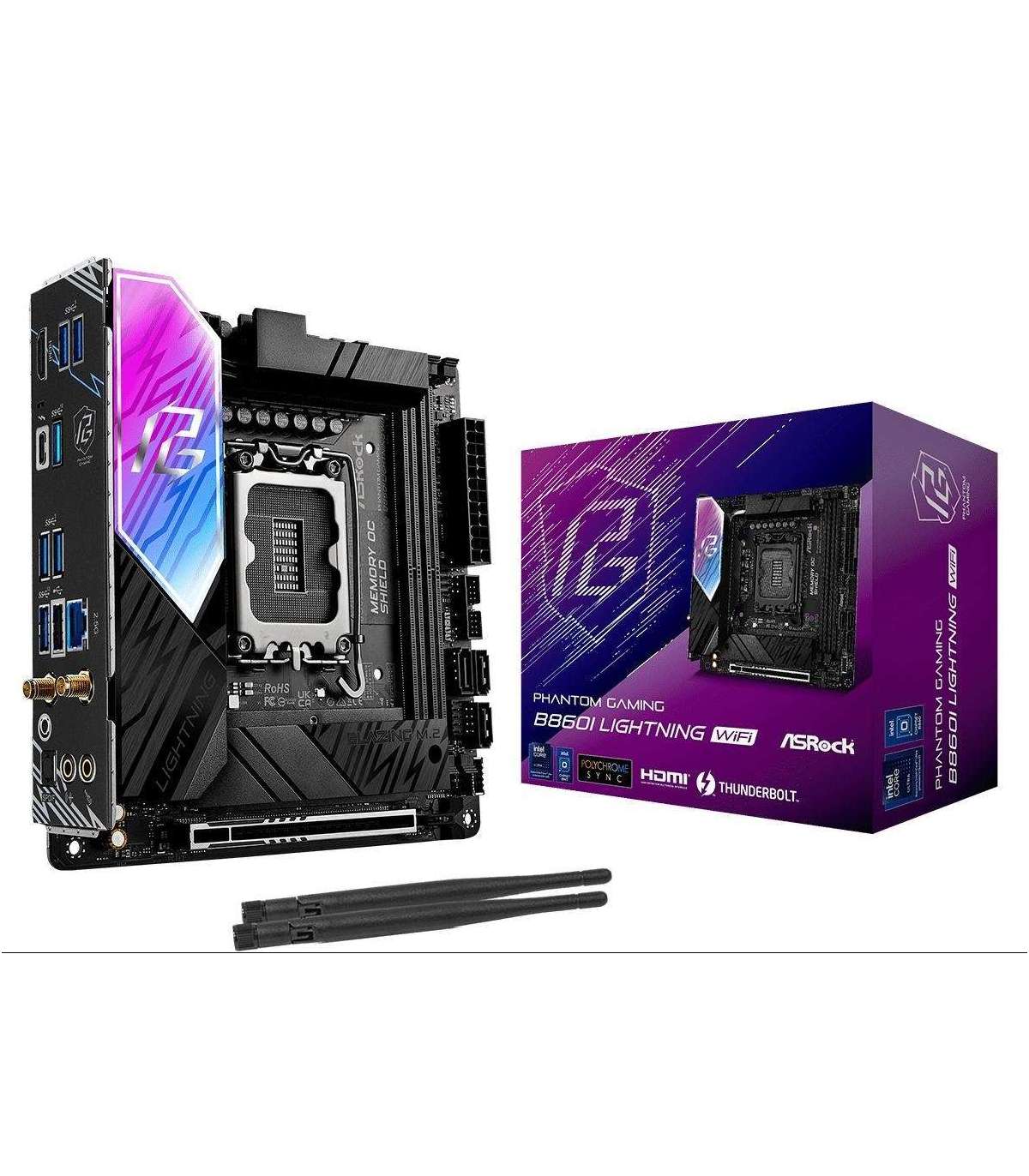

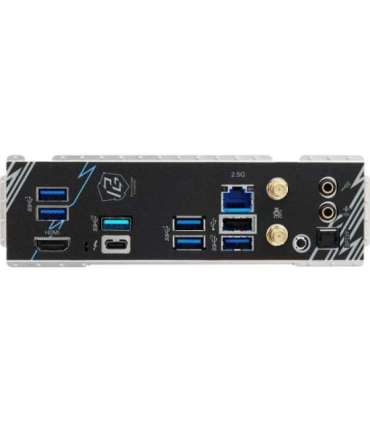

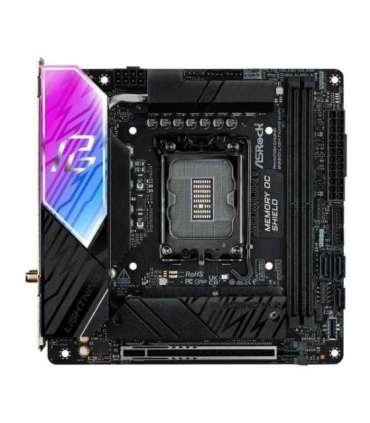

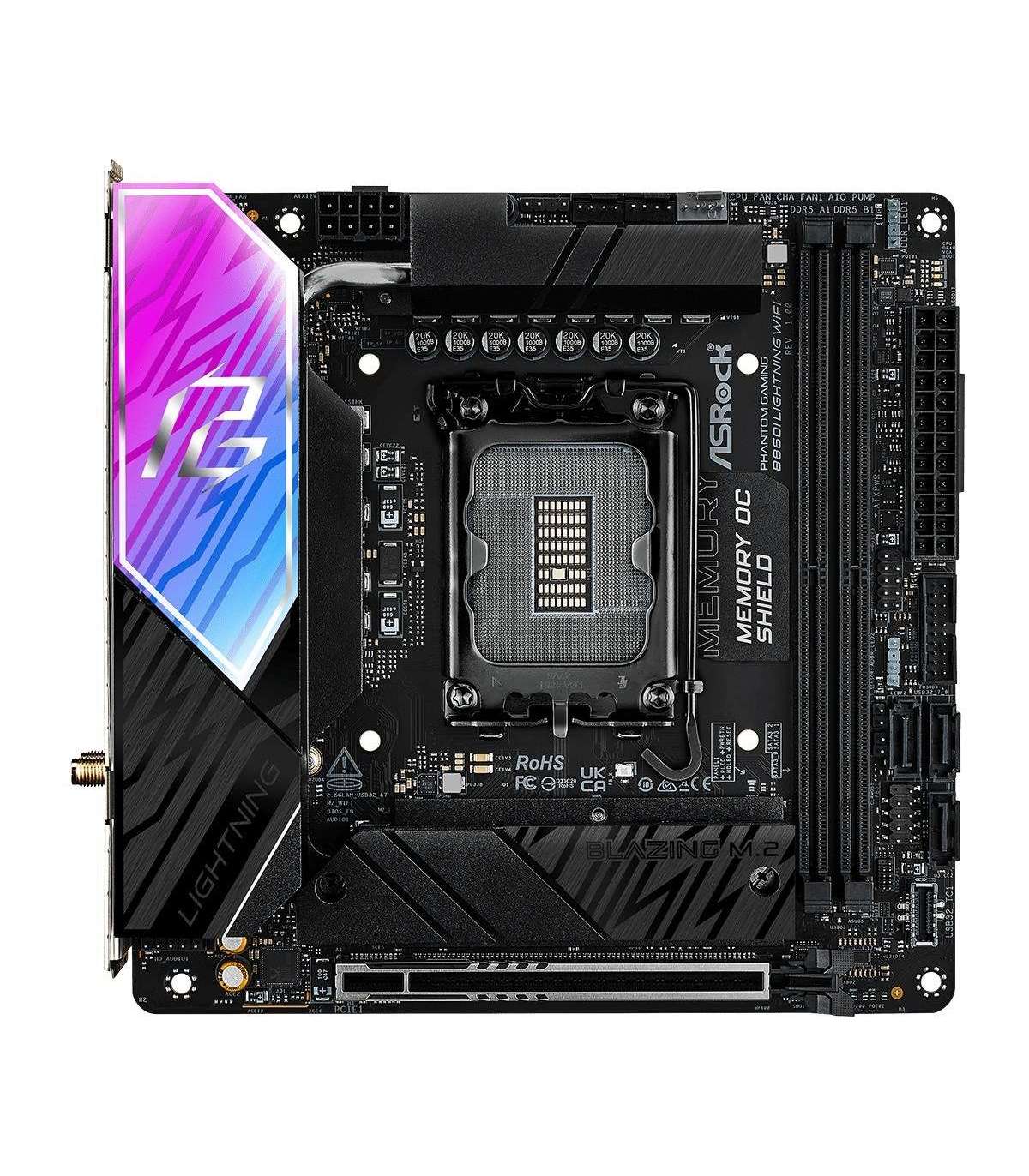

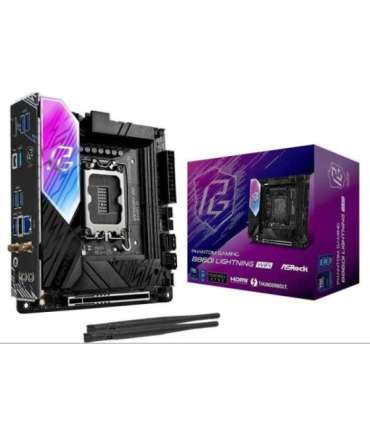

ASRock B860I Lightning WiFi Motherboard

Lisainfo

Depth

170 mm

Laius

170 mm

Product colour

Valge

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11axe)

Ethernet LAN (RJ-45) ports

1

Antennas quantity

2

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Windows operating systems supported

Windows 11 x64

Warnings

Do not open or modify the motherboard to prevent damage.
In case of installation problems, contact a qualified service technician.
When disposing of the product, follow local regulations for the recycling of electronics.

Certification

FCC, CE, ErP/EuP

USB 2.0 ports quantity

1

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A
USB Type-C

On-board graphics card family

Intel Iris Xe Graphics

Maximum internal memory

128 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

Intel B860

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC1220

USB 2.0 connectors

2

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

Mini-ITX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Number of chassis fan connectors

1

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

ECC сompatibility

Non-ECC

Maximum resolution

7680 x 4320 pixels

Number of SATA III connectors

3

12V power connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

Supported processor sockets

LGA 1851

HDCP

Yes

Number of storage drives supported

5

RAID support

Yes

Number of CPU fan connectors

1

Number of water pump connectors

1

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

PCI Express x16 (Gen 5.x) slots

1

Number of USB 3.2 Gen 2 Type-C ports

1

MU-MIMO

Yes

MIC input

1

Number of USB 3.2 Gen 1 ports

4

Thunderbolt ports quantity

1

Flashback BIOS button

Yes
