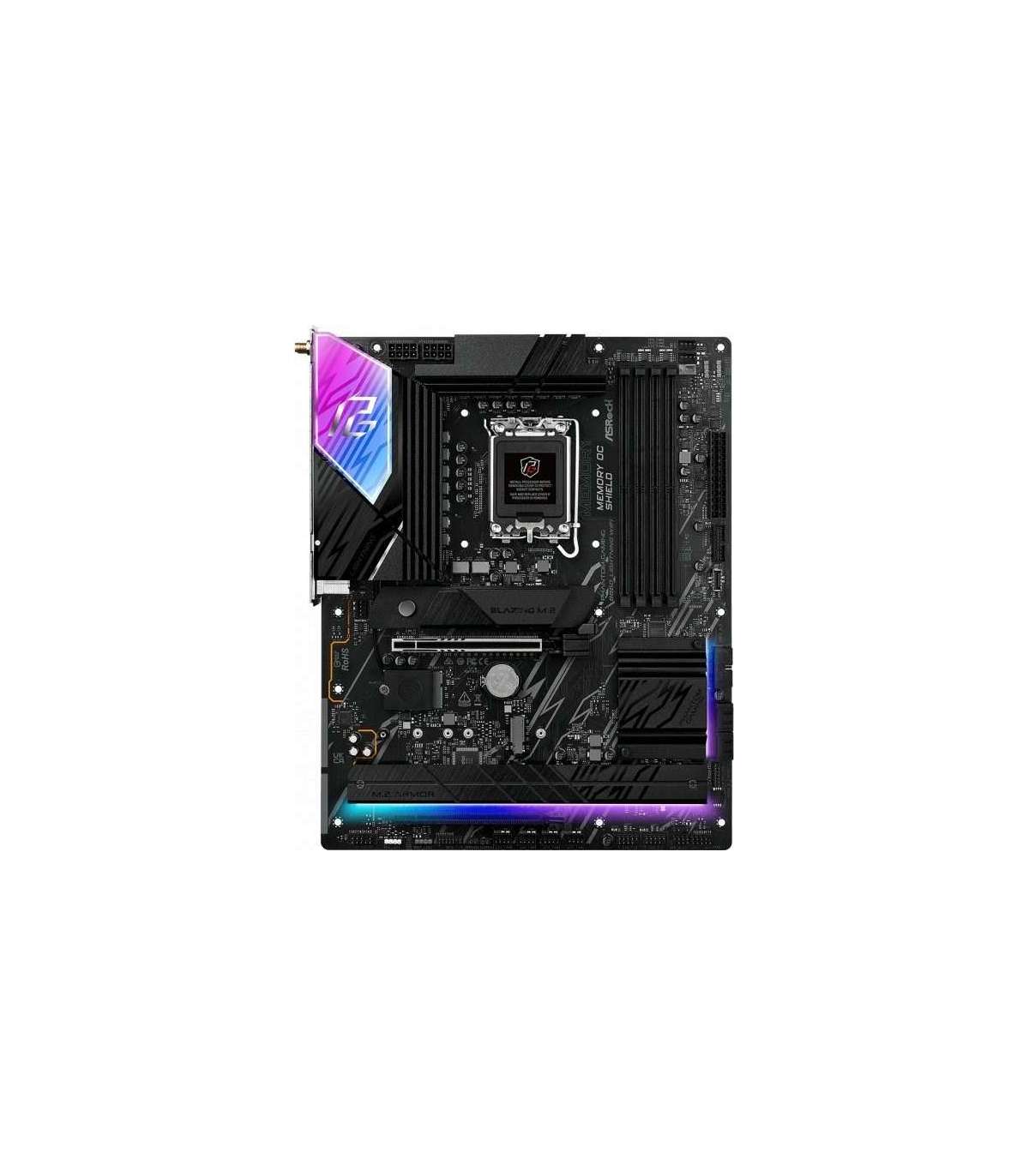

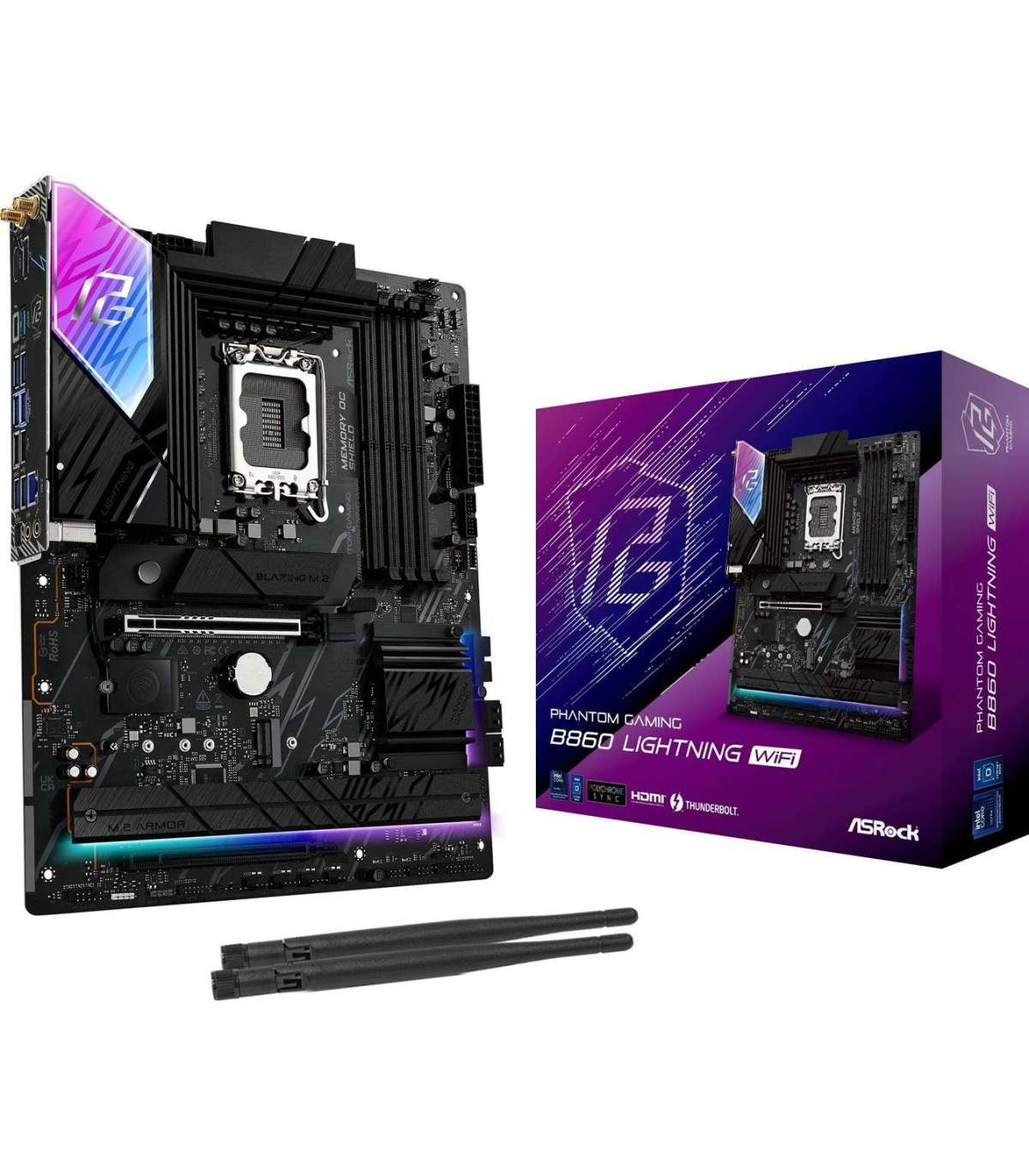

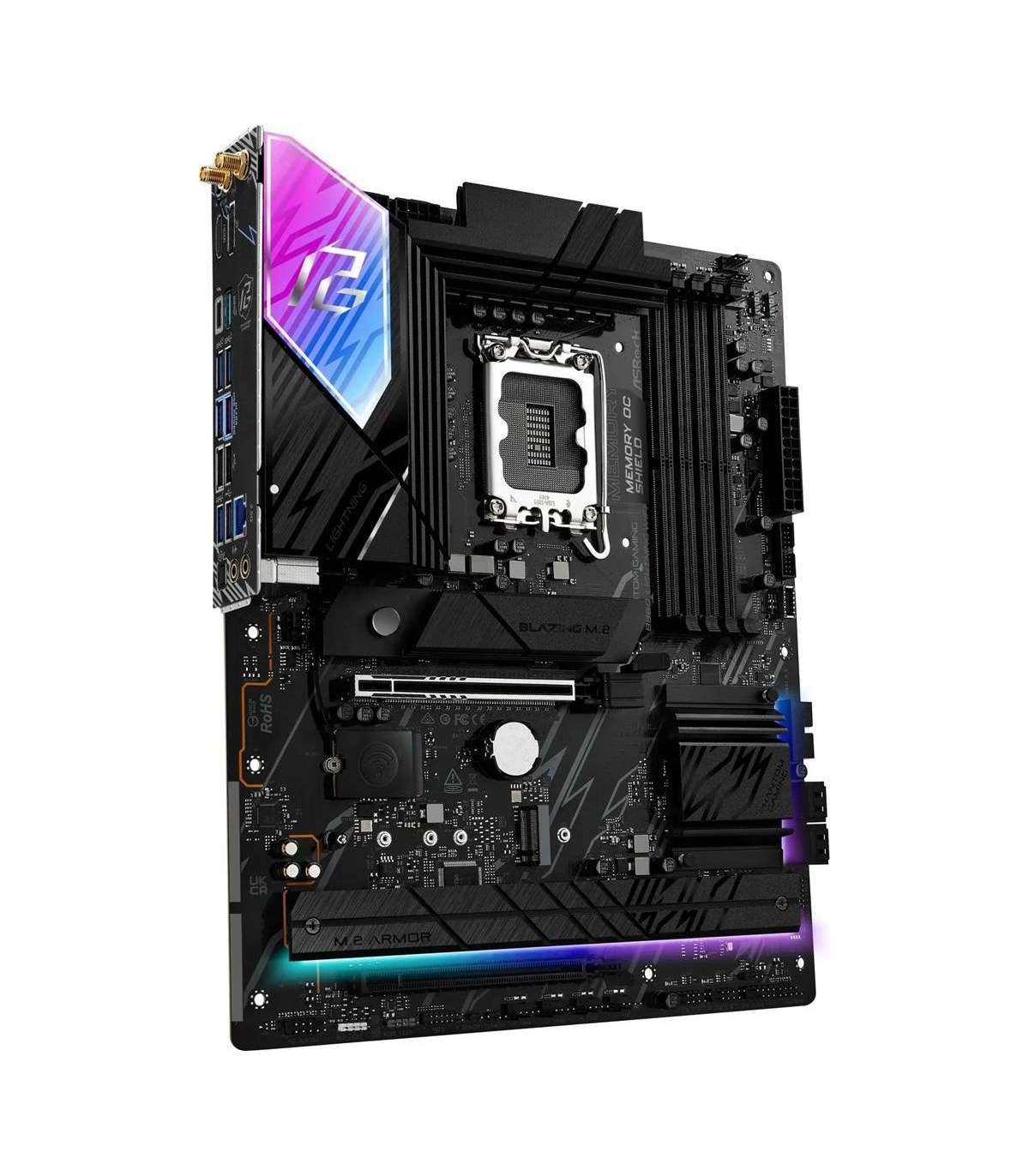

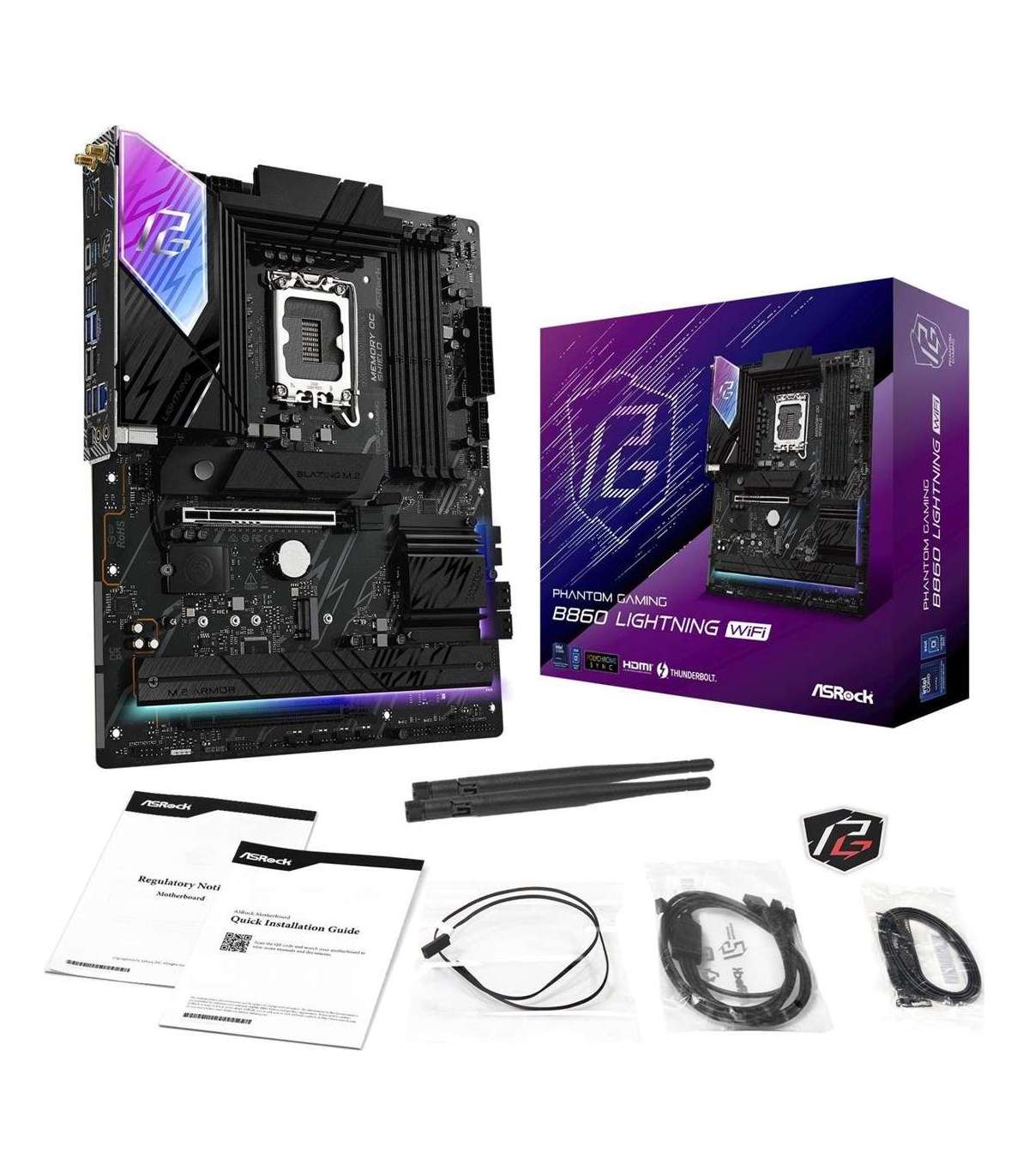

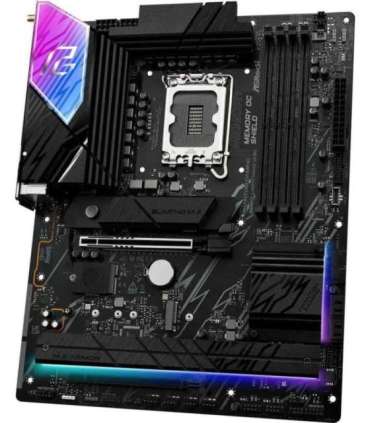

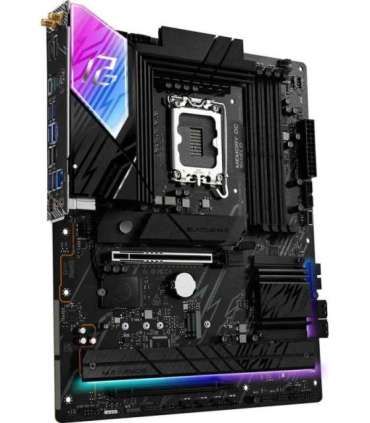

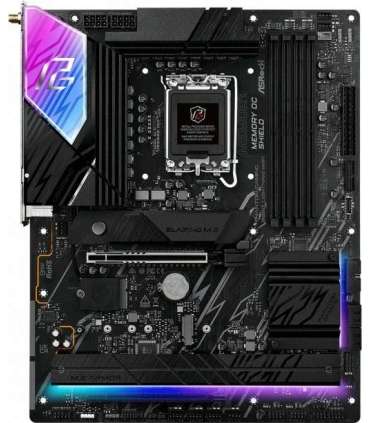

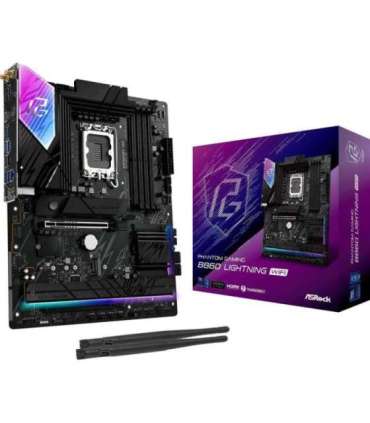

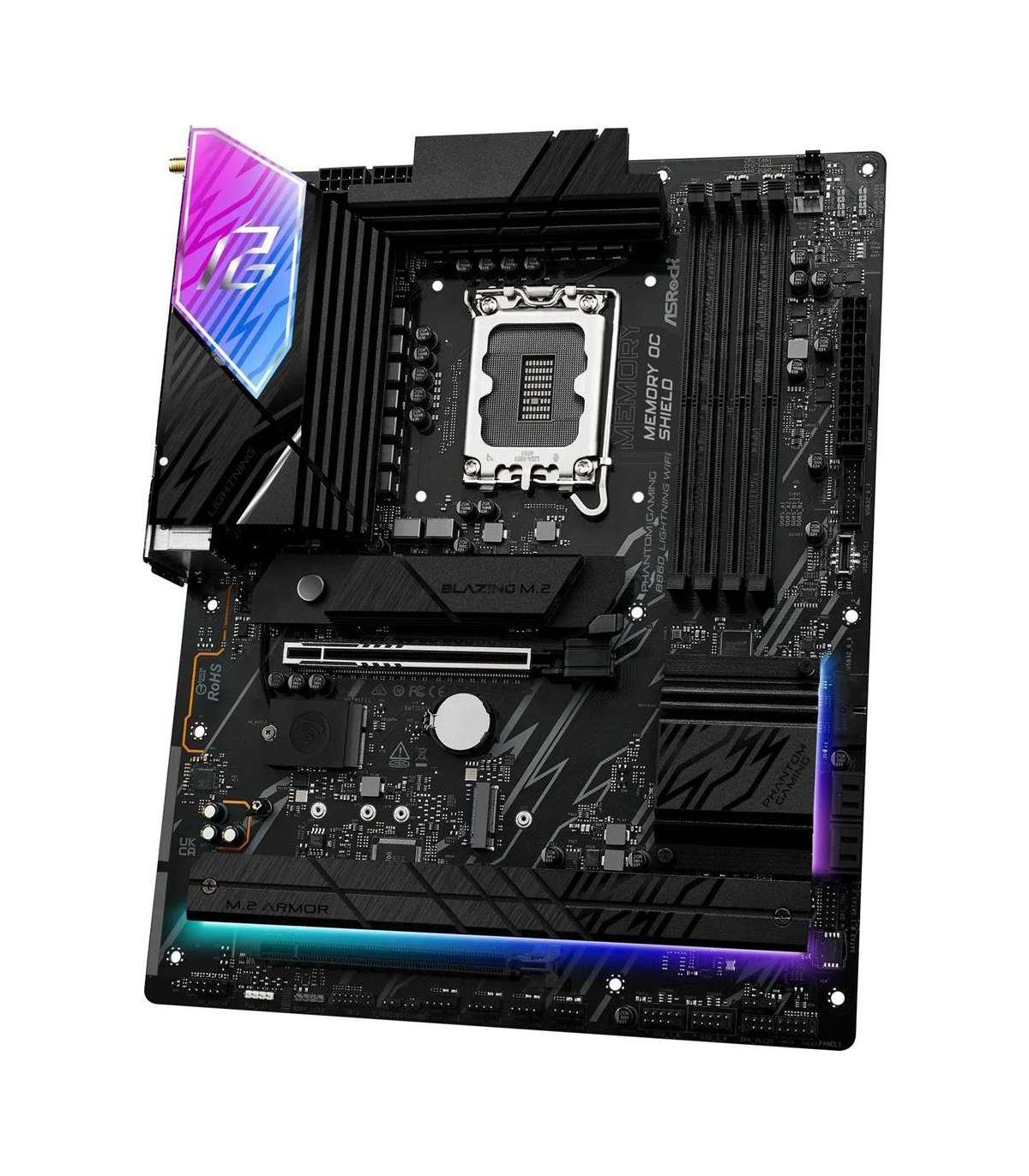

Motherboard - ASRock B860 Lightning WiFi

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Wi-Fi standards

802.11 axe
802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11axe)

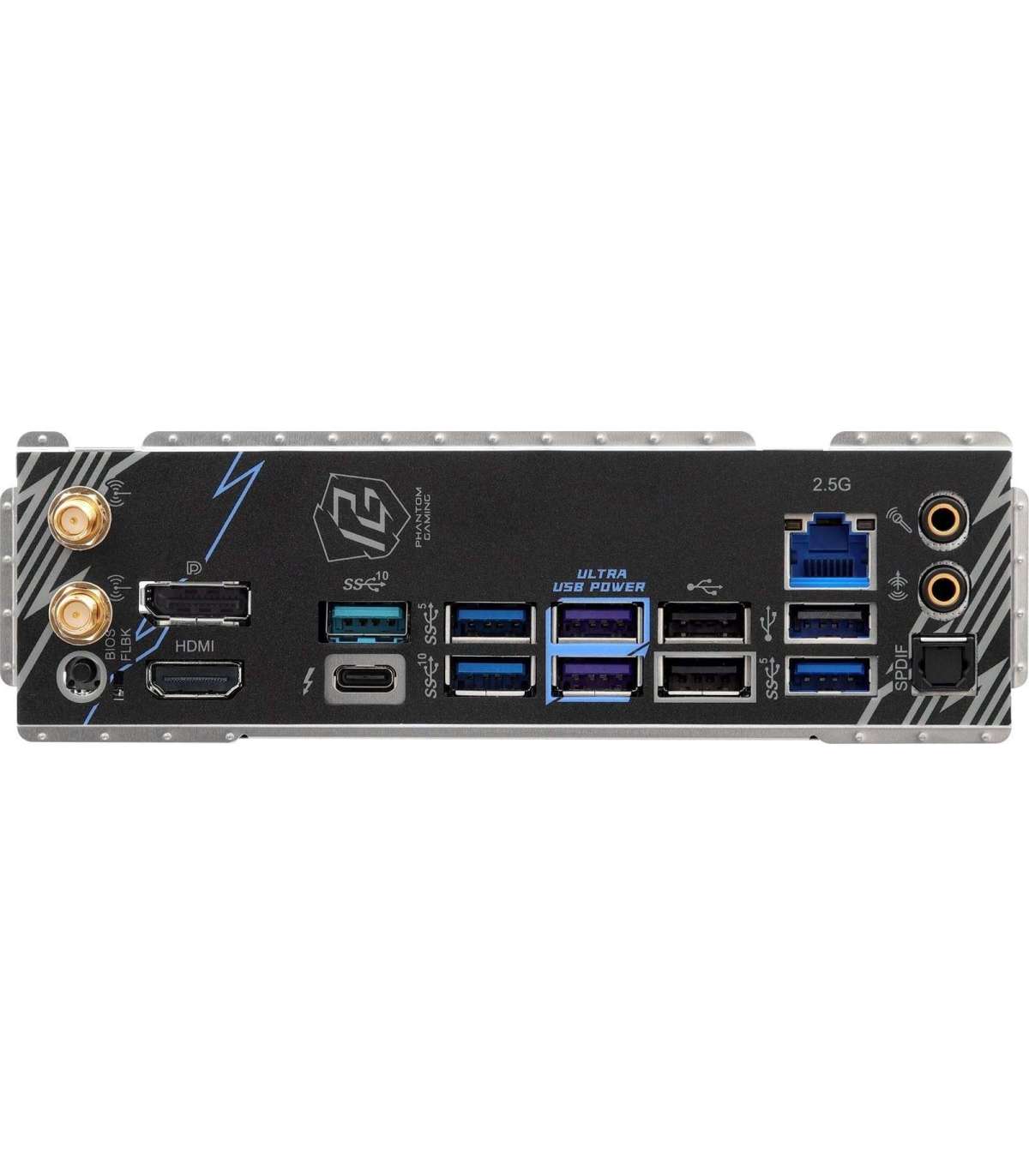

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

256 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

Intel B860

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

Operating system architecture

64-bit

Audio chip

Realtek ALC1220

Thunderbolt 4 ports quantity

1

USB 2.0 connectors

2

Processor socket

LGA1851

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Killer E3100G

Number of chassis fan connectors

5

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Microphone in

Yes

Maximum number of SMP processors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

DisplayPorts quantity

1

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

DisplayPort version

1.4

PCI Express x16 (Gen 5.x) slots

1

Line-out

Yes

Number of Wi-Fi antenna ports

2

Number of USB 2.0 Type-A ports

3

MU-MIMO

Yes

Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports

1
