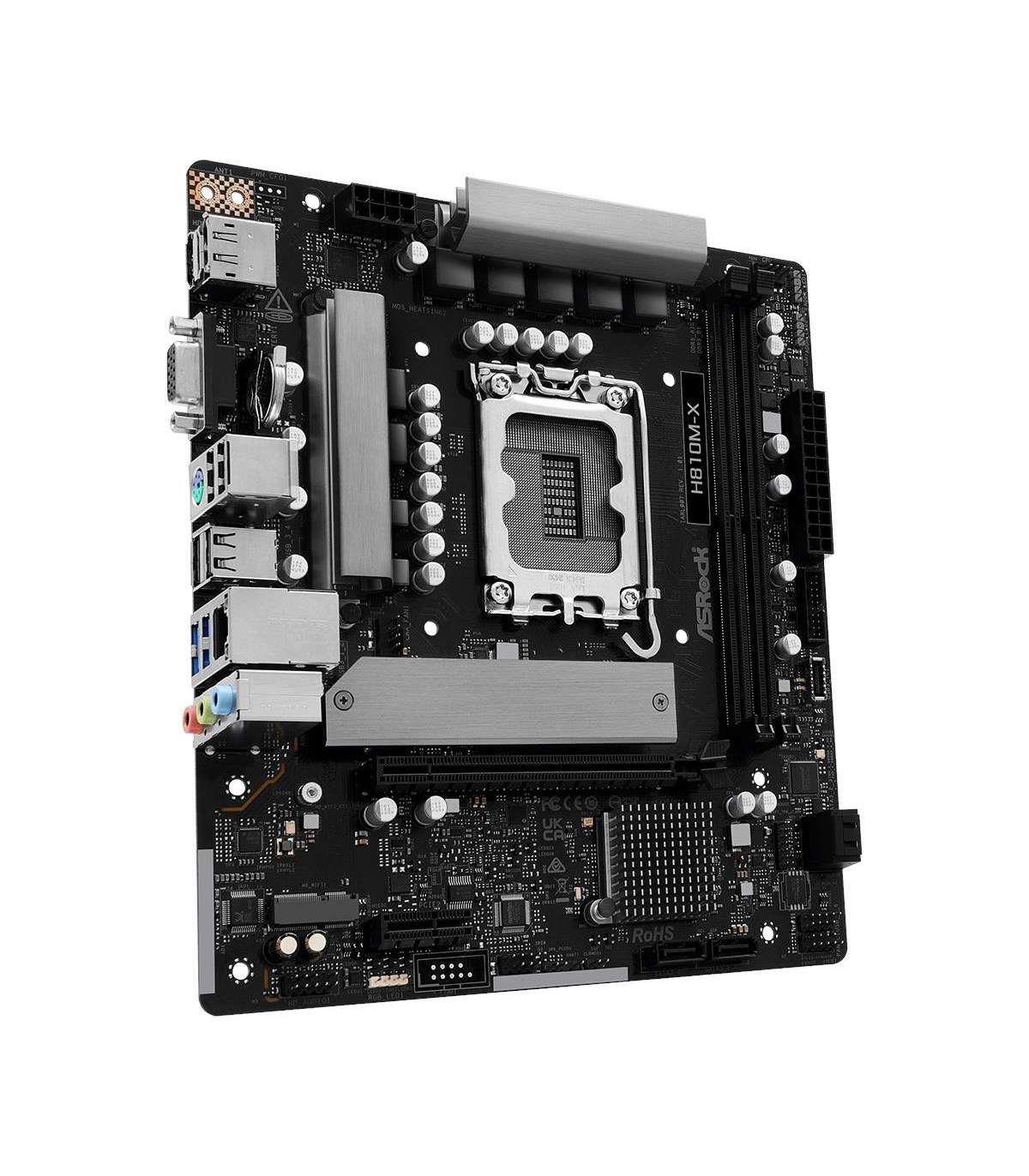

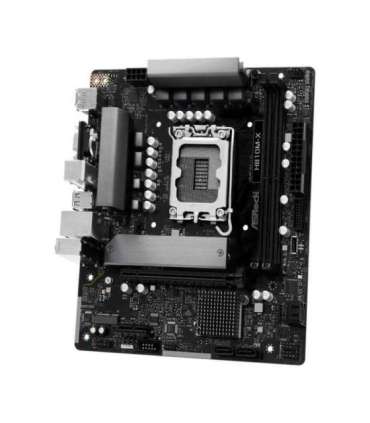

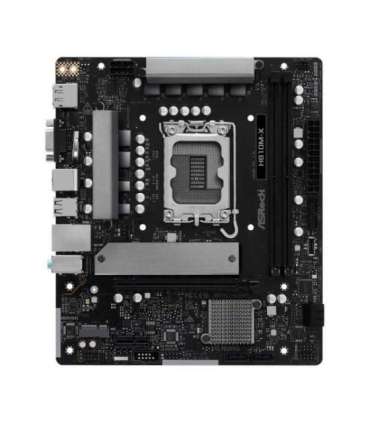

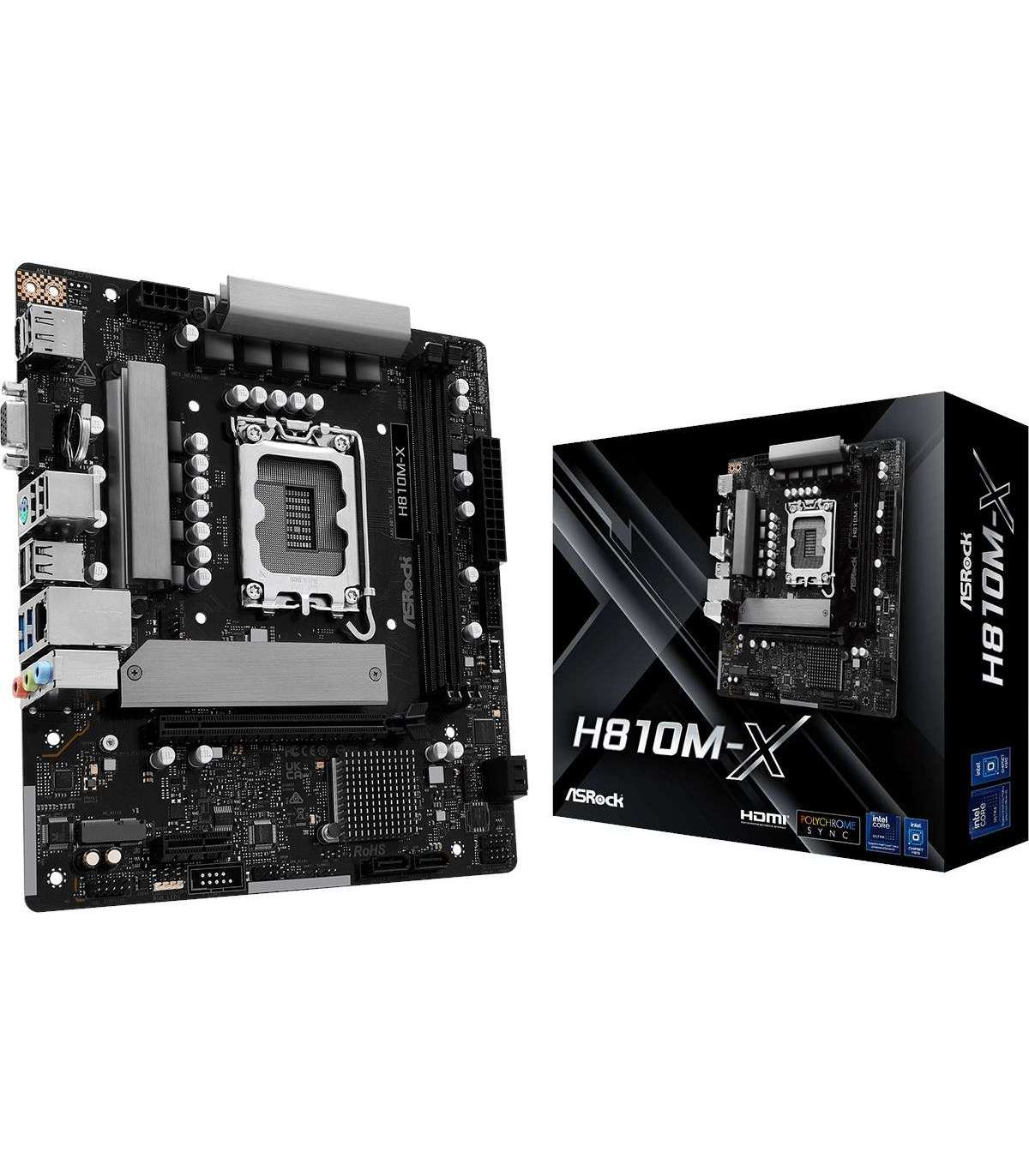

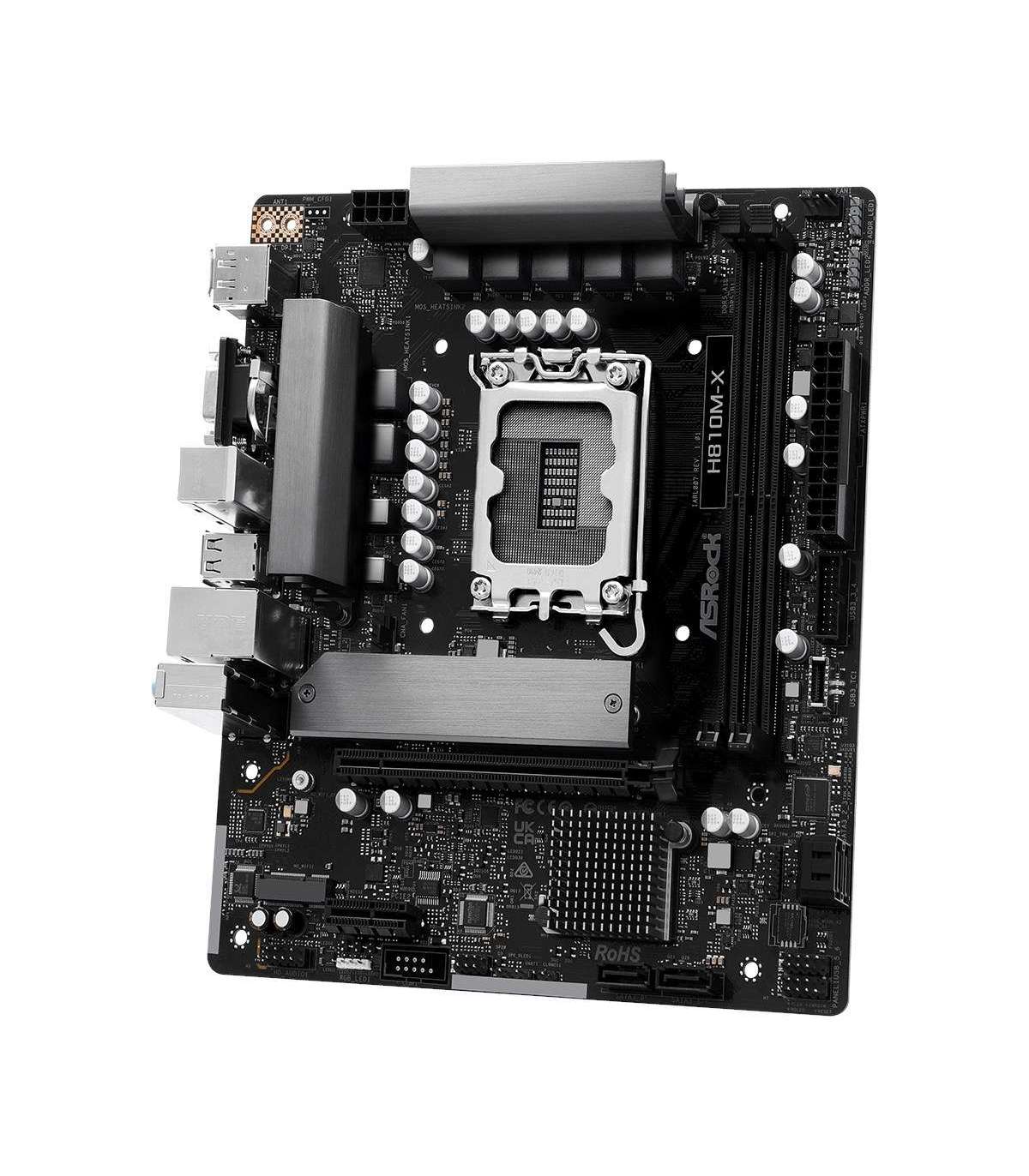

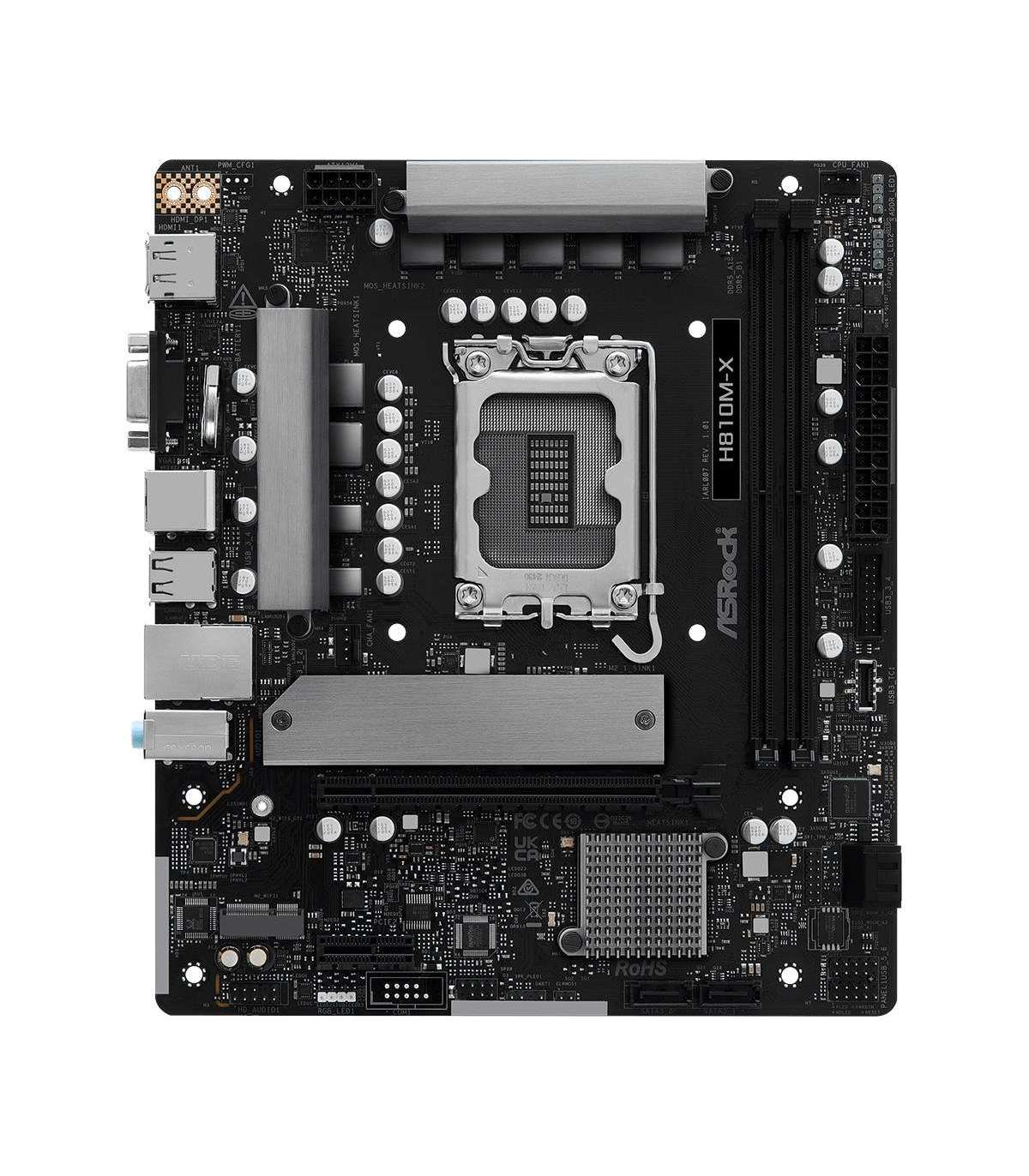

ASRock H810M-X Motherboard

Lisainfo

Depth

193 mm

Laius

220 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 11 x64

Warnings

In case of installation problems, contact a qualified service technician.
When disposing of the product, follow local regulations for the recycling of electronics.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

Yes

Maximum internal memory

128 GB

Motherboard chipset

Intel H810

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Graphics card family

Intel

Processor socket

LGA 1851 (Socket V1)

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Number of chassis fan connectors

1

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

RGB LED pin header

Yes

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

Number of CPU fan connectors

1

Screws included

Yes

DisplayPort version

1.4

PCI Express x1 (Gen 4.x) slots

1
